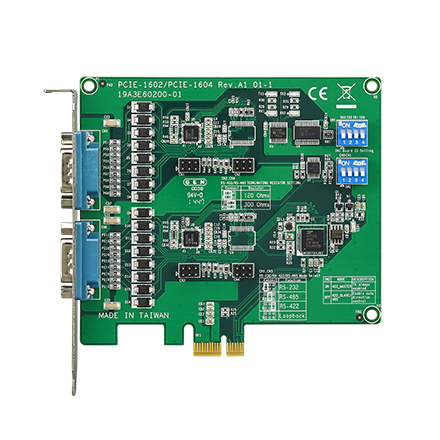

2-port RS-232/422/485 PCIe Comm. Card

SKU: PCIE-1602B-AE
GTIN (EAN/UPC): 4719896001232
Brand: Advantech
https://safeconsulting.no/web/image/product.template/13071/image_1920?unique=0d8b02a

kr 1 317,32 1317.32 NOK kr 1 317,32 Ekskl. mva

kr 1 317,32 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    This PCI Express communication card features 2 ports that support RS-232/422/485 protocols for versatile industrial use. It offers reliable performance with advanced protections and compatibility with various operating systems. The card is ideal for environments requiring robust serial communication solutions.

    Nøkkelfunksjoner

    • 2-port RS-232/422/485 communication
    • PCI Express 2.0 compliant
    • High-speed 921.6 kbps support
    • Supports multiple OS
    • Includes ICOM tools software
    • Advanced ESD, EFT, and surge protection
    • Wide operating temperature range

    Viktige bruksområder

    • Industrial Automation Systems
    • SCADA and HMI Applications
    • Data Acquisition Systems
    • Test and Measurement Equipment
    • Industrial Networking

    Beskrivelse

    The 2-Port RS-232/422/485 PCIe Communication Card is designed for industrial applications requiring robust and reliable serial connectivity. It supports a variety of communication protocols and speeds up to 921.6 kbps, with flexible compatibility across multiple operating systems. Featuring a PCI Express 2.0 compliant interface and two DB9 male connectors, this card offers high-quality ESD, EFT, and surge protection in select models. Ideal for demanding industrial environments, it supports a wide operating temperature range and comes with bundled ICOM tools software for enhanced functionality.

    Produktspesifikasjoner

    Specification Details
    General
    Certification
    • CE
    • FCC Class A
    Connectors
    • 2 x DB9, male
    Dimensions (L x H)
    • 119.63 x 111 mm (4.71 x 4.4 in)
    Power Consumption
    • 260 mA @ +3.3V (typical)
    Communications
    Controller
    • XR17V352
    Data Bits
    • 5
    • 6
    • 7
    • 8
    FIFO
    • 256 bytes
    Parity
    • None
    • Odd
    • Even
    • Mark
    • Space
    Speed
    • 50 bps ~ 921.6 kbps
    Stop Bits
    • 1
    • 1.5
    • 2
    Software
    Bundled Software
    • ICOM tools
    OS Support
    • Windows XP
    • Windows 7
    • Windows 8
    • Windows 10
    • Linux
    Environment
    Operating Humidity
    • 5 ~ 95% RH (non-condensing)
    Operating Temperature
    • -10 ~ 60 °C (14 ~ 140 °F)
    Storage Temperature
    • -25 ~ 85 °C (-13 ~ 185 °F)
    Protection
    PCIE-1602BESD Protection:
    • 15KV (air), 8KV (contact)

    EFT Protection:
    • 1000 V

    Surge Protection:
    • 1000 VDC

    PCIE-1602CESD Protection:
    • 15KV (air), 8KV (contact)

    EFT Protection:
    • 1000 V

    Surge Protection:
    • 1000 VDC

    Isolation Protection:
    • 3000 VDC
