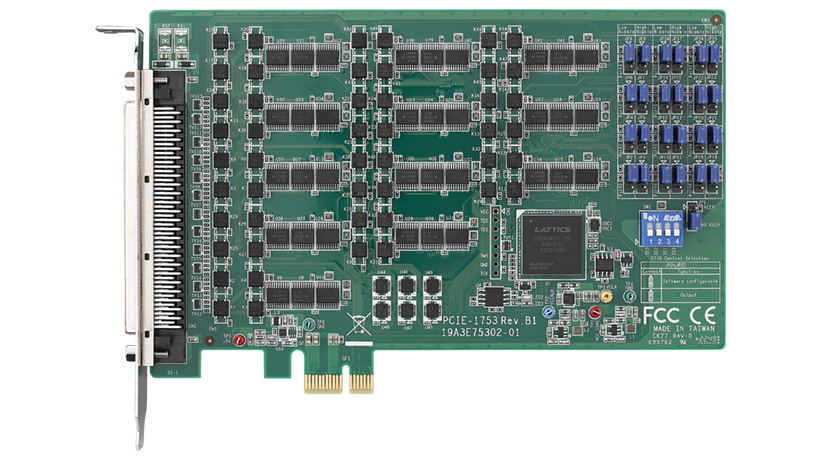

96ch TTL Digital I/O Card
| SKU: | PCIE-1753-AE |
| Brand: | Advantech |
Beskrivelsesammendrag
This 96-channel PCI Express card is designed for industrial environments, providing compatibility with 5 V/TTL levels. It offers advanced interrupt handling and retains I/O settings post-reset. Perfect for automation and monitoring applications.
Nøkkelfunksjoner
- Universal PCI Express Bus
- 96 Digital I/O Channels
- 5 V/TTL Compatibility
- Buffered Circuit Outputs
- Interrupt Capabilities
- Retains I/O Settings
- Supports Dry/Wet Contacts
- Intel 8255 Emulation
- Programmable Digital Filter
- Pattern Match Interrupt
Viktige bruksområder
- Industrial Automation
- Data Acquisition
- Factory Monitoring
- Remote I/O Systems
- Process Control
Beskrivelse
The 96-Channel Digital I/O PCI Express Card offers robust features, including universal PCI Express bus compatibility and Intel 8255 PPI emulation. Its design supports both dry and wet contact types with 96 digital I/O channels, which provide higher driving capacity due to buffered circuits. The card ensures reliable performance with interrupt handling, programmable filters, and pattern match interrupt functionality.
Produktspesifikasjoner
| Specification | Details |
|---|---|
| General Specifications | |
| SKU |
|
| Compliance |
|
| Digital Input | |
| Channels |
|
| Compatibility |
|
| Input Voltage | Logic 0:
Logic 1:
|
| Interruptible Channels |
|
| Digital Output | |
| Channels |
|
| Compatibility |
|
| Output Voltage | Logic 0:
Logic 1:
|
| Output Capability | Sink:
Source:
|
| Connectivity | |
| I/O Connector |
|
| Dimensions and Environment | |
| Dimensions (L x H) |
|
| Power Consumption | Typical:
Max:
|
| Operating Temperature |
|
| Storage Temperature |
|
| Storage Humidity |
|
