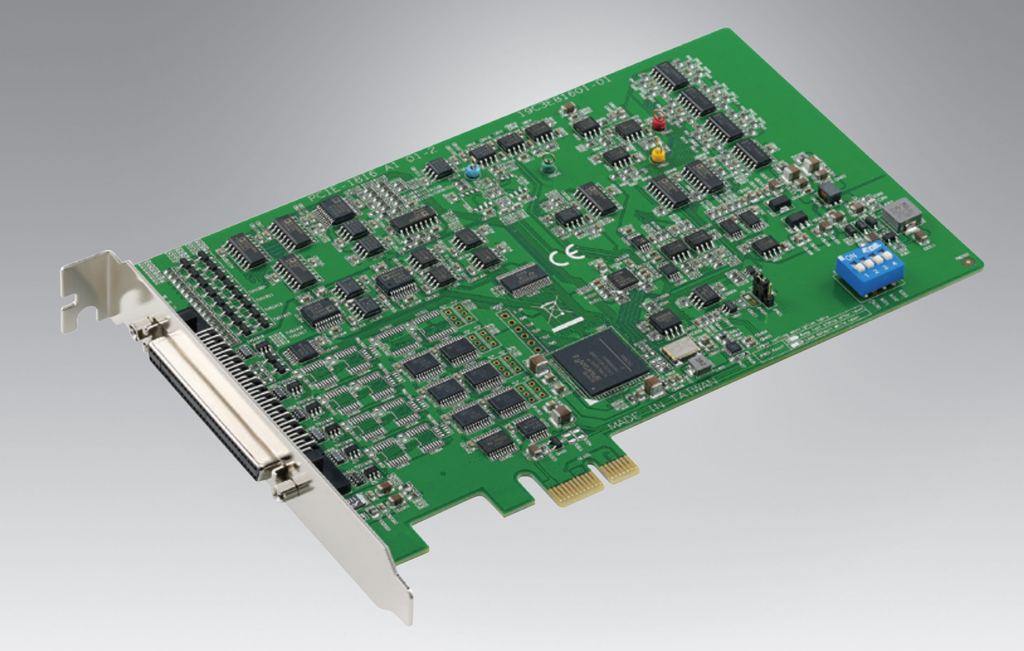

16ch, 16bit, 5 MS/s PCIE Multifunction Card

SKU: PCIE-1816H-AE
Brand: Advantech
https://safeconsulting.no/web/image/product.template/13176/image_1920?unique=b6a1da3

kr 10 908,95 10908.95 NOK kr 10 908,95 Ekskl. mva

kr 10 908,95 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    PCIE-1816H is a multifunction 16-bit DAQ card offering high-speed data acquisition at up to 5 MS/s. It supports a variety of I/O interfaces, including analog and digital channels, with versatile trigger options.

    Nøkkelfunksjoner

    • 16 analog inputs with 16-bit resolution
    • 5 MS/s max sampling rate
    • Support for digital and analog triggers
    • Waveform generation capability
    • 24 digital I/O lines
    • 2 programmable counter/timers
    • Onboard FIFO memory
    • RoHS compliant

    Viktige bruksområder

    • Industrial Automation
    • Data Logging Systems
    • Signal Processing
    • Biomedical Signal Acquisition
    • Electronic Testing
    • Research and Development

    Beskrivelse

    The PCIE-1816H is a high-performance 16-channel, 16-bit data acquisition card designed for PCI Express. It offers a maximum sampling rate of 5 MS/s for analog inputs and up to 3 MS/s for analog outputs. The card supports both digital and analog triggers and features programmable digital I/O lines. Additional benefits include onboard FIFO memory and waveform generation capabilities, making it suitable for various industrial applications.

    Produktspesifikasjoner

    Specification Details
    Analog Input
    Channels
    • 16 single-ended / 8 differential
    Resolution
    • 16-bit
    Sample RateSingle Channel:
    • 5 MS/s max

    Multiple Channels:
    • 1 MS/s max

    Trigger
    • Digital and analog triggers
    FIFO Size
    • 4000 samples
    Overvoltage Protection
    • 30 Vp-p
    Input Impedance
    • 1 GΩ
    Sampling Mode
    • Software
    • External clock
    Input Range
    • Software programmable
    Analog Output
    Channels
    • 2
    Resolution
    • 16
    Output Rate
    • 3 MS/s max
    Output RangeInternal Reference: Unipolar:
    • 0 ~ 5 V
    • 0 ~ 10 V

    Bipolar:
    • -5 V ~ 5 V
    • -10 V ~ 10 V


    External Reference:
    • 0 ~ +x V @ -x V (-10 ≤ x ≤ 10)

    Slew Rate
    • 20 V/μs
    Driving Capability
    • 5 mA
    Operation Mode
    • Static update
    • Waveform generation
    AccuracyINLE:
    • ± 4 LSB

    DNLE:
    • ± 1 LSB

    Digital I/O
    Channels
    • 24
    Compatibility
    • 5 V/TTL
    Input VoltageLogic 0:
    • 0.8 V max

    Logic 1:
    • 2.0 V min

    Output VoltageLogic 0:
    • 0.8 V max

    Logic 1:
    • 2.0 V min

    Output CapabilitySink:
    • 15 mA @ 0.8 V

    Source:
    • 15 mA @ 2.0 V

    Counter
    Channels
    • 2
    Resolution
    • 32
    Compatibility
    • 5 V/TTL
    Max Input Frequency
    • 10 MHz
    Pulse Generation
    • True
    Timebase Stability
    • 50 ppm
    General
    Form Factor
    • PCI Express x1
    Triggering
    • 2 x Analog / 2 x Digital (16 bits)
    IO Connector
    • 68-pin SCSI, female
    Dimensions
    • 167 x 100 mm (6.6" x 3.9")
    Power ConsumptionTypical: 3.3V:
    • 488 mA

    12V:
    • 112 mA


    Max: 3.3V:
    • 2.25 A

    12V:
    • 390 mA


    TemperatureOperating:
    • 0 ~ 60 °C (32 ~ 140 °F)

    Storage:
    • -40 ~ 70 °C (-40 ~ 158 °F)

    Humidity
    • 5 ~ 95% RH non-condensing
