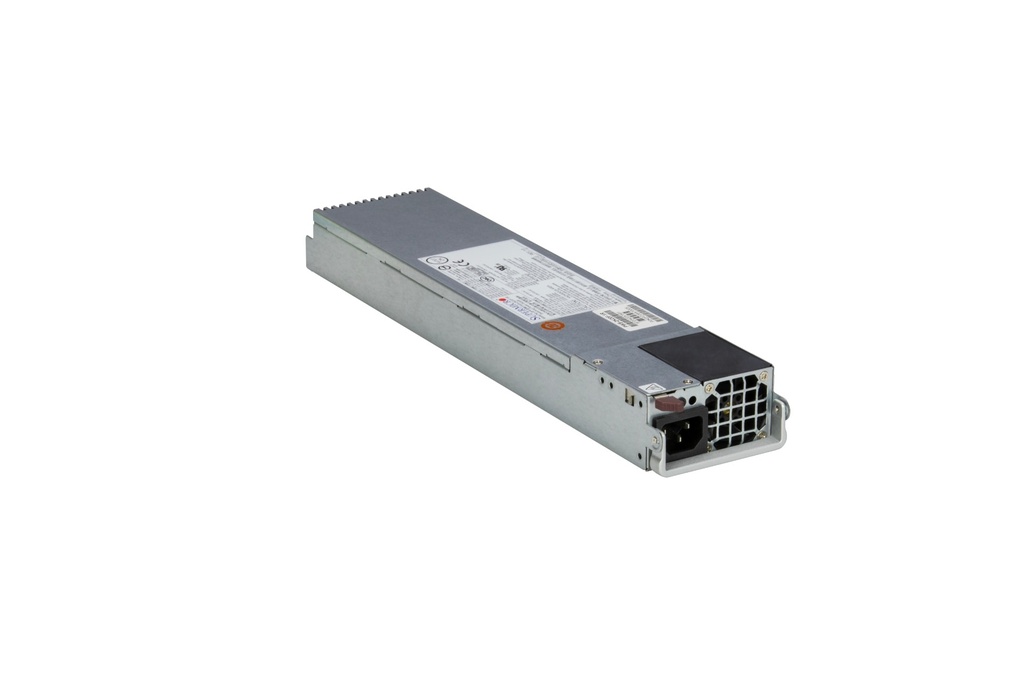

1U 2200W Redundant Power Supply Titanium,76(W) X 40(H) X 360
PWS-2K20F-1R
Summary Description
The PWS-2K20F-1R is a 1U 2200W Redundant Power Supply with Titanium efficiency, featuring dimensions of 76(W) X 40(H) X 360(L) mm. It provides various power outputs depending on the input voltage. Included is a fan for air flow from the AC inlet to the DC output connector, making it suitable for high-efficiency power applications.
Key Features
- Multiple power output configurations
- Supports PMBus 1.2
- 1U 2200W Redundant Power Supply
- Lightweight at 1.6 kg
- Fan air flow from AC inlet to DC output connector
- Titanium efficiency certification
- Dimensions: 76(W) X 40(H) X 360(L) mm
Key Applications
- Use with backplanes (gold finger)
Description
The PWS-2K20F-1R is a high-efficiency 1U 2200W Redundant Power Supply with Titanium certification. It offers multiple power output configurations ranging from 1200W to 2200W depending on the input voltage. Its dimensions are 76(W) X 40(H) X 360(L) mm, making it compact for various use cases. It includes a fan that ensures optimal air flow from the AC inlet to the DC output connector. The power supply supports PMBus 1.2 for enhanced monitoring and control capabilities, and it is designed for use with backplanes (gold finger). With a weight of just 1.6 kg, it's lightweight yet powerful, catering to a variety of redundant power needs.
Product Specifications
| Specification | Details |
|---|---|
| Dimensions | |
| length |
|
| width |
|
| height |
|
| Voltage_outputs | |
| 5V |
|
| 12V |
|
| +3.3V |
|
| +5V Standby |
|
| +12V Standby |
|
| -12V |
|
| General | |
| SKU |
|
| Output |
|
| Redundant |
|
| Weight |
|
| Output Type |
|
| 80 Plus Certification |
|
| PM Bus |
|
