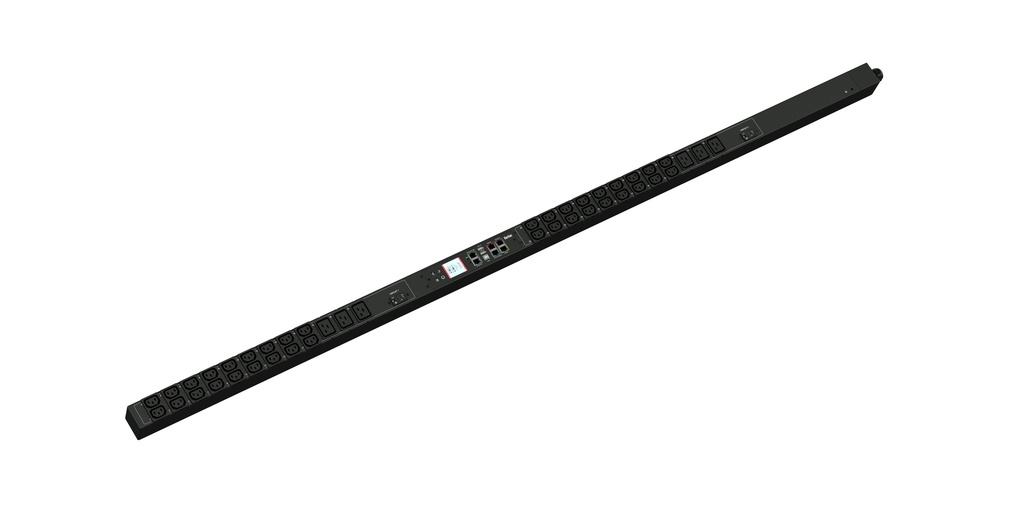

Raritan PX3-1847V

SKU: PX3-1847V
Brand: Raritan
https://safeconsulting.no/web/image/product.template/13742/image_1920?unique=32ed8ac

kr 12 158,91 12158.91 NOK kr 12 158,91 Ekskl. mva

kr 12 158,91 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    Raritan PX3-1847V. PDU types: Monitored, Rack capacity: 0U, Mounting: Vertical. AC outlets quantity: 42 AC outlet(s), AC outlet types: C13 coupler, C19 coupler, Power plug: IEC 60309. Cable length: 3 m, Security algorithms: HTTPS, SNMPv3, SSH. Nominal input voltage: 200-240 V, Maximum current: 32 A, AC input frequency: 50 - 60 Hz. Compliance certificates: RoHS, Certification: CE, ICES-003, FCC

    Nøkkelfunksjoner

    • Monitored 0U Black
    • LCD
    • 42 AC outlet(s) C13 coupler, C19 coupler

    Viktige bruksområder

    • Data Centers
    • Telecommunications
    • Enterprise IT Infrastructure
    • Server Rooms
    • Network Operations Centers

    Beskrivelse

    PX3-1847V

    Monitored rack power distribution unit (0U [vertical], 7.4kVA, 42 outlets). INPUT: 230v, 32a - IEC 60309 2P+E 6h 32A plug (2P3W); OUTPUT: 36@ C13, 6@ C19 outlets; on 2@ 1-pole, 16a Overcurrent Protectors; FEATURES: Billing-Grade (+/- 1%) Energy Metering [kW, kVA, V, A, Power Factor] - per inlet, per breaker/fuse; Color, matrix LCD display : Voltage, current, or active power (per line or per breaker); Alarms; Configuration information (name, ratings, IP / Networking).; Field-Replaceable, hot-swappable network module with 400MHz processor, 16MB NOR Flash, and 64MB SDRAM; (10/100) Ethernet portRemote network monitoring via HTML, JSON-RPC, SSH, Telnet, MODBUS/TCP, and SNMPv3. Environmental monitoring [temp/humidity] capable of up to 32 sensors. Individual outlet numbers labeled on chassis. Automated deployment via TFTP, DHCP/PXE, SSH(CLI), or USB Flash Drives. WiFi Capable. USB Webcam Capable. iPad/iPhone/Android App. Breaker metering and alarming (0V detection). Max Dimensions 52mm x 55mm x 1780mm (2.1in x 2.2in x 70.1in). Max Weight 6.5 kg. Maximum ambient temperature 60C at full load.

    Produktspesifikasjoner

    Specification Details
    Design
    PDU types
    • Monitored
    Rack capacity
    • 0U
    Mounting
    • Vertical
    Product colour
    • Black
    Display
    • LCD
    Ports & interfaces
    AC outlets quantity
    • 42
    Power plug
    • IEC 60309
    AC outlet types
    • C13 coupler,C19 coupler
    Ethernet LAN (RJ-45) ports
    • 2
    USB ports quantity
    • 3
    Features
    Daisy chain
    • Yes
    Reset button
    • Yes
    LED indicators
    • Yes
    Cable length
    • 3
    Security algorithms
    • HTTPS,SNMPv3,SSH
    Power
    Nominal input voltage
    • 200-240
    AC input frequency
    • 50 - 60
    Maximum current
    • 32
    Output voltage
    • 200-240
    Load capacity
    • 7700
    Power protection features
    • Over current,Overload
    Certificates
    Compliance certificates
    • RoHS
    Certification
    • CE, ICES-003, FCC
    Operational conditions
    Operating altitude
    • 0 - 3000
    Weight & dimensions
    Width
    • 1780
    Depth
    • 55
    Height
    • 52
    Weight
    • 6500
    Packaging data
    Package weight
    • 8800
    Package width
    • 2055
    Package depth
    • 115
    Package height
    • 280
