  2. Raritan PX3-5297

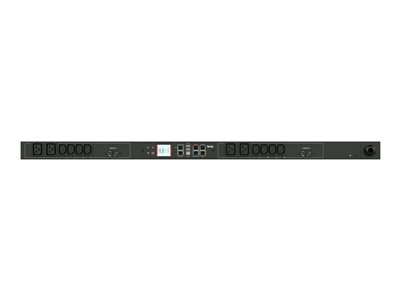

Raritan PX3-5297

SKU: PX3-5297
Brand: Raritan
https://safeconsulting.no/web/image/product.template/13679/image_1920?unique=64758c3

kr 13 708,19 13708.19 NOK kr 13 708,19 Ekskl. mva

kr 13 708,19 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The Raritan PX3-5297 is a single-phase power distribution unit offering 12 outlets and a power capacity of 7400 VA. It features network connectivity and remote management capabilities.

    Nøkkelfunksjoner

    • 12 outlets including C13 and C19
    • 7400 VA power capacity
    • Rack-mountable 0U design
    • Remote management via SNMP and more
    • 32A rated power input

    Beskrivelse

    Raritan PX3-5297 is a rack-mountable power distribution unit with a power capacity of 7400 VA. It supports 1-phase 3-wire installations and provides network connectivity via RS-232 and Ethernet. This PDU is designed for reliable power distribution in data centers, enhancing safety with features like overload protection and secure lock options.

    Produktspesifikasjoner

    Specification Details
    General
    Product Description
    • Raritan Dominion PX PX3-5297 - Power Distribution Unit - 7400 VA
    Device Type
    • Power Distribution Unit - Rack-mountable
    Cable Length
    • 3 m
    Rack Size
    • 0U
    Color
    • Black powder coat
    Power Supply
    Input Voltage
    • AC 230 V
    Input Voltage Range
    • AC 200 - 240 V
    Input Wiring
    • 1-phase 3-wire
    Frequency
    • 50/60 Hz
    Input Connectors
    • 1 x Power IEC 60309 32A
    Output Voltage
    • AC 230 V
    Output Connectors
    • 8 x Power IEC 60320 C13 - 230 V 10 A
    • 4 x Power IEC 60320 C19 16A - 230 V 16 A
    Max Electric Current
    • 32 A
    Power Capacity
    • 7400 VA
    Performance Capacity Details
    • 6.4 kVA at 200 V, 7.7 kVA at 240 V
    Circuit Protection
    • Circuit breaker
    Networking
    Remote Management Interface
    • RS-232, Ethernet 10/100/1000
    Remote Management Protocol
    • SNMP 2, Telnet, SNMP 3, HTTP, HTTPS, SSH, JSON-RPC, SMTP
    Expansion/Connectivity
    Interfaces
    • 1 x Cascade - RJ-45
    • 2 x Monitoring - RJ-45
    • 1 x RS-232 - RJ-45
    • 2 x USB - 4-pin USB Type A
    • 1 x USB - 4-pin USB Type B
    • 1 x Management (Fast Ethernet) - RJ-45
    • 1 x Control (Gigabit Ethernet) - RJ-45
    Miscellaneous
    Included Cables
    • Power cable 3 m
    Features
    • Splashproof
    • Voltage monitoring
    • Power meter
    • Overload protection
    • Cascade capability
    • Active power meter
    • True power meter
    • Energy meter
    • Power factor meter
    • Raritan SecureLock Ready
    Compliant Standards
    • ICES-003, RoHS, FCC Part 15 A, IEC 62053-21, ISO 62053-21
    Manufacturer Warranty
    Service & Support
    • Limited warranty - 2 years
    Environmental Parameters
    Max Operating Temperature
    • 60 °C
    Humidity Range Operating
    • 85%
    Dimensions & Weight
    Width
    • 5.2 cm
    Depth
    • 6.5 cm
    Height
    • 104.4 cm
    Weight
    • 5 kg
    Dimensions & Weight (Shipping)
    Shipping Width
    • 28 cm
    Shipping Depth
    • 11.5 cm
    Shipping Height
    • 117.5 cm
    Shipping Weight
    • 6 kg
