  2. [NR]6U/5Node SuperBlade UP GNR/SRF-AP with 4E3.S

[NR]6U/5Node SuperBlade UP GNR/SRF-AP with 4E3.S

SKU: SBI-612BA-5NE34
Brand: Supermicro
https://safeconsulting.no/web/image/product.template/13554/image_1920?unique=ee9bf52

kr 18 155,28 18155.28 NOK kr 18 155,28 Ekskl. mva

kr 18 155,28 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    Experience high performance with the 6U/5Node SuperBlade, equipped with Intel Xeon 6900 series for cloud and enterprise applications. Supports up to 3TB DDR5 memory and features advanced storage and network capabilities.

    Nøkkelfunksjoner

    • 35 servers per 42U rack
    • Single Socket BR (LGA-7529), Intel® Xeon® 6900 series processors
    • Up to 12 DIMMs supporting up to 3TB 6400MT/s DDR5 RDIMM or 1.5TB 8800MT/s DDR5 MRDIMM
    • 4 Hot-swap E3.S NVMe NVMe SSD, 2 M.2 NVMe SSD
    • Dual-port 25G Ethernet (LOM)
    • Expansion slot for Ethenret mezzanine card and for standard PCIe card

    Viktige bruksområder

    • Enterprise Applications
    • High Performance Computing
    • Engineering/scientific research
    • Cloud, virtualization, financial, EDA

    Beskrivelse

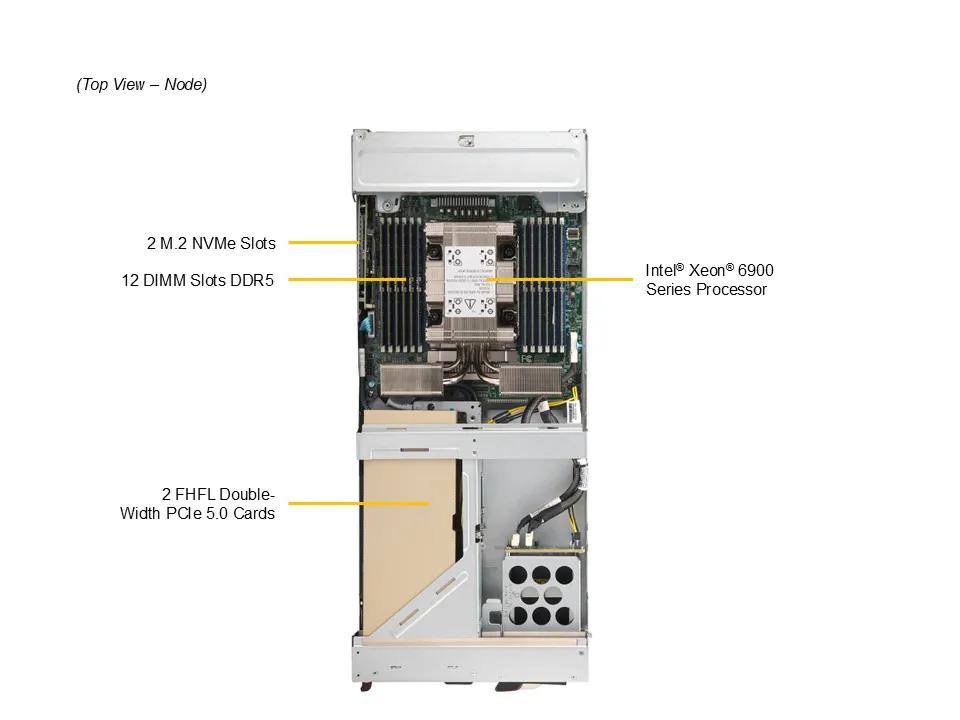

    The SuperBlade UP GNR/SRF-AP with 4E3.S is designed for enterprise applications, featuring single socket BR (LGA-7529) and support for Intel Xeon 6900 series processors. With up to 12 DIMMs, it supports up to 3TB of 6400MT/s DDR5 RDIMM or 1.5TB of 8800MT/s DDR5 MRDIMM. The unit includes 4 hot-swap E3.S NVMe SSDs and 2 M.2 NVMe SSD slots, offering extensive storage options. Network capabilities are enhanced with dual-port 25G Ethernet LOM and expansion for mezzanine and PCIe cards. Ideal for cloud, virtualization, and high-performance computing environments.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SuperBlade Sled
    • SBI-612BA-5NE34
    Motherboard
    • MBD-B14SBE-CPU-AP
    Processor (per Node)
    CPU
    • Single Socket BR (LGA-7529)
    • Intel® Xeon® 6900 series processors with P-cores
    Note
    • Up to 500W with D2C (Liquid Cooled)
    System Memory (per Node)
    Memory Capacity
    • 12 DIMM slots
    • Up to 3TB 6400MT/s DDR5 RDIMM or 1.5TB 8800MT/s DDR5 MRDIMM
    On-Board Devices (per Node)
    Chipset
    • System on Chip
    Network Controllers
    • Onboard Dual 25G Ethernet
    • 1 expansion slot w/ optional mezzanine cards
    MGMT/Security
    • IPMI 2.0 / KVM over IP / Redfish API/TPM 2.0/Signed Firmware/HW Root of Trust
    Graphics
    • Aspeed AST2600
    System BIOS
    BIOS Type
    • AMI 256MB SPI Flash EEPROM
    Dimensions
    Height
    • 9.75"
    Width
    • 3.5"
    Depth
    • 23.5"
    Weight
    • 13.7 lbs (6.21 kg)
    Available Colors
    • Metalic Silver with Black Drive Bays
    Front Panel
    Buttons
    • Power On/Off button
    LEDs
    • Power LED
    • UID
    • Network Activity LED
    • Fault LED
    Expansion Slots (per Node)
    PCIe
    • 2 PCIe PCIe Gen. 5 x16 slot, support 1 FHFL DW PCIe card or 2 SW PCIe cards
    Drive Bays / Storage (per Node)
    Hot-swap
    • 4 Hot-swap E3.S NVMe SSDs
    M.2
    • 2 M.2 NVMe SSD
    Input / Output
    TPM
    • 1 TPM Header
    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:-30°C to 60°C (-22°F to 140°F)
    • Operating Relative Humidity:8% to 80% (non-condensing)
    • Non-operating Relative Humidity:8% to 90% (non-condensing)

    Valgfrie Opsjoner

    Part Number Quantity Description
    Heatsink / Retention
    SNK-P0087V-1U Passive CPU VC HS
    Networking
    AOC-B25G-6X4D-Dual-port 25G Mezz card for SuperBlade 6U Chassis (Mellanox ConnectX-4 Lx EN)
    AOC-B25G-6CVL-25G DUAL PORT MEZZANINE CARD,Intel Columbiaville, E810-XXVAM2
    Software
    SFT-DCMS-Single-DataCenter Management Package (per node license)
