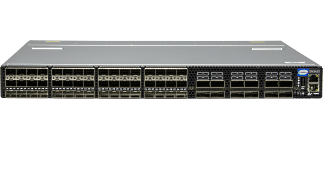

MSN3420-CB2FCSwitch- 25/100GbE 1U 48pxSFP28 / 12QSFP28 P2C
SSE-SN3420-CB2FC
Beskrivelsesammendrag
The Supermicro MSN3420 switch combines high density, energy-efficient design, and cost-effectiveness, making it an excellent choice for top-of-rack deployments in modern data centers. It supports 48 SFP28 and 12 QSFP28 Ethernet ports with non-blocking throughput and redundant power supplies.
Nøkkelfunksjoner
- 48 SFP28 and 12 QSFP28 Ports
- 4.8Tbps Switching Capacity
- Cumulus Linux Pre-installed
- Dual Hot-swappable Power Supplies
- Non-blocking Throughput
- Redundant Cooling Fans
Viktige bruksområder
- Data Center Networking
- High-Performance Computing
- Cloud Infrastructure
- Top-of-Rack Switching
- Leaf-Spine Architecture
Beskrivelse
The Supermicro MSN3420 is a high-performance 25GbE/100GbE open networking switch featuring 48 SFP28 ports and 12 QSFP28 ports. This 1U switch offers 4.8Tbps non-blocking throughput with dual hot-swappable power supplies and fans. Preloaded with Cumulus Linux OS, it includes hardware acceleration for optimal routing and switching functions, making it ideal for data center deployments.
Produktspesifikasjoner
| Specification | Details |
|---|---|
| Performance | |
| Switching Capacity |
|
| Processing Capacity |
|
| Full Duplex Throughput |
|
| Physical Ports | |
| Ethernet Ports |
|
| Additional Ports |
|
| Power | |
| Power Supplies |
|
| Input Voltage |
|
| Frequency |
|
| Current |
|
| Physical/Environmental | |
| Weight |
|
| Form Factor |
|
| Dimensions |
|
| Operating Temperature |
|
| Humidity |
|
| General | |
| Compliance |
|
| Operating System |
|
Optional Part List
| Part Number | Quantity | Description |
|---|---|---|
| SFP+ Copper Cable | ||
| CBL-NTWK-0720 | - | Twinax copper cable, 3.0M, 40GbE/QSFP+ to 4x 10GbE/ SFP+,30AWG |
| QSFP28 Copper Cable | ||
| CBL-NTWK-0943-SQ28C10M | - | ETHERNET,QSFP28,100GbE,PASSIVE,LSZH,1m,Molex |
| CBL-NTWK-0943-SQ28C30M | - | ETHERNET,QSFP28,100GbE,PASSIVE,LSZH,3m,Molex |
| CBL-NTWK-0943-SQ28C50M | - | ETHERNET,QSFP28,100GbE,PASSIVE,LSZH,5m,Molex |
| 100G to 4x25G splitter | ||
| CBL-NTWK-0988-Q28M1 | - | ETHERNET,100GbE/QSFP28 to 4x 25GbE/SFP28,PASSIVE,1M,30AWG, Molex |
| CBL-NTWK-0988-Q28M2 | - | ETHERNET,100GbE/QSFP28 to 4x 25GbE/SFP28,PASSIVE,2M,30AWG, Molex |
| CBL-NTWK-0988-Q28M3 | - | ETHERNET,100GbE/QSFP28 to 4x 25GbE/SFP28,PASSIVE,3M,30AWG, Molex |
| CBL-NTWK-0988-Q28M5 | - | ETHERNET,100GbE/QSFP28 to 4x 25GbE/SFP28,PASSIVE,5M,30AWG, Molex |
| SFP+ SR Transceiver Module (10GE) | ||
| AOC-E10GSFPSR | - | SFP+ Transceiver 10GbE fiber cable connections, 850nm, MMF,LC |
| SFP+ LR Transceiver Module | ||
| AOC-E10GSFPLR | - | SFP+ Transceiver 10/1G BASE, LR Optics, 1310nm, SMF, LC |
| QSFP28 Transceiver | ||
| TRX-QSFP28-100G-CWDM4 | - | TXCVR, QSFP28, 100GBASE CWDM4 , MSA, 1310nm, LC-LC |
| SFP+ to RJ45 Transceiver Module | ||
| AOM-AQS-107-B0C2-CX (revision 05) | - | Supermicro 10G SFP+ to RJ45 10GBASE-T/1000BASE-T Optical Transceivers |
| SFP28 Transceiver Module | ||
| AOM-SFP28-25GbE-SR-1-MLN | - | SFP28 Transceiver module 25G, 850nm, MMF, LC |
| QSFP Transceiver Module | ||
| AOM-40GBE-SR4E-MLX | - | QSFP Transceiver module, 40Gb/s, 850nm, MPO |
| QSFP+ SR4 Transceiver | ||
| AOM-TQSFP-79EQPZ-AVG | - | 40GbE IB-QDR QSFP+ SR4 Transceiver MPO/MMF 100m w/OM3 150m w/OM4 |
| QSFP28 Transceiver Module | ||
| TRX-100GbE-SR4-FIN | - | Ethernet TXCVR,QSFP28,100GBASE-SR4,850nm, MMF,MPO |
| QSFP+ Transceiver Module | ||
| TRX-40GBE-SR4E-FIN | - | ETHERNET TXCVR, QSFP+, 40GbE, 850NM, MMF, 300M, MPO |
| SFP LR Transceiver Module | ||
| TRX-1318P3LR-10KM | - | SFP Transceiver module; 1G, 1310nm, SMF, LC |
| SFP28 Copper Cable | ||
| CBL-NTWK-0944-SS28C05M | - | ETHERNET,SFP28,25GbE,PASSIVE,30 AWG,0.5M,Molex |
| CBL-NTWK-0944-SS28C10M | - | ETHERNET,SFP28,25GbE,PASSIVE,30 AWG,1M,Molex |
| CBL-NTWK-0944-SS28C20M | - | ETHERNET,SFP28,25GbE,PASSIVE,30 AWG,2M,Molex |
| CBL-NTWK-0944-SS28C30M | - | ETHERNET,SFP28,25GbE,PASSIVE,30 AWG,3M,Molex |
| CBL-NTWK-0944-SS28C50M | - | ETHERNET,SFP28,25GbE,PASSIVE,26 AWG,5M,Molex |
| CBL-NTWK-0944-MS28C05M | - | 0.5m 25GbE SFP28 to SFP28, Passive |
| CBL-NTWK-0944-MS28C10M | - | 1m 25GbE SFP28 to SFP28, Passive |
| CBL-NTWK-0944-MS28C15M | - | 1.5m 25GbE SFP28 to SFP28, Passive |
| CBL-NTWK-0944-MS28C20M | - | 2m 25GbE SFP28 to SFP28, Passive |
| CBL-NTWK-0944-MS28C25M | - | 2.5m 25GbE SFP28 to SFP28, Passive |
| CBL-NTWK-0944-MS28C30M | - | 3m 25GbE SFP28 to SFP28, Passive |
| Global Services & Support | ||
| OS4HR3/2/1 | - | 3/2/1-year onsite 24x7x4 service |
| OSNBD3/2/1 | - | 3/2/1-year onsite NBD service |
