X12DSC-A6, CSV-826S2TS-R1K62P1

SKU:

SSG-620P-E1CR24H

Brand:

Supermicro

Produktnotat:

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 2 CPUs, 4 DIMMs, 1 Storage Device, 1 Server-Grade M.2/rear SATA SSD and 1 AIOM/AOC NIC).

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

kr 54 582,53 54582.53 NOK kr 54 582,53 Ekskl. mva

kr 54 582,53 Ekskl. mva

Denne kombinasjonen eksisterer ikke.

Legg i handlekurv

Salgsbetingelser

Beskrivelsesammendrag

The Supermicro SSG-620P-E1CR24H is a high-performance storage server designed for enterprise applications. It features dual socket 3rd Gen Intel Xeon Scalable processors, up to 72 cores per node, and supports up to 4TB of DDR4 ECC memory. With 24 hot-swap SAS3/SATA3 drive bays, dedicated PCIe 4.0 AIOM slot, and comprehensive server management, it is ideal for data centers, HPC, and database processing.

Nøkkelfunksjoner

Dual socket 3rd Gen Intel® Xeon® Scalable processors, up to 72 Cores Per Node
16 ECC DDR4-3200: LRDIMM/RDIMM
Dedicated PCIe 4.0 AIOM slot3 x PCIe 4.0 x16 Slots
Server remote management: IPMI 2.0 / KVM over LAN / Media over LAN per node

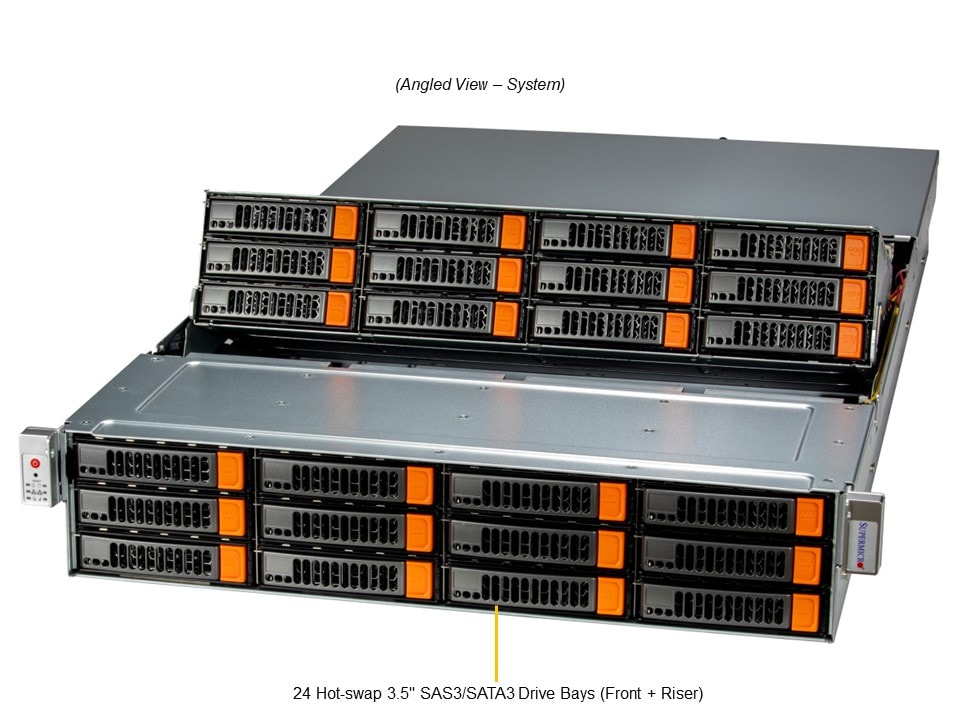

24 3.5" Hot-swap SAS3/SATA3 drives, 4x Rear SATA/NVMe Slots, 2x SATA/NVMe M.2 (form factor: 2280)
5x 8cm hot-swap counter-rotate redundant PWM cooling fans
1600W Redundant Power Supplies Titanium Level (96%)
HW RAID support via Broadcom® 3908

Viktige bruksområder

Enterprise Server
iSCSI SAN
HPC, Data Center
Database Processing & Storage
Corporate Database
Appliance Optimized Storage Building Blocks

Beskrivelse

The Supermicro SSG-620P-E1CR24H is built to provide superior performance and scalability for enterprise environments. Equipped with dual socket 3rd Gen Intel Xeon Scalable processors, it can handle intensive computational workloads with up to 72 cores per node. The server supports 16 DIMM slots with a maximum of 4TB DDR4 ECC memory. It also features 24 hot-swap 3.5" SAS3/SATA3 drive bays, 5 hot-swap PWM cooling fans, and 1600W redundant power supplies. Comprehensive remote management and monitoring capabilities make this server a reliable choice for iSCSI SAN, HPC, data centers, and more.

Produktspesifikasjoner

Specification	Details
Product SKUs
SKUs	SuperServer SSG-620P-E1CR24H
Motherboard
Installed Motherboard	Super X12DSC-A6
Processor
CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 38C/76T; Up to 57MB Cache per CPU
Note	Supports 120W - 205W TDP CPUs (Air Cooled)
System Memory
Memory	Slot Count: 16 DIMM slots Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage	1.2V
On-Board Devices
Chipset	Intel® C621A
Network Connectivity	Via AIOM
Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port(s)
USB	2 USB 3.0 port(s) (rear)
Video	1 VGA port(s)
DOM	2 Super DOM (Disk on Module) port(s)
System BIOS
BIOS Type	AMI 128MB SPI Flash EEPROM
Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown
PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
Chassis
Form Factor	2U Rackmount
Model	CSE-826STS-R1K62P1
Dimensions and Weight
Height	3.5"
Width	17.2"
Depth	34"
Package	12" (H) x 29" (W) x 52" (D)
Weight	Gross Weight: 74.5 lbs (33.79 kg) Net Weight: 52 lbs (23.59 kg)
Available Color	Silver
Front Panel
LED	HDD activity Network activity Power status System information (overheat/UID)
Buttons	Power On/Off
Expansion Slots
PCI-Express (PCIe) Configuration	Default: 1 PCIe 4.0 x8 LP slot 2 PCIe 4.0 x16 LP slots 1 PCIe 4.0 x16 AIOM slot (OCP 3.0 compatible)
Drive Bays / Storage
Drive Bays Configuration	Default: Total 28 bays: 12 front hot-swap 3.5" SAS/SATA drive bays 12 top-loading hot-swap 3.5" SAS/SATA drive bays 2 rear hot-swap 2.5" SATA drive bays 2 rear hot-swap 2.5" NVMe drive bays
M.2	2 M.2 NVMe slots (M-key 2280/22110)
System Cooling
Fans	5 Heavy Duty 8cm Fan(s)
Power Supply
2x 1600W Redundant Titanium Level (96%) Hot-plug power supplies	Dimension (WxHxL): 73.5 x 40 x 203 mm AC Input: 1000W: 100-127Vac / 50-60Hz 1600W: 200-240Vac / 50-60Hz +12V: Max: 83.3A / Min: 0A (100Vac-127Vac) Max: 133A / Min: 0A (200Vac-240Vac) 12V SB: Max: 2.1A / Min: 0A Output Type: Backplanes (gold finger) Certification: Titanium Level
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (Non-Condensing) Non-operating Relative Humidity: 5% to 95% (Non-Condensing)

Valgfrie Opsjoner

Part Number	Quantity	Description
Converter Tray
MCP-220-00140-0B	-	Black gen 8 hot-swap 3.5-to-2.5 Tool-less HDD tray, orange tab
Network Cards
More	-	AOC Compatibility Matrix (Select Storage & Generation)
AOC-S25G-M2S	-	Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
AOC-S40G-I2Q	-	Standard LP 2-port 40GbE controller, Intel Fortville XL710
AOC-SGP-I2	-	Standard LP 2-port GbE, Intel 82575
NVMe Kit (1-2 NVMe Drive Support)
MCP-220-82620-0N	1	NVMe cage, includes BPN and drive trays
CBL-PWEX-1276	1	Power Cable
CBL-PWEX-0702	1	Power Cable
CBL-SAST-1244-85	1	Slimline x8 to Slimline x8 Cable, 45 CM - used for 1st NVMe cage
NVMe Kit (3-4 NVMe Drive Support)
CBL-SAST-1267-85	1	Slimline x8 to Slimline x8 Cable, 67 CM - used for 2nd NVMe cage
CBL-SAST-1244-85	1	Slimline x8 to Slimline x8 Cable, 45 CM - used for 1st NVMe cage
CBL-PWEX-0702	1	Power Cable
CBL-PWEX-1276	2	Power Cable
MCP-220-82620-0N	2	NVMe cage, includes BPN and drive trays
Power Cord
CBL-PWCD-0579	-	Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
CBL-PWCD-0579-1	-	Power Cord Type IEC (C14 to C13) 6 ft (14AWG), 15A, 250V
CBL-PWCD-0300-IS	-	PWCD,US,IEC60320 C14 TO C13,6FT,18AWG,RoHS/REACH
Short Rail
MCP-290-11808-0N	-	Supermicro 1U Rail Kit (Note: If short rail is used, system will not support cable management arm)
SuperCap Kit
BTR-CV3908-FT1	1	LSI 3908 CacheVault kit for Fat Twin w/ 24in extension cable
TPM
AOM-TPM-9671V-O	1	TPM 1.2, vertical form factor, provisioned for server
AOM-TPM-9670V-O	1	TPM 2.0, vertical form factor, provisioned for server
