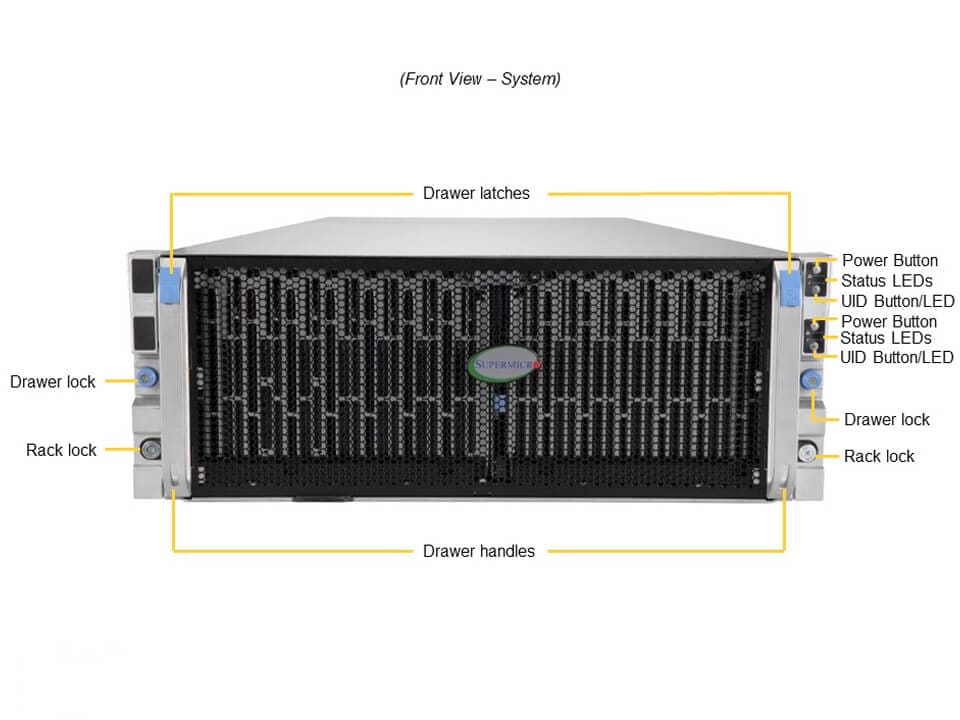

X12 Dual Node Twin 60-bay Storage Server

SSG-640SP-DE1CR60

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 4 CPUs, 4 DIMMs, 2 Storage Devices and 2 Server-Grade M.2/internal SATA SSD)

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10549/image_1920?unique=f7d9088

kr 101 418,56 101418.56 NOK kr 101 418,56

kr 101 418,56

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro SSG-640SP-DE1CR60 offers a versatile platform tailored for big data, AI/ML workloads, and robust data protection across diverse sectors. This 4U rackmount system houses dual socket 3rd Gen Intel® Xeon® Scalable processors, supports up to 72 cores per node, and offers extensive storage and connectivity options, making it an ideal choice for demanding environments.

    Key Features

    • Dual socket 3rd Gen Intel® Xeon® Scalable processors, up to 72 Cores Per Node
    • 16 ECC DDR4-3200: LRDIMM/RDIMM
    • 3 x PCIe 4.0 x16 HHHL PCIe slots
    • 60 3.5"/2.5" Hot-swap SAS3/SATA3 drives (Each node controls 30 drives)
    • 6x 8cm hot-swap counter-rotate redundant PWM cooling fans
    • 2600W Redundant Power Supplies Titanium Level (96%)
    • Server remote management: IPMI 2.0 / KVM over LAN / Media over LANDrive Controller support via Broadcom® 3916 or 3616

    Key Applications

    • Big Data & Analytics, Data Lake
    • HPC and AI/ML Workloads
    • Telco & Cloud Service Providers
    • Financial Services & Healthcare Image Archives
    • Content Repositories
    • Government Data Protection

    Description

    The Supermicro SSG-640SP-DE1CR60 is engineered for high-performance computing environments. Featuring dual socket 3rd Gen Intel® Xeon® Scalable processors with up to 72 cores per node, the system supports 16 ECC DDR4-3200 memory slots per node, allowing up to 4TB RAM. It offers extensive storage with 60 hot-swap SAS3/SATA3 drives and advanced network connectivity options with 2 RJ45 10GBASE-T ports per node. The SSG-640SP-DE1CR60 is designed to handle big data analytics, HPC, AI/ML workloads, and secure data protection. Additional features include redundant 2600W Titanium Level power supplies, robust cooling with 6 hot-swap fans, and comprehensive remote management tools.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SSG-640SP-DE1CR60
    Motherboard
    Installed Motherboard
    • Super X12DSC-6
    Processor (per Node)
    CPU
    • Dual Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 36C/72T; Up to 54MB Cache per CPU
    Note
    • Supports 120W - 205W TDP CPUs (Air Cooled)
    System Memory (per Node)
    Memory
    • Slot Count: 16 DIMM slots
    • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    Memory Voltage
    • 1.2V
    On-Board Devices (per Node)
    Chipset
    • Intel® C621A
    Network Connectivity
    • 2 RJ45 10GBASE-T
    Input / Output (per Node)
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    • 2 RJ45 10 GBASE-T LAN port(s)
    USB
    • 2 USB 3.0 port(s) (rear)
    Video
    • 1 VGA port(s)
    DOM
    • 2 Super DOM (Disk on Module) port(s)
    System BIOS
    BIOS Type
    • AMI 128MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 4U Rackmount
    Model
    • CSV-947STS-R2K63P
    Dimensions and Weight
    Height
    • 7"
    Width
    • 17.6"
    Depth
    • 34.1"
    Package
    • 29.92" (H) x 31.89" (W) x 44.88" (D)
    Weight
    • Gross Weight: 170.5 lbs (77.3 kg)
    • Net Weight: 118 lbs (53.5 kg)
    Available Color
    • Black
    Expansion Slots (per Node)
    PCI-Express (PCIe) Configuration
    Default:
    • 3 PCIe 4.0 x16 LP slots

    Drive Bays / Storage (per Node)
    Drive Bays Configuration
    Default: Total 32 bays:
    • 2 internal fixed 2.5" SATA drive bays
    • 30 top-loading hot-swap 3.5"/2.5" SAS/SATA drive bays

    M.2
    • 2 M.2 NVMe slots (M-key)
    System Cooling
    Fans
    • 6 Heavy Duty 8cm Fan(s)
    Power Supply
    2x 2600W Redundant Titanium Level (96%) Hot-plug power supplies
    Dimension (WxHxL):
    • 73.5 x 40 x 265 mm

    AC Input:
    • 2600W: 200-240Vac / 50-60Hz
    • 2600W: 200-240Vdc / 50-60Hz (for CQC only)

    +12V:
    • Max: 216A / Min: 0A (200Vac-240Vac)

    12V SB:
    • Max: 3.5A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (Non-Condensing)
    • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)

    Optional Part List

    Part Number Quantity Description
    HBA option
    AOM-S3816-S-O2SAS3816 mezzanine controller for serviceable 60/90 bay systems
    HW RAID option
    AOM-SADPT-S2Bypass card for 60/90 bay systems (One per Node)
    CBL-SAST-1301-1002Slimline x8 (STR) to 2x SLL x8 STR,14/14CM,100 Ohm,RoHS (One per Node)
    AOC-S3908L-H8IR2AOC with Gen4 SAS3908 controller (U3) and 240PD RAID Key (U39) (One per Node)
    Network Cards
    AOC-S25G-M2S-Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
    AOC-S40G-I2Q-Standard LP 2-port 40GbE controller, Intel Fortville XL710
    AOC-SGP-I2-Standard LP 2-port GbE, Intel 82575
    More-AOC Compatibility Matrix (Select Storage & Generation)
    SuperCap Kit (Need Both items)
    MCP-240-94711-0N2SC947 MB Node Supercap holder module,RoHS (Optional) (One per Node)
    BTR-CVPM052Broadcom 05-50039-00 CacheVault w/ 24" Remote Extender(Optional)(One per Node)
    TPM
    AOM-TPM-9670V-O1TPM 2.0, vertical form factor, provisioned for server
    AOM-TPM-9671V-O1TPM 1.2, vertical form factor, provisioned for server
