  2. CSE-103-R407B + MBD-X11SDS-16C + AOM-SMF-TP4F-P

CSE-103-R407B + MBD-X11SDS-16C + AOM-SMF-TP4F-P

SKU: SYS-1019D-16C-FRN5TP
Brand: Supermicro
Produktnotat:

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/10573/image_1920?unique=efe4e4d

kr 37 861,69 37861.69 NOK kr 37 861,69 Ekskl. mva

kr 37 861,69 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The Supermicro SYS-1019D-16C-FRN5TP is a powerful 1U rackmount server designed for demanding applications such as C-RAN, uCPE, SD-WAN, and NFV. Featuring the Intel® Xeon® D-2183IT Processor with up to 512GB DDR4 ECC memory, it delivers exceptional computing performance and flexibility.

    Nøkkelfunksjoner

    • Intel® Xeon® D-2183IT Processor, 16-Core, 32 Threads, 2.2 GHz, 100W
    • Up to 512GB ECC LRDIMM, up to 256GB reg. ECC RDIMM DDR4-2400Mz; in 4 DIMM slots
    • 4 PCI-E 3.0 x8 slots for optional AIOM
    • 2x 2.5" drive bays (one drive space shares with M.2), 2 E1.S (40°C ambient temperature only)
    • M.2 Slots: 2 M-Keys 2242/80/110 (PCI-E 3.0 x4/SATA) (space shared with one 2.5" drive bay), 1 B-Key 3042 (PCI-E 3.0 x4/SATA) 1 E-Key 2230 (PCI-E 3.0 x2)
    • 2x 10GbE (shared with IPMI), 2x 10G SFP+, 1 Ethernet Management port
    • 2 USB 3.0, 1 VGA, 1 COM via RJ45 or Micro USB
    • 400W Redundant Platinum Level Power Supplies

    Viktige bruksområder

    • • Centralized/Cloud Radio Access Network (C-RAN) • Universal Customer Premise Equipment (uCPE) • Software Defined WAN (SD-WAN) • Network Function Virtualization (NFV)

    Beskrivelse

    The Supermicro SYS-1019D-16C-FRN5TP is a versatile and high-performance 1U rackmount server designed to meet the demanding needs of modern network infrastructures. It is equipped with the Intel® Xeon® D-2183IT Processor, offering 16 cores and 32 threads at 2.2 GHz with a power consumption of 100W. The server supports up to 512GB ECC LRDIMM or 256GB ECC RDIMM DDR4-2400Mz in four DIMM slots, ensuring ample memory capacity for a wide range of applications. Key features of the SYS-1019D-16C-FRN5TP include four PCI-E 3.0 x8 slots for optional AIOM, two 2.5" drive bays (one shared with M.2), two E1.S slots (supporting up to 40°C ambient), and multiple M.2 slots for additional storage flexibility. The server also provides robust networking capabilities with 2x 10GbE, 2x 10G SFP+, and a dedicated Ethernet management port. Further enhancing its usability, the SYS-1019D-16C-FRN5TP includes advanced management features such as IPMI 2.0 with virtual media over LAN and KVM-over-LAN support, two USB 3.0 ports, a VGA port, and a COM port via RJ45 or Micro USB. The redundant 400W platinum level power supplies ensure reliable operation, making this server ideal for various high-density, high-performance applications.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SYS-1019D-16C-FRN5TP
    • SuperServer 1019D-16C-FRN5TP ( Black )
    Motherboard
    Installed Motherboard
    • Super X11SDS-16C
    Processor
    CPU
    • Intel® Xeon® processor D-2183IT ,CPU TDP support 100W
    Cores / Cache
    • 16 Cores,32 Threads
    System Memory
    Memory Capacity
    • Up to 512GB DDR4 ECC LRDIMM
    • Up to 256GB DDR4 ECC RDIMM
    • 4 DIMM slots
    Memory Type
    • 2666/2400/2133MHz ECC DDR4 L/RDIMM
    • Operating speed up to 2400MHz
    DIMM Sizes
    • 128GB, 64GB, 32GB, 16GB
    Memory Voltage
    • 1.2 V
    On-Board Devices
    Chipset
    • System on Chip (SoC)
    SATA
    • SATA3 (6Gbps) ports via SoC controller
    Network Controllers
    • Dual 10G SFP+ via SoC
    • Dual 10GBase-T (share with IPMI)
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Video
    • VGA via BMC (option)
    Input / Output
    SATA
    • 2 SATA3 (6Gbps) ports
    LAN
    • 2 RJ45 10GbE LAN ports (shared with IPMI)
    • 2 10G SFP+ LAN ports
    • 1 Ethernet Management port
    USB
    • 2 USB 3.0 ports (front)
    Video
    • 1 VGA port
    Serial Port / Header
    • 1 COM via RJ45 or Micro USB
    System BIOS
    BIOS Type
    • 128Mb SPI Flash with AMI BIOS
    Management
    Software
    • Intel® Node Manager
    • IPMI 2.0
    • NMI
    • SUM
    • Watch Dog
    • SuperDoctor® 5
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-103-R407B
    Dimensions and Weight
    Height
    • 1.7" (43mm)
    Width
    • 17.2" (437mm)
    Depth
    • 15" (381mm)
    Package
    • 8" (H) x 25" (W) x 27" (D)
    Weight
    • Gross Weight: 26.9 lbs (12.2 kg)
    • Net Weight: 15.9 lbs (7.21 kg)
    Available Colors
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LEDs
    • System Information LED
    Expansion Slots
    PCI-Express
    • 4 PCI-E 3.0 x8 slots for AIOM (AIOM is sold separately, it is not included in this standard/barebone system)
    M.2
    • 2 M-Keys 2242/80/110 (PCI-E 3.0 x4/SATA) (space share with one 2.5" drive bay)
    • 1 B-Key 3042 (PCI-E 3.0 x4/SATA)
    • 1 E-Key 2230 (PCI-E 3.0 x2)
    Drive Bays
    Internal
    • 2x 2.5" drive bays (one drive space shares with M.2)
    Others
    • 2 E1.S (40°C ambient temperature only)
    System Cooling
    Fans

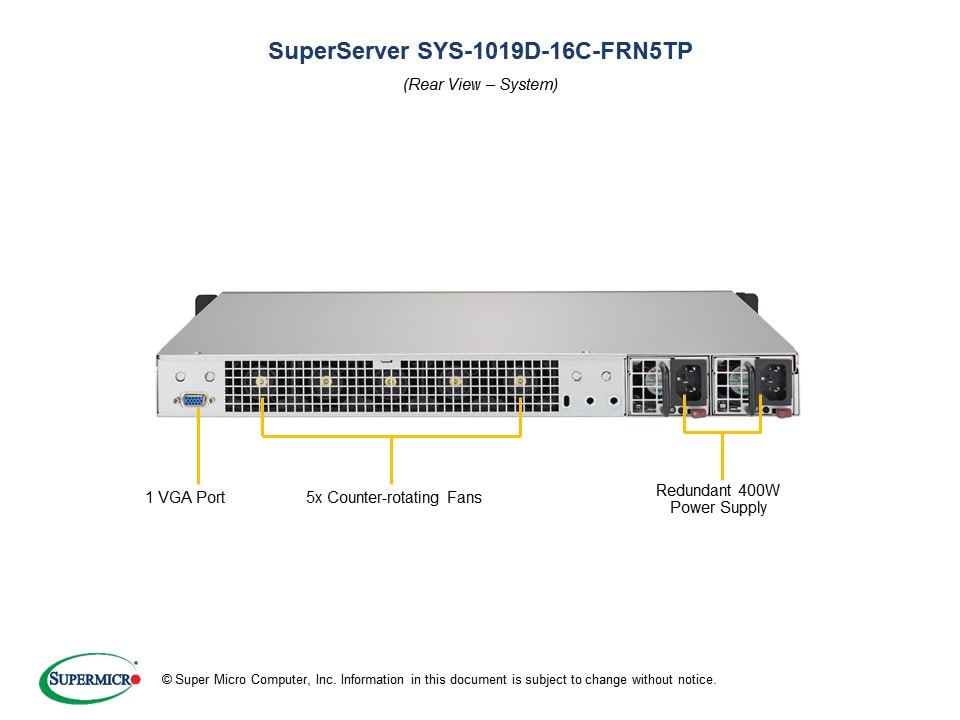

    • 5x 40x40x56 mm 13K-11K RPM Counter-rotating Fans
    AC/DC240V Input Redundant Power Supplies
    • 400W 1U Redundant Power Supplies with PM Bus
    Total Output Power
    • 400W
    Dimension(W x H x L)
    • 54.5 x 40 x 220 mm
    Input
    • 100 - 240Vac / 6.0 - 3.0A / 50-60Hz
    • 200 - 240Vdc / 3.4 - 3.2A (CCC Only)
    +12V
    • Max: 33A / Min: 0.5A
    +5V sb
    • Max: 3A / Min: 0A
    Output Type
    • Gold Finger Connector Mating with Molex 45984-4343
    Certification
    • Platinum Level Certified
    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:0°C to 45°C (32°F to 113°F)
    • Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)

    Standard Delliste

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X11SDS-16C1Super X11SDS-16C Motherboard
    CSE-103-R407B11U Chassis
    Add-on Card / Module
    AOM-SMF-TP4F-P1I/O Module for X11SDS, 2x SFP+, 2x 10G RJ45, 1x 1G RJ45, 1x RJ45 Console (mux micro-USB), 2x USB3.0, PDB,RoHS
    Cable 1
    CBL-0082L1Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG
    Cable 2
    CBL-0212L14 PIN POWER CABLE FOR SC808 S809, S-RA, 20CM, 20AWG
    Cable 3
    CBL-0473L2SATA,INT,ROUND,ST-ST,21CM,30AWG
    Cable 4
    CBL-CDAT-08501CBL,VGA,DB15/F,w/Bracket TO 2X8F/P2.54,50CM,28/30AWG,RoHS
    *Power Supply
    PWS-407P-1R2AC and DC 240V Input, 400W, Platinum Level, Redundancy power supply meet PMBus Revision 1.2 requirement,RoHS/REACH

    Valgfrie Opsjoner

    Part Number Quantity Description
    AIOM
    AOC-AG-i8-AIOM 8-port GbE RJ45, 2x Intel i350-AM4,RoHS
    AOC-AG-i4S-AIOM 4-port GbE SFP, Intel i350-AM4,RoHS
    AOC-ATG-I2T-P-AIOM 2-port 10GBase-T, Intel X550,RoHS
    AOC-A25G-B2S-P-AIOM 2-port 25GbE SFP28, Broadcom BCM57414,RoHS
    E1.S (EDSFF Short)
    HDS-IEN0-SSDPEYKX040T8-Intel DC P4511 EDSFF E1.S TLC 5.9mm 4TB
    E1.S Tray
    MCP-220-12105-0N-SC121EF EDSFF-S cage (36mm height x9.5mm W)
    E1.S Air Shroud
    MCP-310-10302-0B-Mylar Air Shroud for SC103 (X11SDS), for EDSFF
    Rack Bracket
    MCP-290-00016-0N-1U open rack bracket set for CSE-PT51L, MCP-290-00054-0N
