CSE-515M-R804 + X11SDW-4C-TP13F+

SYS-1019D-4C-RAN13TP+

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10574/image_1920?unique=f7d9088

kr 18 527,54 18527.54 NOK kr 18 527,54

kr 18 527,54

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro SYS-1019D-4C-RAN13TP+ is a powerful and compact 1U server designed for multi-access edge computing (MEC), centralized/cloud radio access network (C-RAN), and other network functions. Featuring an Intel Xeon D-2123IT processor, 9 GbE ports, and redundancy with 800W power supplies, it’s optimal for high-demand environments.

    Key Features

    • Intel® Xeon® D-2123IT Processor, 4-Core, 8 Threads, 2.2 GHz, 60W
    • Up to 512GB ECC LRDIMM, up to 256GB reg. ECC RDIMM DDR4-2400Mz; in 4 DIMM slots
    • 2 PCI-E 3.0 x16 (FHFL) slots
    • 2 Internal 2.5" SSD bays
    • M.2: 1 M-Key, 2280/22110; 1 E-Key, 2230; 1 B-Key, 2242/3042
    • 9 GbE (1 port for management), 4x 10G SFP+, and 1 Dedicated IPMI LAN
    • 2 USB 3.0, 1 VGA, 1 COM via RJ45
    • 800W Redundant Power Supplies Platinum Level (94%+)

    Key Applications

    • Multi-Access Edge Computing (MEC)
    • Centralized/Cloud Radio Access Network (C-RAN)
    • Universal Customer Premise Equipment (uCPE)
    • Software Defined WAN (SD-WAN)
    • Network Function Virtualization (NFV)
    • Artificial Intelligence (AI)

    Description

    Supermicro SYS-1019D-4C-RAN13TP+ is a high-performance 1U server that integrates Intel's Xeon D-2123IT processor, making it perfect for applications like central/cloud radio access network (C-RAN), network function virtualization (NFV), and software-defined WAN (SD-WAN). With up to 512GB ECC LRDIMM, versatile I/O options including 2 PCI-E slots, various M.2 slots, and 9 Ethernet ports, this server provides remarkable flexibility and reliability for edge computing and AI workloads. The unit also features redundant 800W platinum-level power supplies and hot-swap fans ensuring continuous operation in critical environments.

    Product Specifications

    Specification Details
    Product SKUs
    SYS-1019D-4C-RAN13TP+
    • SuperServer 1019D-4C-RAN13TP+ ( Black )
    Motherboard
    Installed Motherboard
    • Super X11SDW-4C-TP13F+
    Processor
    CPU
    • Intel® Xeon® processor D-2123IT
    • Single Socket FCBGA-2518 supported, CPU TDP supports Up to 60W TDP
    Cores / Cache
    • 4 Cores, 8 Threads
    System Memory
    Memory Capacity
    • Up to 512GB DDR4 ECC LRDIMM
    • Up to 256GB DDR4 ECC RDIMM
    • 4 DIMM slots
    Memory Type
    • 2666/2400/2133MHz ECC DDR4 L/RDIMM
    • Operating speed up to 2400MHz
    DIMM Sizes
    • 128GB, 64GB, 32GB, 16GB
    Memory Voltage
    • 1.2 V
    On-Board Devices
    Chipset
    • System on Chip (SoC)
    SATA
    • SATA3 (6Gbps) ports via SoC controller
    Network Controllers
    • Quad 10G SFP+ via SoC
    • 8x 1GbE with Intel® I350-AM4
    • Single 1GbE with Intel® I210
    IPMI
    • ASPEED AST2500
    • Support for Intelligent Platform Management Interface v.2.0
    Video
    • VGA via Aspeed AST2500 BMC
    Input / Output
    SATA
    • 2 SATA3 (6Gbps) ports
    LAN
    • 9 RJ45 Gigabit Ethernet LAN ports
    • 4 10G SFP+ LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (front)
    Video
    • 1 VGA port
    Serial Port / Header
    • 1 COM via RJ45
    TPM
    • 1 TPM Header & Chip both
    System BIOS
    BIOS Type
    • UEFI 256Mb
    Management
    Software
    • Intel® Node Manager
    • IPMI 2.0
    • NMI
    • SUM
    • Watch Dog
    • SuperDoctor® 5
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-515M-R804
    Dimensions and Weight
    Height
    • 1.7" (43mm)
    Width
    • 17.2" (437mm)
    Depth
    • 15.7" (399mm)
    Package
    • 8" (H) x 27" (W) x 24" (D)
    Weight
    • Gross Weight: 28 lbs (12.7 kg)
    • Net Weight: 18 lbs (8.16 kg)
    Available Colors
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LEDs
    • System Information LED
    Expansion Slots
    PCI-Express
    • 2 PCI-E 3.0 x16 (FHFL) slots
    M.2
    • 1 M.2 M-Key: 2280/22110
    • 1 M.2 B-Key: 2242/3042
    • 1 M.2 E-Key: 2230
    Drive Bays
    Internal
    • 2 Internal 2.5" drive bays

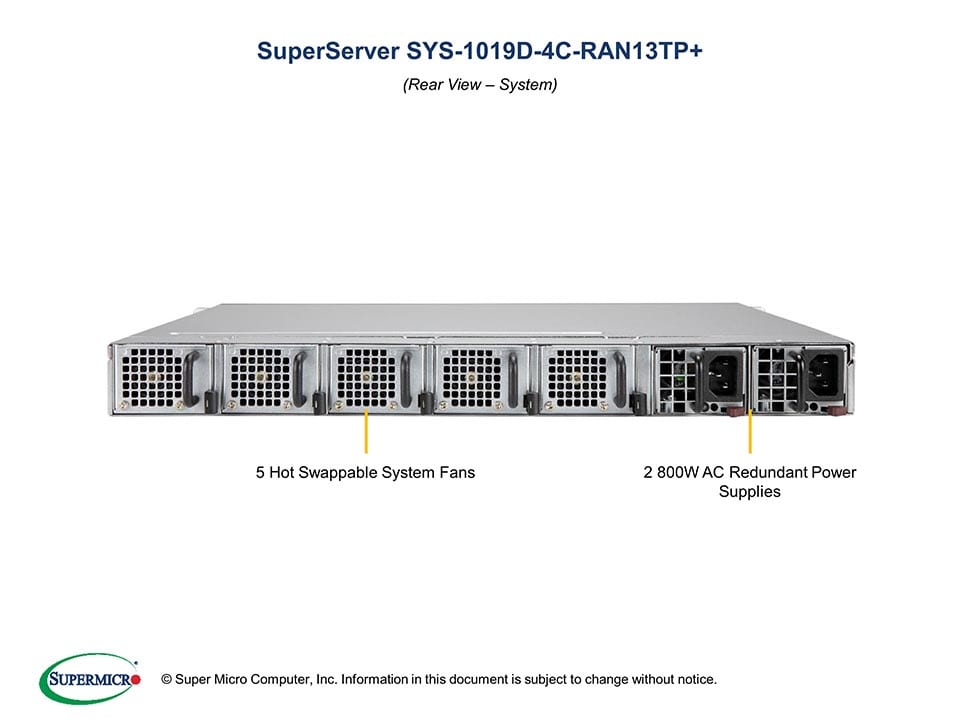

    System Cooling
    Fans
    • 5x 40x56mm Hot-swap Counter-rotation PWM Fans
    Power Supply
    • 800W AC power supply w/ PFC
    AC Voltage
    • 100-240 V, 50-60 Hz
    +5V
    • No/A
    +5V standby
    • Max.: 4 Amp
    • Min.: 0 Amp
    +12V
    • Max: 62.5A & Min: 0.5A (100Vac-127Vac)
    • Max: 66.6A & Min: 0.5A (200Vac-240Vac)
    • Max: 66.6A & Min: 0.5A (230-240Vdc)
    -12V
    • No/A
    +3.3V
    • No/A
    Certification
    • Platinum Level Certified
    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:0°C to 45°C (32°F to 113°F)
    • Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X11SDW-4C-TP13F+1Super X11SDW-4C-TP13F+ Motherboard
    CSE-515M-R80411U Chassis
    Cable 1
    CBL-0473L2SATA,INT,ROUND,ST-ST,21CM,30AWG
    Cable 2
    CBL-CDAT-08501CBL,VGA,DB15/F,w/Bracket TO 2X8F/P2.54,50CM,28/30AWG,RoHS
    FAN
    FAN-0207L4240x40x56 mm, 13K-11K RPM, Counter-rotating, Hot-swappable Fan for SC515M Chassis
    Parts
    MCP-260-00153-0B11U I/O Shield for X11SDW-14CN-TP13F+ with EMI Gasket, Black
    Air Shroud
    MCP-310-51504-0B1Mylar Air Shroud for SC515M + X11 SDW
    Riser Card
    RSC-R1UW-2E1611U LHS WIO Riser card with two PCI-E x16 slots
    *Power Supply
    PWS-804P-1R21U 800W 100-240VAC/50-60Hz, and DC240V input
    *Power Distributor
    PDB-PT515M-242411U support redundancy up to 800W for SC515M chassis with ATX

    Optional Part List

    Part Number Quantity Description
    Rack Bracket
    MCP-290-00016-0N-1U open rack bracket set for CSE-PT51L, MCP-290-00054-0N
    Air Shroud
    MCP-310-51505-0B1Mylar Air Shroud for SC515M + T4 GPU
    MCP-310-51506-0B1Mylar Air Shroud for SC515M, FHFL AOC optimized
