X11DPL-i, SC113M standard chassis w/Redundant 800W
SYS-1029P-MTR
For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.
Summary Description

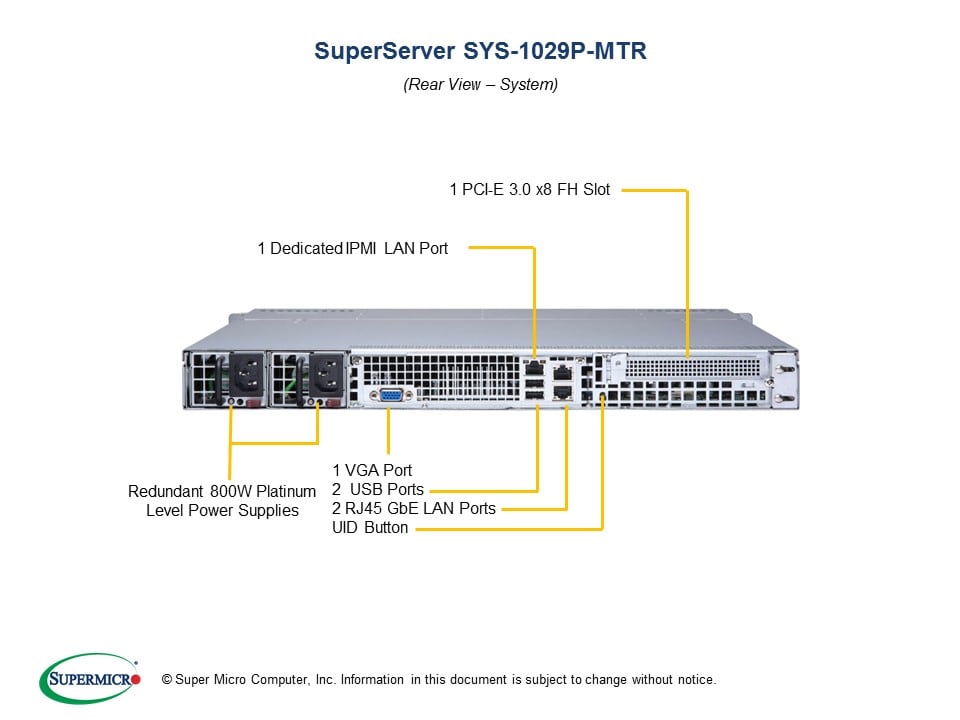

The Supermicro SYS-1029P-MTR is a powerful and versatile 1U rackmount server designed to support dual socket P (LGA 3647) for 2nd Gen Intel Xeon Scalable processors. It offers superior performance and scalability, making it ideal for data center and enterprise environments.
Key Features
- Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
- 8 DIMMs; up to 2TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM
- 1 PCI-E 3.0 x8 (FHHL) slot
- 8 Hot-swap 2.5" SATA3 drive bays, 1 Slim DVD-ROM drive (optional), Optional PCIe/SATA M.2 drive M.2 holder: MCP-450-00003-0N
- 2 1GbE LAN ports via Marvell 88E1512
- IPMI 2.0 + KVM with Dedicated LAN
- 1 VGA, 2 USB 2.0 (rear)
- 2 SuperDOM (Disk on Module) ports; 1 PCIe/SATA M.2 drive connector
- 800W Redundant Power Supplies Platinum Level
Key Applications
- Data Center Optimized Web Server Enterprise Server Managed Hosting Short Depth
Description
The Supermicro SYS-1029P-MTR server is designed with cutting-edge technology and features to meet the high demands of modern data centers and enterprise applications. With support for dual socket P (LGA 3647) 2nd Gen Intel Xeon scalable processors, up to 2TB memory, 8 hot-swap 2.5" SATA3 drive bays, and extensive connectivity options, this server is built to deliver outstanding performance, reliability, and flexibility. The 800W redundant power supplies ensure maximum uptime and energy efficiency.
Product Specifications
| Specification | Details |
|---|---|
| Product SKUs | |
| SYS-1029P-MTR |
|
| Motherboard | |
| Installed Motherboard |
|
| Processor | |
| CPU |
|
| Cores |
|
| Note |
|
| System Memory | |
| Memory Capacity |
|
| Memory Type |
|
| Note |
|
| On-Board Devices | |
| Chipset |
|
| SATA |
|
| Network Controllers |
|
| IPMI |
|
| Video |
|
| Input / Output | |
| SATA |
|
| LAN |
|
| USB |
|
| Video |
|
| Serial Port / Header |
|
| DOM |
|
| System BIOS | |
| BIOS Type |
|
| Management | |
| Software |
|
| Power Configurations |
|
| PC Health Monitoring | |
| CPU |
|
| FAN |
|
| Temperature |
|
| Chassis | |
| Form Factor |
|
| Model |
|
| Dimensions and Weight | |
| Width |
|
| Height |
|
| Depth |
|
| Package |
|
| Weight |
|
| Available Colors |
|
| Front Panel | |
| Buttons |
|
| LEDs |
|
| Expansion Slots | |
| PCI-Express |
|
| Drive Bays | |
| Hot-swap |
|
| Peripheral Drives | |
| Optional |
|
| System Cooling | |
| Fans |
|
| Power Supply | |
| |
| Total Output Power |
|
| Dimension(W x H x L) |
|
| Input |
|
| +12V |
|
| +5Vsb |
|
| Output Type |
|
| Certification |
|
| DC option for: (AC counter-part) |
|
| Operating Environment | |
| RoHS |
|
| Environmental Spec. |
|
Standard Part List
| Part Number | Quantity | Description |
|---|---|---|
| Motherboard / Chassis | ||
| MBD-X11DPL-i | 1 | Super X11DPL-i Motherboard |
| CSE-113MFTS-R804CB | 1 | 1U Chassis |
| Backplane | ||
| BPN-SAS3-113A-N2 | 1 | 8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices |
| Cable 1 | ||
| CBL-SAST-0631 | 2 | MINI SAS HD-4 SATA,6G,INT,RF,Cross Over,55CM,55CM SB,30AWG |
| Parts | ||
| MCP-260-00111-0N | 1 | 1U I/O Shield for X11DPL-i with EMI Gasket |
| Air Shroud | ||
| MCP-310-19015-0N | 1 | SC813M,SC113M, DP X9DRL-EF/ X9DRL-7F/ X10DRL-i, X9/X10 mylar air shroud, 12 |
| Manual | ||
| MNL-2012-QRG | 1 | 1029P-MT/MTR Quick Reference Guide |
| Riser Card | ||
| RSC-RR1U-E8 | 1 | RSC-RR1U-E8 |
| Heatsink / Retention | ||
| SNK-P0067PD | 2 | 1U Passive Proprietary CPU Heat Sink for X11DPL Motherboard Equipped with a Square Retention Mechanism |
| *Power Supply | ||
| PWS-804P-1R | 2 | 1U 800W 100-240VAC/50-60Hz, and DC240V input |
| MCP-250-00016-0V | 1 | Redundant Silver plastic PDB cover for SC813M,113M |
| *Power Distributor | ||
| PDB-PT813M-2424 | 1 | Power Distributor With 24pin for SC813M |
| *Cable 2 | ||
| CBL-0335L | 1 | CBL,FRONT CNTL,20 TO 20 PIN,RA,RND TUBE,73CM,28AWG |
| *Cable 3 | ||
| CBL-PWCD-0160-IS | 2 | PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,13A,125V,RoHS/REACH |
| *FAN 1 | ||
| FAN-0154L4 | 4 | 40x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH |
| *Front Panel | ||
| FPB-FP112 | 1 | Front control board for SC113,113M (U/C share |
| *Drive Tray(s) | ||
| MCP-220-00047-0B | 8 | Black gen 3rd hot-swap 2.5inch HDD tray |
| *Rear Window | ||
| MCP-240-00086-0N | 1 | STD rear window for SC113 redundant PWS |
| *Parts | ||
| MCP-260-00078-0N | 1 | 1U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF |
| MCP-290-00037-0N | 1 | SC113 Control panel module (w/o DVD) |
| MCP-340-00001-01 | 2 | Dummy fan 40x28mm |
| *Peripheral Drive 1 | ||
| MCP-290-00036-0B | 1 | Black DVD dummy tray support 1x2.5 HDD for SC113,815,825,836 |
| *Rail Set | ||
| MCP-290-00102-0N | 1 | Outer rail, quick-release type, 25.6\" to 33.05\" |
| MCP-290-00107-0N | 1 | Inner rail, front, short, screw type |
| MCP-290-00110-0N | 1 | Inner rail, extension (quick) for 1U 17.2 |
| *Fan Holder | ||
| MCP-320-00031-0B | 1 | Fan tray for six 40x28 fans(SC813M/113M) |
Optional Part List
| Part Number | Quantity | Description |
|---|---|---|
| NVMe AOC card | ||
| AOC-SLG3-2E4T | 1 | 2 Port NVMe PCI-E x8 Redriver Card |
| Cable Management Arm | ||
| MCP-290-00152-0N | 1 | 1U Supermicro Cable Management Arm 2nd Gen |
| Cable | ||
| CBL-SAST-0929 | 2 | OcuLink v 1.0 source to MiniSAS HD,INT,PCIe, 57CM,34AWG |
| CBL-SAST-0531 | 2 | MINI SAS HD,12G,INT,80CM,30AWG |
| Storage ControllerCard(s) & Cables(s) | ||
| AOC-S3108L-H8IR-16DD + 2x CBL-SAST-0531 + 1x FAN-0154L4 | - | 8 internal ports, 12Gb/s per port- Gen3, 16HDD, RAID 0, 1, 5, 6, 10, 50, 60; Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s |
| Network Card(s) | ||
| AOC-SGP-i2 | - | Standard LP, 2x GbE RJ45, PCI-E x4, Intel® i350AM2 |
| AOC-SGP-i4 | - | Standard LP, 4x GbE RJ45, PCI-E x4, Intel® i350 |
| AOC-SG-i2 | - | Standard LP, 2x GbE RJ45, PCI-E x4, Intel® 82575EB |
| AOC-SG-i4 | - | Standard LP, 4x GbE RJ45, PCI-E x8, Intel® 82576EB |
| AOC-STG-b4S | - | Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom® BCM57840S |
| AOC-STGN-i2S | - | Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel® 82599ES |
| AOC-STGN-i1S | - | Standard LP, 1x 10GbE SFP+, PCI-E x8, Intel® 82599ES |
| AOC-STG-i2T | - | Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel® X540 |
| AOC-STG-i2 | - | Standard LP, 2x 10GbE CX4, PCI-E x8, Intel® 82598EB |
| DVD-ROM / DVD-RW | ||
| DVM-PNSC-DVD-SBT3 | - | BLACK PANASONIC SLIM DVD ROM SATA DRIVE |
| DVM-TEAC-DVD-SBT5 | - | BLACK TEAC SLIM DVD ROM SATA DRIVE |
| DVM-PLDS-DVDRW-SBT4 | - | PHILIPS SLIM BLACK DVD-RW SATA DRIVE |
| DVM-TEAC-DVDRW-SBT5 | - | BLACK TEAC SLIM DVD-RW SATA DRIVE |
| DVD-ROM Accessory | ||
| MCP-220-81502-0N | - | Slim SATA DVD kit for SC213,219,813,815,818,819,825,828,829,836,842 |
| TPM 2.0 | ||
| AOM-TPM-9670V | 1 | SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor |
| Global Services & Support | ||
| OS4HR3/2/1 | - | 3/2/1-year onsite 24x7x4 service |
| OSNBD3/2/1 | - | 3/2/1-year onsite NBD service |
| Software | ||
| SFT-OOB-LIC | 1 | OOB Management Package (per node license) |
| SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
