WIO System: X11DDW-L; CSE-113AC2-600WB; SYS-1029P-WT
SYS-1029P-WT
For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.
Summary Description
Supermicro SYS-1029P-WT is a versatile 1U rackmount server designed for optimized performance and increased reliability. Perfect for web, firewall, corporate applications, and cloud computing.
Key Features
- Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
- 12 DIMMs; up to 3TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††

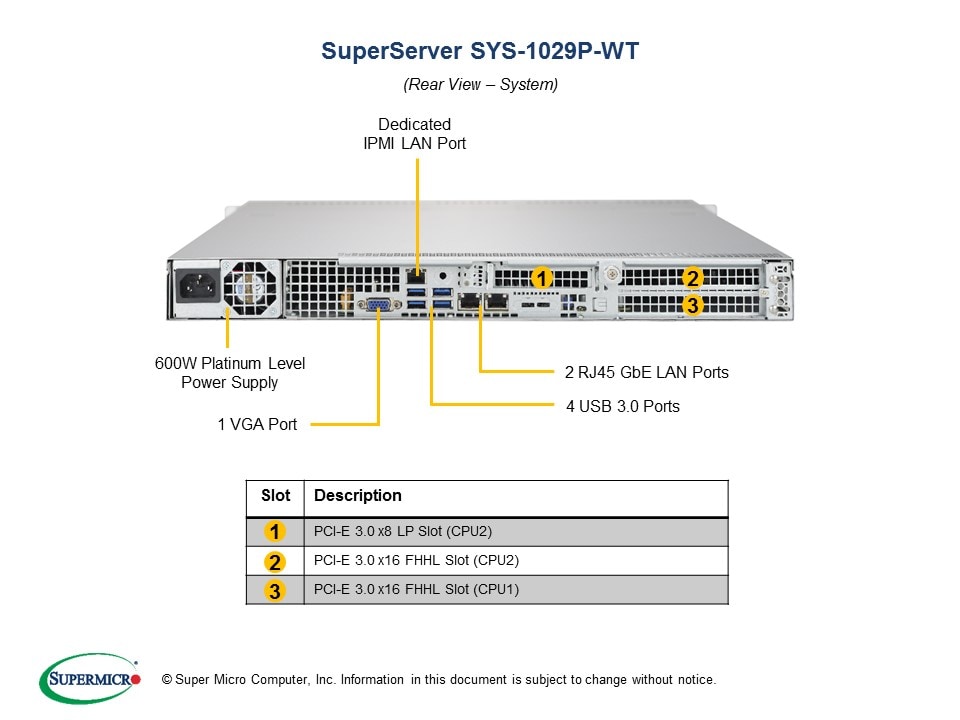

- 2 PCI-E 3.0 x16 (FHHL) slots, 1 PCI-E 3.0 x8 (LP) slot, 1 PCI-E 3.0 x16 for Add-on-Module, (Support SAS3 Storage controller), 1 PCI-E 3.0 x4 NVMe M.2 slot
- 8 Hot-swap 2.5" drive bays, 1 slim DVD-ROM drive bay (optional)
- 2x 1GbE LAN ports via Intel C621
- 1 VGA, 4 USB 3.0 (rear)
- 2 SuperDOM (Disk on Module) ports
- 600W Multi Output Power Supply, Platinum Level High-efficiency
Key Applications
- Web Server, Firewall Apps. Corporate-Wins, DNS, Print, Login Gateway, provisioning servers Compact Network Appliance Cloud Computing
Description
The Supermicro SYS-1029P-WT is engineered to support dual 2nd Gen Intel Xeon Scalable processors, offering unparalleled compute performance. It accommodates up to 3TB ECC DDR4 memory and features extensive I/O capabilities, including multiple PCI-E slots and USB ports. With support for Intel Optane DCPMM, this server ensures ultra-fast memory speeds. The chassis includes eight hot-swap drive bays, making it ideal for high-demand network environments.
Product Specifications
| Specification | Details |
|---|---|
| Product SKUs | |
| SYS-1029P-WT |
|
| Motherboard | |
| Installed Motherboard |
|
| Processor | |
| CPU |
|
| Cores |
|
| Note |
|
| Note |
|
| System Memory | |
| Memory Capacity |
|
| Memory Type |
|
| Note |
|
| On-Board Devices | |
| Chipset |
|
| SATA |
|
| Network Controllers |
|
| IPMI |
|
| Video |
|
| Input / Output | |
| SATA |
|
| LAN |
|
| USB |
|
| Video |
|
| DOM |
|
| System BIOS | |
| BIOS Type |
|
| Management | |
| Software |
|
| Power Configurations |
|
| PC Health Monitoring | |
| CPU |
|
| FAN |
|
| Temperature |
|
| Chassis | |
| Form Factor |
|
| Model |
|
| Dimensions and Weight | |
| Width |
|
| Height |
|
| Depth |
|
| Gross Weight |
|
| Available Colors |
|
| Front Panel | |
| Buttons |
|
| LEDs |
|
| Expansion Slots | |
| PCI-Express |
|
| Drive Bays | |
| Hot-swap |
|
| Peripheral |
|
| System Cooling | |
| Fans |
|
| Power Supply | |
| |
| AC Input |
|
| DC Output |
|
| Certification |
|
| Operating Environment | |
| RoHS |
|
| Environmental Spec. |
|
| General | |
| Backplane |
|
Standard Part List
| Part Number | Quantity | Description |
|---|---|---|
| Motherboard / Chassis | ||
| MBD-X11DDW-L | 1 | Super X11DDW-L Motherboard |
| CSE-113AC2-605WB | 1 | 1U Chassis |
| Backplane | ||
| BPN-SAS3-113A-N2 | 1 | 8-port 1U SAS3 12Gbps Hybrid backplane, support up to 6x 2.5-inch SAS3/SATA3 HDD/SSD and 2x SAS3/SATA3/NVMe Storage Devices |
| Storage Cable | ||
| CBL-SAST-0507-01 | 2 | MINI SAS HD-MINI SAS,6G,INT,80CM,SB,28AWG |
| Rubber Pad | ||
| MCP-150-00015-0B | 2 | Rubber pad, 3.0mm H, 10x10mm |
| Air Shroud | ||
| MCP-310-19019-0B | 2 | SC113/SC116/SC815/SC515, DP X11DDW Mylar air shroud |
| Air Block | ||
| MCP-320-00061-0B | 1 | CR foam for air block in SC113/SC116/SC815 |
| Manual | ||
| MNL-1962-QRG | 1 | 1029P-WT/WTR Quick Reference Guide |
| Riser Card (left) | ||
| RSC-R1UW-2E16 | 1 | 1U LHS WIO Riser card with two PCI-E x16 slots |
| Riser Card (right) | ||
| RSC-R1UW-E8R | 1 | 1U RHS WIO Riser card with one PCI-E x8 slot |
| Heatsink w/ Retention | ||
| SNK-P0067PSMB | 2 | 1U Passive High Performance Front CPU Heat Sink w/ an 18-mm Wide Middle Air Channel for X11 Purley Platform Equipped w/ a Narrow Retention Mechanism/Bolster |
| *Power Supply | ||
| PWS-605P-1H | 1 | 1U 600W Multi Output Power Supply PMbus |
| *Power Cord | ||
| CBL-0160L | 1 | NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt) |
| *FAN | ||
| FAN-0156L4 | 4 | 40x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH |
| *Rail Set | ||
| MCP-290-00063-0N | 1 | Rail set, quick/quick, default for 1U 17.2"W for SC113/SC116,RoHS/REACH |
Optional Part List
| Part Number | Quantity | Description |
|---|---|---|
| Add-on card for additional M.2 NVMe | ||
| AOC-SLG3-2M2 | 1 | Low Profile PCI-E x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe Modules |
| Intel VROC RAID Key | ||
| AOC-VROCINTMOD | 1 | Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only) |
| AOC-VROCSTNMOD | 1 | Intel VROC Standard, RAID 0, 1, 10 |
| AOC-VROCPREMOD | 1 | Intel VROC Premium, RAID 0, 1, 5, 10 |
| Additional Fan | ||
| FAN-0156L4 | - | 40x40x56 mm 13K-11K RPM Counter-rotating Fan |
| Alternative Storage Controller Cable | ||
| CBL-SAST-0531 | - | Internal Mini-SAS HD to Mini-SAS HD 80cm,30AWG,12Gb/s, up to 4 drives per cable |
| Front Bezel | ||
| MCP-210-11601-0B | 1 | Black Front Bezel for SC113, SC113M, SC116, SC119, SC119U, SC514 (No LED indicator support) |
| Cable Management Arm | ||
| MCP-290-00085-0N | 1 | Supermicro Cable Management Arm for 1U Chassis |
| Inlet Thermal Sensor | ||
| MCP-280-00033-0N | - | Universal Thermal sensor kit with 80cm I2C cable |
| Global Services & Support | ||
| OS4HR3/2/1 | - | 3/2/1-year onsite 24x7x4 service |
| OSNBD3/2/1 | - | 3/2/1-year onsite NBD service |
| Software | ||
| SFT-OOB-LIC | 1 | OOB Management Package (per node license) |
| SFT-DCMS-Single | 1 | DataCenter Management Package (per node license) |
