  2. Ultra 1U, 20x2.5" 3UPI 7mm NVMe 2x25GbE, X11DPU-ZE+,116UTS-R

Ultra 1U, 20x2.5" 3UPI 7mm NVMe 2x25GbE, X11DPU-ZE+,116UTS-R

SYS-1029UZ-TN20R25M

To maintain quality and integrity, this product is sold only as a completely-assembled system with CPU, RAM and Storage.

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10325/image_1920?unique=a1dbe1e

kr 40 575,05 40575.05 NOK kr 40 575,05

kr 40 575,05

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro SYS-1029UZ-TN20R25M is a high-density enterprise server designed for cloud computing, virtualization, and software-defined storage. It supports dual Intel Xeon Scalable processors, 24 DIMMs for up to 6TB of DDR4 memory, and extensive NVMe storage options.

    Key Features

    • • Virtualization • Cloud Computing • High Density Enterprise Server • Software Defined Storage
    • Dual Socket P (LGA 3647) support 2nd Gen Intel® Xeon® Scalable processors (Cascade Lake/Skylake) ‡
    • 24 DIMMs; up to 6TB 3DS ECC DDR4-2933MHz † RDIMM/LRDIMM, Supports Intel® Optane™ DCPMM ††
    • Up to 2 PCI-E 3.0 x8 slots (FH, FL); For 20 NVMe configuration, only 1 PCI-E 3.0 x8 is available For 18 NVMe configuration, 2 PCI-E 3.0 x8 will be available
    • 2x 25G SFP28 Ethernet ports
    • 20 Hot-swap 2.5" 7mm drive bays; up to 20 NVMe (CPU1: 10 NVMe, CPU2: 8 NVMe + 2 NVMe/ SATA/SAS hybrid); 1 M.2 NVMe port, Optional extra M.2 NVMe and SATA3 ports
    • 8 Heavy duty fans w/ optimal fan speed control; 2 air shrouds
    • 1600W Redundant Power Supplies Titanium Level (96%)

    Key Applications

    • Virtualization
    • Cloud Computing
    • Enterprise Server
    • Software Defined Storage

    Description

    The Supermicro SYS-1029UZ-TN20R25M is engineered to deliver exceptional performance and scalability. Featuring dual Socket P for Intel Xeon Scalable processors, it supports up to 28 cores per processor and 24 DIMM slots with a maximum memory capacity of 6TB. The system includes 20 hot-swap 2.5" NVMe drive bays, providing robust storage options for high-demand applications. With 2x 25G SFP28 Ethernet ports and advanced management software, it ensures high-speed networking and comprehensive system monitoring. Perfect for data centers requiring top-notch performance, reliability, and flexibility.

    Product Specifications

    Specification Details
    Product SKUs
    SYS-1029UZ-TN20R25M
    • SuperServer 1029UZ-TN20R25M ( Black )
    Motherboard
    Installed Motherboard
    • Super X11DPU-ZE+
    Processor
    CPU
    • Dual Socket P (LGA 3647)
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,3 UPI up to 10.4GT/s
    • Support CPU TDP 70-205W
    Cores
    • Up to 28 Cores
    Note
    • ‡BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)
    System Memory
    Memory Capacity
    • 24 DIMM slots
    • Up to 6TB 3DS ECC DDR4-2933MHz†RDIMM/LRDIMM
    • Supports Intel® Optane™ DCPMM††
    Memory Type
    • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
    Note
    • †2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro††Cascade Lake only. Contact your Supermicro sales rep for more info.
    On-Board Devices
    Chipset
    • Intel® C621 chipset
    SATA
    • SATA3 (6Gbps); RAID 0, 1, 5, 10
    Network Connectivity
    • 2 25GbE SFP28 ports via AOC-URN4-M2TS (Mellanox ConnectX-4 Lx EN)
    • Download networking card drivers here
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics
    • ASPEED AST2500 BMC

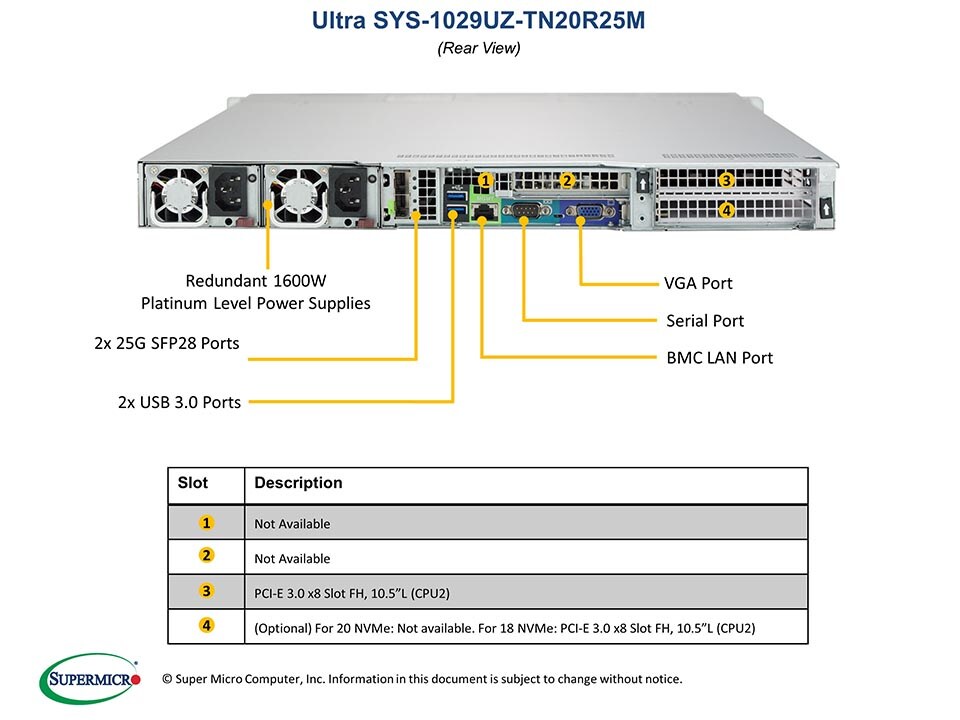

    Input / Output
    NVMe
    • 8 NVMe ports + 2 SAS/SATA3/NVMe Hybrid Ports (from CPU 1)
    • 10 NVMe ports (from CPU 2)
    LAN
    • 2 25GbE SFP28 ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 3 USB 3.0 ports(2 rear, 1 Type A)
    • 2 USB 2.0 ports(front)
    Video
    • 1 VGA port
    Serial Port
    • 1 Serial header
    DOM
    • 2 Super DOM (Disk on Module) ports
    System BIOS
    BIOS Type
    • AMI 32Mb SPI Flash ROM
    Management
    Software
    • Intel® Node Manager
    • IPMI 2.0
    • KVM with dedicated LAN
    • NMI
    • SSM , SPM , SUM
    • SuperDoctor® 5
    • WatchDog
    Power Configurations
    • ACPI Power Management
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-116UTS-R1K62P-T
    Dimensions and Weight
    Height
    • 1.7" (43mm)
    Width
    • 17.2" (437mm)
    Depth
    • 27.8" (706mm)
    Gross Weight
    • 48 lbs (21.8 kg)
    Available Color
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    • System UID button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LEDs
    • UID LED
    Expansion Slots
    PCI-Express
    • 2 PCI-E 3.0 x8 slots (FH, FL)For 20 NVMe configuration, only 1 PCI-E 3.0 x8 is available.For 18 NVMe configuration, 2 PCI-E 3.0 x8 will be available.(Both CPUs need to be installed for full access to PCI-E slots and onboard controllers. See manual block diagram and AOC Support for details.)
    Drive Bays / Storage
    Hot-swap
    • 20 Hot-swap 2.5" 7mm drive bays
    • 20 NVMe (CPU1: 10 NVMe, CPU2: 8 NVMe + 2 NVMe/SATA/SAS hybrid)
    M.2
    • 1 M.2 PCI-E 3.0 x4 M-Key NVMe (2240/2260/2280/22110) or 1 M.2 M-Key SATA3 (2240/2260/2280/22110) via optional parts
    • 2 M.2 PCI-E 3.0 x4 M-Key NVMe (2260/2280/22110) via optional add-on card AOC-SLG3-2M2
    System Cooling
    Fans
    • 8 Heavy duty fans with optimal fan speed control
    Air Shroud
    • 2 Air Shroud
    Power Supply
    • 1600W Redundant Power Supplies with PM Bus
    Total Output Power
    • 1600W/1000W
    Dimension(W x H x L)
    • 73.5 x 40 x 203 mm
    Input
    • 100-127Vac / 13 - 9A / 50-60Hz
    • 200-240Vac / 10 - 8A / 50-60Hz
    +12V
    • Max: 83.3A / Min: 0A (100-127Vac)
    • Max: 133A / Min: 0A (200-240Vac)
    12Vsb
    • Max: 2.1A / Min: 0A
    Output Type
    • 25 Pairs Gold Finger Connector
    Certification
    • Titanium Level
    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X11DPU-ZE+1Super X11DPU-ZE+ Motherboard
    CSE-116UTS-R1K62P-T1CSE-116UTS-R1K62P-T
    Add-on Card / Module
    AOC-SLG3-2E4R-P2NVMe AOC by 8,HF,RoHS/REACH
    AOC-SLG3-4E4R-P1NVMe AOC by 16,HF,RoHS/REACH
    AOC-URN4-M2TS-P11U Ultra Riser 2-port 25GbE SFP28, based on Mellanox Connect
    Backplane
    BPN-NVME3-116UN120-port 1U (CSE116U) NVMe direct-attached backplane, support up to 20x 7mm NVMe SSDs, 2 are hybrid ports also support SAS/SATA devices
    Cable 1
    CBL-PWEX-10181BPN PWR,2X4F/GPU-White to 2x2F,P4.2, 12V, 42CM,18AWG, 11A/pin, -25~85C
    Cable 2
    CBL-PWEX-10191BPN PWR,2X4F/GPU-White to 2x2F,P4.2, 12V, 67CM,18AWG, 11A/pin, -25~85C
    Cable 3
    CBL-SAST-08192OCuLink v 1.0,INT,PCIe NVMe SSD, 65CM,34AWG,RoHS/REACH
    Cable 4
    CBL-SAST-08422MiniSAS HD source to OcuLink v 1.0,INT,PCIe, 85CM,34AWG,RoHS
    Cable 5
    CBL-SAST-08478OcuLink v 1.0,INT,PCIe NVMe SSD, 76CM,34AWG
    Cable 6
    CBL-SAST-08492MiniSAS HD source to OcuLink v 1.0,INT,PCIe, 57CM,34AWG
    Cable 7
    CBL-SAST-08504MiniSAS HD source to OcuLink v 1.0,INT,PCIe, 37CM,34AWG
    Cable 8
    CBL-SAST-0974-12OcuLink v 1.0,INT,PCIe NVMe SSD, 37CM,34AWG
    Cable 9
    CBL-SAST-1015-11MINI SAS-2 SATA (RA),6G,INT,52CM,62CM SB,30AWG,RoHS
    Air Shroud
    MCP-310-11601-0B1Mylar air shroud for SC116U (X11 24DIMM, left side)
    MCP-310-11602-0B1Mylar air shroud for SC116U (X11 24DIMM, right side)
    Riser Card
    RSC-UMR-811U Ultra RHS Riser Card with 1 PCIE/SATA Hybrid M.2 &1 PCIE
    RSC-UN4-881RSC-UN4-88
    Heatsink / Retention
    SNK-P0067PS21U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    *Power Supply
    PWS-1K62A-1R2AC-DC 1600W, Titanium Level, Redundancy, 1U, DC Output: +12V and +12Vs, 203 x 73.5 x 40 mm, AC Input: 90 - 264 VAC/47-63Hz, PMBus 1.2 with DSP controller,HF,RoHS/REACH
    *Cable 10
    CBL-0160L2NEMA5-15P to C13 US power cord 16AWG 6ft, PBF (default for high watt)
    *Cable 11
    CBL-0263L1USB 2.0,INT,2X5/P2.54 TO 2X5/P2.54,2 CH,80CM,26AWG
    *Cable 12
    CBL-0335L1CBL,FRONT CNTL,20 TO 20 PIN,RA,RND TUBE,73CM,28AWG
    *FAN 1
    FAN-0101L4840x56,4 Pin PWM,Primary for SC809,111, Sec.for SC816,819,808
    *Drive Tray(s)
    MCP-220-00143-0B20SC116U Tool-less 2.5\" NVME HDD Tray (fit up to 7mm only)
    *Rear Window
    MCP-240-81915-0N1Rear window for SC819U, 119U tool-less chassis (m2TS)
    *Front Panel
    MCP-280-11603-0N1116 front panel kit with FP cable, support 2* USB2.0, slim
    *Rail Set
    MCP-290-00102-0N1Outer rail, quick-release type, 25.6\" to 33.05\"
    MCP-290-00112-0N1Inner rail, extension, long (quick) for 1U 17.2
    MCP-290-00120-0N2Inner rail, front, quick-release type (thumb screw appiled)
    *Air Shroud
    MCP-310-81905-0B1Plastic air shroud for SC819U, 119U, 829U, 219U (PWS),RoHS/REACH
    *FAN 2
    MCP-340-00030-0N140x56,4 Pin PWM,Primary for SC809, Sec. for SC816,819,808

    Optional Part List

    Part Number Quantity Description
    Add-on card for internal M.2 NVMe
    AOC-SLG3-2M21Low Profile PCIe x8 add-on card supports 2 PCI-E 3.0 x4 M-Key M.2 NVMe Modules
    2.5" 7mm SATA/SAS Drive Trays
    MCP-220-00151-0B1~2SC116U 2.5" Tool-less SAS/SATA HDD Tray (fit up to 7mm only)
    Cable for internal M.2 SATA
    CBL-SAST-0538129cm 30AWG SATA S-RA cable
    Air Shroud for internal M.2
    MCP-310-11603-0B1Mylar air shroud for SC116U (X11 24DIMM, M.2)
    Compatible Networking Cables and Transceivers for System default Networking (AOC-URN4-m2TS)
    -1~2Networking Cables and Transceivers Compatibility Matrix
    Network Card(s)
    AOC-SGP-i2/4-Standard LP, 2/4x GbE RJ45, PCI-E x4, Intel i350
    AOC-STGN-i1S/i2S-Standard LP, 1/2x 10GbE SFP+, PCI-E x8, Intel 82599EN
    AOC-STGF-i2S-Standard LP, 2x 10GbE SFP+, PCI-E x8, Intel XL710-BM2
    AOC-STG-i4S-Standard LP, 4x 10GbE SFP+, PCI-E x8, Intel XL710
    AOC-STG-b4S-Standard LP, 4x 10GbE SFP+, PCI-E x8, Broadcom BCM57840S
    AOC-STG-i2T-Standard LP, 2x 10GbE RJ45, PCI-E x8, Intel X540
    AOC-STGS-i1/2T-Standard LP, 1/2x 10GbE RJ45, PCI-E x8, Intel X550
    AOC-STG-i4T-Standard LP, 4x 10GbE RJ45, PCI-E x8, Intel XL710
    AOC-STG-i2-Standard LP, 2x 10GbE CX4, PCI-E x8, Intel 82598EB
    AOC-S25G-m2S-Standard LP, 2x 25GbE SFP28, Mellanox ConnectX-4 LX EN
    AOC-S40G-i2Q-Standard LP 2-port 40GbE controller, Intel Fortville XL710
    More-AOC Compatibility Matrix
    1U Cable Management Arm
    MCP-290-00152-0N11U Supermicro Cable Management Arm 2nd Gen
    CacheVault(s)
    BTR-CV3108-1U1-CacheVault for Broadcom 3108 with Supercap mounting in 1U 40x56 fan tray
    BTR-TFM8G-LSICVM02 & BKT-BBU-BRACKET-05-CacheVault for Broadcom 3108; Supercap mounting bracket for PCI-E location
    Intel VROC RAID Key
    AOC-VROCINTMOD1Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
    AOC-VROCSTNMOD1Intel VROC Standard, RAID 0, 1, 10
    AOC-VROCPREMOD1Intel VROC Premium, RAID 0, 1, 5, 10
    Global Services & Support
    OS4HR3/2/1-3/2/1-year onsite 24x7x4 service
    OSNBD3/2/1-3/2/1-year onsite NBD service
    Software
    SFT-OOB-LIC1OOB Management Package (per node license)
    SFT-DCMS-Single1DataCenter Management Package (per node license)
