  2. X12SDV-20C-SPT8F + CSE-515M-R000NP2

X12SDV-20C-SPT8F + CSE-515M-R000NP2

SYS-110D-20C-FRDN8TP

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10343/image_1920?unique=a1dbe1e

kr 46 877,97 46877.97 NOK kr 46 877,97

kr 46 877,97

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro SYS-110D-20C-FRDN8TP is a cutting-edge 1U rackmount server tailored for networking, firewall, uCPE, and telecom applications. Featuring Intel® Xeon® D-2796NT processors, support for high-capacity memory, and advanced cooling, this system ensures top performance and reliability.

    Key Features

    • Intel® Xeon® Processor D-2796NT, CPU TDP 120W
    • Up to 256GB Registered ECC RDIMM, DDR4-2933MHz; Up to 512GB LRDIMM LRDIMM, DDR4-2933MHz, in 4 DIMM slots
    • 2x Internal 2.5" drive bays(2x PCIe 4.0 NVMe x8 SlimSAS and 1x OCuLink options)
    • 4x GbE, 2x 25G SFP28 and 2x 10G Base-T
    • 1x M.2 M-Key 2242/2280 (SATA/PCIe 3.0 x4)

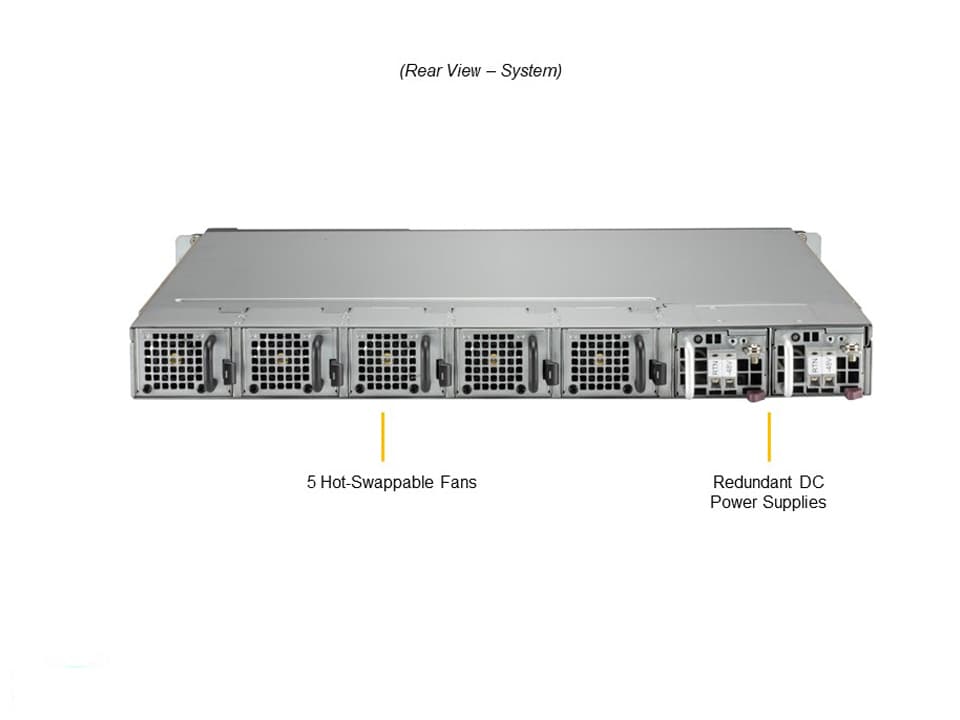

    • 5x 40x56mm Hot-swap Counter-rotation PWM Fans
    • Redundant 600 W, -48 Vdc

    Key Applications

    • Intel® QuickAssist Technology
    • Networking Application, Firewall, uCPE, Telecom Application

    Description

    The Supermicro SYS-110D-20C-FRDN8TP is designed to meet the demanding requirements of modern data centers. It supports Intel® Xeon® Processor D-2700 series up to 120W TDP, accommodating up to 256GB of Registered ECC RDIMM or 512GB LRDIMM DDR4-2933MHz memory across 4 DIMM slots. The system offers versatile storage options with 2x internal 2.5" drive bays, an M.2 M-Key slot, and robust networking capabilities including 4x GbE, 2x 25G SFP28, and 2x 10G Base-T ports. It also features 5x 40x56mm hot-swap counter-rotating fans and a redundant 600W power supply, ensuring efficient cooling and power redundancy.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-110D-20C-FRDN8TP
    Motherboard
    Installed Motherboard
    • Super X12SDV-20C-SPT8F
    Processor
    CPU
    • Single FCBGA-2579
    • Intel® Xeon® Processor D-2700 Series
    Note
    • Supports up to 120W TDP CPUs (Air Cooled)
    GPU
    Max GPU Count
    • Up to 1 double-width or 1 single-width GPU
    Supported GPU
    • NVIDIA PCIe: L4
    CPU-GPU Interconnect
    • PCIe 4.0 x16 CPU-to-GPU Interconnect
    System Memory
    Memory
    • Slot Count: 4 DIMM slots
    • Max Memory (1DPC): Up to 256GB/512GB 2933MT/s ECC DDR4 RDIMM/LRDIMM
    Memory Voltage
    • 1.2V
    On-Board Devices
    Chipset
    • Intel® SoC
    Network Connectivity
    • 4 RJ45 1GBASE-T with Intel® I350
    • 2 SFP28 25GbE with Intel® SoC
    • 2 RJ45 10GBASE-T with Intel® X550
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    • 4 RJ45 1 GbE LAN port(s) (Intel® I350)
    • 2 RJ45 10 GbE LAN port(s) (Intel® X550)
    • 2 SFP28 25 GbE LAN port(s) (Intel® SOC)
    USB
    • 2 port(s)
    Video
    • 1 VGA port(s)
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    FAN
    • Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
    Temperature
    • CPU thermal trip support, PEPI Monitoring for CPU and chassis environment
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-515M-R000NP2
    Dimensions and Weight
    Height
    • 1.7" (43 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 15.7" (399 mm)
    Package
    • 7.9" (H) x 26.7" (W) x 23.8" (D)
    Weight
    • Gross Weight: 29 lbs (13.15 kg)
    • Net Weight: 18 lbs (8.16 kg)
    Available Color
    • Silver
    Front Panel
    LED
    • HDD activity
    • LAN1 activity
    • LAN2 activity
    • Power status
    • System information
    Buttons
    • Power On/Off
    • UID button
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 1 PCIe 4.0 x16 FHFL slot

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 2 bays:
    • 2 internal fixed 2.5" SATA drive bays

    M.2
    • 1 M.2 NVMe/SATA slot (M-key 2242/2280)
    System Cooling
    Fans
    • 5 Counter-rotating, Hot-swappable 40x40x56mm Fan(s)
    Power Supply
    2x 600W Redundant (1 + 1) Typical 90%+ Level (92%) power supplies
    Dimension (WxHxL):
    • 54.5 x 40 x 220 mm

    AC Input:
    • 600W: -44--65Vdc

    +12V:
    • Max: 50A / Min: 0A

    5V SB:
    • Max: 3A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
    • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
    General
    Standard Parts (Parts Included)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X12SDV-20C-SPT8F1Super X12SDV-20C-SPT8F Motherboard
    CSE-515M-R000NP211U Chassis
    Cable
    CBL-0483L27pin SATA (STR to STR), 29cm, PBF
    CBL-OTHR-1214-247FAN cbl,1x4,M, to 1x4,F,14CM,3A/pin,22AWG,RoHS
    CBL-PWCD-0974248VDC input power cable, 2M, 12AWG, 3 wires, RoHS/REACH,RoHS
    CBL-0191L1FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,50CM,PBF
    CBL-PWCD-0160-IS2PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
    Fan
    FAN-0207L4540x40x56 mm, 13K-11K RPM,Counter-rotating, Hot-swappable Fan
    Parts
    MCP-260-00099-0B11U Black I/O Shield for A2SDi-TP8F with EMI Gasket
    MCP-260-00078-0B11U I/O shield for X11 Server MB with 5X5mm vent hole and EMI Gasket, Black
    Air Shroud
    MCP-310-51504-0B1Mylar Air Shroud for SC515M + X11 SDW
    Manual
    MNL-2541-QRG1110D-4C/8C/16C/20C-FRA(D)N8TP Quick Reference Guide
    Power Supply
    PWS-601D-1R2-48V DC input, 12V and 5Vsb 600W output for 1U redundancy
    Riser Card
    RSC-S-6G411U LHS Standard riser card with one PCIe 4.0 x16 slot,HF,Ro
    *Power Distributor
    PDB-PT515M-242411U support redundancy up to 800W for SC515M chassis with ATX
    *Drive Tray(s)
    MCP-220-00137-0N1Dual 2.5 HDD bracket (bracket base follow std 2.5
    *Rear Window
    MCP-240-51505-0N1Rear window for SC515M Redundant PWS chassis
    *Front Panel
    MCP-280-80901-0N1SC809 FRONT CONTROL PANEL ASSY
    *Rail Set
    MCP-290-00102-0N1setOuter rail, quick-release type, 25.6
    MCP-290-00108-0B1 setInner rail, front, short (quick) for 1U 17.2
    *Fan Holder
    MCP-320-51501-0N21U hot-swap 4056 dummy fan tray for SC515M (no venting hole)
    MCP-320-51502-0N11U hot-swap 4056 fan tray for FAN-0207L4 in SC515M (with venting hole)

    Optional Part List

    Part Number Quantity Description
    SlimSAS x8 to PCIe 2x SFF-8639&PWR,G4,55CM,85OHM,Ro
    CBL-SAST-0953-11SlimSAS x8 to PCIe 2x SFF-8639&PWR,G4,55CM,85OHM,Ro
