  2. Ice Lake SP, 1U Rackmount, 3 PCIe Slot Embedded System

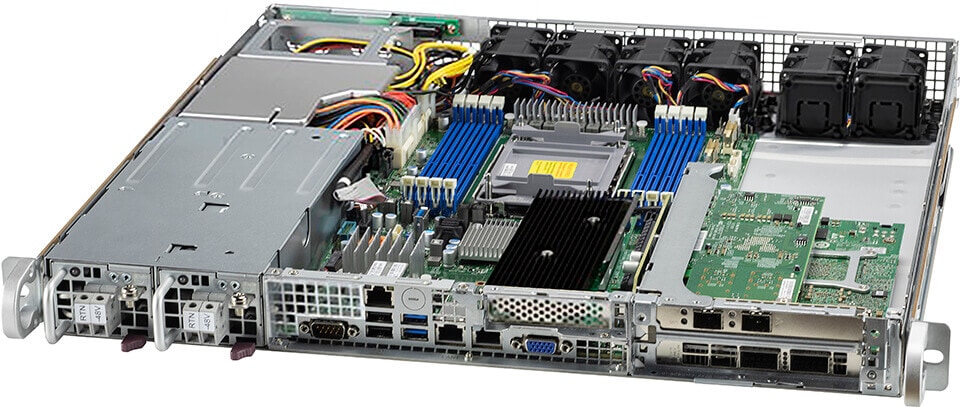

Ice Lake SP, 1U Rackmount, 3 PCIe Slot Embedded System

SKU: SYS-110P-FDWTR
Brand: Supermicro
Produktnotat:

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/10351/image_1920?unique=bd0e81e

kr 19 370,08 19370.08 NOK kr 19 370,08 Ekskl. mva

kr 19 370,08 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The Supermicro SYS-110P-FDWTR is a versatile edge server designed for Multi-Access Edge Computing, AI on Edge, and 5G applications. Featuring support for 3rd Gen Intel Xeon Scalable processors and impressive memory and storage capabilities.

    Nøkkelfunksjoner

    • Socket P+ (LGA-4189) support 3rd Gen Intel® Xeon® Scalable processors
    • 8 DIMMs; Up to 2TB 3DS ECC DDR4-3200: RDIMM/LRDIMM
    • 2x 2.5" drive bays; 1 M.2 NVMe OR 1 M.2 SATA3
    • 6 heavy duty fans with optimal fan speed control; 1 Air Shroud(s)
    • 600W -48V Redundant Power Supplies Level (92%+)

    Viktige bruksområder

    • Multi-Access Edge Computing
    • Flex-RAN, Open-RAN vBBU
    • Artificial Intelligence (AI) on Edge
    • DU of 5G Application
    • Satellite Communication

    Beskrivelse

    The Supermicro SYS-110P-FDWTR is a 1U rackmount edge server built for demanding edge computing tasks. It supports 3rd Gen Intel Xeon Scalable processors with a single Socket P+ (LGA-4189). Up to 2TB of ECC DDR4 memory ensures high performance and reliability. The system includes 2x 2.5" drive bays and 1 M.2 NVMe or SATA3 slot, with robust cooling provided by 6 heavy-duty fans. Optimal for applications in Multi-Access Edge Computing, Artificial Intelligence on Edge, and 5G deployment, it guarantees secure and efficient operations.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-110P-FDWTR
    Motherboard
    Installed Motherboard
    • Super X12SPW-TF
    Processor
    CPU
    • Single Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 32C/64T; Up to 48MB Cache
    Note
    • Supports 85W - 205W TDP CPUs (Air Cooled)
    System Memory
    Memory
    • Slot Count: 8 DIMM slots
    • Max Memory (1DPC): Up to 2048GB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    Memory Voltage
    • 1.2V
    On-Board Devices
    SATA
    • SATA (6Gbps) ; RAID 0/1 support
    Chipset
    • Intel® C621A
    Network Connectivity
    • 2 RJ45 10GBASE-T with Intel® X550
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    • 2 RJ45 10 GbE LAN port(s) (Intel® X550-AT2)
    USB
    • 2 USB 2.0 Type-A port(s)
    • 2 Type-A port(s)
    Video
    • 1 VGA port(s)
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support, PEPI
    Chassis
    Form Factor
    • 1U
    Model
    • CSE-515B-R601W
    Dimensions and Weight
    Height
    • 1.7" (43 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 16.9" (429 mm)
    Package
    • 8" (H) x 27" (W) x 24" (D)
    Weight
    • Gross Weight: 14.99 lbs (6.8 kg)
    • Net Weight: 10.01 lbs (4.54 kg)
    Available Color
    • No Paint
    Front Panel
    LED
    • Fan Fail/System Over Heat LED
    • Power LED
    Buttons
    • Power On/Off button
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 1 PCIe 4.0 x16 LP slot
    • 2 PCIe 4.0 x16 FHFL slots

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 2 bays:
    • 2 internal fixed 2.5" SATA drive bays

    M.2
    • 1 M.2 NVMe/SATA slot (M-key 2280/22110)
    System Cooling
    Fans
    • 6 heavy duty fans with optimal fan speed control
    Air Shroud
    • 1 Air Shroud
    Power Supply
    2x 600W Redundant (1 + 1) Typical 90%+ Level (92%) power supplies
    Dimension (WxHxL):
    • 54.5 x 40 x 220 mm

    5V SB:
    • Max: 3A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
    • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
    General
    Standard Parts (Parts Included)

    Standard Delliste

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X12SPW-TF1Super X12SPW-TF Motherboard
    CSE-515B-R601W11U Chassis
    Cable
    CBL-0082L1Y SPLIT SATA POWER ADAPTER, PB FREE
    CBL-0483L27pin SATA (STR to STR), 29cm, PBF
    CBL-PWCD-0974248VDC input power cable, 2M, 12AWG, 3 wires, RoHS/REACH,RoHS
    Fan
    FAN-0167L4240x40x56 mm, 20.5K-17.6K RPM, Counter-rotating Fan for SC947 SBB and 1U Twin Pro Series Servers
    Riser Card
    RSC-W-66G411U LHS WIO Riser card with two PCIe 4.0 x16 slots,HF,RoHS
    RSC-WR-611U RHS WIO Riser card with one PCIe 4.0 x16 slot,HF,RoHS
    Software
    SFT-OOB-LIC1License key for enabling OOB BIOS management
    Heatsink / Retention
    SNK-P0077VOR1X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin
    SNK-P0077P-1U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
    *Power Supply
    PWS-601S-1R21U 600W Redundant DC48V input w/PMBus power supply, W54.5xH4
    *Power Distributor
    PDB-PT514-282411U redundant power distributor board for SC514, SC113 etc., (rename from PDB-PT514-1824),RoHS/REACH

    Valgfrie Opsjoner

    Part Number Quantity Description
    TPM security module
    AOM-TPM-9671V-SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9670V-SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
