  2. MBD-X13SAW-F + 1U Non-Standard SC514

MBD-X13SAW-F + 1U Non-Standard SC514

SKU: SYS-111AD-WRN2
Brand: Supermicro
Produktnotat:

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 1 CPU, 1 DIMM, 1 Storage Device HDD/HDS/M.2)

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/10277/image_1920?unique=80bb10d

kr 13 511,91 13511.91 NOK kr 13 511,91 Ekskl. mva

kr 13 511,91 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

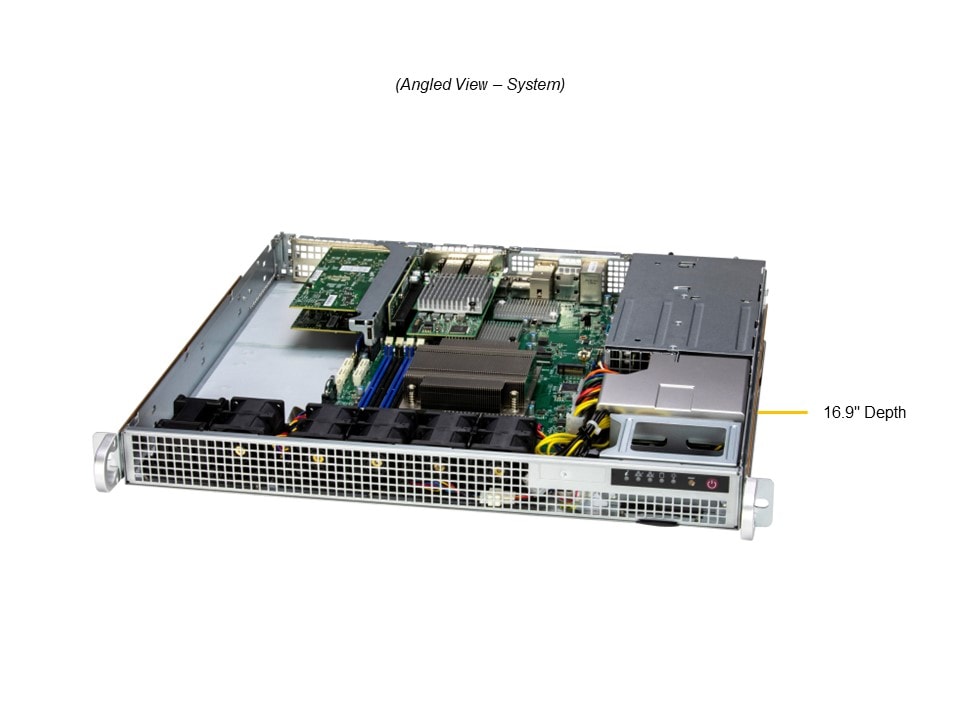

    The Supermicro SYS-111AD-WRN2 is a powerful 1U server designed for virtualization, edge/cloud computing services, firewall applications, and more. Equipped with Intel's latest processors and high-speed DDR5 memory, it offers superior performance and reliability.

    Nøkkelfunksjoner

    • Intel® 14th/13th/12th Gen Core i9/i7/i5/i3 (ADL/RPL-S) Processor in LGA1700 Socket with R680E Chipset
    • 4 DIMM slots, DDR5-4400MHz memory, support up to 128GB
    • 1x dedicated IPMI LAN, 2x 2.5GbE BaseT LAN ports via Intel® I226 Controller
    • 800W 100-240Vac Platinum Single Power Supply (can be upgraded to redundant power supply)

    Viktige bruksområder

    • Virtualization
    • Firewall Applications
    • Edge/Cloud Computing Services
    • CDN/vCDN/Cloud CDN
    • vRAN/o-RAN

    Beskrivelse

    The Supermicro SYS-111AD-WRN2 is a versatile 1U server featuring the Intel® 14th/13th/12th Gen Core i9/i7/i5/i3 (ADL/RPL-S) Processor in an LGA1700 Socket with R680E Chipset. It includes 4 DIMM slots supporting up to 128GB of DDR5-4400MHz memory, providing exceptional speed and capacity. The server comes with robust network options, including a dedicated IPMI LAN and 2x 2.5GbE BaseT LAN ports via Intel® I226 Controller. Additionally, it features an 800W 100-240Vac Platinum Single Power Supply that can be upgraded to a redundant power supply for enhanced reliability. Key applications for this server include virtualization, firewall applications, edge/cloud computing services, CDN/vCDN/Cloud CDN, and vRAN/o-RAN.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-111AD-WRN2
    Motherboard
    Installed Motherboard
    • Super X13SAW-F
    Processor
    CPU
    • Single LGA-1700
    • 14th/13th/12th Gen Intel® Core™ i9/i7/i5/i3 Processors
    Note
    • Supports up to 80W TDP CPUs (Air Cooled)
    System Memory
    Memory
    • Slot Count: 4 DIMM slots
    • Max Memory (2DPC): Up to 128GB 4400MT/s ECC/non-ECC DDR5 UDIMM
    Memory Voltage
    • 1.1V
    On-Board Devices
    Chipset
    • Intel® R680E
    Network Connectivity
    • 2 RJ45 2.5GbE with Intel® I226
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    • 2 RJ45 2.5 GbE LAN port(s) (Intel® I226)
    USB
    • 2 port(s)
    Video
    • 1 VGA port(s)
    • 2 DisplayPort 1.4a port(s)
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash
    BIOS Features
    • ACPI 6.5SMBIOS 3.6 or laterUEFI 2.8Plug and Play (PnP)USB Keyboard support
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • 800W 100-240Vac Platinum Single Power Supply (can be upgraded to redundant power supply)
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    • System Lockdown
    PC Health Monitoring
    Temperature
    • SuperDoctor® 5
    • System resource alert via SuperDoctor®5
    • Platform Environment Control Interface (PECI) 3.0 support
    Chassis
    Form Factor
    • 1U
    Model
    • CSE-514-R00RWNP
    Dimensions and Weight
    Height
    • 1.7" (43 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 16.9" (429 mm)
    Package
    • 8" (H) x 27" (W) x 24" (D)
    Weight
    • Gross Weight: 25.2 lbs (11.43 kg)
    Available Color
    • No Paint
    Front Panel
    LED
    • Fan Fail/System Over Heat LED
    • HDD activity LED
    • Network Activity LEDs
    • Power status LED
    Buttons
    • Power On/Off button
    • System Reset button
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 2 PCIe 5.0 x8 FHFL slots
    • 1 PCIe 4.0 x4 LP slot

    Option A:
    • 1 PCIe 5.0 x16 (in x16) FHFL double-width slot
    • 1 PCIe 4.0 x4 (in x8) HHHL slot

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 2 bays:
    • 2 internal fixed 2.5" NVMe/SAS/SATA drive bays

    M.2
    • 2 M.2 NVMe slots (M-key 2280/22110)
    • 1 M.2 PCIe 3.0 x4 NVMe slot (M-key 2280)
    • 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280/22110)
    System Cooling
    Fans
    • 5 Heavy duty counter-rotating 4cm Fan(s)
    Power Supply
    1x 800W Redundant power supply
    Dimension (WxHxL):
    • 54.5 x 40 x 220 mm

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
    • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
