  2. Xeon Sapphire Rapids Compact 1U, X13SEW-TF, CSE-515B-R6

Xeon Sapphire Rapids Compact 1U, X13SEW-TF, CSE-515B-R6

SKU: SYS-111E-FDWTR
Brand: Supermicro
Produktnotat:

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/10278/image_1920?unique=698607b

kr 22 096,62 22096.62 NOK kr 22 096,62 Ekskl. mva

kr 22 096,62 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

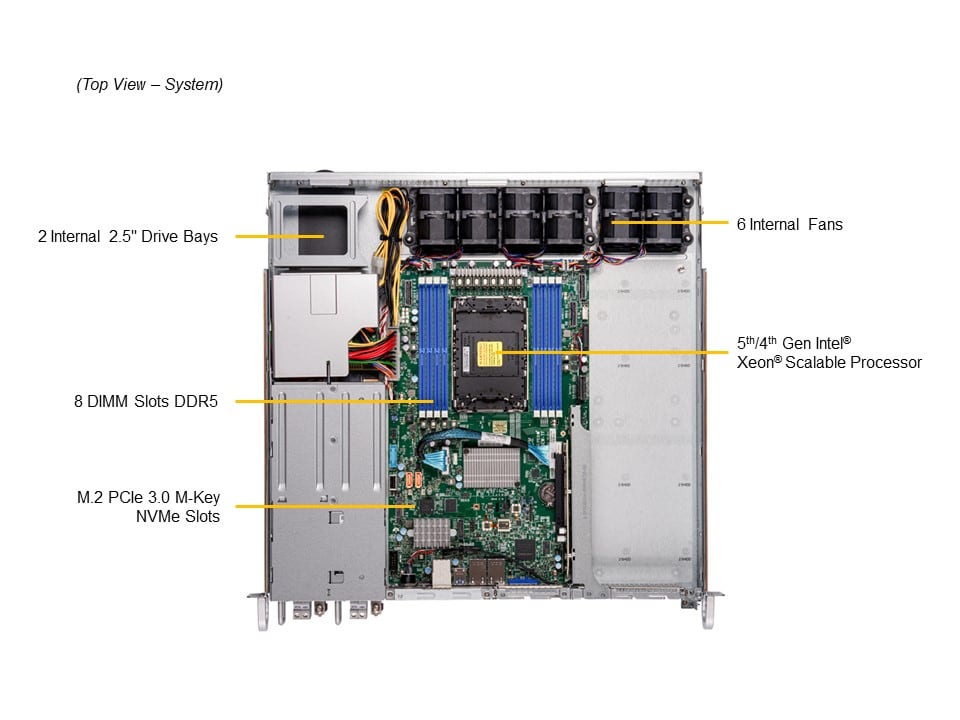

    The Supermicro SYS-111E-FDWTR is a high-performance 1U rackmount server designed for demanding edge computing tasks. It supports the latest Intel® Xeon® Scalable processors and features robust memory and storage options.

    Nøkkelfunksjoner

    • Support 5th and 4th Gen Intel® Xeon® Scalable processors
    • NEBS Level 3 Certified
    • 8 DIMMs; Up to 2TB 3DS ECC DDR5-5600 RDIMM
    • 2x 2.5" drive bays; 1 M.2 NVMe (PCIe 3.0 x2 from PCH)
    • 6 heavy duty fans with optimal fan speed control; 1 Air Shroud(s)
    • 600W DC Redundant Power Supplies Level

    Viktige bruksområder

    • Multi-Access Edge Computing
    • Flex-RAN, Open-RAN vBBU
    • Artificial Intelligence (AI) on Edge
    • DU of 5G Application
    • Satellite Communication

    Beskrivelse

    The Supermicro SYS-111E-FDWTR server is engineered for optimal performance and reliability in edge computing environments. Featuring single socket support for 5th and 4th Gen Intel® Xeon® Scalable processors, this 1U rackmount server offers exceptional computing power and versatility. It includes 8 DIMM slots supporting up to 2TB ECC DDR5 memory, dual 600W redundant power supplies, advanced cooling with six heavy-duty fans, and expansive storage options with 2.5" drive bays and an M.2 NVMe slot. Enhanced security features like TPM 2.0 and silicon root of trust ensure data integrity, while comprehensive management tools provide sophisticated monitoring and control capabilities.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-111E-FDWTR
    Motherboard
    Installed Motherboard
    • Super X13SEW-TF
    Processor
    CPU
    • Single Socket E (LGA-4677)
    • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 32C/64T; Up to 60MB Cache
    Note
    • Supports 85W - 350W TDP CPUs (Air Cooled)*
    • *Air Cooled CPUs with TDP over 205W only supported under specific conditions. Contact a Supermicro representative for details.
    System Memory
    Memory
    • Slot Count: 8 DIMM slots
    • Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
    Memory Voltage
    • 1.1V
    On-Board Devices
    SATA
    • SATA (6Gbps) ; RAID 0/1 support
    Chipset
    • Intel® C741
    Network Connectivity
    • 2 RJ45 10GbE
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    • 2 RJ45 10 GbE LAN port(s) (Intel® X550-AT2)
    USB
    • 2 USB 2.0 Type-A port(s)
    • 2 USB 3.2 Gen1 Type-A port(s)
    Video
    • 1 VGA port(s)
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support, PEPI
    Chassis
    Form Factor
    • 1U
    Model
    • CSE-515B-R601W
    Dimensions and Weight
    Height
    • 1.7" (43 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 16.9" (429 mm)
    Package
    • 8" (H) x 27" (W) x 24" (D)
    Weight
    • Gross Weight: 14.99 lbs (6.8 kg)
    • Net Weight: 10.01 lbs (4.54 kg)
    Available Color
    • No Paint
    Front Panel
    LED
    • Fan Fail/System Over Heat LED
    • Power LED
    Buttons
    • Power On/Off button
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 1 PCIe 5.0 x16 LP slot
    • 2 PCIe 5.0 x16 FHFL slots

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 2 bays:
    • 2 internal fixed 2.5" SATA drive bays

    M.2
    • 1 M.2 PCIe 3.0 x2 NVMe slot (M-key 2280/22110)
    System Cooling
    Fans
    • 6 heavy duty fans with optimal fan speed control
    Air Shroud
    • 1 Air Shroud
    Power Supply
    2x 600W Redundant (1 + 1) Typical 90%+ Level (92%) power supplies
    Dimension (WxHxL):
    • 54.5 x 40 x 220 mm

    5V SB:
    • Max: 3A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
    • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
    General
    Standard Parts (Parts Included)

    Standard Delliste

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X13SEW-TF1Super X13SEW-TF Motherboard
    CSE-515B-R601W11U Chassis
    Cable
    CBL-0082L1Y SPLIT SATA POWER ADAPTER, PB FREE
    CBL-0483L27pin SATA (STR to STR), 29cm, PBF
    CBL-PWCD-0974248VDC input power cable, 2M, 12AWG, 3 wires, RoHS/REACH,RoHS
    CBL-MCIO-1218M5OR1MCIO x8 (STR to STR),18CM,85OHM,RoHS
    CBL-MCIO-1218M5-1-MCIO x8 (STR to STR),18CM,85OHM,RoHS
    Fan
    FAN-0167L4240x40x56 mm, 20.5K-17.6K RPM, Counter-rotating Fan for SC947 SBB and 1U Twin Pro Series Servers
    Manual
    MNL-2570-QRG1111E-FWTR/FDWTR Quick Reference Guide
    Riser Card
    RSC-W-66G511U LHS WIO Riser card with two PCIe 5.0 X16 slots,HF,R
    RSC-WR-6G5+11U RHS WIO Riser card with one PCIe 5.0 X16 slot,HF,RoH
    Software
    SFT-OOB-LIC1License key for enabling OOB BIOS management
    Heatsink / Retention
    SNK-P0087P11U Passive CPU HS for X13 EGS and X14-SP BHS-SP Systems
    *Power Supply
    PWS-601S-1R21U 600W Redundant DC48V input w/PMBus power supply, W54.5xH4
    *Power Distributor
    PDB-PT514-282411U redundant power distributor board for SC514, SC113 etc., (rename from PDB-PT514-1824),RoHS/REACH

    Valgfrie Opsjoner

    Part Number Quantity Description
    AOC supporting bracket
    MCP-120-51501-0N11U WIO supporting bracket for SC515B AOC(AOC-P3IMB-M-P2)
    Fan
    FAN-0163L46Required when supports a 350W CPU
    TPM security module
    AOM-TPM-9670V-O1SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
