  2. X14 Compact 1U, X14SBW-F, CSE-515B-R601W

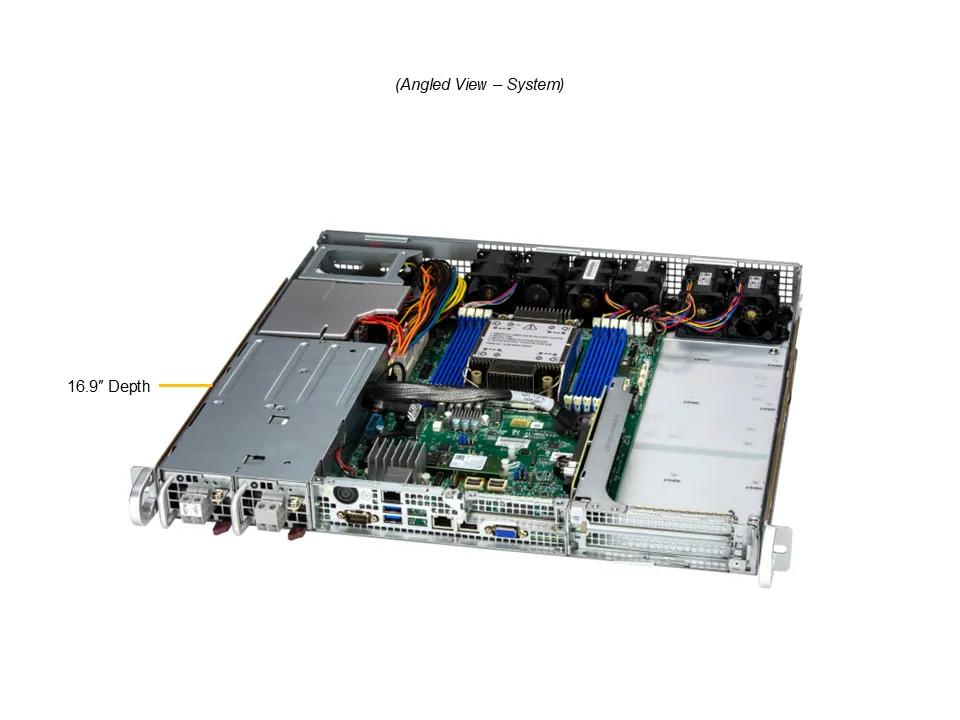

X14 Compact 1U, X14SBW-F, CSE-515B-R601W

SKU: SYS-112B-FDWR
Brand: Supermicro
Produktnotat:

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/13548/image_1920?unique=8bb6aff

kr 19 681,56 19681.56 NOK kr 19 681,56 Ekskl. mva

kr 19 681,56 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    Supermicro X14 Compact 1U Server offers impressive processing power with Intel Xeon E-cores, robust network connectivity, and flexible expansion options. Ideal for edge computing, AI, and 5G applications with high reliability and security features.

    Nøkkelfunksjoner

    • Single Intel® Xeon® 6 6700 series processors with E-cores
    • 8 DIMMs; Up to 1TB ECC DD5-6400 RDIMM
    • 2x FHFL PCIe 5.0 x16;1x LP PCIe 5.0 x16

    Viktige bruksområder

    • Multi-Access Edge Computing
    • Flex-RAN, Open-RAN vBBU
    • Artificial Intelligence (AI) on Edge
    • DU of 5G Application
    • Satellite Communication

    Beskrivelse

    The Supermicro X14 Compact 1U Server, model X14SBW-F, is optimized for next-gen edge computing applications. Equipped with single Intel Xeon 6700 series processors and up to 1TB DDR5 memory, it delivers exceptional performance. This rackmount server supports extensive I/O expansion with PCIe 5.0 slots and provides secure, energy-efficient operation in demanding environments.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-112B-FDWR
    Motherboard
    Installed Motherboard
    • Super X14SBW-F
    Processor
    CPU
    • Single Socket E2 (LGA-4710)
    • Intel® Xeon® 6700 series processors with E-cores
    Core Count
    • Up to 144C/160T; Up to 60MB Cache
    Note
    • Supports up to 250W TDP CPUs (Air Cooled)
    GPU
    Max GPU Count
    • Up to 1 single-width GPU
    Supported GPU
    • NVIDIA PCIe: L4, A2
    System Memory
    Memory
    • Slot Count: 8 DIMM slots/8 Channels
    • Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM
    Memory Voltage
    • 1.1V
    On-Board Devices
    SATA
    • SATA (6Gbps)
    Chipset
    • System on Chip
    Network Connectivity
    • 2 RJ45 1GbE with Intel® I210
    Input / Output
    LAN
    • 2 RJ45 1 GbE LAN ports
    USB
    • 2 USB 3.2 Gen1 Type-A ports(rear)
    • 2 USB 3.2 Gen1 ports(Header)
    Video
    • 1 VGA port
    Serial
    • 1 COM port(Rear)
    TPM
    • 1 TPM header
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    CPU
    • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
    Voltage
    • Voltage, VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-515B-R000WNP
    Dimensions and Weight
    Height
    • 1.7" (44.5 mm)
    Width
    • 17.2" (436.88 mm)
    Depth
    • 16.9" (429.3 mm)
    Package
    • 8" (H) x 27" (W) x 24" (D)
    Weight
    • Gross Weight: 15 lbs (6.8 kg)
    • Net Weight: 10 lbs (4.54 kg)
    Available Color
    • Silver
    Front Panel
    LED
    • LAN1 activity
    • LAN2 activity
    • Power status
    Buttons
    • Power On/Off
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 2 PCIe 5.0 x16 FHFL slots
    • 1 PCIe 5.0 x16 LP slot

    M.2
    • 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110)
    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 2 bays:
    • 2 internal fixed 2.5" NVMe/SATA drive bays

    M.2
    • 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 2280/22110)
    System Cooling
    Fans
    • 6x 4cm heavy duty fans with optimal fan speed control
    Air Shroud
    • 1 Air Shroud
    Power Supply
    2x 600W Redundant (1 + 1) Typical 90%+ Level (96%) power supplies
    Dimension (WxHxL):
    • 54.5 x 40 x 220 mm

    Input:
    • 600W: -44--65Vdc / 50-60Hz

    +12V:
    • Max: 50A / Min: 0A
    • Max: 50A

    5V SB:
    • Max: 3A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
    • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)

    Valgfrie Opsjoner

    Part Number Quantity Description
    TPM Security Module
    AOM-TPM-9670V-O1SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
