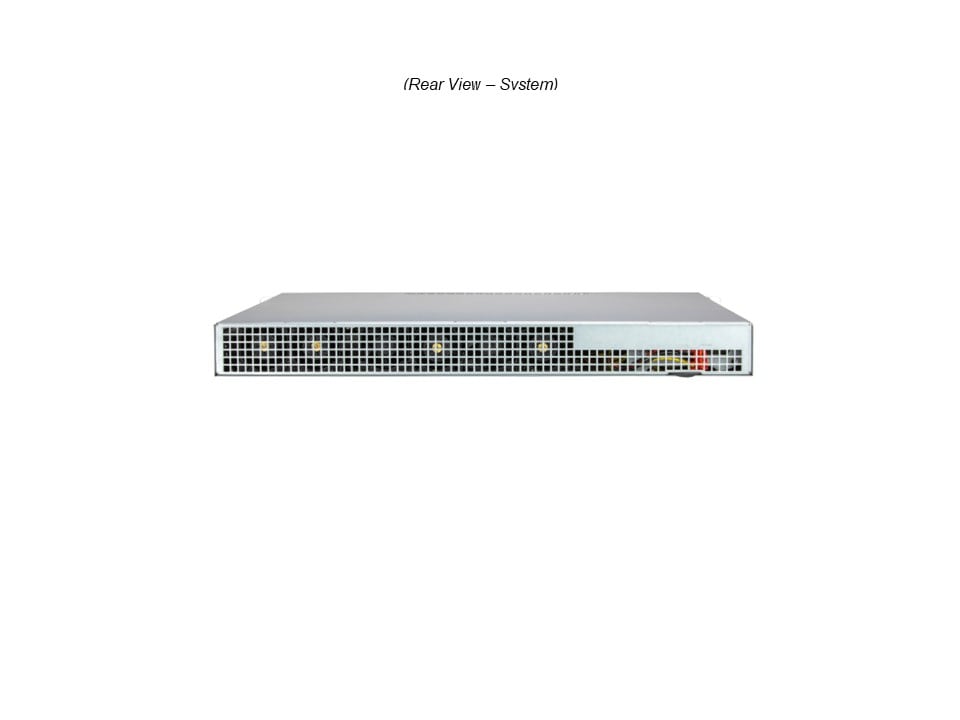

[NR]X14 Compact 1U, X14SBW-TF, CSE-515B-R801W

SKU: SYS-112B-FWT
Brand: Supermicro
Produktnotat:

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 1 CPUs, 2 DIMMs and 1 Storage Device (HDD/HDS)).

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/12111/image_1920?unique=3c6928e

kr 14 915,68 14915.68 NOK kr 14 915,68 Ekskl. mva

kr 14 915,68 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The SYS-112B-FWT offers robust performance with single Intel® Xeon® 6 6700 series processors, extensive memory support, and advanced connectivity options, making it ideal for multi-access edge computing, AI on the edge, and 5G applications.

    Nøkkelfunksjoner

    • Single Intel® Xeon® 6 6700 series processors with E-cores
    • 8 DIMMs; Up to 1TB ECC DD5-6400 RDIMM
    • 2x FHFL PCIe 5.0 x16;1x LP PCIe 5.0 x16

    Viktige bruksområder

    • Multi-Access Edge Computing
    • Flex-RAN, Open-RAN vBBU
    • Artificial Intelligence (AI) on Edge
    • DU of 5G Application
    • Satellite Communication

    Beskrivelse

    The SuperServer SYS-112B-FWT is a 1U rackmount server equipped with single Intel® Xeon® 6 6700 series processors featuring E-cores. It supports up to 1TB of DDR5 ECC memory and offers exceptional expandability with its 2 FHFL PCIe 5.0 x16 slots and 1 LP PCIe 5.0 x16 slot. This server is designed to handle demanding edge computing tasks such as multi-access edge computing, open-RAN vBBU, AI on the edge, and 5G applications. It also features a range of connectivity options, onboard devices, and comprehensive management and security features, ensuring reliability and performance for critical deployments.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-112B-FWT
    Motherboard
    Installed Motherboard
    • Super X14SBW-TF
    Processor
    CPU
    • Single Socket E2 (LGA-4710)
    • Intel® Xeon® 6 6700 series processors with E-cores
    Core Count
    • Up to 144C/160T; Up to 60MB Cache
    Note
    • Supports up to 350W TDP CPUs (Air Cooled)
    GPU
    Max GPU Count
    • Up to 1 single-width GPU(s)
    Supported GPU
    • NVIDIA PCIe: L4, A2
    System Memory
    Memory
    • Slot Count: 8 DIMM slots/8 Channels
    • Max Memory (1DPC): Up to 1TB 6400MT/s ECC DDR5 RDIMM
    • Supports Intel® Optane™ persistent memory 200 series
    On-Board Devices
    SATA
    • SATA (6Gbps)
    Chipset
    • System on Chip
    Network Connectivity
    • 2 RJ45 10GbE with Intel® X550
    Input / Output
    LAN
    • 2 RJ45 10 GbE LAN port(s)
    USB
    • 2 USB 3.2 Gen1 Type-A port(s) (rear)
    • 2 USB 3.2 Gen1 port(s) (Header)
    Video
    • 1 VGA port(s)
    Serial
    • 1 COM port(s) (Rear)
    TPM
    • 1 TPM header
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    CPU
    • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
    Voltage
    • Voltage, VBAT, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, VRM temperature, CPU thermal trip support, 1.8V standby
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-515B-R000WNP2
    Dimensions and Weight
    Height
    • 1.7" (44.5 mm)
    Width
    • 17.2" (436.88 mm)
    Depth
    • 16.9" (429.3 mm)
    Package
    • 8" (H) x 27" (W) x 24" (D)
    Weight
    • Gross Weight: 15 lbs (6.8 kg)
    • Net Weight: 10 lbs (4.54 kg)
    Available Color
    • Silver
    Front Panel
    LED
    • LAN1 activity
    • LAN2 activity
    • Power status
    Buttons
    • Power On/Off
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 2 PCIe 5.0 x16 FHFL slot(s)
    • 1 PCIe 5.0 x16 LP slot(s)

    M.2
    • 2 M.2 PCIe 5.0 x2 NVMe slot(s) (M-key 2280/22110)
    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 2 bay(s):
    • 2 internal fixed 2.5" NVMe/SATA drive bay(s)

    M.2
    • 2 M.2 PCIe 5.0 x2 NVMe slot(s) (M-key 2280/22110)
    System Cooling
    Fans
    • 6x 4cm heavy duty fans with optimal fan speed control
    Air Shroud
    • 1 Air Shroud(s)
    Power Supply
    2x 860W Redundant (1 + 1) Titanium Level (96%) Hot-plug power supplies
    Dimension (WxHxL):
    • 54.5 x 40.25 x 220 mm

    AC Input:
    • 800W: 100-127Vac / 50-60Hz
    • 860W: 200-240Vdc / 50-60Hz
    • 860W: 200-240Vac / 50-60Hz

    +12V:
    • Max: 66.67A / Min: 0A (100Vac-127Vac)
    • Max: 71.67A / Min: 0A (200Vdc-240Vdc)
    • Max: 71.67A / Min: 0A (200Vac-240Vac)

    5V SB:
    • Max: 4A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 0°C ~ 35°C (32°F ~ 95°F)
    • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)

    Valgfrie Opsjoner

    Part Number Quantity Description
    TPM Security Module
    AOM-TPM-9670V-O1SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
