  2. Ultra 1U, 12x2.5" NVMe, X12DPU-6, 119UH3TS-R1K22P-T

Ultra 1U, 12x2.5" NVMe, X12DPU-6, 119UH3TS-R1K22P-T

SYS-120U-TNR

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 2 CPUs, 4 DIMMs, 1 Storage Device HDD/HDS/M.2, and  1 NIC adapter*). *NIC adapter requirement includes either 1 Ultra Riser card with integrated NIC or 1 AOC-URG4N4 Ultra Riser card with 1 standard PCI-E NIC adapter.

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10335/image_1920?unique=a1dbe1e

kr 28 680,83 28680.83 NOK kr 28 680,83

kr 28 680,83

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro SYS-120U-TNR 1U Ultra SuperServer supports 3rd Gen Intel® Xeon® Scalable Processors, offering up to 8TB of memory and flexible storage options, making it ideal for mission-critical enterprise workloads.

    Key Features

    • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
    • Intel® C621A Chipset
    • 32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
    • 2 PCIe 4.0 x16 (FH, 10.5"L)1 PCIe 4.0 x16 (LP)1 Internal PCIe 4.0 x16
    • Flexible networking options
    • 12x2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
    • 8 heavy duty fans with optimal fan speed control
    • 1200W redundant Titanium level power supplies

    Key Applications

    • Virtualization
    • HPC
    • Cloud Computing
    • High End Enterprise Server
    • Software Defined Storage
    • Application Tier Service Provider
    • 5G/Telco

    Description

    SYS-120U_TNR_Callout1024_2 - Copy
    Supermicro X12 Ultra SuperServers are designed to deliver the highest performance, flexibility, scalability and serviceability to demanding IT environments, and to power mission-critical Enterprise workloads, including support for the 3rd generation Intel® Xeon® Scalable processors and a new class of big, affordable memory - Intel Optane DC Persistent Memory. The Intel® UltraPath Interconnect (UPI) and Cross Bar technologies provide direct communication between two CPUs in a dual socket server to catapult performance and dramatically reduce latency.
    SYS-120U_TNR_Callout1024_3 - Copy
    This SYS-120U-TNR 1U Ultra server supports the latest 3rd generation Intel® Xeon® Scalable processors, up to 8TB DDR4-3200MHz memory in 32 DIMMs slots, and 12 direct attached 2.5" hybrid storage drives. With Ultra 120U-TNR, you can populate and mix between 12x Gen 4 NVMe, SAS or SATA in any tray with no limitation and no speed lost. Whats more is that this SYS-120U-TNR supports dual 10GbE RJ45 ports which provides you with blazing fast networking speeds to fit your needs. This particular Ultra has 4 PCI-E in the rear side (1 internal PCI-E 4.0 x16, 1 PCI-E 4.0 x16 (LP), and 2 PCI-E x16 (FH, 10.5"L).

    Ultra SuperServer® 12th generation is one of the world most powerful, balanced and green computing server. Ultra is designed to deliver the highest performance, flexibility, scalability and serviceability to demanding IT environments, and to power mission-critical enterprise workloads. X12 has been a flagship legendary in the last 2 generation of Supermicro Intel platform, and got a lot more enhanced in this 3rd generation.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-120U-TNR
    Motherboard
    Installed Motherboard
    • Super X12DPU-6
    Processor
    CPU
    • Dual Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 40C/80T; Up to 60MB Cache per CPU
    Note
    • Supports up to 270W TDP CPUs (Air Cooled)
    GPU
    Max GPU Count
    • Up to 2 double-width or 2 single-width GPUs
    Supported GPU
    • NVIDIA PCIe: T4, A16, A2, A100
    System Memory
    Memory
    • Slot Count: 32 DIMM slots
    • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    • Supports Intel® Optane™ persistent memory 200 series
    Memory Voltage
    • 1.2V
    On-Board Devices
    SATA
    • SATA (6Gbps) ; RAID 0/1/5/10 support
    NVMe
    • NVMe; RAID 0/1/5/10 support
    Chipset
    • Intel® C621A
    Network Connectivity
    • 2 RJ45 10GBASE-T with Intel® X710-AT2 (optional)
    • 2 RJ45 10GBASE-T with Intel® X710-TM4 (optional)
    • 2 SFP+ 10GbE with Intel® X710-TM4 (optional)
    • No NIC option supported
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    USB
    • 2 USB 3.0 port(s) (rear)
    • 1 USB 3.0 port(s) (front)
    Video
    • 1 VGA port(s)
    DOM
    • 2 Super DOM (Disk on Module) port(s)
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    • 7 +1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-119UH3TS-R1K22P-T
    Dimensions and Weight
    Height
    • 1.7" (43 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 29.1" (739 mm)
    Package
    • 7.99" (H) x 23.81" (W) x 37.4" (D)
    Weight
    • Gross Weight: 41 lbs (18.6 kg)
    • Net Weight: 26.5 lbs (12.2 kg)
    Available Color
    • Black Front & Silver Body
    Front Panel
    LED
    • HDD activity
    • LAN1 activity
    • Power status
    • System information (overheat/UID)
    Buttons
    • Power On/Off
    • UID button

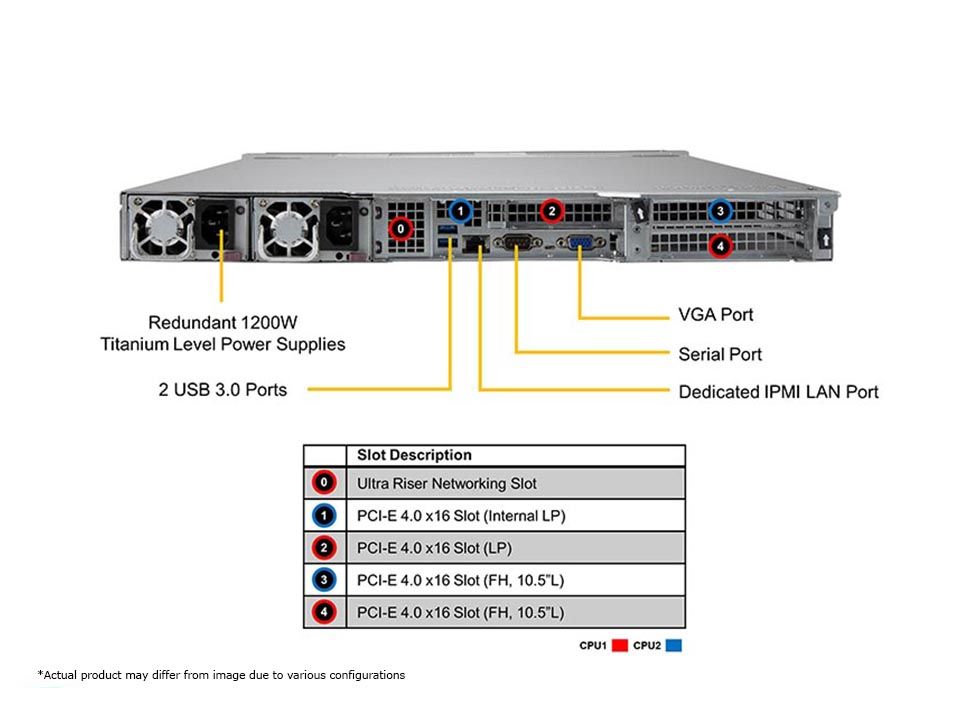

    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 1 PCIe 4.0 x16 LP slot
    • 1 PCIe 4.0 x16 LP slot
    • 2 PCIe 4.0 x16 FH/10.5"L slots

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 12 bays:
    • 12 front hot-swap 2.5" NVMe/SAS*/SATA drive bays

    • (*SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
    M.2
    System Cooling
    Fans
    • 8x 4cm heavy duty fans with optimal fan speed control
    Air Shroud
    • 2 Air Shrouds
    Power Supply
    1x 1200W Redundant Titanium Level (96%) Hot-plug power supply
    Dimension (WxHxL):
    • 73.5 x 40 x 203 mm

    AC Input:
    • 800W: 100-127Vac / 50-60Hz
    • 1200W: 200-240Vac / 50-60Hz
    • 1200W: 200-240Vdc / 50-60Hz (for CCC only)

    +12V:
    • Max: 66.7A / Min: 0A (100Vac-127Vac)
    • Max: 100A / Min: 0A (200Vdc-240Vdc)
    • Max: 100A / Min: 0A (200Vac-240Vac)

    12V SB:
    • Max: 2.1A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)

    Optional Part List

    Part Number Quantity Description
    1U Cable Management Arm
    MCP-290-00165-0N11U Supermicro Cable Management Arm 3rd Gen
    Add-on card for M.2 support
    AOC-SLG3-2H8M2-O-2x Hybrid NVMe/SATA M.2 RAID Carrier, Standard LP,RoHS
    CacheVaults
    BTR-CV3108-1U1-CacheVault for Broadcom 3108 with Supercap mounting in 1U 40x56 fan tray
    BTR-CVPM05 + BKT-BBU-BRACKET-05-CacheVault for Broadcom 3908/3916 with Supercap
    Drive Tray
    MCP-220-00178-0B1 ~ 122.5 thin profile drive tray, Orange tab (for hotswap NVMe drive), for SC119UH
    Global Services & Support
    OS4HR3/2/1-3/2/1-year onsite 24x7x4 service
    OSNBD3/2/1-3/2/1-year onsite NBD service
    Intel® VROC RAID Key Options
    AOC-VROCINTMOD1Intel VROC, RAID 0, 1, 5, 10 (Intel SSD Only)
    AOC-VROCSTNMOD1Intel VROC Standard, RAID 0, 1, 10
    AOC-VROCPREMOD1Intel VROC Premium, RAID 0, 1, 5, 10
    Internal Drive Tray for Two 2.5" Drives
    CBL-0484L Or2SATA3 S-S Cable
    CBL-SAST-0654 Or1miniSAS(iPass) to 4 SATA Cable
    CBL-SAST-09481miniSAS HD to 4 SATA Cable
    MCP-120-82916-0N12.5” Internal Drive Bay (Slim DVD Tray)
    Network Card(s)
    AOC Compatibility Matrix-Standard Networking AOC Matrix
    NVMe Support Cable Kit
    CBL-KIT-120U-TNR-12-1112 NVMe Cables Kit for X12 Ultra SYS-120U-TNR
    Optional Storage Controller Card + Cable(s)
    AOC-S3008L-L8i + 1x CBL-SAST-1260-100-Standard LP, 8 internal ports (12Gb/s) Gen-3; RAID 0,1,1E
    AOC-S3008L-L8E+-O + 1x CBL-SAST-1260-100-Standard LP, 8 internal ports (12Gb/s) Gen-3; HBA + I2C
    AOC-S3108L-H8iR-16DD+ 1x CBL-SAST-1260-100-Standard LP, 8 internal ports (12Gb/s) Gen-3; RAID 0, 1, 5, 6, 10, 50, 60
    AOC-S3808L-L8IT-O+ 1x CBL-SAST-1264F-100-Standard LP, 8 internal ports (12Gb/s) Gen-4; HBA
    AOC-S3816L-L16iT-O + 1x CBL-SAST-1264F-100, 1x CBL-SAST-1265F-100-Standard LP, 16 internal ports (12Gb/s) Gen-4; HBA
    AOC-S3908L-H8iR-16DD-O + 1x CBL-SAST-1271F-100-Standard LP, 8 internal ports (12Gb/s) Gen-4; RAID 0, 1, 5, 6, 10, 50, 60
    AOC-S3008L-L8E+ 1x CBL-SAST-1260-100-Standard LP, 8 internal ports (12Gb/s) Gen-3; HBA
    AOC-S3916L-H16IR-32DD-O+ 1x CBL-SAST-1265F-100, 1x CBL-SAST-1271F-100-Standard LP, 16 internal ports (12Gb/s) Gen-4; RAID 0, 1, 5, 6, 10, 50, 60
    Power Supply
    PWS-1K62A-1R21U 1600W, Titanium Level, Redundancy, AC Input: 90 - 264 VAC/47-63Hz
    PWS-1K30D-1R21U 1300W, Redundancy, DC Input: -48Vdc
    PWS-2K08A-1R21U 2000W, Titanium Level, Redundancy, AC Input: 90-264VAC/47-63Hz, and wide DC input 180Vdc~300Vdc
    Software
    SFT-DCMS-Single1DataCenter Management Package (per node license)
    Trusted Platform Module Options
    AOM-TPM-9671V-O1SPI Capable Vertical TPM 1.2 Module
    AOM-TPM-9670V-O1SPI TPM 2.0 using SLB9670
    AOM-TPM-9670V-S-FIPS-P1AOM-TPM-9670V-S-FIPS TPM 2.0 support TAA and FIPS,RoHS
    Ultra Riser Card Options + Rear Window
    AOC-URG4N4-I2XT-O + MCP-240-81909-0N11U Ultra Riser with 2-port 10GBase-T RJ45, based on Intel Carlsville X710-AT2, with 1 PCIe 4.0 x16 (internal), and 4 NVMe ports (2x SlimSAS x8),RoHS
    AOC-URG4N4-m2TS + MCP-240-81915-0N11U Ultra Riser 2-port 25GbE SFP28, based on Mellanox CX-6 LX, with 1 PCIe 4.0 x16 (internal), and 4 NVMe ports (2x SlimSAS x8),RoHS
    AOC-URG4N4-I4XTS-O + MCP-240-81911-0N11U Ultra Riser with 2-port 10GBase-T RJ45 & 2-port 10G SFP+, based on Intel Carlsville X710-TM4, with 1 PCIe 4.0 x16 (internal), and 4 NVMe ports (2x SlimSAS x8),RoHS
    AOC-URG4N4-O11U Ultra Riser without NIC, with 1 PCIe 4.0 x16 (internal), and 4 NVMe ports (2x SlimSAS x8).,RoHS
