  2. X12SPG NF, CSE-227GTS-R2K63P, 2U2Nodes,UP,8DIMM

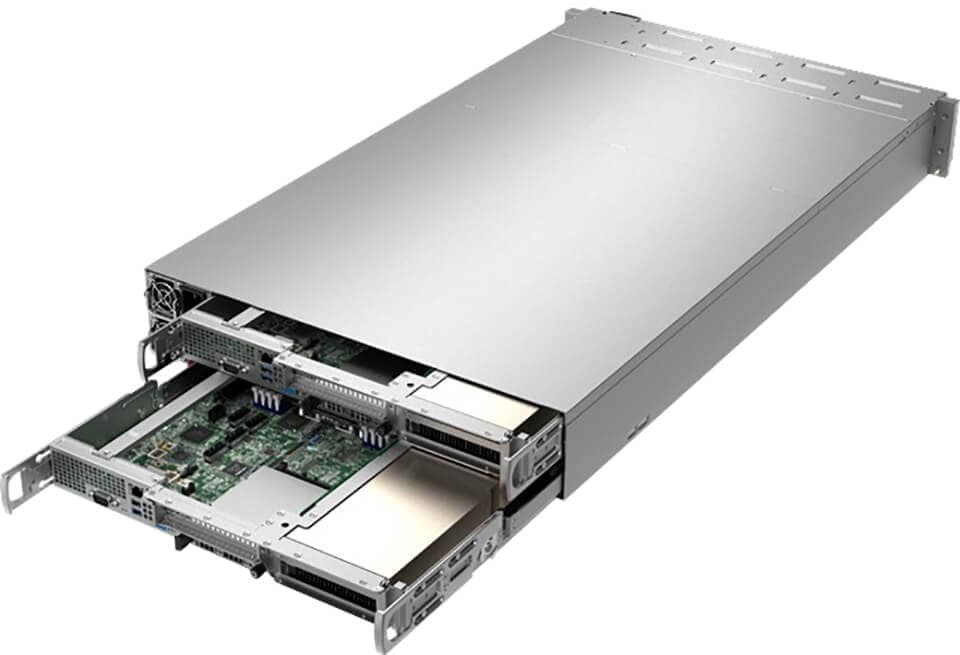

X12SPG NF, CSE-227GTS-R2K63P, 2U2Nodes,UP,8DIMM

SKU: SYS-210GP-DNR
Brand: Supermicro
Produktnotat:

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 1 CPUs, 2 DIMMs, 1 GPUs, and 1 Storage device per node)

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/10457/image_1920?unique=736ee80

kr 50 357,03 50357.03 NOK kr 50 357,03 Ekskl. mva

kr 50 357,03 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The Supermicro SYS-210GP-DNR server offers exceptional performance and flexibility for applications in high-performance computing, AI/deep learning, media streaming, industrial automation, retail, and cloud gaming.

    Nøkkelfunksjoner

    • Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processor
    • Intel® C621A Chipset
    • 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
    • 3 PCIe Gen 4.0 x16 FHFL DW
    • 2 front Hot-swap 2.5" U.2 NVMe Gen4 drive bays2 M.2 NVMe and SATA for boot drive only
    • AST2500 BMC

    Viktige bruksområder

    • High Performance Computing
    • AI/Deep Learning Training
    • Media/Video Streaming
    • Industrial Automation, Retail
    • Cloud Gaming

    Beskrivelse

    The Supermicro SYS-210GP-DNR is a high-performance 2U rackmount server featuring a single socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processor, Intel® C621A Chipset, and up to 2TB of ECC DDR4 memory. It supports up to 3 double-width or single-width GPUs, making it ideal for heavy computational tasks. With 3 PCIe Gen 4.0 x16 FHFL DW slots and 2 front hot-swap NVMe drive bays alongside extensive management, security, and monitoring features, the SYS-210GP-DNR is built for demanding environments. It comes with redundant Titanium level power supplies and advanced cooling solutions to ensure reliable operations in diverse conditions.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-210GP-DNR
    Motherboard
    Installed Motherboard
    • Super X12SPG-NF
    Processor (per Node)
    CPU
    • Single Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 40C/80T; Up to 60MB Cache
    Note
    • Supports up to 270W TDP CPUs (Air Cooled)
    GPU (per Node)
    Max GPU Count
    • Up to 3 double-width or 3 single-width GPUs
    Supported GPU
    • NVIDIA PCIe: A40, RTX A4500, RTX A4000, A40, A30, A100, A10
    CPU-GPU Interconnect
    • PCIe 4.0 x16 CPU-to-GPU Interconnect
    GPU-GPU Interconnect
    • PCIe
    System Memory (per Node)
    Memory
    • Slot Count: 8 DIMM slots
    • Max Memory (2DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    Memory Voltage
    • 1.2V
    On-Board Devices (per Node)
    Chipset
    • Intel® C621A
    Network Connectivity
    • Via AIOM
    Input / Output (per Node)
    Video
    • 1 VGA port(s)
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    • 7 +1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-227GTS-R2K63P
    Dimensions and Weight
    Height
    • 3.47" (88 mm)
    Width
    • 17.6" (447 mm)
    Depth
    • 29.9" (760 mm)
    Package
    • 9.44" (H) x 23.62" (W) x 43.3" (D)
    Weight
    • Gross Weight: 60 lbs (27.21 kg)
    • Net Weight: 55 lbs (24.94 kg)
    Available Color
    • Black Front & Silver Body
    Front Panel
    LED
    • Hard drive activity LED
    • Information LED as manual description
    • Network activity LEDs
    • Power status LED
    Buttons
    • Power On/Off button
    • System UID button/LED
    Expansion Slots (per Node)
    PCI-Express (PCIe) Configuration
    Default:
    • 3 PCIe 4.0 x16 FHFL double-width slots

    Drive Bays / Storage (per Node)
    Drive Bays Configuration
    Default: Total 2 bays:
    • 2 front hot-swap 2.5" NVMe drive bays

    M.2
    • 2 M.2 NVMe/SATA slots (M-key)
    System Cooling
    Fans
    • 4 Removable heavy-duty Fan(s)
    Power Supply
    1x 2600W Redundant Titanium Level (96%) power supply
    Dimension (WxHxL):
    • 73.5 x 40 x 265 mm

    AC Input:
    • 2600W: 200-240Vac / 50-60Hz
    • 2600W: 200-240Vdc / 50-60Hz (for CQC only)

    +12V:
    • Max: 216A / Min: 0A (200Vac-240Vac)

    12V SB:
    • Max: 3.5A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
