  2. X13 2U 300mm Rackmount Server, X13SEVR-SP13F, CSE-221M

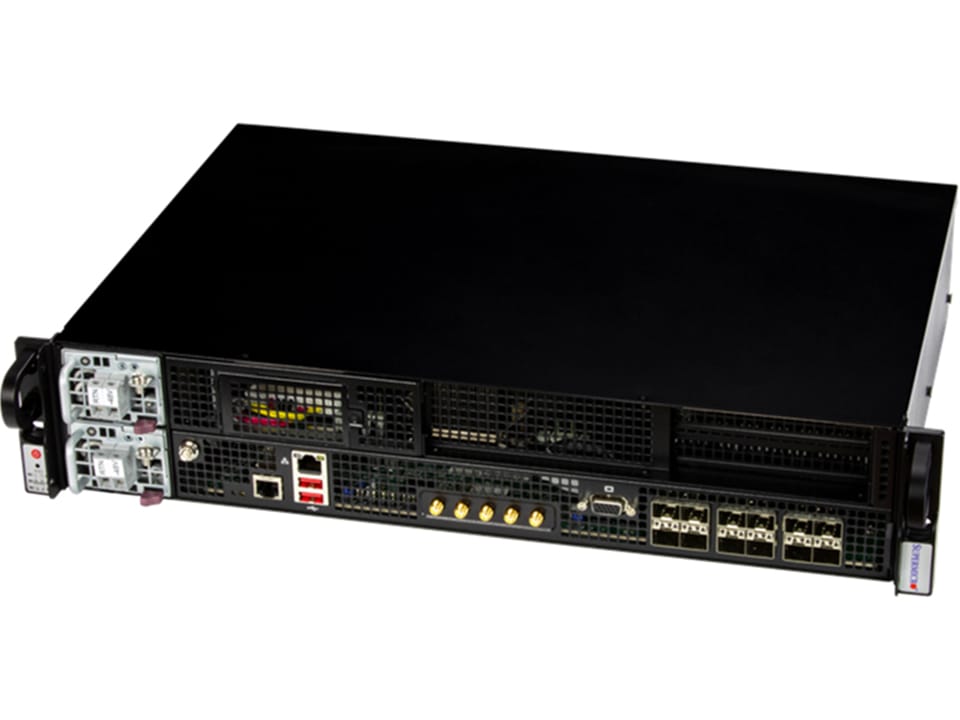

X13 2U 300mm Rackmount Server, X13SEVR-SP13F, CSE-221M

SKU: SYS-211E-FRDN13P
Brand: Supermicro
Produktnotat:

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 1 CPUs, 1 DIMMs, and 1 drive)

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/10313/image_1920?unique=80bb10d

kr 45 524,96 45524.96 NOK kr 45 524,96 Ekskl. mva

kr 45 524,96 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The Supermicro SYS-211E-FRDN13P, a 2U front I/O, ultra-short depth, high-performance edge server designed for network function virtualization and 5G infrastructure.

    Nøkkelfunksjoner

    • Design with compliance to NEBS-Level 3Onboard DPLL/OCXO, Up to 8 hours hold-overIEEE 1588 PTP, SyncE and integrated GNSS / 1PPS / 10MHz design for high-precision timing sync
    • Single Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
    • 8 DIMM slots, Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM/LRDIMM
    • 2x PCIe 5.0 x8 FHHL expansion slots for Accelerator Add-On-Cards
    • Onboard 12x 25GbE SFP28 ports
    • 2x 2.5" drive bays for SSD drives
    • 2x 600W DC -48V Power Supplies
    • Ultra short depth, 2U Front I/O Edge Server1 x RJ45 for dry contact

    Viktige bruksområder

    • Network Function Virtualization
    • Cloud Computing
    • 5G CU/DU Edge Server
    • Flex RAN, Open RAN vBBU

    Beskrivelse

    The Supermicro SYS-211E-FRDN13P is engineered for high-performance applications, offering support for Intel® Xeon® Scalable processors, up to 2TB DDR5 memory, and advanced network connectivity. This 2U rackmount server features numerous expansion options, robust security measures, and an efficient cooling system, making it ideal for demanding environments such as Cloud Computing, Network Function Virtualization, and 5G edge servers.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-211E-FRDN13P
    Motherboard
    Installed Motherboard
    • Super X13SEVR-SP13F
    Processor
    CPU
    • Single Socket E (LGA-4677)
    • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 32C/64T; Up to 82.5MB Cache
    Note
    • Supports up to 225W TDP CPUs (Air Cooled)*
    • *Air Cooled CPUs with TDP over 225W only supported under specific conditions. Contact a Supermicro representative for details.
    GPU
    Max GPU Count
    • Up to 1 double-width GPU
    System Memory
    Memory
    • Slot Count: 8 DIMM slots
    • Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM/LRDIMM
    Memory Voltage
    • 1.1V
    On-Board Devices
    SATA
    • SATA (6Gbps) ; RAID 0/1 support(Intel® VROC RAID key required)
    Chipset
    • Intel® C741
    Network Connectivity
    • 1 RJ45 1GbE with Intel® I210-AT
    • 12 QSFP28 25GbE with Intel® E810-CAM1
    Input / Output
    LAN
    • 1 RJ45 1 GbE LAN port(s) (IPMI shared on LAN port 1)
    • 12 SFP28 25 GbE LAN port(s) (IPMI shared on LAN port 10)
    USB
    • 2 USB 3.0 port(s) (front)
    Video
    • 1 VGA port(s)
    Others
    • 1 Dry contact (4 sets) port(s)
    • 5 SMA (GNSS / 10MHz out / 1PPS out / 10MHz in / 1PPS in) port(s)
    System BIOS
    BIOS Type
    • AMI 256MB SPI Flash
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support, PEPI
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-221M-R000NDP
    Dimensions and Weight
    Height
    • 3.5" (88.9 mm)
    Width
    • 17.2" (436.88 mm)
    Depth
    • 11.8" (298.8 mm)
    Package
    • 7.4" (H) x 19.3" (W) x 23.3" (D)
    Weight
    • Gross Weight: 22 lbs (10 kg)
    • Net Weight: 17 lbs (7.7 kg)
    Available Color
    • Silver/Black
    Front Panel
    LED
    • HDD activity
    • LAN1 activity
    • LAN2 activity
    • Power status
    • System information
    Buttons
    • Power On/Off
    • UID button
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 2 PCIe 5.0 x8 FHHL slots

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 2 bays:
    • 2 internal fixed 2.5" SATA drive bays

    M.2
    • 1 M.2 NVMe slot (M-key 2280)
    System Cooling
    Fans
    • 4x 4-PIN PWM 8cm Fan(s)
    Power Supply
    2x 600W Redundant (1 + 1) Typical 90%+ Level (92%) power supplies
    Dimension (WxHxL):
    • 54.5 x 40 x 220 mm

    5V SB:
    • Max: 3A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F)
    • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)

    Valgfrie Opsjoner

    Part Number Quantity Description
    Cable
    CBL-CDAT-06051Optional cable for DB9 COM port
    CBL-0082L1Optional cable for SATA power (1 to 2)
    CBL-0206L1ptional cable for SATA signal (1 to 1)
