X13 2U 300mm Rackmount Server, X13SEM-TF, CSE-211M

SYS-211E-FRN2T

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10316/image_1920?unique=a1dbe1e

kr 25 389,59 25389.59 NOK kr 25 389,59

kr 25 389,59

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro SYS-211E-FRN2T is an advanced edge server designed for demanding applications, featuring compliance with NEBS-Level 3, single socket E (LGA-4677) for 5th/4th Gen Intel® Xeon® processors, and up to 2TB DDR5 memory.

    Key Features

    • Design with compliance to NEBS-Level 3
    • Single Socket E (LGA-4677) 5th/4th Gen Intel® Xeon® Scalable processors
    • 8 DIMM slots; Up to 2TB 3DS ECC DDR5-5600; R-DIMM/R-DIMM 3DS
    • Up to 3 PCIe 5.0 x16 FHHL, 1 PCIe 5.0 X16 HHHL & 1 PCIe 5.0 x8 FHHL expansion slots for Accelerator Add-On-CardsUp to 6 Configurable PCIe 5.0 slots (4 standard + 2 optional)
    • Onboard 2x 10GbE ports
    • 2x 2.5" NVMe drive bays
    • Redundant 800W AC Power Supplies
    • Ultra short depth, 2U Front I/O Edge Server

    Key Applications

    • 5G Core and Edge
    • AI Inference and Machine Learning
    • Network Function Virtualization
    • Cloud Computing

    Description

    The Supermicro SYS-211E-FRN2T is engineered to meet the needs of modern edge and core applications, including 5G networks, AI inference, and cloud computing. It offers significant expandability with up to 6 configurable PCIe 5.0 slots, onboard 2x 10GbE ports, and 2x 2.5' NVMe drive bays. The server includes redundant 800W AC power supplies and an ultra-short depth 2U chassis that is ideal for space-constrained environments. Designed to comply with NEBS-Level 3 standards, this edge server ensures high reliability with advanced security features such as TPM 2.0 and Silicon Root of Trust.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-211E-FRN2T
    Motherboard
    Installed Motherboard
    • Super X13SEM-TF
    Processor
    CPU
    • Single Socket E (LGA-4677)
    • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 60C/120T; Up to 112.5MB Cache
    Note
    • Supports up to 350W TDP CPUs (Air Cooled)*
    • *Air Cooled CPUs with TDP over 205W only supported under specific conditions. Contact a Supermicro representative for details.
    GPU
    Max GPU Count
    • Up to 3 single-width GPUs
    Supported GPU
    • NVIDIA PCIe: A2
    • Intel PCIe: Intel Data Center GPU Flex 140
    CPU-GPU Interconnect
    • PCIe 5.0 x16 CPU-to-GPU Interconnect
    GPU-GPU Interconnect
    • PCIe
    System Memory
    Memory
    • Slot Count: 8 DIMM slots
    • Max Memory (2DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
    Memory Voltage
    • 1.1V
    On-Board Devices
    NVMe
    • NVMe; RAID 0/1 support(Intel® VROC RAID key required)
    Chipset
    • Intel® C741
    Network Connectivity
    • 2 QSFP28 25GbE with Intel® XXV710 (optional)
    • 2 QSFP+ 40GbE with Intel® X710-BM2 (optional)
    • 4 RJ45 1GbE with Intel® I350 (optional)
    • 2 QSFP28 100GbE with Intel® E810-CAM2 (optional)
    • 2 RJ45 10GBASE-T with Intel® X550
    • 2 SFP+ 10GbE with Intel® X710-BM2 (optional)
    • 2 QSFP56 100GbE (optional)
    • 4 QSFP28 25GbE with Intel® E810-CAM1 (optional)
    • 2 QSFP56 200GbE (optional)
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    • 2 RJ45 10 GbE LAN port(s) (Intel® X550-AT2)
    USB
    • 2 USB 2.0 port(s) (front)
    • 2 USB 3.2 Gen1 port(s) (front)
    Video
    • 1 VGA port(s)
    Serial
    • 1 port(s)
    System BIOS
    BIOS Type
    • AMI 256MB SPI Flash
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI Power Management
    • Power-on mode for DC power recovery
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • CPU thermal trip support, PEPI
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-211M
    Dimensions and Weight
    Height
    • 3.5" (88.9 mm)
    Width
    • 17.2" (436.88 mm)
    Depth
    • 11.8" (298.8 mm)
    Package
    • 7.4" (H) x 19.3" (W) x 23.3" (D)
    Weight
    • Gross Weight: 22 lbs (10 kg)
    • Net Weight: 17 lbs (7.7 kg)
    Available Color
    • Silver/Black

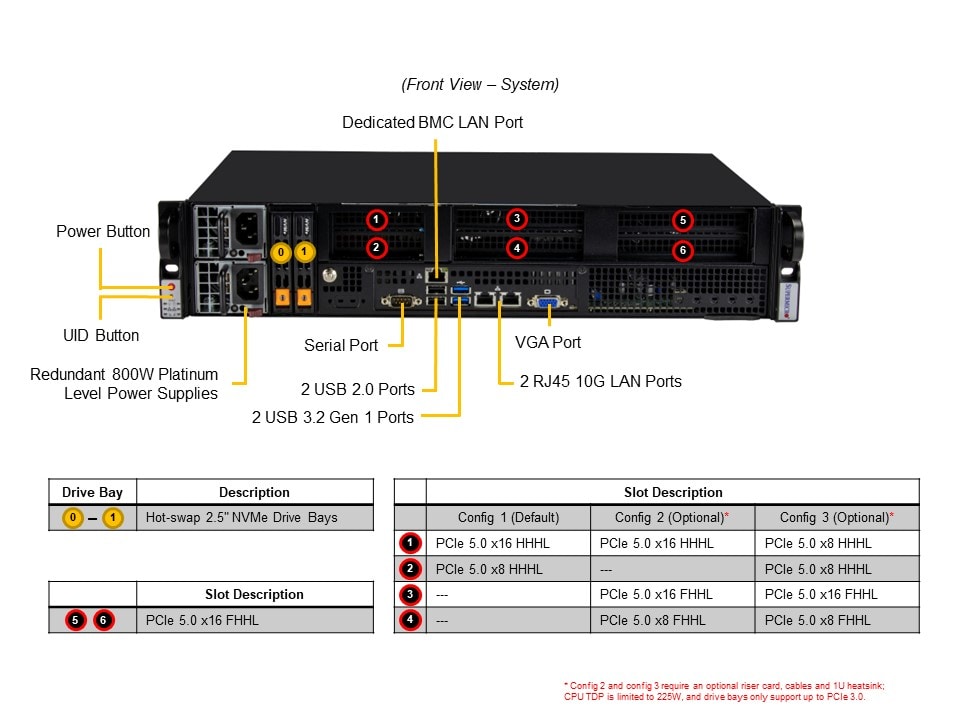

    Front Panel
    LED
    • HDD activity
    • LAN1 activity
    • LAN2 activity
    • Power status
    • System information
    Buttons
    • Power On/Off
    • UID button
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 2 PCIe 5.0 x16 FHHL slots
    • 1 PCIe 5.0 x16 HHHL slot
    • 1 PCIe 5.0 x8 HHHL slot

    Option A*:
    • 3 PCIe 5.0 x16 FHHL slots
    • 1 PCIe 5.0 x16 HHHL slot
    • 1 PCIe 5.0 x8 FHHL slot

    Option B*:
    • 3 PCIe 5.0 x16 FHHL slots
    • 2 PCIe 5.0 x8 HHHL slots
    • 1 PCIe 5.0 x8 HHHL slot

    • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 2 bays:
    • 2 front hot-swap 2.5" NVMe drive bays

    M.2
    • 2 M.2 NVMe slots (M-key 2280/22110)
    System Cooling
    Fans
    • 4x 4-PIN PWM 8cm Fan(s)
    Power Supply
    2x 800W Redundant power supplies
    Dimension (WxHxL):
    • 54.5 x 40 x 220 mm

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 0°C ~ 45°C (32°F ~ 113°F)
    • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
    General
    Standard Parts (Parts Included)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X13SEM-TF1Super X13SEM-TF Motherboard
    CSE-211M12U Chassis
    Backplane
    BPN-NVME5-826N-B2B12-Port PCIe Gen 5 U.2 NVMe SSD Storage Backplane
    Cable
    CBL-MCIO-1230M51MCIO x8 (STR to STR),30CM,85OHM,RoHS
    CBL-PCBA-G5T16-08091[NR] 2 PCIe Gen5 x16+pwr 08/09cm,30AWG,85 Ohm,RoHS
    CBL-PWCD-0160-IS2PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
    CBL-MCIO-1218M5OR1MCIO x8 (STR to STR),18CM,85OHM,RoHS
    CBL-MCIO-1218M5-1-MCIO x8 (STR to STR),18CM,85OHM,RoHS
    CBL-MCIO-1218M5ROR1MCIO (x8 STR to x8 RA),18CM,85OHM,RoHS
    CBL-MCIO-1218M5R-1-MCIO x8 (STR to RA),18CM,85OHM,RoHS
    CBL-MCIO-1230M5ROR1MCIO x8 (STR to RA),30CM,85OHM,RoHS
    CBL-MCIO-1230M5R-1-[NR] MCIO x8 (STR to RA),30CM,85OHM,RoHS
    CBL-CDAT-10581[NR] NCSI 2x8 to 2x8, Ph2.54, 60cm shielded,28AWG, RoHS,RoHS
    Drive Tray(s)
    MCP-220-00167-0B2Gen 3 2.5-inch Tool-less NVMe drive tray (clip design),RoHS
    MCP-220-00147-0B2Black gen-3 hot-swap 2.5"; Tool-less HDD tray (clip design)
    Parts
    MCP-260-21102-0B11U height IO shield for X13SEM-F/TF MBD, with gasket, bl
    Air Shroud
    MCP-310-21105-0B1Mylar air shroud for 211M w/ X13SEM-TF
    Manual
    MNL-2519-QRG1211E-FRDN2T/FRN2T Quick Reference Guide
    Power Distributor
    PDB-PT211M-342412U support redundancy powers up to 800W for SC211M with 2 Mi
    Power Supply
    PWS-804S-1R2800W 100-240Vac input, Platinum, base module PWS-804P-1R
    Riser Card
    RSC-S-68G511U LHS Standard riser card with one PCIe 5.0X16andonePC
    Software
    SFT-OOB-LIC1License key for enabling OOB BIOS management
    Heatsink / Retention
    SNK-P0088P12U Passive CPU HS for X13 EGS and X14-SP BHS-SP Systems
    *Fan
    FAN-0220L4480x80x38 mm, 14.9K RPM Exhaust Fan for SYS-120P-FRDN6T Serve
    *Front Panel
    FPB-TB826116 pin Cable Adaptor Board for SC826
    *Rail Set
    MCP-290-21106-0N11U height sliding rail for SC211M chassis
