  2. BigTwin 2U, 6x 2.5" NVMe/SAS/SATA, X12DPT-B6, CSE-217BQ

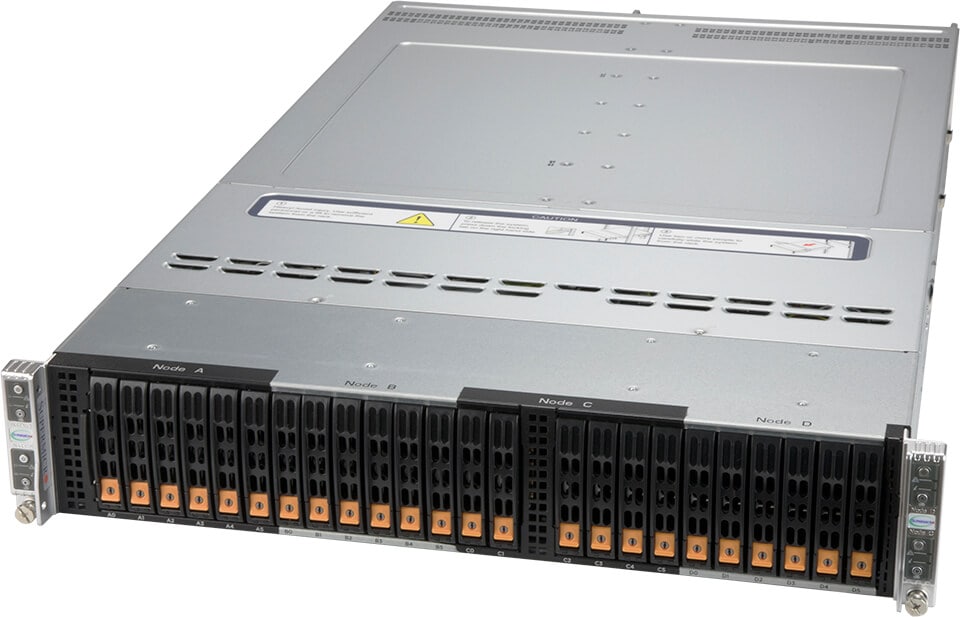

BigTwin 2U, 6x 2.5" NVMe/SAS/SATA, X12DPT-B6, CSE-217BQ

SKU: SYS-220BT-HNC8R
Brand: Supermicro
Produktnotat:

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance, 16 DIMMs are recommended per node). Minimum requirement is 2 CPUs, 2 DIMMs, 1 NIC and 1 storage device per node (HDD/SSD/NVMe/M.2)

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/10462/image_1920?unique=87ba323

kr 93 077,71 93077.71 NOK kr 93 077,71 Ekskl. mva

kr 93 077,71 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The Supermicro SYS-220BT-HNC8R is a versatile 2U rackmount server designed for high performance in various applications such as Container-as-a-Service, HPC Clusters, and Hyperconverged Infrastructure. With support for 3rd Gen Intel® Xeon® Scalable processors, and Intel® Optane™ persistent memory, this system delivers significant compute capabilities.

    Nøkkelfunksjoner

    • Socket P+ (LGA 4189) support 3rd Gen Intel® Xeon® Scalable processors
    • Intel® C621A
    • 20 DIMM Slots (16 DIMM Slots + 4 Intel® Optane™ Persistent Memory Slots)
    • 2 PCIe 4.0 x16 (LP) slot;Tool-less supportOptional HW RAID Boot Controller via AOC-SMG3-2M2-B (NVMe Only)Internal PCIe 3.0 for 2 x4 M.2 NVMe/SATA support onboard
    • Network connectivity via AIOM (OCP 3.0 compliant)
    • 6 Hot-swap 2.5" drive bays; 6 PCIe 4.0 NVMe/SAS/SATA 2.5" drives
    • 4 cooling fans per 2U enclosure, 16.5K RPM; Shared Cooling Design
    • 2600W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
    • Built-in SAS3 Support via Broadcom 3808; IT Mode

    Viktige bruksområder

    • Container-as-a-Service; Application Accelerator
    • Diskless HPC Clusters
    • All-Flash Hyperconverged Infrastructure

    Beskrivelse

    The Supermicro SYS-220BT-HNC8R is equipped with dual Socket P+ (LGA 4189) supporting 3rd Gen Intel® Xeon® Scalable processors, up to 4TB 3200MT/s DDR4 memory, and Intel® Optane™. It features advanced I/O options, including PCIe 4.0, multiple M.2 slots, and redundant power supplies. Designed for enhanced security and reliability, this system is ideal for demanding data center environments.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-220BT-HNC8R
    Motherboard
    Installed Motherboard
    • Super X12DPT-B6
    Processor (per Node)
    CPU
    • Dual Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 36C/72T; Up to 54MB Cache per CPU
    Note
    • Supports up to 205W TDP CPUs (Air Cooled)
    System Memory (per Node)
    Memory
    • Slot Count: 16 DIMM slots
    • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM
    • Supports Intel® Optane™ persistent memory 200 series
    On-Board Devices (per Node)
    SAS
    • SAS (12Gbps) via Broadcom® 3808; (IT mode)
    Chipset
    • Intel® C621A
    Network Connectivity
    • Via AIOM
    Input / Output (per Node)
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    USB
    • 2 USB 3.0 Type-A port(s) (Rear)
    Video
    • 1 VGA port(s)
    System BIOS
    BIOS Type
    • AMI 32MB Flash ROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI/APM Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 7+1 Phase-switching voltage regulator
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-217BQ-000NP
    Dimensions and Weight
    Height
    • 3.47" (88 mm)
    Width
    • 17.68" (449 mm)
    Depth
    • 28.75" (730 mm)
    Package
    • 9.76" (H) x 24.65" (W) x 45.28" (D)
    Weight
    • Gross Weight: 96.6 lbs (43.8 kg)
    • Net Weight: 66.1 lbs (30 kg)
    Available Color
    • Black front & silver body
    Front Panel
    LED
    • HDD activity LED
    • Network activity LEDs
    • Power status LED
    • Universal Information (UID) LED
    Buttons
    • Power On/Off button
    • UID button
    Expansion Slots (per Node)
    PCI-Express (PCIe) Configuration
    Default:
    • 2 PCIe 4.0 x16 LP slots

    Drive Bays / Storage (per Node)
    Drive Bays Configuration
    Default: Total 6 bays:
    • 6 front hot-swap 2.5" PCIe 4.0 NVMe/SAS/SATA drive bays

    M.2
    • 2 M.2 PCIe 3.0 x4 NVMe/SATA slots (M-key 2280(default); VROC required for RAID)
    System Cooling
    Fans
    • 4x 16.5K RPM Heavy Duty 8cm Fan(s)
    Power Supply
    2x 2600W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL):
    • 45 x 40 x 480 mm

    AC Input:
    • 2600W: 208-240Vac / 50-60Hz
    • 2600W: 220-240Vdc / 50-60Hz (for CQC only)

    +12V:
    • Max: 216.6A / Min: 0A (208Vac-240Vac)
    • Max: 216.6A

    12V SB:
    • Max: 4.5A / Min: 0A

    Output Type:
    • Backplanes (connector)

    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (Non-Condensing)
    • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)

    Valgfrie Opsjoner

    Part Number Quantity Description
    2.5" Tool-less NVMe Tray
    MCP-220-00167-0B-Black gen 8 hot-swap 2.5" Tool-less NVMe tray, orange tab (Qty as Needed)
    2.5" Tool-less SAS/SATA Tray
    MCP-220-00147-0B-Black gen 3 hot-swap 2.5" Tool-less HDD tray, red tab (Qty as Needed)
    HDD Dummy Tray
    MCP-220-00185-0N-2.5" HDD tray dummy cover for 2 slot (Qty as Needed)
    M.2 NVMe RAID Controller
    AOC-SMG3-2M2-B-P-2x M.2 NVMe RAID Controller Card, x8 Gen3
    SPI Capable TPM Options
    AOM-TPM-9670H-S1SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor (Qty per Node)
    AOM-TPM-9671H-S1SPI Capable TPM 1.2 Provisioned for Server, Horizontal Form Factor (Qty per Node)
    AOM-TPM-9670H-FIPS1SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor, Supporting FIPS 140-2 (Qty per Node)
    SuperCloud Composer License
    SFT-SDDC-SINGLE-SDDC Monitor License - Single License per Monitored host
    System Management Suite
    SFT-DCMS-Single-Supermicro System Management Software Suite node
    VROC Options
    AOC-VROCSTNMOD1Intel VROC Standard, RAID 0, 1, 10 (Qty per Node)
    AOC-VROCPREMOD1Intel VROC Premium, RAID 0, 1, 5, 10 (Qty per Node)
