SYS-220HE-TNRD

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 2 CPUs, 4 DIMMs, 1 NIC adapter*, and 1 drive). *NIC adapter requirement includes either 1 AIOM networking card or 1 standard PCIe NIC adapter.

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10448/image_1920?unique=a1dbe1e

kr 34 907,50 34907.5 NOK kr 34 907,50

kr 34 907,50

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

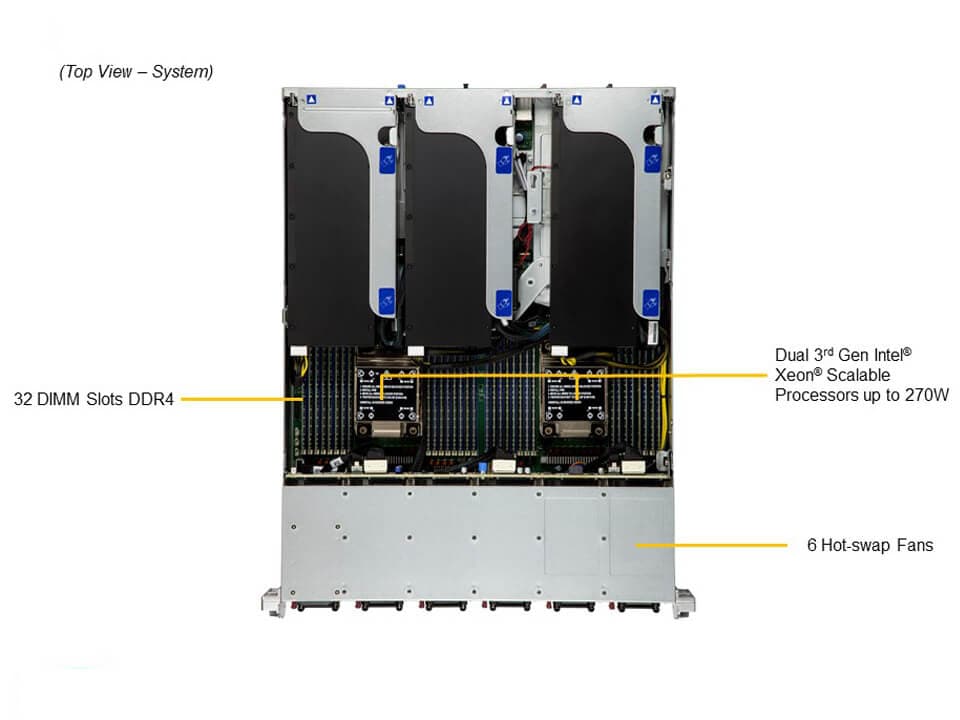

    The Supermicro SYS-220HE-TNRD is a cutting-edge 2U rackmount server designed for demanding applications including 5G core, telecom micro data centers, AI inference, and cloud computing. Featuring dual socket P+ with 3rd Gen Intel® Xeon® Scalable Processors, it supports up to 8TB DRAM and 8TB Intel® Optane™ Persistent Memory.

    Key Features

    • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
    • 32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
    • 3 PCIe 4.0 x16 slots with GPU/Accelerator support (Default);1 PCIe 4.0 x16 expansion slots (Optional)
    • Flexible networking options with 2 AIOM networking slots (OCP NIC 3.0 compatible)
    • Up to 6x 2.5" hot-swap drive bays with options to support NVMe/SATA drives
    • 6 heavy duty hot-swap fans with optimal fan speed control Rear I/O, tool-less design
    • 1300W DC power supplies

    Key Applications

    • 5G Core and Edge
    • Telecom Micro Data Center
    • AI Inference and Machine Learning
    • Network Function Virtualization
    • Cloud Computing

    Description

    The Supermicro SYS-220HE-TNRD is a state-of-the-art 2U rackmount server designed to meet the most demanding requirements in various application domains such as 5G core, telecom micro data centers, AI inference, network function virtualization, and cloud computing. It features dual socket P+ (LGA-4189) with 3rd Gen Intel® Xeon® Scalable Processors, offering high performance with support for up to 8TB of DRAM and up to 8TB of Intel® Optane™ Persistent Memory. The server includes 3 PCIe 4.0 x16 slots with GPU/accelerator support, flexible networking options through AIOM slots, and up to 6x 2.5" hot-swap drive bays for versatile storage solutions. The system is equipped with heavy-duty hot-swap fans for optimal cooling and 1300W DC power supplies, making it a robust choice for modern data center needs.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-220HE-TNRD
    Motherboard
    Installed Motherboard
    • Super X12DHM-6
    Processor
    CPU
    • Dual Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    Note
    • Supports up to 270W TDP CPUs (Air Cooled)
    GPU
    Max GPU Count
    • Up to 3 double-width or 3 single-width GPUs
    Supported GPU
    • NVIDIA PCIe: T4, A40, A100, A10
    CPU-GPU Interconnect
    • PCIe 4.0 x16 CPU-to-GPU Interconnect
    GPU-GPU Interconnect
    • PCIe
    System Memory
    Memory
    • Slot Count: 32 DIMM slots
    • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    Memory Voltage
    • 1.2V
    On-Board Devices
    SATA
    • SATA (6Gbps) ; RAID 0/1/5/10 support
    NVMe
    • NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
    Chipset
    • Intel® C621A
    Network Connectivity
    • Via AIOM
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    USB
    • 2 USB 2.0 port(s) (front)
    Video
    • 1 VGA port(s)
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI Power Management
    • Power-on mode for DC power recovery
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-HE211-R000NFP
    Dimensions and Weight
    Height
    • 3.5" (88.9 mm)
    Width
    • 17.2" (436.88 mm)
    Depth
    • 22.6" (574 mm)
    Package
    • 9.7" (H) x 23.5" (W) x 36.9" (D)
    Weight
    • Gross Weight: 47.4 lbs (21.5 kg)
    • Net Weight: 34.4 lbs (15.6 kg)
    Available Color
    • Silver
    Front Panel
    LED
    • HDD activity LED
    • LAN1 activity
    • LAN2 activity
    • Power Fail
    • Power status LED
    • System information
    Buttons
    • Power On/Off
    • UID button
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 2 PCIe 4.0 x8 FH/10.5"L slots
    • 2 PCIe 4.0 x8 FHHL slots
    • 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)

    Option A:
    • 1 PCIe 4.0 x16 FH/10.5"L slot
    • 1 PCIe 4.0 x16 FHHL slot
    • 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)

    Option B:
    • 6 PCIe 4.0 x8 FH/10.5"L slots
    • 2 PCIe 4.0 x8 FHHL slots
    • 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)

    Option C:
    • 3 PCIe 4.0 x16 FH/10.5"L slots
    • 1 PCIe 4.0 x16 FHHL slot
    • 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 6 bays:
    • 6 front hot-swap 2.5" NVMe/SAS*/SATA drive bays

    • (*SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
    M.2
    • 2 M.2 NVMe/SATA slots (M-key 2280/22110)
    System Cooling
    Fans
    • 6 Hot-swappable 60x60x56mm Fan(s)
    Power Supply
    1x 1300W Redundant power supply
    Dimension (WxHxL):
    • 73.5 x 40 x 203 mm

    AC Input:
    • 1300W: -44--65Vdc

    +12V:
    • Max: 108.3A / Min: 0A

    12V SB:
    • Max: 2.1A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 5°C ~ 35°C (41°F ~ 95°F)
    • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)

    Optional Part List

    Part Number Quantity Description
    6 Drive Bay Configuration (6 SAS/SATA)
    AOC-S3808L-L8IT-O+ CBL-SAST-1273LP-10016 SAS/SATA (HBA/IT Mode) via Broadcom 3808 for drive bays 0-5
    AOC-S3908L-H8IR-16DD-O+ CBL-SAST-1273LP-10016 SAS/SATA (HW RAID) via Broadcom 3908 (RAID 0, 1, 5, 6, 10, 50, 60) for drive bays 0-5
    Cable Management Arm for Hyper-E
    MCP-290-00168-0N1Cable Management Arm for Hyper-E
    CacheVault SuperCap
    BTR-CVPM051CacheVault Flash Cache Protection Module for Broadcom 3916/3908 RAID controller (CVPM05)
    CacheVault SuperCap to PCIe Card Bracket
    BKT-BBU-BRACKET-051CacheVault Flash Cache Protection Module for Broadcom 3916/3908 RAID controller (CVPM05)
    Optional Hyper-E RSC for slot 5 & 7 for 2 PCIe 4.0 x16
    RSC-H2-668G4S1Hyper-E RSC for slot 5 & 7 for 2 PCIe 4.0 x16
    Optional RSC and GPU AUX power cable for A40, A100 GPU
    CBL-PWEX-1172-26541,2,3RSC and GPU AUX power cable for A40, A100 GPU
    Optional RSC and GPU AUX power cable: PCIe Auxiliary 6 pin or 8 pin for RTX GPU, Intel N3000, Xilinx U200
    CBL-PWEX-1171-26541,2,3RSC and GPU AUX power cable: PCIe Auxiliary 6 pin or 8 pin for RTX GPU, Intel N3000, Xilinx U200
    Optional sliding rail kit
    MCP-290-11902-0N1Optional sliding rail kit for Post to Post: 24" ~ 35.3"
    MCP-290-11901-0N1Optional sliding rail kit for Post to Post: 26.5" ~ 41.2"
    MCP-290-11903-0N130.5" ball-bearing rail set, without auto latch for Hyper 1U & 2U Project
    Slim AIOM module
    AOC-A25G-i2SM1AIOM 2-Port 25GbE SFP28, based Intel E810-XXVAM2 w/ 0.5U height bracket,RoHS
    AOC-A100G-b2CM1AIOM Dual Port 100GbE QSFP28, based on Broadcom BCM57508 with 0.5U Bracket,RoHS
    AOC-AG-i4SM1AIOM 4-port GbE SFP, Intel i350-AM4 with 0.5U bracket,RoHS
    AOC-A25G-m2SM1AIOM 2-port 25GbE SFP28, Mellanox CX-6 LX w/ 0.5U height bracket,RoHS
    AOC-ATGC-i2TM1AIOM 2-port 10GBase-T RJ45, based on Intel Carlsville X710-AT2, w/ 0.5U BKT,RoHS
    AOC-A100G-m2CM1AIOM 2-port 100GbE QSFP28, Mellanox CX-6 DX w/ 0.5U bracket,RoHS
    AOC-AH25G-m2S2TM1AIOM Dual-Port 25GbE SFP28 based on Mellanox CX-4 Lx EN, and Dual-Port 10GbeE RJ45 based on Intel X550-AT2 with 0.5U Bracket, RoHS
    AOC-A25G-b2SM1AIOM 2-port 25GbE SFP28, Broadcom BCM57414 with 0.5U bracket,RoHS
    AOC-ATG-i4SM1AIOM Quad-Port 10GbE SFP+, based on Intel XL710-BM1 with 0.5U Bracket,RoHS
    AOC-ATG-i2SM1AIOM Dual-Port 10GbE SFP+, based on X710-BM2 with 0.5U Bracket,RoHS
    AOC-ATG-i2TM1AIOM 2-port 10GBase-T, Intel X550,RoHS
    AOC-AG-i4M1AIOM Quad-Port 1GbE RJ45, based on i350-AM4 with 0.5U Bracket, RoHS
    AOC-AG-i2M1AIOM Dual-Port 1GbE RJ45, based on i350-AM2 with 0.5U Bracket, RoHS
    TPM security module
    AOM-TPM-9671V-O1SPI capable TPM 1.2 with Infineon 9671 controller with vertical form factor
    AOM-TPM-9670V-O1SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
