  2. X12DPI-N6-P,CSE-213BTS-R1K23LPBP3-1,2U SAS3MainstreamSer

X12DPI-N6-P,CSE-213BTS-R1K23LPBP3-1,2U SAS3MainstreamSer

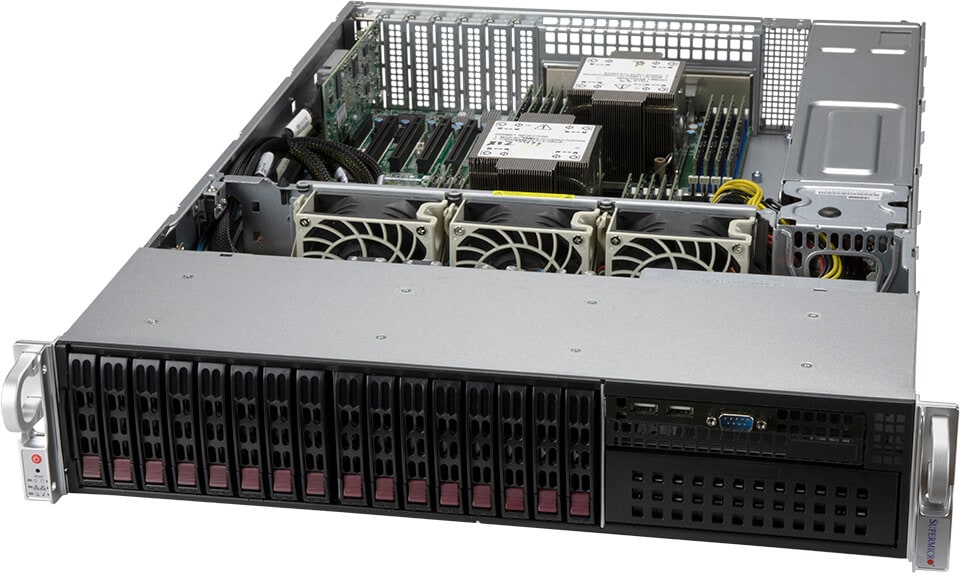

SYS-220P-C9R

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10440/image_1920?unique=f7d9088

kr 32 213,51 32213.510000000002 NOK kr 32 213,51

kr 32 213,51

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro SYS-220P-C9R provides a robust solution for High Performance Computing, Database Processing, and Application-Optimized Solutions. Featuring dual sockets, comprehensive memory options, and extensive I/O connectivity, it meets the demanding needs of modern data centers.

    Key Features

    • Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors;CPU TDP supports Up to 270W TDP;3 UPI up to 11.2 GT/s
    • Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz, Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz ;- Up to 4TB Intel® Optane™ Persistent Memory 200 Series, DDR4-3200MHz, in 18 DIMM slots (P1-DIMMB2 and P2-DIMMB2 are reserved for Intel® Optane Persistent Memory 200 Series only)
    • 4 PCIe 4.0 x16 Low Profile (LP);1 PCIe 4.0 x8 Low Profile (LP);* PCIe slot#1 is populated with 1x AOC-S3908L-H8IR-16DD-P to support  8x SAS drives
    • Dual Gigabit LAN with Intel® i350  Ethernet Controller
    • 3 heavy duty Hot-swappable 13.5K RPM Middle Cooling Fans with optimal fan speed control;1 air shroud
    • 1200W Redundant Power Supplies Titanium level 100-240Vac and 200-240 Vdc
    • 1 rear VGA, 1 Type A port, 2 COM Ports (1 front; 1 rear) and 6 USB ports (2 front USB 2.0 and 4 rear USB 3.0)

    Key Applications

    • High Performance Computing
    • Enterprise Server
    • Data Center Optimized
    • Database Processing and High Density Storage
    • Application-Optimized Solutions

    Description

    The Supermicro SYS-220P-C9R is a powerful 2U rackmount server that supports dual 3rd Gen Intel® Xeon® Scalable processors with up to 36C/72T per CPU. It offers up to 4TB of DDR4 RAM across 16 DIMM slots. The server features multiple PCIe 4.0 expansion slots, dual Gigabit LAN, and extensive storage options including SAS, SATA, and NVMe. Redundant power supplies and advanced cooling mechanisms ensure high reliability and uptime.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-220P-C9R
    Motherboard
    Installed Motherboard
    • Super X12DPi-N6
    Processor
    CPU
    • Dual Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 36C/72T; Up to 60MB Cache per CPU
    Note
    • Supports up to 270W TDP CPUs (Air Cooled)
    System Memory
    Memory
    • Slot Count: 16 DIMM slots
    • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    • Supports Intel® Optane™ persistent memory 200 series
    On-Board Devices
    Chipset
    • Intel® C621A
    Network Connectivity
    • 2 RJ45 1GbE
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    USB
    • 2 USB 2.0 port(s) (front)
    • 4 USB 3.0 port(s) (rear)
    Video
    • 1 VGA port(s)
    DOM
    • 2 Super DOM (Disk on Module) port(s)
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI/APM Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-213BTS-R1K23LPBP3-1
    Dimensions and Weight
    Height
    • 3.5" (89 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 24.8" (630 mm)
    Package
    • 11" (H) x 29" (W) x 38.7" (D)
    Weight
    • Gross Weight: 63 lbs (28.8 kg)
    • Net Weight: 38 lbs (17.4 kg)
    Available Color
    • Black
    Front Panel
    LED
    • HDD activity
    • Network activity
    • Power status
    • System information (overheat/UID)
    Buttons
    • Power On/Off
    • System Reset
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 4 PCIe 4.0 x16 LP slots
    • 1 PCIe 4.0 x8 LP slot

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 16 bays:
    • 8 front hot-swap 2.5" SAS drive bays
    • 4 front hot-swap 2.5" SATA drive bays
    • 4 front hot-swap 2.5" NVMe*/SATA drive bays

    • (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
    Peripheral Bays
    • 1 5.25" DVD bay (optional)
    M.2
    System Cooling
    Fans
    • 3 heavy duty fans with optimal fan speed control
    Power Supply
    1x 1200W Redundant Titanium Level (96%) power supply
    Dimension (WxHxL):
    • 76 x 40 x 336 mm

    AC Input:
    • 1000W: 100-127Vac / 50-60Hz
    • 1200W: 200-240Vac / 50-60Hz
    • 1200W: 200-240Vdc / 50-60Hz (for CCC only)

    +12V:
    • Max: 83A / Min: 0A (100Vac-127Vac)
    • Max: 100A / Min: 0A (200Vdc-240Vdc)
    • Max: 100A / Min: 0A (200Vac-240Vac)

    5V SB:
    • Max: 4A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (Non-Condensing)
    • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)
    General
    Standard Parts (Parts Included)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X12DPi-N61Super X12DPi-N6 Motherboard
    CSE-213BTS-R1K23LPBP3-112U Chassis
    Add-on Card / Module
    AOC-S3908L-H8IR-16DD-P18 int 12Gb/s ports, x8 Gen4, ROC - LP, 16 HDDw/ exp,RoHS
    Backplane
    BPN-SAS3-213A-N812U 16-port 2.5" backplane, 8 ports for SAS3/SATA3, and 8
    Cable
    CBL-SAST-1264-1001Slimline x8 (STR) to 2x MiniSAS HD x4,65CM,100 OHM,RoHS
    CBL-SAST-0508-01OR2Internal Mini-SAS to Mini-SAS HD 50cm w/ SB, 30AWG
    CBL-SAST-0508-02-Internal Mini-SAS to Mini-SAS HD 50cm w/ SB, 30AWG
    CBL-0071L1ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
    CBL-0217L116PIN CNTL PANEL CONVERTER CBL FOR SC826,PBF
    CBL-PWCD-0160-IS2PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
    CBL-PWEX-10693PWEX,FAN,1X4/P2.5 TO 1X4/P2.54,30CM,22AWG,5A/pin,RoHS
    Drive Tray(s)
    MCP-220-00007-011Black USB/COM port tray for SC825, 836
    MCP-220-00009-011Black 5.25"; drive tray w/o rail (square pattern)
    MCP-220-00023-011Black USB dummy tray support 1x 2.5" slim HDD for SC825, 836
    MCP-220-00047-0B16Black gen 3rd hot-swap 2.5inch HDD tray
    Parts
    MCP-260-00042-0N1STD I/O shield for X9 socket R server MB with Gasket.
    Manual
    MNL-2243-QRG1SYS-220P-C9R(T) Quick Reference Guide
    Software
    SFT-OOB-LIC1License key for enabling OOB BIOS management
    Heatsink / Retention
    SNK-P0078P12U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
    SNK-P0078PC12U Passive CPU Heat Sink w/ a Side Air Channel for X12 Generation Intel Whitley and Cedar Island Platforms
    *Power Supply
    PWS-1K23A-1R2AC-DC 1200W, Titanium Level, Redundancy, 1U, PMBUS 1.2, +12V/+5Vsb, 336x76x40 mm,HF,RoHS/REACH
    *Power Distributor
    PDB-PT829-S88241PDB with 23pairs input connectors for SC829B216B
    *Fan
    FAN-0206L4380x80x38 mm, 13.5K RPM, Middle Cooling Fan for 2U and above Servers
    *Front Panel
    FPB-FP826-D1Front control board Dual color LED(FP826-D)forSC826,213,216,
    FPB-TB826116 pin Cable Adaptor Board for SC826
    *Rear Window
    MCP-240-82608-0N1216B/826B LP rear window,RoHS/REACH,PBF
    *Peripheral Drive
    MCP-290-00007-011Black DVD dummy cover for SC825, 836
    *Rail Set
    MCP-290-00053-0N1Rail set, quick/quick, default for 2,3U 17.2"W
    MCP-290-00060-0N1Threaded rail adapter default for round hole rack
    *Air Shroud
    MCP-310-29001-0N1SC825/826/216/213 Intel DP X9,X8 air shroud 13.68x13/12x13

    Optional Part List

    Part Number Quantity Description
    BTR kit for AOC-S3108L-H8IR or AOC-S3108L-H8IR-16DD with SYS-220P-C9R
    1x  BTR-TFM8G-LSICVM02 and 1x  BKT-BBU-BRACKET-05 with AOC-S3108L-H8IR or AOC-S3108L-H8IR-16DD1SuperCap and mounting bracket used for SAS raid controllers
    BTR kit for AOC-S3908L-H8IR-16DD-P andAOC-S3916L-H16IR-32DD with SYS-220P-C9R
    1x BTR-CVPM05 and 1x  BKT-BBU-BRACKET-05 with AOC-S3908L-H8IR-16DD-P andAOC-S3916L-H16IR-32DD1SuperCap and mounting bracket used for SAS raid controllers
    BTR kit for Broadcom/LSI AOC-SAS3-9361-16I with SYS-220P-C9R
    1x BTR-TFM4G-LSI00418 and 1x  BKT-BBU-BRACKET-05 used with Broadcom/LSI AOC-SAS3-9361-16I1SuperCap and mounting bracket used for SAS raid controllers
    Optional Gen3 8-ports SAS Raid controller kit for SYS-220P-C9R
    AOC-S3108L-H8IR or AOC-S3108L-H8IR-16DD + 2x CBL-SAST-0531-011to convert system SATA ports# 8~15 to SAS drive support; There are two raid controllers in the system and each raid controller supports 8x SAS drives
    Optional Gen3 16-ports SAS Raid controller kit for SYS-220P-C9R
    AOC-SAS3-9361-16I and 4x CBL-SAST-0593-01 or 4x CBL-SAST-0531-011to use one raid controller to support all 16 drives bays, the default AOC-S3908L-H8IR-16DD-P raid controller is not used
    Optional Gen4 16-ports SAS Raid controller kit for SYS-220P-C9R
    1xAOC-S3916L-H16IR-32DDand 2x CBL-SAST-1264-100;1to use one raid controller to support all 16 drives bays, the default AOC-S3908L-H8IR-16DD-P raid controller is not used
    Optional Gen4 8-ports SAS Raid controller kit for SYS-220P-C9R
    1x AOC-S3908L-H8IR-16DD-P and 1x CBL-SAST-1264-1001add the second AOC-S3908L-H8IR-16DD-P and 1x CBL-SAST-1264-100, there are two raid controllers in the system for all 16 drives and each raid controller supports 8x SAS drives
    Optional parts needed to support 2x fixed NVMe drives
    1x MCP-220-00160-0N (Dual 2.5" Drive BKT) and 1x CBL-SAST-0953 (Slimline x8 to PCIe 2x SFF-8639 Power)11x MCP-220-00160-0N can support 2x NVMe fixed drives in 1x 5.25 inch drive bay and 1x CBL-SAST-0953 can support 2x 2.5 inch NMVe drives
    Optional parts needed to support 2x fixed SATA drives
    1x MCP-220-00160-0N (Dual 2.5" Drive BKT), 2x CBL-0044L(SATA CABLE 61CM FLAT S-S PBF.26AWG flat), 1x CBL-0234L (Y CABLE FOR 4-PIN HDD) and 1x CBL-0082L (Y split , big 4 pin to two RA SATA power extension 15cm, 18AWG)11x MCP-220-00160-0N can support 2x 2.5 inch fixed drives in 1x 5.25 inch drive bay, 1x CBL-0044L can support 1x 2.5 inch SATA drives and 1x CBL-0082L can support 2x 2.5 inch SATA drives
    Optional parts needed to support 2x Rear hotswap SATA drives
    1x MCP-220-82616-0N, (2.5x2 Hot-swap 12G rear HDD kit w/ fail LED for 216B/826B/41) and 1x CBL-SAST-0388L-02, 30AWG Ipass to 4SATA (90/90/70/70CM W/ 90CM SB);11x CBL-SAST-0388L-02 has 4 SATA ports, but the rear drive kit MCP-220-82616-0N can only support 2x 2.5 inch SATA drives, so two SATA ports are lost as a result
    Optional parts needed to support 4x hotswap NVMe drives
    2x CBL-SAST-0821-1 (SLIMLINE x8 (LE) to 2x Oculink x4, 46/50CM,85 OHM,RoHS)11x CBL-SAST-0821-1 can support 2x 2.5 inch hotswap NMVe drives, system can support Max. 4x  NMVe drives (hotswap and fixed combined) only
