SKU:

SYS-222BT-HNR

Brand:

Supermicro

Produktnotat:

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance, 8 DIMMs are recommended per CPU). Minimum requirement is 1 CPU, 1 DIMM, 1 NIC, and 1 storage device per node

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

kr 91 499,34 91499.34 NOK kr 91 499,34 Ekskl. mva

kr 91 499,34 Ekskl. mva

Denne kombinasjonen eksisterer ikke.

Legg i handlekurv

Salgsbetingelser

Beskrivelsesammendrag

Featuring dual socket E2 Intel® Xeon® 6 6700 series processors, support for up to 4TB of DDR5 memory, and options for air or liquid cooling, the Supermicro SYS-222BT-HNR is built for performance-intensive applications.

Nøkkelfunksjoner

Up to 6 front hot-swap 2.5" PCIe 5.0 NVMe drive bays
Flexible networking with OCP 3.0 AIOM slot
Dual Socket E2 Intel® Xeon® 6 6700 series processors with E-cores up to 205W with air cooling or 330W with liquid cooling
Up to 2 PCIe 5.0 x16 LP slotsInternal PCIe 5.0 for 2x NVMe M.2 support onboardOptional 4x NVMe M.2 support onboard with built-in HW RAID1 via SCC-A2NM2241GH-B1
Up to 16 DIMMs supporting up to 4TB DDR5-6400 in 1DPC

Viktige bruksområder

All-Flash NVMe Hyperconverged Infrastructure
Container-as-a-Service; Application Accelerator
High-Performance File System
Diskless HPC Clusters

Beskrivelse

The Supermicro SYS-222BT-HNR is engineered to excel in demanding environments, offering support for dual socket E2 Intel® Xeon® 6 6700 series processors with up to 144 cores and 4TB of DDR5 memory. The system supports flexible networking options with an OCP 3.0 AIOM slot and up to 2 PCIe 5.0 x16 LP slots. Designed with hot-swap NVMe drive bays, it ensures maximum uptime and scalability for hyperconverged and HPC clusters. Its advanced management software suite and robust security features, including TPM 2.0 and Silicon Root of Trust, make it an ideal choice for secure, high-performance computing.

Produktspesifikasjoner

Specification	Details
Product SKUs
SKUs	SuperServer SYS-222BT-HNR
Motherboard
Installed Motherboard	Super X14DBT-B
Processor (per Node)
CPU	Dual Socket E2 (LGA-4710) Intel® Xeon® 6 6700 series processors with E-cores
Core Count	Up to 144C/144T; Up to 108MB Cache per CPU
Note	Supports up to 205W TDP CPUs (Air Cooled)* Supports up to 330W TDP CPUs (Liquid Cooled) *Air Cooled CPUs with TDP over 205W only supported under specific conditions. Contact a Supermicro representative for details.
System Memory (per Node)
Memory	Slot Count: 16 DIMM slots Max Memory (1DPC): Up to 4TB 6400MT/s ECC DDR5 RDIMM
On-Board Devices (per Node)
Chipset	System on Chip
Network Connectivity	Via AIOM
Input / Output (per Node)
LAN	1 RJ45 1 GbE Dedicated BMC LAN port(s)
USB	2 USB 3.0 Gen2 Type-A port(s) (Rear)
Video	1 VGA port(s)
System BIOS
BIOS Type	AMI 32MB Flash ROM
Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	ACPI/APM Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment
CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 8+4 Phase-switching voltage regulator
Chassis
Form Factor	2U Rackmount
Model	CSE-217BQ2-R3K60P
Dimensions and Weight
Height	3.47" (88 mm)
Width	17.68" (449 mm)
Depth	28.75" (730 mm)
Package	9.76" (H) x 24.65" (W) x 45.28" (D)
Weight	Gross Weight: 96.6 lbs (43.8 kg) Net Weight: 66.1 lbs (30 kg)
Available Color	Black front & silver body

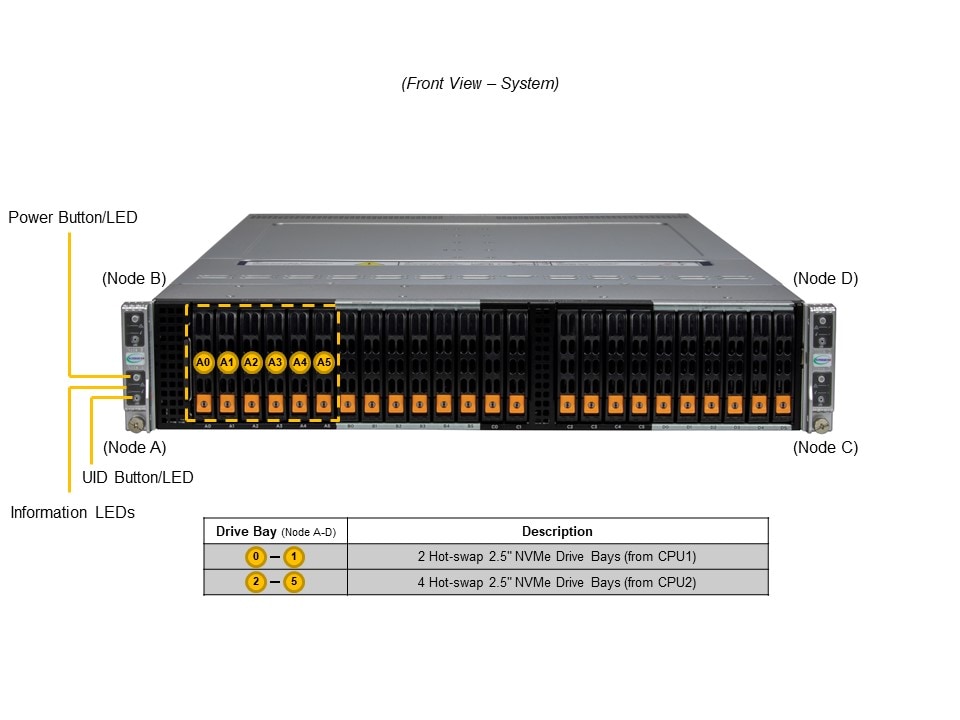

Front Panel
LED	HDD activity LED Network activity LEDs Power status LED Universal Information (UID) LED
Buttons	Power On/Off button UID button
Expansion Slots (per Node)
PCI-Express (PCIe) Configuration	Default: 2 PCIe 5.0 x16 LP slots 1 PCIe 5.0 x16 AIOM slot (OCP 3.0 compatible)
Drive Bays / Storage (per Node)
Drive Bays Configuration	Default: Total 6 bays: 6 front hot-swap 2.5" PCIe 5.0 NVMe drive bays
M.2	2 M.2 PCIe 5.0 x4 NVMe slots (M-key 22110(default); VROC required for RAID)
System Cooling
Fans	4x 16K RPM Counter Rotating 80x80x56mm Fan(s)
Liquid Cooling	Direct to Chip (D2C) Cold Plate (optional)
Power Supply
2x 3600W Redundant (1 + 1) Titanium Level (96%) power supplies	Dimension (WxHxL): 45 x 40 x 480 mm AC Input: 3600W: 0240Vdc / 50-60Hz (for CQC only) 1400W: 100-127Vac / 50-60Hz 3000W: 200-207.9Vac / 50-60Hz 3100W: 208-219.9Vac / 50-60Hz 3250W: 220-229.9Vac / 50-60Hz 3450W: 230-237.9Vac / 50-60Hz 3600W: 238-240Vac / 50-60Hz +12V: Max: 112A / Min: 0A (100Vac-127Vac) Max: 240A / Min: 0A (200Vac-207.9Vac) Max: 248A / Min: 0A (208Vac-219.9Vac) Max: 260A / Min: 0A (220Vac-229.9Vac) Max: 276A / Min: 0A (230Vac-237.9Vac) Max: 288A / Min: 0A (238Vac-240Vac) 12V SB: Max: 4.5A / Min: 0A Output Type: Backplanes (gold finger)
Operating Environment
ROHS	RoHS Compliant
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -30°C to 60°C (-22°F to 140°F) Operating Relative Humidity: 8% to 80% (non-condensing) Non-operating Relative Humidity: 8% to 90% (non-condensing)

Valgfrie Opsjoner

Part Number	Quantity	Description
Cold Plate Module
SNK-P3050-ABT	1	2x Supermicro Cold Plates for Attachment to CPUs (Qty per Node)
SNK-P3042	1	2x CoolIT Cold Plates for Attachment to CPUs (Qty per Node)
Coolant Distribution Manifolds
LCS-SCDM-076V42001-ABT	1	Supermicro Coolant Manifolds (Qty per Rack)
SRK-00AS-CLIT-MF42SV-02	1	CoolIT 48U, 42S Single Rack Coolant Manifolds (Qty per Rack)
SRK-00AS-CLIT-MF84SV-02	1	CoolIT 48U, 82S Dual Rack Coolant Manifolds (Qty per Rack)
Coolant Distribution Unit
LCS-SCDU-080L4001-ABT	1	Supermicro Rack Mounted Coolant Distribution Unit (Qty per Rack)
SRK-00AS-CLIT-CH80V2-01	1	CoolIT 4U DLC CHx80V2 Coolant Distribution Unit (Qty per Rack)
M.2 NVMe RAID Controller
SCC-A2NM2241G3-B1E	1	2x Gen3 Marvell2241 NVMe M.2 RAID with 1x PCIEx16 Gen5. Supports only 2x 22x110mm M.2 (Qty per Node)
SCC-A2NM2241GH-B1	1	2x Gen3 Marvell2241 NVMe M.2 RAID and 2x Gen5 Direct-from-CPU NVMe M.2 with 1x PCIEx16 Gen5. Supports 4x 22x110mm M.2 (Qty per Node)
SPI Capable TPM Options
AOM-TPM-9670H-S	1	SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor (Qty per Node)
AOM-TPM-9671H-S	1	SPI Capable TPM 1.2 Provisioned for Server, Horizontal Form Factor (Qty per Node)
AOM-TPM-9670H-FIPS	1	SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor, Supporting FIPS 140-2 (Qty per Node)
SuperCloud Composer License
SFT-SDDC-SINGLE	-	SDDC Monitor License - Single License per Monitored host
System Management Suite
SFT-DCMS-Single	-	Supermicro System Management Software Suite node
VROC Options
AOC-VROCSTNMOD	1	Intel VROC Standard, RAID 0, 1, 10 (Qty per Node)
AOC-VROCPREMOD	1	Intel VROC Premium, RAID 0, 1, 5, 10 (Qty per Node)
