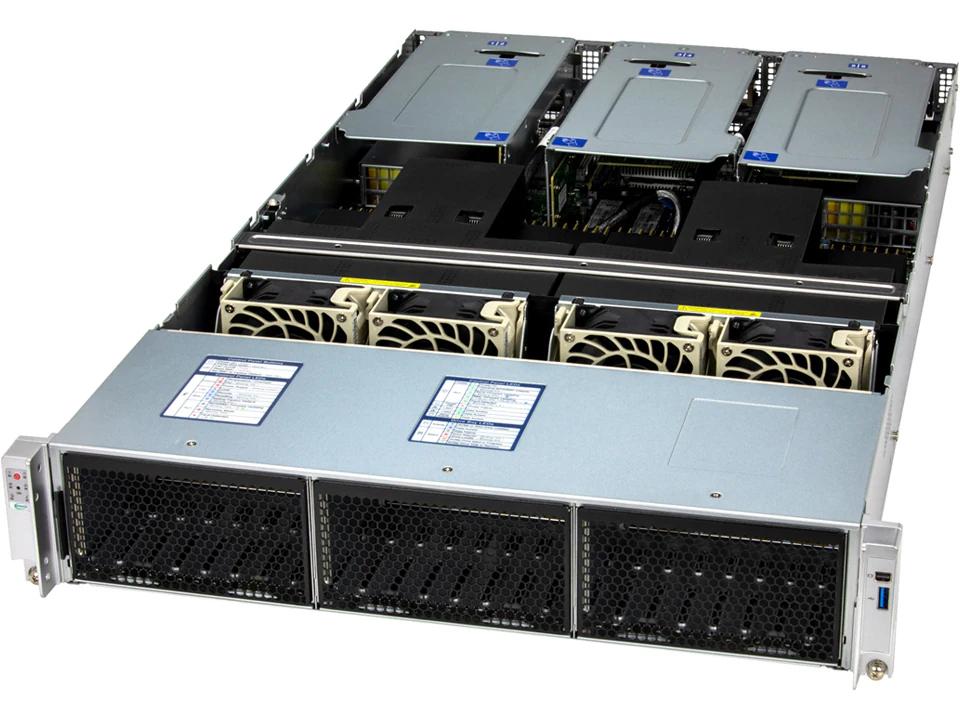

  2. [NR]X14DBHM + CSE-DC201, CloudDC DC-MHS FLW DP Intel 2U 24 B

[NR]X14DBHM + CSE-DC201, CloudDC DC-MHS FLW DP Intel 2U 24 B

SYS-222C-TN

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/15840/image_1920?unique=e0abd13

kr 21 424,35 21424.350000000002 NOK kr 21 424,35 Ekskl. mva

kr 21 424,35 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The Supermicro SYS-222C-TN is designed for cloud deployments, offering dual-socket CPU support and modular configurations. It includes 32 DIMM slots, extensive management, and security features, making it ideal for scalable data center applications.

    Nøkkelfunksjoner

    • Designed for Data Center Modular Hardware Systems (DC-MHS) to simplify CSP deployments and serviceability
    • Optimized power & balanced performance for cloud applications
    • Server management flexibility with OpenBMC

    Viktige bruksområder

    • Networking Appliance
    • Data Center Optimized, Value IaaS
    • Cloud Computing
    • HPC, Data Center
    • Private & Hybrid Cloud
    • Cloud Solution Provider (CSP)

    Beskrivelse

    The Supermicro SuperServer SYS-222C-TN is designed for data center modular hardware systems, optimized for CSP deployments. It features dual-socket E2 CPU support, up to 3 double-width GPUs, and extensive memory capacity with 32 DIMM slots supporting up to 4TB DDR5. Comprehensive I/O options and NVMe drive bays provide flexibility. It incorporates advanced security features such as Trusted Platform Module and supports various management suites like SuperCloud Composer.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-222C-TN
    Motherboard
    Installed Motherboard
    • Super X14DBHM
    Processor
    CPU
    • Dual Socket E2 (LGA-4710)
    • Intel® Xeon® 6700 series processors with E-cores
    Core Count
    • Up to 144C/144T; Up to 108MB Cache per CPU
    Note
    • Supports up to 350W TDP CPUs (Air Cooled)
    GPU
    Max GPU Count
    • Up to 3 double-width or 6 single-width GPUs
    System Memory
    Memory
    • Slot Count: 32 DIMM slots
    • Max Memory (1DPC): Up to 2TB 6400MT/s ECC DDR5 RDIMM
    • Max Memory (2DPC): Up to 4TB 5200MT/s ECC DDR5 RDIMM
    Memory Voltage
    • 1.1V
    On-Board Devices
    NVMe
    • NVMe; RAID 0/1/5/10 support(VROC HW key required)
    Chipset
    • System on Chip
    Network Connectivity
    • Via AIOM
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port
    USB
    • 1 USB 2.0 Type-A port(Rear)
    • 1 USB 3.2 Gen1 Type-A port(Rear)
    Video
    • 1 VGA port(Rear)
    TPM
    • 1 TPM header
    System BIOS
    BIOS Type
    • AMI 64MB SPI Flash ROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    • System Lockdown
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-DC201TS-R000NP
    Dimensions and Weight
    Height
    • 3.47" (88 mm)
    Width
    • 17.25" (438 mm)
    Depth
    • 30.7" (780 mm)
    Package
    • 9.4" (H) x 23.5" (W) x 43.2" (D)
    Weight
    • Gross Weight: 83.78 lbs (38 kg)
    • Net Weight: 61.73 lbs (28 kg)
    Available Color
    • Silver
    Front Panel
    LED
    • HDD activity
    • LAN1 activity
    • LAN2 acticity
    • Power Fail
    • Power status
    • System information (overheat/UID)
    Buttons
    • Power On/Off
    • UID button
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 4 PCIe 5.0 x16 (in x16) FHFL slots
    • 1 PCIe 5.0 x8 (in x16) FHFL slot

    Option A:
    • 2 PCIe 5.0 x16 (in x16) FHFL slots
    • 1 PCIe 5.0 x8 (in x16) FHFL slot

    CXL Support
    • Up to 3 internal CXL 2.0 x16/x8 Type 2/Type 3 devices
    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 24 bays:
    • 24 front hot-swap 2.5" NVMe*/SAS*/SATA* drive bays

    • (*NVMe/SAS/SATA support may require additional storage controller and/or cables)
    M.2
    • 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default)/2280; VROC required for RAID)
    System Cooling
    Fans
    • 4x 8cm heavy duty fans with optimal fan speed control
    Air Shroud
    • 1 Air Shroud
    Power Supply
    2x 2000W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL):
    • 73.5 x 40 x 185 mm

    Input:
    • 1000W: 100-127Vac / 50-60Hz
    • 1800W: 200-220Vac / 50-60Hz
    • 1980W: 220-230Vac / 50-60Hz
    • 2000W: 220-240Vac / 50-60Hz (for UL only)
    • 2000W: 230-240Vac / 50-60Hz
    • 2000W: 230-240Vdc / 50-60Hz (for CQC only)

    +12V:
    • Max: 83A / Min: 0A (100Vac-127Vac)
    • Max: 150A / Min: 0A (200Vac-220Vac)
    • Max: 165A / Min: 0A (220Vac-230Vac)
    • Max: 166A / Min: 0A (230Vac-240Vac)

    12V SB:
    • Max: 3.5A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -30°C to 60°C (-30°F to 140°F)
    • Operating Relative Humidity: 8% to 80% (Non-Condensing)
    • Non-operating Relative Humidity: 8% to 90% (Non-Condensing)

    Optional Part List

    Part Number Quantity Description
    3808 HBA Card
    AOC-S3808L-L8IT1Standard LP 8 internal ports (12Gb/s) Gen-4 16HDD HBA
    3816 HBA Card
    AOC-S3816L-L16IT1Standard LP 16 internal ports (12Gb/s) Gen-4 122HDD HBA
    3908 RAID Card
    AOC-S3908L-H8IR-16DD1Standard LP 8 internal ports (12Gb/s) Gen-4 122HDD RAID 0, 1, 5, 6, 10, 50, 60
    3908/3916 CacheVault
    BTR-CVPM051CacheVault for Broadcom 3908/3916 (requires a mount)
    3916 RAID Card
    AOC-S3916L-H16IR-32DD1Standard LP 16 internal ports (12Gb/s) Gen-4, 32HDD RAID 0, 1, 5, 6, 10, 50, 60
    AIOM Network Card(s)
    AOC-ATGC-i2TG-OCP 3.0 AIOM 2x 10GbE RJ45 PCIe 3.0 x4 Intel® X710-AT2
    AOC-ATG-i4SG-OCP 3.0 AIOM 4x 10GbE SFP+ PCIe 3.0 x8 Intel® XL710-BM1
    AOC-ATG-b2TG-OCP 3.0 AIOM 2x 10GbE RJ45 PCIe 3.0 x4 Broadcom® BCM57416
    AOC-AG-i4G-OCP 3.0 AIOM 4x 1GbE RJ45 PCIe 2.1 x4 Intel® i350-AM4
    AOC-AG-i2G-OCP 3.0 AIOM 2x 1GbE RJ45 PCIe 2.1 x4 Intel® i350-AM2
    AOC-A25G-i4SG-OCP 3.0 AIOM 4x 25GbE SFP28 PCIe x8 Intel® E810-CAM1
    AOC-A25G-b2SG-OCP 3.0 AIOM 2x 25GbE SFP28 PCIe x8 Broadcom® BCM57414
    AOC-A100G-b2CG-OCP 3.0 AIOM 2x 100GbE QSFP28 PCIe 4.0 x16 Broadcom® BCM57508
    CacheVault Mount
    MCP-240-00203-0N1CacheVault mounting bracket for PCIe slot
    MCP-240-21747-0N1CacheVault mounting card for AIOM slot
    MCP-240-00127-0N1CacheVault mounting tray for 2.5" drive bay
    License
    SFT-SDDC-SINGLE1Supermicro Data Center Monitor License
    SFT-DCMS-SINGLE1Supermicro System Managment Software License
    M.2 Tray
    AOC-SLG4-2H8M2-Standard LP PCIe x8 supporting 2 PCIe 4.0 x4 M-Key M.2 NVMe/SATA Modules RAID 0, 1
    NC-SI Cable
    CBL-PWEX-1099-341FLAT IDC 2X11F/P1.27 TO IDC 2X11F/P1.27 NCSI 0.5A 35CM
    VROC HW Key
    AOC-VROCSTNMOD1Intel VROC Standard RAID 0, 1, 10
    AOC-VROCPREMOD1Intel VROC Premium RAID 0, 1, 5, 10
