  2. [NR]3U Max I/O, CSE-MX301TS-R0NDFP, X14DBG-XAP

[NR]3U Max I/O, CSE-MX301TS-R0NDFP, X14DBG-XAP

SKU: SYS-322GA-NR
Brand: Supermicro
Produktnotat:

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/15847/image_1920?unique=afb9928

kr 63 629,07 63629.07 NOK kr 63 629,07 Ekskl. mva

kr 63 629,07 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    Engineered for high-performance computing and AI/Deep Learning, the SYS-322GA-NR supports dual Intel Xeon processors, expansive memory, and advanced GPU and storage options within a robust 3U chassis.

    Nøkkelfunksjoner

    • Dual Intel® Xeon® 6900-Series Processors with P-cores up to 500W
    • 24 DIMMs supporting up to 6TB 6400MT/s DDR5 RDIMM or 3TB 8800MT/s DDR5 MRDIMM
    • Up to 10 PCIe 5.0 x16 FHFL or 20 PCIe 5.0 x8 FHFL slots
    • 6/14 hot-swap E1.S NVMe drive bays or 4/6 hot-swap 2.5" NVMe drive bays
    • 3x 3200W or 2700W Redundant (2+1) Titanium Level power supplies
    • Support up to 8 Double Width GPU or 19 Single Width GPU

    Viktige bruksområder

    • High Performance Computing
    • AI/Deep Learning Training
    • Industrial Automation, Retail
    • Healthcare
    • Conversational AI
    • Business Intelligence & Analytics
    • Drug Discovery
    • Climate and Weather Modeling
    • Finance & Economics
    • Edge AI Inferencing

    Beskrivelse

    The SuperServer SYS-322GA-NR is designed for HPC and AI applications, featuring dual Intel Xeon 6900-series processors with up to 500W P-cores, and support for up to 6TB DDR5 memory. With up to 10 PCIe 5.0 x16 slots and advanced storage options, this 3U system offers flexibility in high-demand environments. It supports up to 8 double-width GPUs or 19 single-width GPUs, and includes redundant, high-efficiency power supplies. The system also integrates comprehensive management and security features, ensuring reliability and performance.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-322GA-NR
    Motherboard
    Installed Motherboard
    • Super X14DBG-XAP
    Processor
    CPU
    • Dual Socket BR (LGA-7529)
    • Intel® Xeon® 6900 series processors with P-cores
    Core Count
    • 128C/256T; 504MB Cache per CPU
    Note
    • Supports up to 500W TDP CPUs (Air Cooled)
    GPU
    Max GPU Count
    • Up to 8 double-width or 19 single-width GPUs
    CPU-GPU Interconnect
    • PCIe 5.0 x16 CPU-to-GPU Interconnect
    GPU-GPU Interconnect
    • NVIDIA® NVLink® Bridge (optional)
    System Memory
    Memory
    • Slot Count: 24 DIMM slots/2 Channels
    • Max Memory (1DPC): 3TB 6400MT/s ECC DDR5 RDIMM
    • Max Memory (2DPC): 6TB 5200MT/s ECC DDR5 RDIMM
    Memory Voltage
    • 1.1V
    On-Board Devices
    Chipset
    • System on Chip
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port
    USB
    • 2 USB 3.2 Gen1 Type-A ports
    Video
    • 1 VGA port
    TPM
    • 1 TPM header
    System BIOS
    BIOS Type
    • AMI 64MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer®
    • Supermicro Server Manager (SSM)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 3U Rackmount
    Model
    • CSE-MX301TS-R0NDFP
    Dimensions and Weight
    Height
    • 5.2" (132.1 mm)
    Width
    • 17.26" (438.4 mm)
    Depth
    • 31.5" (800 mm)
    Package
    • 13" (H) x 29" (W) x 47" (D)
    Weight
    • Gross Weight: 70.4 lbs (32 kg)
    • Net Weight: 135 lbs (61.24 kg)
    Available Color
    • Silver
    Front Panel
    LED
    • Universal Information (UID) LED
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 8 PCIe 5.0 x16 (in x16) FHFL double-width slots

    Option A*:
    • 8 PCIe 5.0 x16 (in x16) FHFL double-width slots
    • 2 PCIe 5.0 x16 (in x16) FHFL slots

    Option B*:
    • 20 PCIe 5.0 x8 (in x16) FHFL slots

    • (*Requires additional parts, please see the optional parts list for details. For more details on PCIe slot configuration options, please refer to the system callout images above.)
    CXL Support
    • Up to 4 CXL 2.0 x16/x8 devices
    M.2
    • 2 M.2 PCIe 5.0 x2 NVMe slots (M-key 22110(default)/2280)
    Drive Bays / Storage
    Drive Bays Configuration

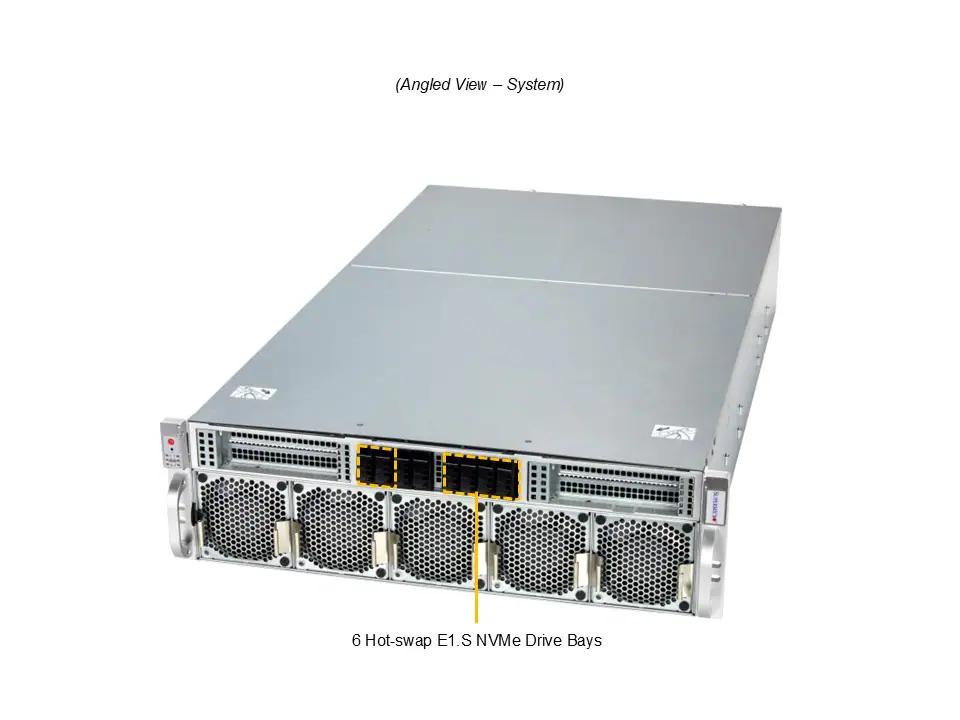

    Option A: Total 6 bays:
    • 6 front hot-swap E1.S PCIe 5.0 x4 NVMe* drive bays

    Option B: Total 14 bays:
    • 14 front hot-swap E1.S PCIe 5.0 x4 NVMe* drive bays

    Option C: Total 4 bays:
    • 4 front hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bays

    Option D: Total 6 bays:
    • 6 front hot-swap 2.5" PCIe 5.0 x4 NVMe* drive bays

    • (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
    M.2
    • 2 M.2 PCIe 5.0 x2 NVMe slots (M-key)
    System Cooling
    Fans
    • 5 Front 8cm Fan(s)
    • 6 Internal 6cm Fan(s)
    Air Shroud
    • 1 Air Shroud
    Power Supply
    3x 3200W Redundant (2 + 1) Titanium Level (96%) Hot-plug power supplies
    Dimension (WxHxL):
    • 73.5 x 40 x 185 mm

    Input:
    • 3200W: 0240Vdc / 50-60Hz (for CQC only)
    • 1000W: 100-127Vac / 50-60Hz
    • 2900W: 200-207Vac / 50-60Hz
    • 3000W: 207-220Vac / 50-60Hz
    • 3200W: 220-240Vac / 50-60Hz

    +12V:
    • Max: 82A / Min: 0A (100Vac-127Vac)
    • Max: 237.7A / Min: 0A (200Vac-207Vac)
    • Max: 245.9A / Min: 0A (207Vac-220Vac)
    • Max: 262.3A / Min: 0A (220Vac-240Vac)

    12V SB:
    • Max: 3A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    3x 2700W Redundant (2 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL):
    • 73.5 x 40 x 185 mm

    Input:
    • 2700W: 200-240Vac / 50-60Hz
    • 2700W: 240-240Vdc / 50-60Hz (for CQC only)

    +12V:
    • Max: 225A / Min: 0A (200Vac-240Vac)
    • Max: 225A / Min: 0A (240Vdc-240Vdc)

    12V SB:
    • Max: 4A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 10°C to 35°C (50°F to 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)

    Valgfrie Opsjoner

    Part Number Quantity Description
    8x SATA optional sets
    CBL-GNZ2-1221MTS41GenZ 2C+2 mount holes to SlimSAS x8,21cm,31AWG,RoHS
    MCP-220-00147-0B5Black gen-3 hot-swap 2.5" Tool-less HDD tray (clip design)
    Side expention sets
    AOM-DP801-PCIE-P1NIC Riser board(After Mid-Plane) for Delta-Next GPU System,RoHS
    AOM-DP801-SW-P1NIC adaptor board with PLX switch for Delta-Next GPU system,RoHS
    CBL-PWEX-1142B-401MicroHi(2x4 to 2x4), PH3.0, 40cm, 8.5A/p, 18AWG, RoHS
    CBL-MCIO-1255M54MCIO x8 (STR to STR),55CM,30AWG,RoHS
