  2. X12 4U 10GPU ICE LAKE GEN4 PCIE SYSTEM

X12 4U 10GPU ICE LAKE GEN4 PCIE SYSTEM

SKU: SYS-420GP-TNR
Brand: Supermicro
Produktnotat:

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 2 CPUs, 4 DIMMs, 2 GPUs, and 1 Storage device )

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/10476/image_1920?unique=86bcd98

kr 83 318,74 83318.74 NOK kr 83 318,74 Ekskl. mva

kr 83 318,74 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The Supermicro SYS-420GP-TNR is the ultimate solution for high-performance computing and resource-intensive applications. With dual 3rd Gen Intel Xeon processors and support for up to ten GPUs, this server offers unmatched flexibility and performance.

    Nøkkelfunksjoner

    • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
    • Intel® C621A Chipset
    • 32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
    • AIOM/OCP 3.0 Support12 PCIe Gen 4.0 X16 FHFL Slots
    • Flexible networking options
    • Total 24x 2.5" Hot-swap drive bays8x HOT SWAP 2.5” NVMe8x HOT SWAP 2.5” SATA8x HOT SWAP 2.5” SATA/SAS (AOC required)2x M.2 NVMe for boot drive only
    • 8 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
    • 4x 2000W redundant Titanium level power supplies

    Viktige bruksområder

    • High Performance Computing
    • Rendering
    • VDI
    • AI/Deep Learning Training

    Beskrivelse

    SYS-740GP-TNRT Side View
    Supermicro’s X12 SYS-420GP-TNR GPU SuperServer is designed and optimized for the most demanding High-Performance Computing, AI/Deep Learning, Inference, Virtual Desktop Infrastructure (VDI), Virtual Workstation (vWS), and Graphical workloads and applications.



    The Supermicro SYS-420GP-TNR is the ultimate solution with maximum performance and flexibility to execute intensive AI/Deep learning and HPC applications. Powered by dual 3rd Gen Intel® Xeon® Scalable Processors with up to 40 cores/80 threads along with 32 DDR4 DIMM slots to tackle the most complex tasks and workloads.

    Superior Expandability

    A total of twelve PCI-E X16 Slots allow for flexible and optimized configurations with support for up to TEN double-wide GPUs. Two onboard 1GbE LAN ports, one dedicated IPMI port and optional AIOM/OCP 3.0 support will keep you seamlessly connected no matter where you are.

    Storage for Data-Intensive Applications

    Equipped with bigger, faster storage options featuring 24 hot-swap 2.5" NVMe/SATA/SAS drive bays providing superior storage capabilities to easily execute intensive data processing and workloads. The SYS-420GP-TNR SuperServer is powered by four 2000W redundant titanium power supplies, giving you one of the most reliable and efficient GPU servers available today.

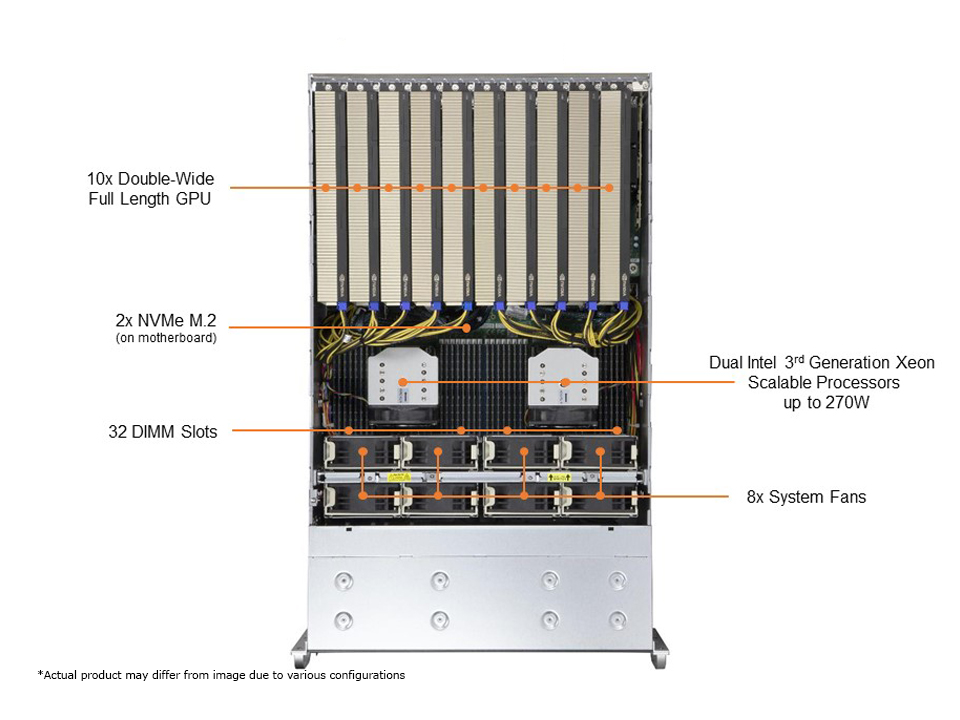

    Up to 10 Double-Wide Full-Length GPUs

    The Supermicro SYS-420GP-TNR SuperServer can be configured and optimized for specific or target workloads and applications by integrating up to TEN double-wide full-length GPUs.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-420GP-TNR
    Motherboard
    Installed Motherboard
    • Super X12DPG-OA6
    Processor
    CPU
    • Dual Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 40C/80T; Up to 60MB Cache per CPU
    Note
    • Supports up to 270W TDP CPUs (Air Cooled)
    GPU
    Max GPU Count
    • Up to 10 double-width or 10 single-width GPUs
    Supported GPU
    • NVIDIA PCIe: H100, L40, RTX A5500, A40, RTX A6000, RTX A5000, RTX A4500, RTX A4000, RTX A2000, A40, A30, A16, A2, A100, A10
    • Intel PCIe: Intel Data Center GPU Flex 170
    CPU-GPU Interconnect
    • PCIe 4.0 x16 Switch Dual-Root
    GPU-GPU Interconnect
    • NVIDIA® NVLink® Bridge (optional)
    System Memory
    Memory
    • Slot Count: 32 DIMM slots
    • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    • Supports Intel® Optane™ persistent memory 200 series
    Memory Voltage
    • 1.2V
    On-Board Devices
    SATA
    • SATA (6Gbps) ; RAID 0/1/5/10 support
    Chipset
    • Intel® C621A
    Network Connectivity
    • 2 RJ45 1GbE with Intel® I350
    Input / Output
    Video
    • 1 VGA port(s)
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    • 7 +1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 4U Rackmount
    Model
    • CSE-418G2TS-R4016BP
    Dimensions and Weight
    Height
    • 7" (178 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 29" (737 mm)
    Package
    • 26.57" (H) x 27" (W) x 41" (D)
    Weight
    • Gross Weight: 100 lbs (45.3 kg)
    • Net Weight: 65.5 lbs (29.7 kg)
    Available Color
    • Black Front & Silver Body
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 12 PCIe 4.0 x16 FHFL slots

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 24 bays:
    • 8 front hot-swap 2.5" NVMe drive bays
    • 16 front hot-swap 2.5" SAS/SATA drive bays

    Option A: Total 24 bays:
    • 24 front hot-swap 2.5" NVMe*/SAS/SATA drive bays

    • (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
    M.2
    • 2 M.2 NVMe/SATA slots (M-key)
    System Cooling
    Fans
    • 8 heavy duty fans with optimal fan speed control
    Power Supply
    4x 2000W Redundant Titanium Level (96%) power supplies
    Dimension (WxHxL):
    • 73.5 x 40 x 203 mm

    AC Input:
    • 1000W: 100-127Vac / 50-60Hz
    • 1800W: 200-220Vac / 50-60Hz
    • 1980W: 220-230Vac / 50-60Hz
    • 2000W: 220-240Vac / 50-60Hz (for UL only)
    • 2000W: 230-240Vac / 50-60Hz
    • 2000W: 230-240Vdc / 50-60Hz (for China only)

    +12V:
    • Max: 83A / Min: 0A (100Vac-127Vac)
    • Max: 150A / Min: 0A (200Vac-220Vac)
    • Max: 165A / Min: 0A (220Vac-230Vac)
    • Max: 166A / Min: 0A (230Vac-240Vac)

    12V SB:
    • Max: 3.5A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)

    Valgfrie Opsjoner

    Part Number Quantity Description
    2.5" NVMe Drive Trays
    MCP-220-00121-0B1 per driveBlack Gen-3 2.5" NVMe drive tray. Orange tab with lock.
    MCP-220-00167-0B1 per driveBlack Gen-3 2.5" NVMe drive tray. Orange tab with lock. Tool-less.
    2.5" SATA Drive Trays
    MCP-220-00047-0B1 per driveBlack gen 3rd hot-swap 2.5inch HDD tray
    Global Services & Support
    OSNBD3/2/1-3/2/1 Year Onsite NBD Service
    OS4HR3/2/1-3/2/1 Year Onsite 24x7x4 Service
    GPU Cables
    CBL-PWEX-10401 per GPUGPU power cable. 8pin MALE CPU to 2x 6pin FEMALE / 2x 1pin FEMALE. 5cm 20AWG/16AWG.- NVIDIA A4000
    CBL-PWEX-1028 (* 10 qty. included with each system.)*1 per GPUGPU power cable. 8 pin FEMALE CPU BLUE to 8 pin FEMALE CPU BLUE. 30CM. 16AWG. - NVIDIA A100 40GB / 80GB- NVIDIA A16- NVIDIA A30- NVIDIA A40- NVIDIA A6000
    CBL-PWEX-06651 per GPUGPU power cable. 8 pin FEMALE CPU BLUE to 8 pin FEMALE 20CM.  20AWG/16AWG. - NVIDIA A10- NVIDIA A5000
    GPU Dummy Tray
    MCP-240-00096-0N1GPU / Add-on Card Dummy Assembly (2 Slots)
    Network and Cables
    CBL-NTWK-0942-MQ28E20M1InfiniBand, EDR, QSFP28, 100GbE, PASSIVE, 28 AWG, 2M, Mellanox,RoHS
    AOC-ATG-i2TM1AIOM 2-port 10GBase-T RJ45, Intel X550,RoHS
    AOC-683105AN-HDAT1Nvidia MCX683105AN-HDAT PCIe 1-port HDR 200G QSFP56 Gen4x16 Cx-6 DE, RoHS
    AOC-STGS-i2T1Intel X550-AT2 2 RJ45 (10Gb/port) Gen3 x4 Standard Low Profile
    AOC-S40G-I2Q1Intel XL710-BM2 2-port QSFP+ (40Gb/port) Gen3 x8 Standard Low Profile
    AOC-ATG-i2T2SM1AIOM Quad-Port 10GbE (2x RJ45 & 2x SFP+) based on Intel X710-TM4,RoHS
    AOC-ATG-i4SM1AIOM Quad-Port 10GbE SFP+, based on Intel XL710-BM1,RoHS
    AOC-ATG-i2SM1AIOM Dual-Port 10GbE SFP+, based on X710-BM2,RoHS
    AOC-653105A-HDAT1Mellanox ConnectX-6 VPI 200Gb/s InfiniBand & Ethernet Adapter Card Single port, QSFP56, PCIe 3.0/4.0 x16, RoHS
    AOC-653106A-ECAT1ConnectX-6 VPI Card. 100Gb/s InfiniBand & Ethernet Adapter Card, Dual ports, QSFP56, PCIe 3.0/4.0 x16. HF, RoHS.
    AOC-S25G-I2S1Standard Low Profile 25G dual port SFP28, based on Intel XXV710
    AOC-A100G-b2C1AIOM Dual Port 100GbE QSFP28, based on Broadcom BCM57508,RoHS
    AOC-A25G-M2S1AIOM Dual-Port 25GbE SFP28, Mellanox CX-6 LX w/ 1U height bracket,RoHS
    AOC-S100GC-i2C1Standard PCIe 4.0 x 16 dual port 100GbE with QSFP28 based on Intel E810-CAM2,RoHS
    MCX653106A-HDAT1Mellanox ConnectX-6 VPI 200Gb/s InfiniBand & Ethernet Adapter Card dual ports, QSFP56 PCIe 3.0/4.0 x16. HF, RoHS
    CBL-NTWK-0942-MQ28E50M1InfiniBand, EDR, QSFP28,100GbE,PASSIVE, 28 AWG, 5M, Mellanox,RoHS
    CBL-NTWK-0942-MQ28C30M1ETHERNET,QSFP28,100GbE,PASSIVE,LSZH,3m,Mellanox
    MCX653105A-ECAT1Mellanox MCX653105A-ECAT PCIe 1-port IB-HDR100 & 100GbE QSFP56 Gen3.0/4.0 x16 CX-6 VPI. HF, RoHS.
    AOC-S25G-M2S12 Port 25 Gigabit SFP28 PCIe X8 Ethernet card. Based on Mellanox ConnectX-4 LX EN
    AOC-A25G-m2SM1AIOM 2-port 25GbE SFP28, Mellanox CX-6 LX w/ 0.5U height bracket,RoHS
    AOC-S25G-i2S1Standard Low Profile 25G dual port SFP28, based on Intel XXV710+ Marvell Unionville,RoHS
    Note
    * Requires x2 CBL-SAST-1281-100--
    ** Requires x1 CBL-SAST-1281-100--
    *** Requires MCP-240-00203-0N--
    Software
    SFT-DCMS-Single1DataCenter Management Package (per node license)
    Storage Control Cards and Cables
    CBL-SAST-1281-1001Slimline x8 (STR) to 2x Slimline x4 (STR),80CM,100 OHM,
    AOC-S3808L-L8IT**18 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP, 122 HDD w/ exp,RoHS
    BTR-CVPM05 ***1Supermicro Broadcom CACHEVAULT FOR AOC-S3916L-H16IR
    MCP-240-00203-0N1Remote Mounting Board for Supercap / Cache Vault. Occupies single PCIE SLOT.
    AOC-S3916L-H16IR-32DD *116 int 12Gb/s ports, x8 Gen4, ROC - LP, 32 HDD w/ exp,RoHS
