MBD-X12DGU, CSE-458GTS

SKU:

SYS-420GU-TNXR

Brand:

Supermicro

Produktnotat:

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 2 CPUs, 4 DIMMs and 1 Storage Device HDD/HDS/M.2, and 1 NIC).

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

kr 108 181,10 108181.1 NOK kr 108 181,10 Ekskl. mva

kr 108 181,10 Ekskl. mva

Denne kombinasjonen eksisterer ikke.

Legg i handlekurv

Salgsbetingelser

Beskrivelsesammendrag

The Supermicro SYS-420GU-TNXR is built for high performance computing, AI, and deep learning applications. Featuring dual sockets for 3rd Gen Intel Xeon Scalable processors and 4 GPUs with NVIDIA NVLink, it offers unparalleled performance and flexibility.

Nøkkelfunksjoner

Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
Intel® C621A Chipset
32 DIMM Slots; Up to 8TB DRAM; 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM
Highest GPU communication using NVIDIA® NVLINK™Supports HGX A100 4-GPU 40GB (HBM2) or 80GB (HBM2e)4U system with NVIDIA® HGX™ A100 4-GPU6 PCIe Gen 4.0 X16 LP Slots
Flexible networking options
Up to 10x 2.5" Hot-swap NVMe/SATA drive bays1 M.2 NVMe/SATA via Intel® C621A PCH chipset (for boot drive only)
5 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
4x 3000W redundant Titanium level power supplies

Viktige bruksområder

High Performance Computing
AI/Deep Learning Training

Beskrivelse

The Supermicro SYS-420GU-TNXR is an optimal choice for high performance computing, AI, and deep learning training applications. It supports up to 4 GPUs interconnected by NVIDIA NVLink for superior communication. Equipped with dual Socket P+ (LGA-4189) 3rd Gen Intel Xeon Scalable processors, it ensures robust processing capabilities. The system offers flexible networking options, multiple hot-swap drive bays, advanced cooling mechanisms, and comprehensive management software. This 4U rackmount system also includes redundant power supplies, extensive security features, and substantial memory and storage options, making it a reliable and high-performing server solution.

Produktspesifikasjoner

Specification	Details
Product SKUs
SKUs	SuperServer SYS-420GU-TNXR
Motherboard
Installed Motherboard	Super X12DGU
Processor
CPU	Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
Core Count	Up to 40C/80T; Up to 60MB Cache per CPU
Note	Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count	Up to 4 onboard GPUs
Supported GPU	NVIDIA SXM: HGX A100 4-GPU (80GB)
CPU-GPU Interconnect	PCIe 4.0 x16 Switch Dual-Root
GPU-GPU Interconnect	NVIDIA® NVLink®
System Memory
Memory	Slot Count: 32 DIMM slots Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
Memory Voltage	1.2V
On-Board Devices
SATA	SATA (6Gbps) ; RAID 0/1/5/10 support
Chipset	Intel® C621A
Network Connectivity	2 RJ45 10GbE with Intel® X710
Input / Output
Video	1 VGA port(s)
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown
PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory 7 +1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
Chassis
Form Factor	4U Rackmount
Model	CSE-458GTS-R3K06P
Dimensions and Weight
Height	7" (175.6 mm)
Width	17.67" (449 mm)
Depth	32.79" (833 mm)
Package	14.57" (H) x 27.55" (W) x 49.6" (D)
Weight	Gross Weight: 140 lbs (64 kg) Net Weight: 105 lbs (48 kg)
Available Color	Black Front & Silver Body

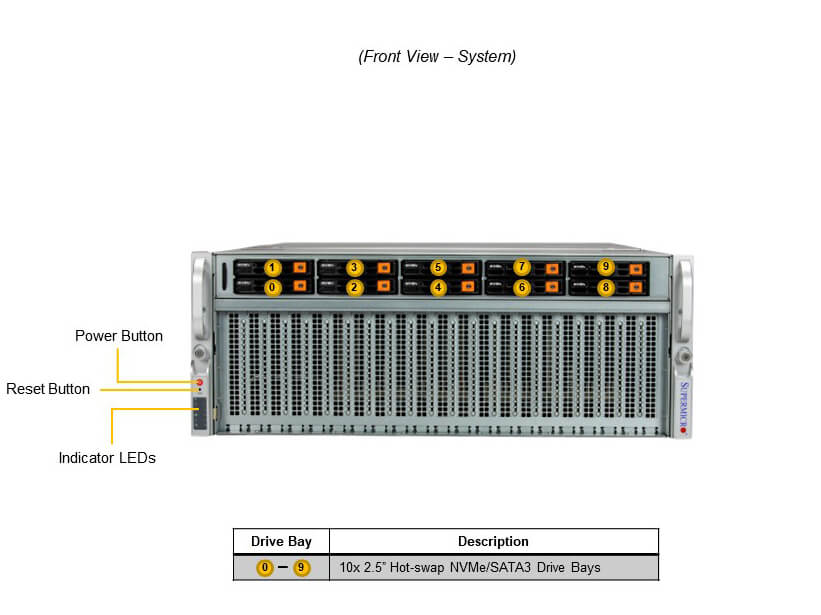

Front Panel
LED	Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED
Buttons	Power On/Off button System Reset button
Expansion Slots
PCI-Express (PCIe) Configuration	Default: 6 PCIe 4.0 x16 LP slots
Drive Bays / Storage
Drive Bays Configuration	Default: Total 10 bays: 10 front hot-swap 2.5" NVMe/SATA drive bays
M.2	2 M.2 NVMe/SATA slots (M-key)
System Cooling
Fans	5 removable heavy-duty Fan(s)
Power Supply
4x 3000W Redundant Titanium Level (96%) power supplies	Dimension (WxHxL): 106.5 x 82.1 x 245.5 mm AC Input: 3000W: 0240Vdc / 50-60Hz (for CQC only) 2880W: 200-207Vac / 50-60Hz 3000W: 207-240Vac / 50-60Hz +12V: Max: 91.66A / Min: 0A (200Vac-240Vac) 12V SB: Max: 3A / Min: 0A Output Type: Backplanes (gold finger)
Operating Environment
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)

Valgfrie Opsjoner

Part Number	Quantity	Description
Global Services & Support
OSNBD3/2/1	-	3/2/1-year onsite NBD service
OS4HR3/2/1	-	3/2/1-year onsite 24x7x4 service
Redstone 40G GPU Kit
MCP-310-45805-0B	1	CSE-458G 3pcs mylar air block set for Redstone
CBL-SAST-1290L4F-85	2	[NR] SlimSAS (x8 to LP x8),STR,FFC, 90CM,100 OHM
CBL-SAST-1275L4F-85	2	[NR] SlimSAS (x8 to LP x8),STR,FFC, 75CM,100 OHM
CBL-SAST-1255L4F-85	2	[NR] SlimSAS (x8 to LP x8),STR,FFC, 60CM,100 OHM
CBL-SAST-1240L4F-85	2	[NR] SlimSAS (x8 to LP x8),STR,FFC, 40CM,100 OHM
CBL-PWEX-1096-43	1	Surlok 5.7MM and RA-PD 3.6MM harness,Left Exit,4AWG,43
AOM-PCIE4-SXM4-Q-P	1	PCIe Transition board for nVidia, Redstone, GPU module,RoHS
SNK-P4009P	4	3U Passive GPU Heat Sink for NVIDIA Redstone SXM4 Module
CBL-PWEX-1117-60	1	MiniFit,2x2, P4.2,F to MiniFit,2x2, P4.2,F,23CM,10A/pin
GPU-NVTHGX-A100-SXM4-4	1	NVIDIA RedstoneGPU Baseboard,4 A100 40GB SXM4 (w/o HS)
MCP-240-45808-0N	1	Sheet-metal tray for Redstone UBB assembly in SC458G chassis
Redstone 80G GPU Kit
MCP-310-45805-0B	1	CSE-458G 3pcs mylar air block set for Redstone
SNK-P4009P	4	3U Passive GPU Heat Sink for NVIDIA Redstone SXM4 Module
CBL-PWEX-1117-60	1	MiniFit,2x2, P4.2,F to MiniFit,2x2, P4.2,F,23CM,10A/pin
GPU-NVTHGX-A100-SXM4-48	1	NVIDIA RedstoneGPU Baseboard,4 A100 80GB SXM4 (w/o HS)
MCP-240-45808-0N	1	Sheet-metal tray for Redstone UBB assembly in SC458G chassis
AOM-PCIE4-SXM4-Q-P	1	PCIe Transition board for nVidia, Redstone, GPU module,RoHS
CBL-PWEX-1096-43	1	Surlok 5.7MM and RA-PD 3.6MM harness,Left Exit,4AWG,43
CBL-SAST-1240L4F-85	2	[NR] SlimSAS (x8 to LP x8),STR,FFC, 40CM,100 OHM
CBL-SAST-1255L4F-85	2	[NR] SlimSAS (x8 to LP x8),STR,FFC, 60CM,100 OHM
CBL-SAST-1275L4F-85	2	[NR] SlimSAS (x8 to LP x8),STR,FFC, 75CM,100 OHM
CBL-SAST-1290L4F-85	2	[NR] SlimSAS (x8 to LP x8),STR,FFC, 90CM,100 OHM
Software
SFT-DCMS-Single	-	DataCenter Management +A17:D53Package (per node license)
