  2. SKL-D, X11SDV-TP8F, CSV-506-R300

SKL-D, X11SDV-TP8F, CSV-506-R300

SYS-5019D-RN8TP

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/8702/image_1920?unique=db7d7b8

kr 22 060,22 22060.22 NOK kr 22 060,22

kr 22 060,22

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro SYS-5019D-RN8TP is a powerful 1U rackmount server featuring an Intel Xeon D-2146NT processor, 8 cores, and support for up to 512GB DDR4 memory. Tailored for demanding applications in network security, virtualization, and edge computing, it provides robust performance and rich connectivity options.

    Key Features

    • Intel Xeon D-2146NT processor
    • 1U rackmount form factor
    • Supports up to 512GB DDR4 ECC memory
    • Hot-swap drive bays
    • Dual 10GBase-T ports
    • Dual 10G SFP+ and quad 1GbE ports
    • Redundant 300W power supplies
    • Comprehensive I/O options

    Key Applications

    • Network Security Appliance
    • Software Defined WAN (SD-WAN)
    • vCPE controller box
    • NFV Edge Computing Server
    • Virtualization Server
    • IoT Edge Computing

    Description

    The Supermicro SYS-5019D-RN8TP is equipped with the Intel Xeon D-2146NT processor, offering 8 cores and 16 threads with a TDP of 80W. It supports up to 512GB DDR4 ECC LRDIMM or 256GB DDR4 ECC RDIMM across 4 DIMM slots, ensuring high performance and reliability. The server is ideal for applications like network security, SD-WAN, vCPE, NFV edge computing, and IoT edge computing. Its robust connectivity includes dual 10G SFP+, quad 1GbE, dual 10GBase-T, and a dedicated IPMI LAN port. The 1U chassis is designed for efficient cooling and features dual 300W redundant power supplies, ensuring maximum uptime. Additional expansion is supported via PCI-E slots, M.2 slots, and hot-swap drive bays.

    Product Specifications

    Specification Details
    Product SKUs
    SYS-5019D-RN8TP
    • SuperServer 5019D-RN8TP (Black)
    Motherboard
    Super X11SDV-8C-TP8F
    • Super X11SDV-8C-TP8F
    • Super X11SDV-8C-TP8F
    Processor
    CPU
    • Intel® Xeon® processor D-2146NT,CPU TDP support 80W
    Cores / Cache
    • 8 Cores, 16 Threads
    System Memory
    Memory Capacity
    • Up to 512GB DDR4 ECC LRDIMM
    • Up to 256GB DDR4 ECC RDIMM
    • 4 DIMM slots
    Memory Type
    • 2666/2400/2133MHz ECC DDR4 ECC LRDIMM and ECC RDIMM
    DIMM Sizes
    • 128GB, 64GB, 32GB, 16GB
    Memory Voltage
    • 1.2 V
    Error Detection
    • Corrects single-bit errors
    • Detects double-bit errors(using ECC memory)
    On-Board Devices
    SATA
    • SATA3 (6Gbps) ports via SoC controller
    Network Controllers
    • Dual 10G SFP+ via SoC
    • Quad 1GbE with Intel I350-AM4
    • Dual 10GBase-T with Intel X557
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics
    • Aspeed AST2500 BMC

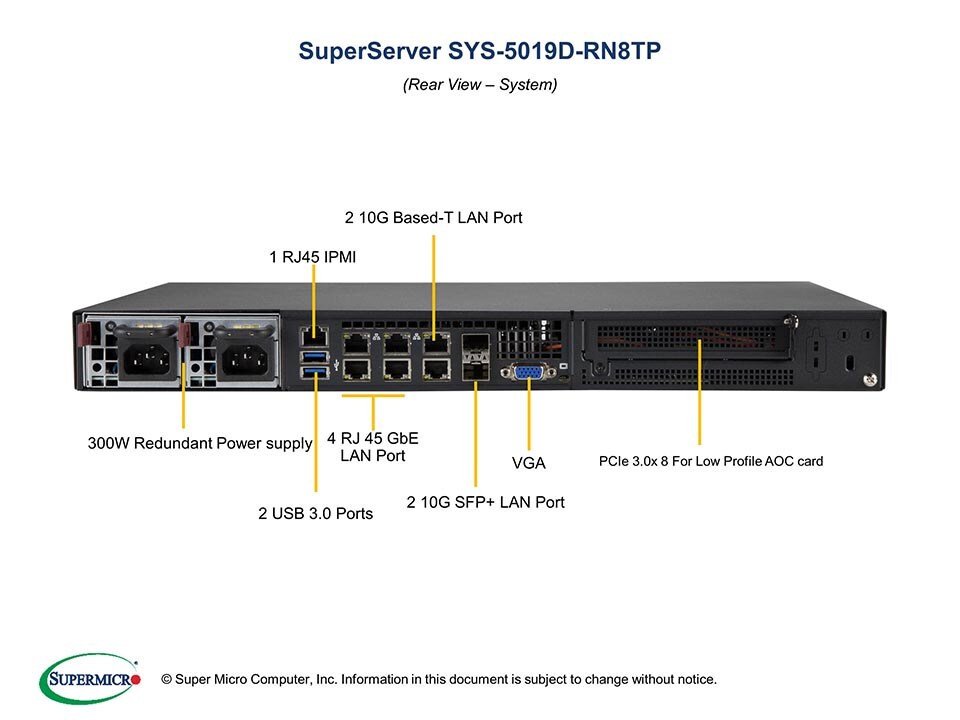

    Input / Output
    SATA
    • 4 SATA3 (6Gbps) ports (SATA/SAS HDD/SSD)
    LAN
    • 2 10G SFP+ ports
    • 4 RJ45 1GbE LAN ports
    • 2 RJ45 10GBase-T LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports (rear)
    VGA
    • 1 VGA port
    Others
    • TPM 2.0 header
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-506-R300
    Dimensions and Weight
    Height
    • 1.7" (43mm) / 6.1" (155mm) - pkg.
    Width
    • 17.2" (437mm) / 25.8" (655mm) - pkg.
    Depth
    • 9.8" (249mm) / 18.3" (465mm) - pkg.
    Weight
    • Net Weight: 8 lbs (3.63 kg)
    • Gross Weight: 12 lbs (5.44 kg)
    Available Colors
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LEDs
    • System Information LED
    • Information LED (temp., status)
    Expansion Slots
    PCI-E
    • 1 PCI-E 3.0 x8 slot
    • 1 Mini-PCI-E with mSATA Support
    M.2
    • 1 M.2 slot M key for SSD, 2242/8
    • 1 M.2 B Key for SSD/ WAN card
    Drive Bays
    Hot-swap
    • 2 Hot-swap 2.5" drive bays
    System Cooling
    Fans
    • 2x 40x28mm 4-PIN PWM fans
    Power Supply
    300W Redundant Power Supplies
    • 300W Redundant Power Supplies
    AC Voltage
    • 100 - 240V, 50-60Hz
    +5V
    • 20 Amp (max.)
    +5V standby
    • 3 Amp (max.)
    +12V
    • 25 Amp (max.)
    • 1 Amp (min.) (100Vac-240Vac)
    -12V
    • 0.5 Amp (max.)
    +3.3V
    • 20 Amp (max.)
    Certification
    • Gold Certified
    System BIOS
    BIOS Type
    • 128Mb SPI Flash with AMI BIOS
    BIOS Features
    • PCI 3.0
    • ACPI 5.0
    • USB Keyboard support
    • Hardware BIOS Virus protection
    • SMBIOS 2.8
    • UEFI 2.4
    • RTC (Real Time Clock) Wakeup
    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:0°C to 35°C (32°F to 95°F)
    • Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X11SDV-8C-TP8F1Super X11SDV-8C-TP8F Motherboard
    CSE-506-R30011U Chassis
    FAN 1
    FAN-0065L434028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
    Fan Holder
    MCP-320-81302-0B3Optional fan tray for one 40x28mm fan in SC813T/SC813LT-single PWS (Fan tray only)
    Power Supply
    PWS-301R-1R11 set of 300W Redundant Power supplies,RoHS

    Optional Part List

    Part Number Quantity Description
    Rail kit
    MCP-290-50404-0N1SC504 / 505 / 510 Fix Rail kit Set
    Riser Card
    RSC-RR1U-E8RSC-RR1U-E1611Note: Server can only support Low Profile Added-On-Card
    Riser Card Bracket
    MCP-240-00091-0N21U universal riser card bracket for standard chassis,HF,RoHS/REACH,PBF
    SuperDOM
    --Supermicro SATA DOM Solutions [Details]
