Micro Tower Server (X11SCL-IF, CSE-721TQ-350B2)

SYS-5029C-T

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10627/image_1920?unique=f7d9088

kr 5 883,57 5883.57 NOK kr 5 883,57

kr 5 883,57

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

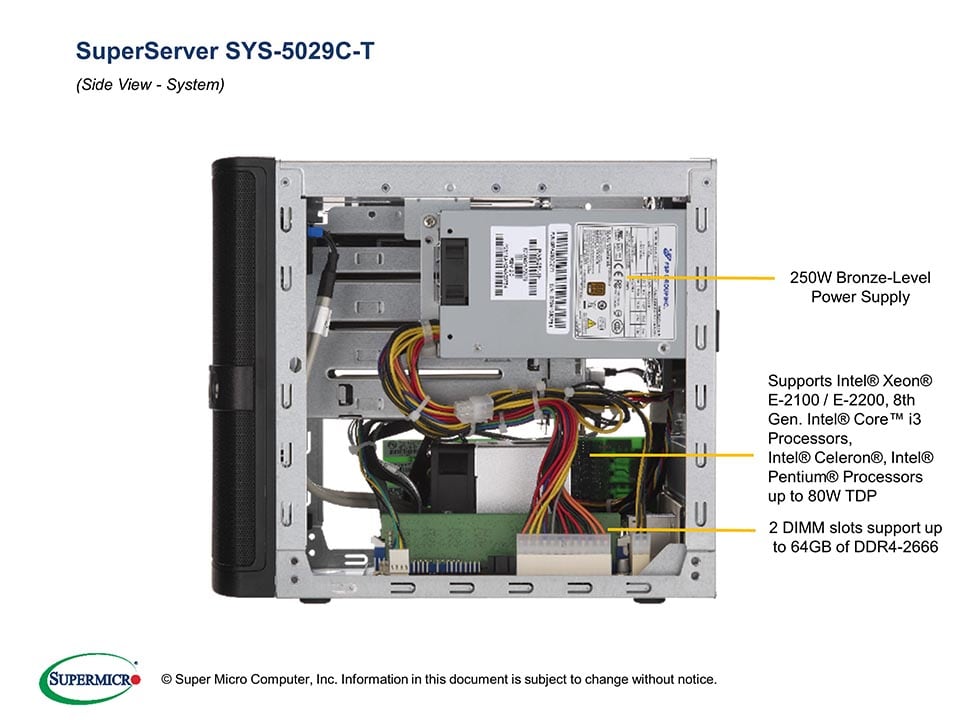

    Supermicro SYS-5029C-T is a versatile mini tower server optimized for file server, entry storage, and local cloud and web hosting services.

    Key Features

    • • File server/ Entry Storage • Local Cloud and Web Hosting • Mainstream, Compact
    • Single socket H4 (LGA 1151) supports Intel® Xeon® processor E-2100 / E-2200 series, 8th Gen. Intel® Core™ i3 Processors, Intel® Celeron®, Intel® Pentium®
    • Intel® C242 chipset
    • Up to 64GB ECC UDIMM, up to DDR4-2666MHz; 2 DIMM slots
    • 1 PCI-E 3.0 x16 slot (for LP AOC)
    • 4 Hot-swap 3.5" drive bays with BPN, 2 fixed 2.5" drive bays, 1 optional slim DVD-ROM bay
    • M.2 Interface: 1 PCI-E 3.0 x4 or SATA 3.0 M.2 Form Factor: 2280 M.2 Key: M-Key
    • 2 GbE LAN ports, 1 dedicated IPMI LAN
    • 2 USB 3.1 Gen1 (front), 2 USB 3.1 Gen1 (rear), 2 USB 2.0 (rear)
    • 1 VGA, 1 COM, 1 TPM
    • 350W Gold Level power supply (Updated for 2021 Version)

    Key Applications

    • File server
    • Entry storage
    • Local cloud hosting
    • Web hosting
    • Mainstream computing
    • Compact IT solutions

    Description

    The Supermicro SYS-5029C-T is designed to be a powerful and efficient mini tower server. It supports single socket H4 (LGA 1151) Intel® Xeon® Processor E-2100 / E-2200 series, and 8th Gen. Intel® Core™ i3, Intel® Celeron®, and Intel® Pentium® processors. With the Intel® C242 chipset and up to 64GB ECC UDIMM, this server provides high performance, reliability, and scalability needed for small to medium businesses. The chassis is equipped with 4 hot-swap 3.5" drive bays, 2 fixed 2.5" drive bays, and an optional slim DVD-ROM bay, ensuring ample storage options. It also features multiple I/O ports, including USB, VGA, and Ethernet LAN ports for versatile connectivity.

    Product Specifications

    Specification Details
    Product SKUs
    SYS-5029C-T
    • SuperServer 5029C-T ( Black )
    Motherboard
    Installed Motherboard
    • Super X11SCL-iF
    Processor
    CPU
    • Single Socket H4 (LGA 1151),CPU TDP support up to 80W
    • Support Intel® Xeon® Processor E-2100 / E-2200 series, 8th Gen. Intel® Core™ i3 / Pentium® / Celeron® Processors
    Cores
    • 6 cores, 12 threads
    Note
    • BIOS 1.0b or above is required to support Intel® Xeon® processor E-2200 series
    System Memory
    Memory Capacity
    • 2 DIMM slots
    • Up to 64GB ECC UDIMM
    • Up to DDR4-2666MHz
    Memory Type
    • 2666/2400/2133MHz ECC DDR4 SDRAM
    DIMM Sizes
    • 32GB, 16GB, 8GB, 4GB
    Note
    • Future support for 64GB via BIOS update expected in early 2019
    On-Board Devices
    Chipset
    • Intel® C242 chipset
    SATA
    • SATA3 (6Gbps) via Intel C242 controller
    • RAID 0, 1, 5, 10 support
    IPMI
    • ASPEED AST2500
    Network Controllers
    • Dual LAN with Intel® I210-AT
    Video
    • ASPEED AST2500 BMC
    Input / Output
    SATA
    • 4 SATA3 (6Gbps) ports
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.1 Gen1 (front)
    • 2 USB 3.1 Gen1 (rear)
    • 2 USB 2.0 (rear)
    Video
    • 1 VGA port
    Serial Port / Header
    • 1 COM port
    DOM
    • SATA DOM (Disk on Module) power connector support
    TPM
    • 1 TPM 2.0 Header
    Management
    Software
    • SuperDoctor® 5
    • Watch Dog
    • Non-maskable Interrupt (NMI)
    • Chassis intrusion detection
    Chassis
    Form Factor
    • Mini Tower
    Model
    • CSE-721TQ-350B2
    Dimensions and Weight
    Height
    • 9.45" (240mm)
    Width
    • 8.27" (210mm)
    Depth
    • 11" (279mm)
    Weight
    • Gross Weight: 15 lbs (6.8 kg)
    Available Colors
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    • System Reset button
    LEDs
    • Power LED
    • Hard drive activity LED
    • Network activity LEDs
    • System Information LED
    Ports
    • 2 USB 3.1 Gen1 ports
    Expansion Slots
    PCI-E
    • 1 PCI-E 3.0 x16 slot, for low-profile AOC
    Drive Bays
    HDD
    • 4 Hot-swap 3.5" drive bays with BPN
    • 2 internal 2.5" drive bays
    Peripheral
    • 1 optional slim DVD-ROM bay
    Power Supply
    • 350W Flex ATX Multi-output Gold Power Supply
    Total Output Power and Input
    • 350W with Input 100 - 240Vac
    AC Input Frequency
    • 50-60Hz
    +5V
    • Max:15 Amp; Min:0.2 Amp
    +12V
    • Max:28 Amp; Min:0.1 Amp @100V-240V
    +3.3V
    • Max: 10 Amp Min: 0.1 Amp
    5VSB
    • Max: 2 Amp Min: 0.05 Amp
    -12V
    • Max: 0.3 Amp Min: 0.05 Amp
    Certification
    • Gold Level
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, +1.8V, +3.3V, +5V, +-12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
    • 3+0 CPU switch phase voltage regulator
    • CPU thermal trip support
    FAN
    • Low noise fan speedcontrol
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for 4x 4-pin fan connectors
    • Platform Environmental Control Interface (PECI)
    System BIOS
    BIOS Type
    • UEFI 256Mb
    BIOS Features
    • ACPI 6.0
    • SMBIOS 2.7
    • Plug and Play (PnP)
    • RTC (Real Time Clock) Wakeup
    • PCI F/W 3.0
    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:10°C to 35°C (50°F to 95°F)
    • Non-operating Temperature:-40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:20% to 95% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X11SCL-iF1Super X11SCL-iF Motherboard
    CSE-721TQ-350B21Mini Tower Chassis
    Backplane
    CSE-SAS-733TQ14x3.5\" SAS2/SATA3 backplane w/SES-II
    Cable 1
    CBL-0484L4SATA,INT,ROUND,ST-ST,55CM,30AWG
    Cable 2
    CBL-0157L1CBL,SGPIO,2X4F TO 2X4F,P2.54,RIBBON IN RND TUBE,40CM,28AWG
    Manual
    MNL-2170-QRG1SYS-5029C-T Quick Reference Guide
    Parts
    MCP-260-00042-0N1STD I/O shield for X9 socket R server MB with Gasket.
    Power Supply
    PWS-353-1H11U Flex ATX 350W Multi-output Gold power supply

    Optional Part List

    Part Number Quantity Description
    Adaptor HDD carrier
    MCP-220-00043-0N-Adaptor HDD carrier to install 2.5" HDD in 3.5" HDD tray
    MCP-220-00118-0B-Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray,RoHS/REACH
    DVD-ROM / DVD-RW
    DVM-TEAC-DVD-SBT5-Black slim SATA DVD (8x DVD, 24x CDR), TEAC
    SATA DVD Kit
    MCP-220-81502-0N-Slim SATA DVD kit
    Cable
    CBL-PWEX-0645-Big 4 pin male to big 4 pin female, power extension 15cm, 20AWG
    CPU Heatsink Fan
    SNK-P0074AP4-Active CPU Heat Sink w/ a Side-mount Fan for Intel Socket H Series Motherboards
