CSE-505-203B + X12SDV-8C-SP6F

SKU:	SYS-510D-8C-FN6P
Brand:	Supermicro
Produktnotat:	For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

kr 22 787,86 22787.86 NOK kr 22 787,86 Ekskl. mva

kr 22 787,86 Ekskl. mva

Denne kombinasjonen eksisterer ikke.

Legg i handlekurv

Salgsbetingelser

Beskrivelsesammendrag

Supermicro SYS-510D-8C-FN6P comes equipped with an Intel Xeon D-1736NT Processor, supporting up to 256GB DDR4-2933MHz ECC RDIMM memory. It includes 4x GbE and 2x 25G SFP28 ports, along with a 200W Low-noise Gold Level power supply.

Nøkkelfunksjoner

Intel® Xeon® Processor D-1736NT, CPU TDP 67W
Up to 256GB Registered ECC RDIMM, DDR4-2933MHz, in 4 DIMM slots
4x GbE and 2x 25G SFP28
1x Internal 3.5" or 4x Internal 2.5" drive bays
3x 40x28mm 4-PIN PWM fans
200W Low-noise AC-DC power supply
1x VGA, 2 USB 3.0

Viktige bruksområder

Intel® QuickAssist Technology
Retail Application, Firewall, Gateway, uCPE

Beskrivelse

This SYS-510D-8C-FN6P features the Intel Xeon D-1736NT Processor with 8 cores, 16 threads, a base frequency of 2.7GHz, 15MB cache, and a TDP of 67W. The server supports up to 256GB DDR4-2933MHz ECC RDIMM in 4 DIMM slots, has onboard dual 25Gb/s (2x SFP28) and quad 1Gb/s (4x RJ45) Intel Ethernet controllers, and includes a 200W Gold Level power supply for energy efficiency.

Produktspesifikasjoner

Specification	Details
Product SKUs
SKUs	SuperServer SYS-510D-8C-FN6P
Motherboard
Installed Motherboard	Super X12SDV-8C-SP6F
Processor
CPU	Single FCBGA-2227 Intel® Xeon® Processor D-1700 Series
Note	Supports up to 67W TDP CPUs (Air Cooled)
System Memory
Memory	Slot Count: 4 DIMM slots Max Memory (2DPC): Up to 256GB 2933MT/s ECC DDR4 RDIMM
Memory Voltage	1.2V
On-Board Devices
Chipset	Intel® SoC
Network Connectivity	2 RJ45 1GBASE-T with Intel® I210 2 SFP28 25GbE with Intel® SoC 2 RJ45 1GBASE-T with Intel® I350-AM2

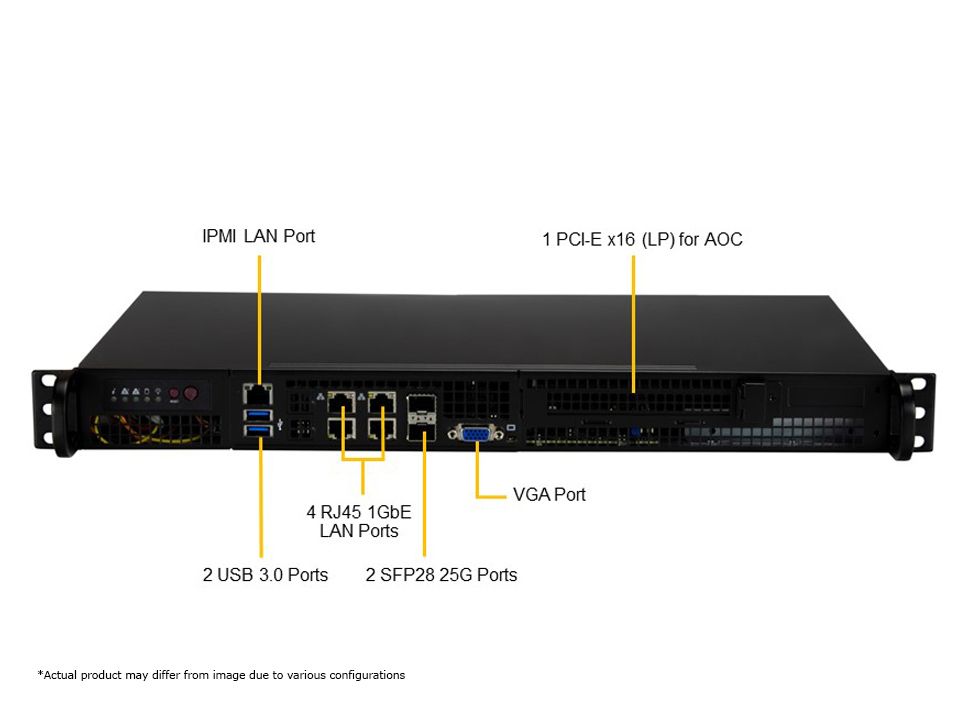

Input / Output
LAN	1 RJ45 1 GbE Dedicated BMC LAN port(s) 2 SFP28 25 GbE LAN port(s) (Intel® SOC) 2 RJ45 1 GbE LAN port(s) (Intel® I350-AM2) 2 RJ45 1 GbE LAN port(s) (Intel® I210-IT)
USB	2 port(s)
Video	1 VGA port(s)
Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery System Lockdown
PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Pulse Width Modulated (PWM) fan connectors Status monitor for speed control
Temperature	CPU thermal trip support, PEPI Monitoring for CPU and chassis environment
Chassis
Form Factor	Mini-1U
Model	CSE-505-203B
Dimensions and Weight
Height	1.7" (43 mm)
Width	17.2" (437 mm)
Depth	9.8" (249 mm)
Package	6.1" (H) x 25.8" (W) x 18.3" (D)
Weight	Gross Weight: 10 lbs (4.54 kg)
Available Color	Black
Front Panel
LED	Fan Fail/System Over Heat LED HDD activity LED Network Activity LEDs Power status LED
Buttons	Power On/Off button System Reset button
Expansion Slots
PCI-Express (PCIe) Configuration	Default: 1 PCIe 4.0 x16 FHHL slot
Drive Bays / Storage
Drive Bays Configuration	Default: Total 4 bays: 4 internal fixed 2.5" SATA drive bays
M.2	1 M.2 PCIe 3.0 x2 SATA slot (B-key 2280/3042/3052; USB 3.0) 1 M.2 PCIe 3.0 x4 SATA slot (M-key 2280) 1 M.2 PCIe 3.0 x1 SATA slot (E-key 2230; USB 3.0)
System Cooling
Fans	4x 4-PIN PWM 40x28mm Fan(s) (optional)
Power Supply
1x 200W Gold Level (91%) power supply	Dimension (WxHxL): 76 x 40.3 x 192 mm AC Input: 200W: 100-240Vac / 50-60Hz +12V: Max: 16A / Min: 0.1A (100Vac-240Vac) 5V SB: Max: 2A / Min: 0A Output Type: 20pin ATX Certification: Gold Level
Operating Environment
Environmental Spec.	Operating Temperature: 0°C ~ 40°C (32°F ~ 104°F) Non-operating Temperature: -40°C to 70°C (-40°F to 158°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
General
Standard Parts (Parts Included)

Standard Delliste

Part Number	Quantity	Description
Motherboard / Chassis
MBD-X12SDV-8C-SP6F	1	Super X12SDV-8C-SP6F Motherboard
CSE-505-203B	1	Mini-1U Chassis
Cable
CBL-SAST-0538	2	7pin SATA (STR to RA),29cm,PBF
CBL-0087	1	CBL,FRONT CNTL,16 TO 16 PIN,Ribbon,50CM
CBL-0260L	1	US POWER CORD 18 AWG, PBF
Fan
FAN-0065L4	3	4028mm 13K RPM 4-PIN PWM FAN for SC813MF, SC113M
Drive Tray(s)
MCP-220-00051-0N	2	Single 2.5
Rear Window
MCP-240-00091-0N	2	1U universal riser card bracket for standard chassis,HF,RoHS/REACH,PBF
Parts
MCP-260-00100-0B	1	1U I/O Shield
MCP-260-00064-0B	1	1U I/O shield for X9/X10 STD Server I/O use in SC510, SC505, SC504 with EMI Gasket,RoHS/REACH,PBF
MCP-290-51001-0N	1	SC510 card retainer
Fan Holder
MCP-320-81302-0B	3	Optional fan tray for one 40x28mm fan in SC813T/SC813LT-single PWS (Fan tray only)
Manual
MNL-2530-QRG	1	510D-4C/8C/10C-FN6P Quick Reference Guide
Riser Card
RSC-S-6G4	1	1U LHS Standard riser card with one PCIe 4.0 x16 slot,HF,Ro
*Power Supply
PWS-203-1H	1	1U 200W Multi-output 80Plus Gold PWS
*Front Panel
FPB-FP813-D	1	Front control board dual color for SC815,SC813M (C)

Valgfrie Opsjoner

Part Number	Quantity	Description
HDD Bracket
MCP-220-00044-0N	-	Dual 2.5" fixed HDD bracket for SC502, 503, 510, 512, 515U
Slimline to SATA cable
CBL-SAST-1256-100	-	Slimline X4 (RE) to 4x SATA,INT,56/46/46/56CM,SB 56CM,1
