UP 1U X12SPO-F, CSE-813MF2TQC-505CB,RoHS

SYS-510P-M

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10373/image_1920?unique=a1dbe1e

kr 13 152,26 13152.26 NOK kr 13 152,26

kr 13 152,26

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro SYS-510P-M is a 1U rackmount server designed for mainstream application optimization, ideal for small businesses, web hosting, and email/firewall/print server applications. Featuring single-socket 3rd Gen Intel Xeon Scalable processors, it supports up to 36 cores/72 threads and 2TB of system memory.

    Key Features

    • Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors. Up to 220W TDP.
    • 8 DIMMs; Supports 3DS DDR4-3200: RDIMM/LRDIMM/Intel® Intel® DCPMM
    • 1 PCIe 4.0 x16 (FHHL) slot
    • Intel® Ethernet Controller i350 2x 1GbE RJ45
    • 4x hot-swap 3.5'' Hybrid SATA3/NVMe drive bays, SAS3 with additional SAS controller card; Onboard 2x NVMe/SATA M.2
    • Single Platinum 500W Power Supply

    Key Applications

    • Small Business
    • Web/Hosting Application
    • Email/Firewall/Print Server

    Description

    Supermicro's SYS-510P-M server offers powerful performance with the latest 3rd Gen Intel Xeon Scalable processors up to 220W TDP. It features 8 DIMM slots supporting up to 2TB of DDR4 RAM, and comes equipped with 2 NVMe/SATA M.2 slots, and 4 hot-swap 3.5'' hybrid drive bays for SATA3/NVMe storage, allowing flexibility for various applications. Key features include a single PCIe 4.0 x16 FHHL slot, dual 1GbE Ethernet ports using Intel I350 controller, and a 500W Platinum-level power supply ensuring high energy efficiency.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-510P-M
    Motherboard
    Installed Motherboard
    • Super X12SPO-F
    Processor
    CPU
    • Single Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 36C/72T; Up to 54MB Cache
    Note
    • Supports up to 220W TDP CPUs (Air Cooled)
    GPU
    Max GPU Count
    • Up to 1 single-width GPU
    Supported GPU
    • NVIDIA PCIe: T400
    System Memory
    Memory
    • Slot Count: 8 DIMM slots
    • Max Memory (1DPC): Up to 2TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    • Supports Intel® Optane™ persistent memory 200 series
    Memory Voltage
    • 1.2V
    On-Board Devices
    SATA
    • SATA (6Gbps) ; RAID 0/1/5/10 support
    NVMe
    • NVMe; RAID 0/1/5/10 support(Intel® VROC RAID key required)
    Chipset
    • Intel® C621A
    Network Connectivity
    • 2 RJ45 1GbE with Intel® I350
    Input / Output
    LAN
    • 2 RJ45 1 GbE LAN port(s)
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s) (IPMI shared on LAN port 1)
    USB
    • 4 USB 2.0 port(s) (header)
    • 2 USB 3.2 Gen1 Type-A port(s) (rear)
    • 2 USB 2.0 Type-A port(s) (rear)
    • 2 USB 3.2 Gen1 port(s) (Header)
    • 1 USB 3.2 Gen1 Type-A port(s) (Header)
    Video
    • 1 VGA port(s)
    Serial
    • 1 COM port(s) (Rear)
    • 1 COM port(s) (Header)
    DOM
    • 2 Super DOM (Disk on Module) port(s) with built-in power
    TPM
    • 1 TPM header
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI/APM Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    • 7+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-813MF2TS-505CBP
    Dimensions and Weight
    Height
    • 1.7" (43 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 19.98" (507 mm)
    Package
    • 8.5" (H) x 24" (W) x 29.5" (D)
    Weight
    • Gross Weight: 30.4 lbs (13.8 kg)
    • Net Weight: 17.6 lbs (8 kg)
    Available Color
    • Black
    Front Panel
    LED
    • Device Activity
    • LAN 1 Activity
    • LAN 2 Activity
    • Power status
    • System information
    Buttons
    • Power On/Off
    • System Reset
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 1 PCIe 4.0 x16 FHHL slot

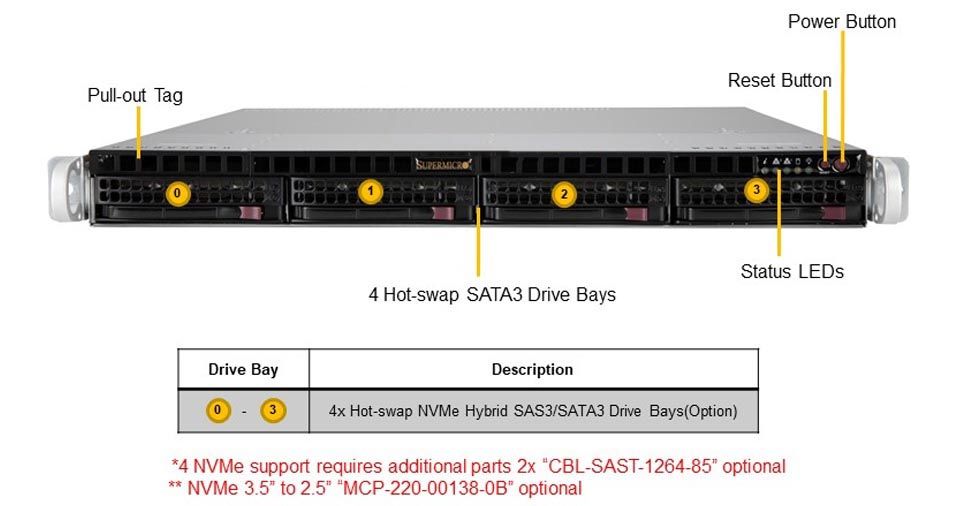

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 4 bays:
    • 4 front hot-swap 3.5" PCIe 4.0 NVMe*/SAS*/SATA drive bays

    • (*NVMe/SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
    M.2
    • 2 M.2 PCIe 3.0 x4 NVMe/SATA slots (M-key 2280/22110; VROC required for RAID)
    Peripheral Bays
    • 2 2.5" bays (optional)
    System Cooling
    Fans
    • 4 middle cooling PWM 40x40x28mm Fan(s)
    • 2 AOC cooling Fan(s) (optional)
    Power Supply
    1x 500W Platinum Level (93%) power supply
    Dimension (WxHxL):
    • 100 x 40 x 180 mm

    AC Input:
    • 500W: 100-240Vac / 50-60Hz

    +12V:
    • Max: 41A / Min: 0.5A (100Vac-240Vac)

    5V SB:
    • Max: 3A / Min: 0A

    Output Type:
    • 24pin ATX

    Certification:
    • Platinum Level

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
    General
    Standard Parts (Parts Included)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X12SPO-F1Super X12SPO-F Motherboard
    CSE-813MF2TS-505CBP11U Chassis
    Backplane
    BPN-SAS3-815TQ-N411U 4-Port Hybrid Backplane Support 4x3.5"SAS3/SATA3
    Cable
    CBL-0182L1PWR EXTENSION.HDD TO RIGHT ANGLE HDD,PBF
    CBL-SAST-08111MINI SAS HD-4 SATA (RA),12G,INT,50/50/60/70,70CM SB,30AWG
    CBL-0071L1ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
    Manual
    MNL-2267-QRG1510P-M/MR Quick Reference Guide
    Riser Card
    RSC-S-6G411U LHS Standard riser card with one PCIe 4.0 x16 slot,HF,Ro
    Software
    SFT-OOB-LIC1License key for enabling OOB BIOS management
    Heatsink / Retention
    SNK-P0077P11U Passive CPU Heat Sink for X12 Generation Intel Whitley and Cedar Island Platforms
    *Power Supply
    PWS-505P-1H11U 500W Multi-output, Platinum level w/ PMbus 24pin, W100xL180xH40mm,RoHS/REACH
    *Peripheral Drive
    CSE-PT93L-B1Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS
    *Fan
    FAN-0154L4440x40x28 mm, 22.5K RPM, SC813MF Middle Cooling Fan,RoHS/REACH
    *Front Panel
    FPB-FP813-D1Front control board dual color for SC815,SC813M (C)
    *Drive Tray(s)
    MCP-220-00075-0B4Black gen 5.5 hot-swap 3.5" HDD tray
    *Parts
    MCP-260-00078-0N11U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF
    MCP-340-00001-012Dummy fan 40x28mm
    *Rail Set
    MCP-290-00102-0N1setOuter rail, quick-release type, 25.6
    MCP-290-00108-0N1setInner rail, front, short, quick-release type
    MCP-290-00110-0N1setInner rail, extension (quick) for 1U 17.2
    *Fan Holder
    MCP-320-00060-0N1Slim Fan tray for six 40x28 fans in SC813M (for X11DPL-i 12"x10.15")

    Optional Part List

    Part Number Quantity Description
    3.5" to 2.5" Converter Tray(s)
    MCP-220-00043-0N-Hot-swap Gen-4 3.5" to 2.5" HDD tray, Black
    3.5'' to 2.5" NVMe Drive Tray(s)
    MCP-220-00138-0B-Tool-less Hot-swap Gen-5.5 NVMe 3.5'' to 2.5'' drive tray, Orange tab, Black
    Add-on Card for additional M.2
    AOC-SLG3-2H8M2-Standard LP, PCIe 3.0 x8, supports 2x NVMe/SATA M-Key M.2 Modules; RAID 0,1
    Cooling Fan(s)
    FAN-0154L4-40x40x28 mm, 22.5K RPM, Middle Cooling Fan
    DVD-ROM / DVD-RW
    DVM-TEAC-DVDRW-SBT51PHILPS slim DVD-RW SATA drive
    DVM-TEAC-DVD-SBT51TEAC slim DVD-ROM SATA drive
    DVD-ROM Accessory
    MCP-220-81502-0N+ 1pc CBL-0099(max 1pc)1Slim SATA DVD mounting kit
    Front Bezel
    CSE-PTFB-813-02B1Black Front Bezel w/ Round Venting Holes
    CSE-PTFB-813LB1Black Front Bezel
    Hot-swap 2.5" kit (DVD slot)
    MCP-220-81506-0N+ 1pc CBL-0099(max 1pc)1Single 2.5" SAS3 (12Gb/s) hot swap in slim DVD form factor
    Hot-swap 2.5" kit (FDD slot)
    MCP-220-81504-0N1Single 2.5" SAS3 (12Gb/s) hot swap in slim FDD form factor
    Inlet Thermal Sensor
    MCP-280-00034-0N1Universal Thermal sensor kit with 40cm I2C cable
    Intel VROC RAID Key for NVMe
    AOC-VROCPREMOD1Premium Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10/5
    AOC-VROCSTNMOD1Standard Upgrade module (Intel + 3rd party Vendor SSD); RAID 0/1/10
    AOC-VROCINTMOD1Intel SSD Only Upgrade module; RAID 0/1/10/5
    NVMe Cable(s)
    CBL-SAST-1264-85-Slimline x8 (STR) to 2x Oculink x4 (STR),64CM,85 OHM,Ro
    Software
    SFT-DCMS-Single1DataCenter Management Package (per node license)
    Storage Control Card and Cable(s)
    AOC-S3908L-H8iR-16DD + 1x CBL-SAST-1275A-1001Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
    AOC-S3108L-H8iR-16DD1Standard LP, 8 Internal ports (12Gb/s) PCIe 3.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
    AOC-S3008L-L8I1Standard LP, 8 internal ports (12Gb/s) PCIe 3.0 x8, 63HDD; RAID 0, 1, 10
    Storage Control Card and Cable(s) (HBA)
    AOC-S3008L-L8E1Standard LP, 8 internal ports (12Gb/s) PCIe 3.0 x8, 122HDD; HBA
    AOC-S3808L-L8IT+ 1x CBL-SAST-1275A-1001Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA
    TPM
    AOM-TPM-9670H-S-O1TPM 2.0, horizontal form factor, provisioned for server
    AOM-TPM-9671H-S-O1TPM 1.2, horizontal form factor, provisioned for server
