  2. UP 1U WIO, X12STW-TF, 815TS-R504WBP7,HF,RoHS

UP 1U WIO, X12STW-TF, 815TS-R504WBP7,HF,RoHS

SYS-510T-WTR

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10360/image_1920?unique=a1dbe1e

kr 14 245,11 14245.11 NOK kr 14 245,11

kr 14 245,11

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro SYS-510T-WTR is a powerful 1U rackmount server designed to meet the needs of modern data centers. Equipped with support for Intel® Xeon® E-2300 series processors, it offers robust performance, advanced networking, and efficient power supply options.

    Key Features

    • Single Socket H5 (LGA-1200) supports Intel® Xeon® E-2300 series, Intel® Pentium® processors
    • 4 DIMMs; Up to 128GB of DDR4 ECC UDIMM memory with speeds of up to 3200MHz
    • 1 PCIe 4.0 x16 or 2 PCIe 4.0 x8 (FHFL);1 PCIe 3.0 x4 (in x8 LP)
    • Intel® Ethernet Controller X550 2x 10GbE RJ45
    • Redundant Platinum 500W Power Supply

    Key Applications

    • Virtualization
    • Cloud Computing
    • Enterprise Server
    • Data Center Optimized

    Description

    Designed for high-performance computing, the Supermicro SYS-510T-WTR is a 1U rackmount server featuring single Socket H5 (LGA-1200) support for Intel® Xeon® E-2300 series processors and 10th Gen. Pentium® processors. It includes 4 DIMM slots for up to 128GB of DDR4 ECC UDIMM memory and multiple PCIe 4.0 slots for expansion. Advanced features such as Intel® Ethernet Controller X550 2x 10GbE RJ45, redundant Platinum 500W power supply, and extensive I/O options make it suitable for demanding applications in virtualization, cloud computing, enterprise server environments, and data centers.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-510T-WTR Standard version with PWS-504P-1R (Platinum Level)
    • SuperServer SYS-510T-WTR-EU European version with PWS-601A-1R (Titanium Level)
    Motherboard
    Installed Motherboard
    • Super X12STW-TF
    Processor
    CPU
    • Single Socket H5 (LGA-1200)
    • Intel® Xeon® E-2300 series Processors and 10th Gen. Pentium® Processors
    Core Count
    • Up to 8C/16T; Up to 16MB Cache
    Note
    • Supports up to 95W TDP CPUs (Air Cooled)
    GPU
    Max GPU Count
    • Up to 1 double-width or 1 single-width GPU
    Supported GPU
    • NVIDIA PCIe: T4, RTX A2000
    CPU-GPU Interconnect
    • PCIe 4.0 x16 CPU-to-GPU Interconnect
    System Memory
    Memory
    • Slot Count: 4 DIMM slots
    • Max Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMM
    Memory Voltage
    • 1.2V
    On-Board Devices
    SATA
    • SATA (6Gbps) ; RAID 0/1/5/10 support
    Chipset
    • Intel® C256
    Network Connectivity
    • 2 RJ45 10GbE with Intel® X550

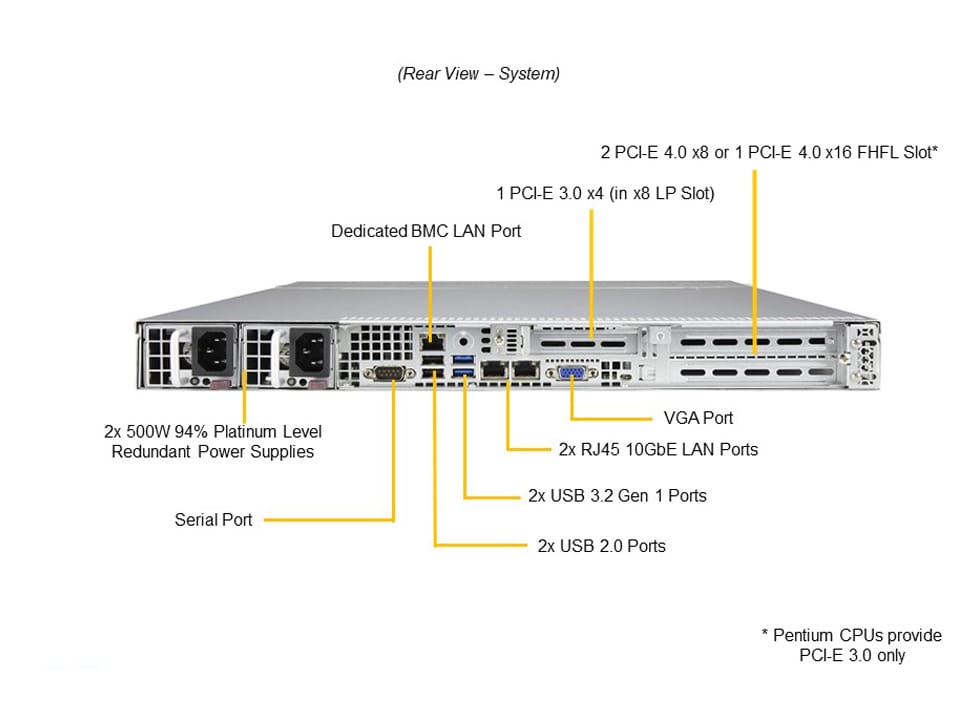

    Input / Output
    LAN
    • 2 RJ45 10 GbE LAN port(s)
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s) (IPMI shared on LAN port 1)
    USB
    • 4 USB 2.0 port(s) (header)
    • 2 USB 3.2 Gen1 Type-A port(s) (rear)
    • 2 USB 2.0 Type-A port(s) (rear)
    • 2 USB 3.2 Gen1 port(s) (Header)
    • 1 USB 3.2 Gen2 Type-A port(s) (Header)
    Video
    • 1 VGA port(s)
    Serial
    • 1 COM port(s) (Rear)
    • 1 COM port(s) (Header)
    DOM
    • 2 Super DOM (Disk on Module) port(s) with built-in power
    TPM
    • 1 TPM header
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI/APM Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    • 6 + 2 + 1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-815TS-R504WBP7
    Dimensions and Weight
    Height
    • 1.7" (43 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 25.6" (650 mm)
    Package
    • 8.5" (H) x 23.5" (W) x 33.7" (D)
    Weight
    • Gross Weight: 48 lbs (21.77 kg)
    • Net Weight: 24 lbs (10.89 kg)
    Available Color
    • Black
    Front Panel
    LED
    • Device Activity
    • LAN 1 Activity
    • LAN 2 Activity
    • Power status
    • System information
    Buttons
    • Power On/Off
    • System Reset
    • UID button
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 2 PCIe 4.0 x8 FHFL slots
    • 1 PCIe 3.0 x4 (in x8) LP slot

    Option A:
    • 1 PCIe 4.0 x16 FHFL slot
    • 1 PCIe 3.0 x4 (in x8) LP slot

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 4 bays:
    • 4 front hot-swap 3.5" SAS*/SATA drive bays

    • (*SAS support may require additional storage controller and/or cables, please see the optional parts list for details)
    M.2
    • 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110)
    Peripheral Bays
    • 2 2.5" bays
    System Cooling
    Fans
    • 4 counter-rotation PWM 40x40x56mm Fan(s)
    • 2 AOC cooling Fan(s) (optional)
    Power Supply
    2x 500W Redundant (1 + 1) Platinum Level (94%) power supplies
    Dimension (WxHxL):
    • 54.5 x 40.25 x 320 mm

    AC Input:
    • 500W: 100-240Vac / 50-60Hz

    +12V:
    • Max: 42A / Min: 0.5A (100Vac-240Vac)

    5V SB:
    • Max: 4A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Certification:
    • Platinum Level

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
    General
    Standard Parts (Parts Included)

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X12STW-TF1Super X12STW-TF Motherboard
    CSE-815TS-R504WBP711U Chassis
    Backplane
    BPN-SAS3-815TQ-N411U 4-Port Hybrid Backplane Support 4x3.5"SAS3/SATA3
    Cable
    CBL-SAST-06991MINI SAS HD-4 SATA,12G,INT,75/75/90/90CM,75CM SB,28/30AWG,Ro
    CBL-0335L1FRONT CTL CABLE 20 PIN TO 20 PIN W/TUBE,70CM,PBF
    Manual
    MNL-2422-QRG1510T-WTR Quick Reference Guide
    Riser Card
    RSC-R1UW-E8R11U RHS WIO Riser card with one PCIe x8 slot
    RSC-W-68G411U LHS WIO Riser card with one PCIe4.0X16 and onePCI-E4
    Software
    SFT-OOB-LIC1License key for enabling OOB BIOS management
    Heatsink / Retention
    SNK-P0049P11U Passive Enhanced Performance CPU Heat Sink for Intel Socket H Series Processors
    *Power Supply
    PWS-504P-1R221U Redundant 500W/600W, Platinum efficiency, AC inlet: C14,RoHS
    MCP-250-81502-0N1SC815 Redundant Power Distributor Cover
    *Power Distributor
    PDB-PT112-S24241WIO X11 Support,PDB-PT112-S2424 is based on PDB-PT112-2424
    *Fan Holder
    CSE-PT01351FAN HOLDER FOR SIX 40X56MM COUNTER ROTATING FANS
    MCP-340-00035-0B2Dummy fan 40x56mm for 40x56 counter-rotating fan (cost-effective)
    *Peripheral Drive
    CSE-PT93L-B1Black DVD dummy cover for SC813, 813M, 815, PBF-RoHS
    *Front Panel
    FPB-FP815U1815 UIO front control board (U)
    *Parts
    MCP-120-00030-0N1Blank LP L-bracket (1 raw of capsule hole)
    MCP-120-00053-0N2Blank FH L bracket w/o SCSI cutout for SC825,836,846,743
    *Drive Tray(s)
    MCP-220-00075-0B4Black gen 5.5 hot-swap 3.5" HDD tray
    *Rear Window
    MCP-240-00098-0N1WIO rear window for SC113,SC116, SC815 Redundant PWS
    *Rail Set
    MCP-290-00016-0N11U open rack bracket set for CSE-PT51L,MCP-290-00054-0N
    MCP-290-00054-0N1setRail set, quick/quick, optional for 1U 17.2
    *Air Shroud
    MCP-310-19002-0N1SC815/113/116 Intel DP X9, X8 PC air shroud, 12x13MB
    *Fan
    FAN-0156L4OR440x40x56 mm 13K-11K RPM Counter-rotating Fan,RoHS/REACH
    FAN-0086L4-40x56 4Pin PWM, Primary for SC815, Secondary for SC818, 825M

    Optional Part List

    Part Number Quantity Description
    3.5" to 2.5" Converter Tray(s)
    MCP-220-00043-0N-Hot-swap Gen-4 3.5" to 2.5" HDD tray, Black
    CacheVault
    BTR-CV3916-1U1 (For S3908)1CacheVault for Broadcom 3908 with SuperCap mounting in 1U 40x56 fan tray
    BTR-CVPM05 + MCP-240-00203-0N (For S3908)1CacheVault for Broadcom 3908 with SuperCap mounting bracket for PCIe location
    BTR-TFM8G-LSICVM02 + MCP-240-00203-0N (For S3108)1CacheVault for Broadcom 3108 with SuperCap mounting bracket for PCIe location
    BTR-CV3108-1U1 (For S3108)1CacheVault for Broadcom 3108 with SuperCap mounting in 1U 40x56 fan tray
    Cooling Fan
    FAN-0156L4140x40x56 mm, 13K RPM / 11K RPM, Counter-rotating Fan
    DVD-ROM / DVD-RW
    DVM-TEAC-DVDRW-SBT51PHILPS slim DVD-RW SATA drive
    DVM-TEAC-DVD-SBT51TEAC slim DVD-ROM SATA drive
    DVD-ROM Accessory
    MCP-220-81502-0N+ 1pc CBL-0099(max 1pc)1Slim SATA DVD mounting kit
    Front Bezel
    CSE-PTFB-813LB1Black Front Bezel
    CSE-PTFB-813-02B1Black Front Bezel w/ Round Venting Holes
    Hot-swap 2.5" kit (DVD slot)
    MCP-220-81506-0N+ 1pc CBL-0099(max 1pc)1Single 2.5" SAS3 (12Gb/s) hot swap in slim DVD form factor
    Hot-swap 2.5" kit (FDD slot)
    MCP-220-81504-0N1Single 2.5" SAS3 (12Gb/s) hot swap in slim FDD form factor
    Inlet Thermal Sensor
    MCP-280-00034-0N1Universal Thermal sensor kit with 40cm I2C cable
    Software
    SFT-DCMS-Single1DataCenter Management Package (per node license)
    Storage Control Card and Cable(s)
    AOC-S3908L-H8iR-16DD + 1x CBL-SAST-1275A-1001Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
    AOC-S3108L-H8iR-16DD1Standard LP, 8 Internal ports (12Gb/s) PCIe 3.0 x8, 16HDD; RAID 0, 1, 5, 6, 10, 50, 60
    AOC-S3008L-L8I1Standard LP, 8 internal ports (12Gb/s) PCIe 3.0 x8, 63HDD; RAID 0, 1, 10
    Storage Control Card and Cable(s) (HBA)
    AOC-S3808L-L8IT+ 1x CBL-SAST-1275A-1001Standard LP, 8 internal ports (12Gb/s) PCIe 4.0 x8, 122HDD; HBA
    AOC-S3008L-L8E1Standard LP, 8 internal ports (12Gb/s) PCIe 3.0 x8, 122HDD; HBA
    TPM
    AOM-TPM-9670V-O1TPM 2.0, vertical form factor
    AOM-TPM-9671V-O1TPM 1.2, vertical form factor
