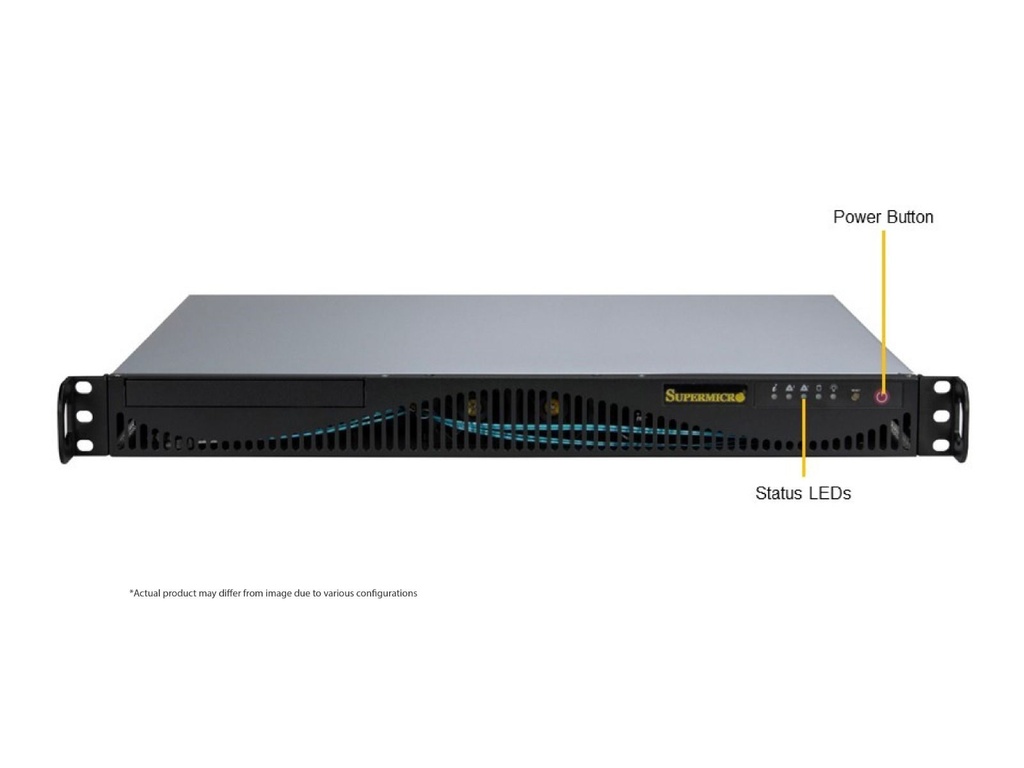

  2. UP 1U X13SCH-SYS, CSE-512F-350B1,HF,RoHS

UP 1U X13SCH-SYS, CSE-512F-350B1,HF,RoHS

SKU: SYS-511R-ML
Brand: Supermicro
Produktnotat:

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/10290/image_1920?unique=d4ec7fb

kr 9 071,24 9071.24 NOK kr 9 071,24 Ekskl. mva

kr 9 071,24 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    Introducing the Supermicro SYS-511R-ML, a compact and efficient server solution designed for entry-level applications. Equipped with the Intel Xeon E-2400 series processors, it handles demanding workloads effortlessly. Expandable storage and memory options ensure superior performance and reliability.

    Nøkkelfunksjoner

    • Single Socket V0 (LGA-1700) supports Intel®  Xeon® E-2400 series, Intel®  Pentium® processors
    • 4 DIMMs; Up to 128GB of DDR5 ECC UDIMM memory with speeds of up to 4400MHz
    • 1 PCIe 5.0 x16 (FHHL)
    • Intel® Ethernet Controller i210 2x 1GbE RJ45
    • Single Platinum 350W Power Supply

    Viktige bruksområder

    • General Purpose
    • Entry Appliance
    • Front-end, Web Hosting

    Beskrivelse

    The Supermicro SYS-511R-ML is an entry-level server designed to deliver powerful performance and exceptional reliability for your business. Powered by the Intel Xeon E-2400 processor, the system supports up to 128GB of DDR5 ECC UDIMM memory, ensuring smooth multitasking. Flexible storage options include up to 3 internal SATA drive bays and 2 M.2 PCIe 4.0 slots, providing high-speed storage solutions. Comprehensive system management tools and networking options, including 2x 1GbE LAN ports and IPMI support, ensure easy management and smooth operation.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-511R-ML
    Motherboard
    Installed Motherboard
    • Super X13SCH-SYS
    Processor
    CPU
    • Single processor(s)
    • Intel® Xeon® E-2400 series Processors and 12th Gen. Pentium® Processors
    Core Count
    • Up to 8C/16T; Up to 24MB Cache
    Note
    • Supports up to 95W TDP CPUs (Air Cooled)
    System Memory
    Memory
    • Slot Count: 4 DIMM slots/2 Channels
    • Max Memory (2DPC): Up to 128GB 4400MT/s ECC DDR5 UDIMM
    Memory Voltage
    • 1.1V
    On-Board Devices
    SATA
    • SATA (6Gbps) ; RAID 0/1/5/10 support
    Chipset
    • Intel® C266
    Network Connectivity
    • 2 RJ45 1GbE with Intel® I210
    Input / Output
    LAN
    • 2 RJ45 1 GbE LAN port(s)
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s) (IPMI shared on LAN port 1)
    USB
    • 2 USB 2.0 port(s) (header)
    • 2 USB 3.2 Gen1 Type-A port(s) (rear)
    • 2 USB 2.0 Type-A port(s) (rear)
    • 2 USB 3.2 Gen1 port(s) (Header)
    • 1 USB 3.2 Gen1 Type-A port(s) (Header)
    Video
    • 1 VGA port(s)
    Serial
    • 1 COM port(s) (Rear)
    • 1 COM port(s) (Header)
    TPM
    • 1 TPM header
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI/APM Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    • 6 + 1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • Mini-1U
    Model
    • CSE-512F-350B1
    Dimensions and Weight
    Height
    • 1.7" (43 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 14.5" (368 mm)
    Package
    • 6.3" (H) x 22" (W) x 20" (D)
    Weight
    • Gross Weight: 14 lbs (6.35 kg)
    • Net Weight: 11 lbs (4.99 kg)
    Available Color
    • Black
    Front Panel
    LED
    • Fan Fail/System Over Heat LED
    • HDD activity LED
    • Network Activity LEDs
    • Power status LED
    Buttons
    • Power On/Off button
    • System Reset button
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 1 PCIe 5.0 x16 FHHL slot

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 1 bay:
    • 1 internal fixed 3.5" SATA drive bay

    Option A: Total 2 bays:
    • 2 internal fixed 3.5" SATA* drive bays

    Option B: Total 3 bays:
    • 3 internal fixed 2.5" SATA* drive bays

    • (*SATA support may require additional storage controller and/or cables, please see the optional parts list for details)
    M.2
    • 2 M.2 PCIe 4.0 x4 NVMe slots (M-key 2280/22110)
    System Cooling
    Fans
    • 2 counter-rotation PWM 40x40x56mm Fan(s)
    Power Supply
    1x 350W Platinum Level (93%) power supply
    Dimension (WxHxL):
    • 100 x 40 x 180 mm

    AC Input:
    • 350W: 100-240Vac / 50-60Hz

    +12V:
    • Max: 29A / Min: 0.5A (100Vac-240Vac)

    5V SB:
    • Max: 3A / Min: 0A

    Output Type:
    • 24pin ATX

    Certification:
    • Platinum Level

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -30°C to 60°C (-22°F to 140°F)
    • Operating Relative Humidity: 8% to 80% (non-condensing)
    • Non-operating Relative Humidity: 8% to 90% (non-condensing)
    General
    Standard Parts (Parts Included)

    Standard Delliste

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X13SCH-SYS1Super X13SCH-SYS Motherboard
    CSE-512F-350B11Mini-1U Chassis
    Cable
    CBL-SAST-1251-1001Slimline x8 (STR) to 4x SATA,60/50/50/60CM,SB 5CM,100 OH
    CBL-0156L1ROUND 16PIN TO 16PIN FP CABLE,40CM, PB FREE
    CBL-0260L1US POWER CORD 18 AWG, PBF
    CBL-0261L140CM 7PIN SATA CABLE S-RA, PBF
    CBL-0262L14PIN TO 1xSATA(RA)+1x4PIN(RA)+1xFPD PWS EXT. CBL
    Rear Window
    MCP-240-00091-0N21U universal riser card bracket for standard chassis,HF,RoHS/REACH,PBF
    Parts
    MCP-260-00165-0N11U I/O Shield for X12STH-F with EMI Gasket
    MCP-260-00024-0N11U I/O shield for X8 server MB (3rd LAN + 4xLAN)
    MCP-260-00078-0N11U I/O shield for X10 and X9 Server MB with 5X5mm vent hole and EMI Gasket,RoHS/REACH,PBF
    MCP-290-00005-012Black chassis handle for SC512F-520
    Air Shroud
    MCP-310-51207-0B1Mylar air shroud for SC512F+X13SCH-SYS
    Manual
    MNL-2601-QRG1511R-ML Quick Reference Guide
    Riser Card
    RSC-S-6G511U LHS Standard Riser card with one PCIe 5.0 X16 slot.,H
    Software
    SFT-OOB-LIC1License key for enabling OOB BIOS management
    Heatsink / Retention
    SNK-P0086P11U Passive HS for Intel Raptor Lake (Catlow) SocketV LGA1700
    *Power Supply
    PWS-350-1H11U Single AC-DC 350W Platinum Level, multiple output power supply (180mm)
    *Fan
    FAN-0087L4240x56,4 Pin PWM Fan
    *Front Panel
    MCP-280-51201-0N1Front control board (FP512) for SC512 (surface-mounted LED)
    *Peripheral Drive
    MCP-290-00006-011Black DVD dummy cover for SC512, RoHS
    *Fan Holder
    MCP-320-00003-011Fan holder of two 40x40x56mm fans for SC512F-280

    Valgfrie Opsjoner

    Part Number Quantity Description
    Cable for internal HDD
    CBL-0211L14PIN-TO-3X SATA POWER CABLE
    DVD-ROM / DVD-RW
    DVM-TEAC-DVD-SBT51TEAC slim DVD-ROM SATA drive
    DVM-TEAC-DVDRW-SBT51PHILPS slim DVD-RW SATA drive
    DVD-ROM Accessory
    CDM-USATA-G + 1x CBL-0470L1Slim SATA DVD mounting kit
    Internal 2.5" HDD Tray
    MCP-220-00044-0N-Dual 2.5" fixed HDD bracket
    MCP-220-00051-0N-Single 2.5" fixed HDD bracket
    Rail Kit
    MCP-290-00055-0N1Quick-release rail set (25.6" ~ 33.05")
    Software
    SFT-DCMS-Single1DataCenter Management Package (per node license)
    TPM
    AOM-TPM-9670H1TPM 2.0, horizontal form factor
    AOM-TPM-9672H1TPM 2.0 with 10 pins SPI support, horizontal form factor
