X13 5U 8GPU SAPPHIRE RAPIDS GEN5 PCIE DUAL ROOT SYS

X13 5U 8GPU SAPPHIRE RAPIDS GEN5 PCIE DUAL ROOT SYS

SKU:

SYS-521GE-TNRT

Brand:

Supermicro

Produktnotat:

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 2 CPUs, 4 DIMMs, 2 GPUs, and 1 Storage device )

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

kr 107 834,87 107834.87 NOK kr 107 834,87 Ekskl. mva

kr 107 834,87 Ekskl. mva

Denne kombinasjonen eksisterer ikke.

Legg i handlekurv

Salgsbetingelser

Beskrivelsesammendrag

The Supermicro SYS-521GE-TNRT offers a robust GPU-optimized solution for data-intensive applications. Featuring dual 5th/4th Gen Intel Xeon Scalable processors, it supports up to 10 GPUs and 32 DIMM slots, ensuring exceptional performance and scalability.

Nøkkelfunksjoner

5th/4th Gen Intel® Xeon® Scalable processor support
32 DIMM slots Up to 8TB: 32x 256 GB DRAM Memory Type: 5600MTs ECC DDR5
AIOM/OCP 3.0 Support13 PCIe Gen 5.0 X16 FHFL Slots
8x HOT SWAP 2.5” SATA/SAS (AOC required)8x 2.5" Hot-swap SATA drive bays8x2.5" Hot-swap NVMe drive bays
10 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
4x 2700W (2+2) Redundant Power Supplies, Titanium Level

Viktige bruksområder

High Performance Computing
VDI
AI/Deep Learning Training
Media/Video Streaming
Cloud Gaming
Animation and Modeling
Design & Visualization
3D Rendering
Diagnostic Imaging

Beskrivelse

The Supermicro SYS-521GE-TNRT is a powerful 5U GPU super-server designed to meet the demands of high-performance computing, AI training, deep learning, and more. It supports up to ten double-width GPUs, up to 8TB DDR5 memory, and features versatile storage options including NVMe and SATA drive bays. The system boasts robust cooling solutions and redundant power supplies, ensuring operational efficiency and reliability. Ideal for scientific research, media streaming, cloud gaming, and 3D rendering, this server provides unparalleled computing capabilities.

Produktspesifikasjoner

Specification	Details
Product SKUs
SKUs	SuperServer SYS-521GE-TNRT
Motherboard
Installed Motherboard	Super X13DEG-OA
Processor
CPU	Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count	Up to 64C/128T; Up to 320MB Cache per CPU
Note	Supports up to 350W TDP CPUs (Air Cooled) Supports up to 385W TDP CPUs (Liquid Cooled)
GPU
Max GPU Count	Up to 10 double-width or 10 single-width GPUs
Supported GPU	NVIDIA PCIe: H100 NVL, H100, L40S, A100
CPU-GPU Interconnect	PCIe 5.0 x16 Switch Dual-Root
GPU-GPU Interconnect	NVIDIA® NVLink® Bridge (optional)
System Memory
Memory	Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM
Memory Voltage	1.1V
On-Board Devices
Chipset	Intel® C741
Network Connectivity	2 RJ45 10GbE with Intel® X710-AT2
Input / Output
Video	1 VGA port(s)
System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM
Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management
Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown
PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory 8+4 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
Chassis
Form Factor	5U Rackmount
Model	CSE-528GTS-R5K40P
Dimensions and Weight
Height	8.75" (222.5 mm)
Width	17.2" (437 mm)
Depth	29" (737 mm)
Package	17.32" (H) x 28.34" (W) x 42.51" (D)
Weight	Gross Weight: 100 lbs (45.3 kg) Net Weight: 65.5 lbs (29.7 kg)
Available Color	Black Front & Silver Body
Front Panel
LED	Hard drive activity LED Network activity LEDs Power status LED System Overheat & Power Fail LED
Buttons	Power On/Off button System Reset button
Expansion Slots
PCI-Express (PCIe) Configuration	Default: 13 PCIe 5.0 x16 FHFL slots
Drive Bays / Storage

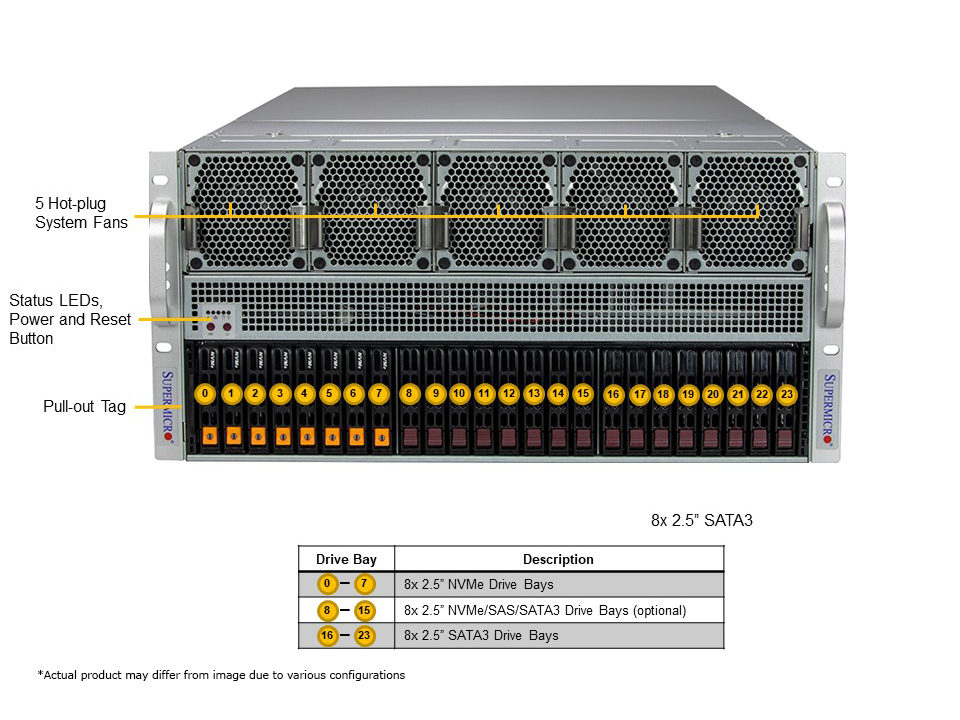

Drive Bays Configuration	Default: Total 16 bays: 8 front hot-swap 2.5" NVMe drive bays 8 front hot-swap 2.5" SATA drive bays Option A: Total 24 bays: 8 front hot-swap 2.5" NVMe drive bays 8 front hot-swap 2.5" NVMe* drive bays 8 front hot-swap 2.5" SATA drive bays (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)
M.2	2 M.2 NVMe slots (M-key)
System Cooling
Fans	10 heavy duty fans with optimal fan speed control
Air Shroud	1 Air Shroud
Liquid Cooling	Direct to Chip (D2C) Cold Plate (optional)
Power Supply
4x 2700W Redundant Titanium Level (96%) power supplies	Dimension (WxHxL): 73.5 x 40 x 203 mm AC Input: 2700W: 200-240Vac / 50-60Hz 2700W: 240-240Vdc / 50-60Hz (for CQC only) +12V: Max: 225A / Min: 0A (200Vac-240Vac) Max: 225A / Min: 0A (240Vdc-240Vdc) 12V SB: Max: 4A / Min: 0A Output Type: Backplanes (gold finger)
Operating Environment
Environmental Spec.	Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) Operating Relative Humidity: 8% to 90% (non-condensing) Non-operating Relative Humidity: 5% to 95% (non-condensing)
