  2. Micro Tower Server (X13SCL-IF, CSE-721TQ-350B2),RoHS

Micro Tower Server (X13SCL-IF, CSE-721TQ-350B2),RoHS

SKU: SYS-521R-T
Brand: Supermicro
Produktnotat:

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/10324/image_1920?unique=6e0a78f

kr 6 759,19 6759.1900000000005 NOK kr 6 759,19 Ekskl. mva

kr 6 759,19 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The Supermicro SYS-521R-T is designed for small and medium-sized businesses, providing exceptional performance and expandability. Powered by Intel® Xeon® E-2400 series processors, this compact mini-tower is ideal for entry-level micro-server setups.

    Nøkkelfunksjoner

    • PCIe 5.0 x 16 slot
    • Dual LAN ports, 1 GbE and dedicated IPMI
    • 12cm PWM quiet exhaust fan and optional 12cm front intake fan
    • 350W 80PLUS Gold Power Supply

    Viktige bruksområder

    • Entry-Level Micro-Server
    • Designed for Small and Medium-sized Businesses Applications

    Beskrivelse

    The Supermicro SYS-521R-T combines server-grade design with advanced features for SMB applications. With a single Intel® Xeon® E-2400 series processor, support for up to 64GB DDR5 memory, and remote management via IPMI, the SYS-521R-T ensures top-tier performance. The system includes dual LAN ports, a 350W 80PLUS Gold power supply, and various expansion options, making it a cost-effective solution for businesses requiring robust and reliable computing power. Supermicro systems are built and tested at the company's San Jose, California headquarters, ensuring high quality and performance.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • SuperWorkstation SYS-521R-T
    Motherboard
    Installed Motherboard
    • Super X13SCL-IF
    Processor
    CPU
    • Single processor(s)
    • Intel® Xeon® E-2400 series Processors and 12th Gen. Pentium® Processors
    Core Count
    • Up to 8C/16T
    Note
    • Supports up to 80W TDP CPUs (Air Cooled)
    System Memory
    Memory
    • Slot Count: 2 DIMM slots
    • Max Memory (1DPC): Up to 64GB 4800MT/s ECC DDR5 UDIMM
    Memory Voltage
    • 1.1V
    On-Board Devices
    SATA
    • SATA (6Gbps)
    Chipset
    • Intel® C262
    Network Connectivity
    • 1 RJ45 1GbE with Realtek RTL8211F PHY (dedicated IPMI)
    • 2 RJ45 1GbE with Intel® I210

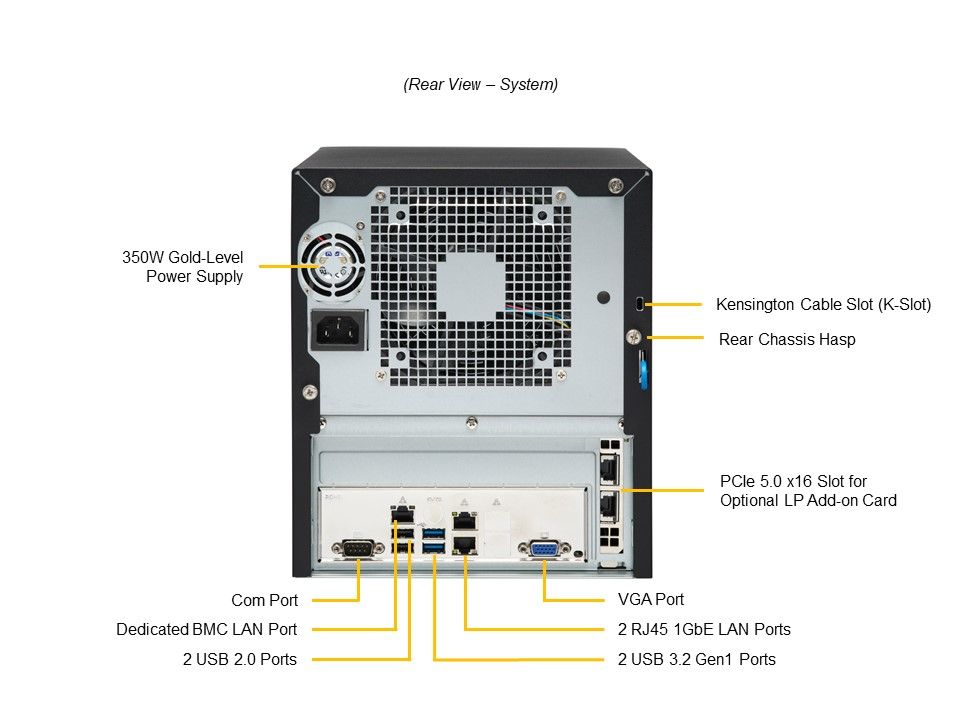

    Input / Output
    USB
    • 2 USB 3.2 Gen1 Type-A port(s) (rear)
    • 2 USB 2.0 Type-A port(s) (rear)
    • 2 USB 3.2 Gen1 Type-A port(s) (front)
    Video
    • 1 VGA port(s)
    System BIOS
    BIOS Type
    • AMI 256MB SPI Flash
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI 6.0 Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    PC Health Monitoring
    Voltage
    • +1.8V, +12V, +3.3V, +5V, +5V standby, 10 -fan status, 3.3V standby, HT, Memory, VBAT
    Chassis
    Form Factor
    • Compact Mini-Tower
    Model
    • CSE-721TQ-350B2
    Dimensions and Weight
    Height
    • 9.45" (240.03 mm)
    Width
    • 8.27" (210.06 mm)
    Depth
    • 11" (279.4 mm)
    Package
    • 13.78" (H) x 12.4" (W) x 16.14" (D)
    Weight
    • Gross Weight: 15 lbs (6.8 kg)
    • Net Weight: 13.5 lbs (6.12 kg)
    Available Color
    • Black
    Front Panel
    LED
    • Fan Fail/System Over Heat LED
    • HDD activity LED
    • Network activity LEDs
    • Power status LED
    Buttons
    • Power On/Off button
    • System Reset button
    Port
    • USB 3.0 Port(s)
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 1 PCIe 5.0 x16 HHHL slot

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 4 bays:
    • 4 front hot-swap 3.5" SATA drive bays

    M.2
    • 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280)
    Peripheral Bays
    • 1 bay
    System Cooling
    Fans
    • 1x 120mm Fan(s)
    Power Supply
    1x 350W Gold Level (92%) power supply
    Dimension (WxHxL):
    • 81.5 x 40.5 x 150 mm

    AC Input:
    • 350W: 100-240Vac / 50-60Hz

    +12V:
    • Max: 28A / Min: 0.1A (100Vac-240Vac)

    5V SB:
    • Max: 2A / Min: 0.05A

    Output Type:
    • 24pin ATX

    Certification:
    • Gold Level

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
    General
    Standard Parts (Parts Included)

    Standard Delliste

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X13SCL-IF1Super X13SCL-IF Motherboard
    CSE-721TQ-350B21Compact Mini-Tower Chassis
    Backplane
    BPN-NVME5-733N-S414-port backplane support up to 4x3.5" SATA3/SAS4/NVME5 S
    Cable
    CBL-SAST-1269F-1001Slimline x4 (RA) to Slimline x4 (STR),70CM,100 OHM,RoHS
    Parts
    MCP-260-00042-0N1STD I/O shield for X9 socket R server MB with Gasket.
    Software
    SFT-OOB-LIC1License key for enabling OOB BIOS management
    *Power Supply
    PWS-353-1H11U Flex ATX 350W Multi-output Gold power supply
    *Fan
    FAN-0124L4112 CM x12 CM fan
    *Drive Tray(s)
    MCP-220-00075-0B4Black gen 5.5 hot-swap 3.5" HDD tray

    Valgfrie Opsjoner

    Part Number Quantity Description
    Heatsink
    SNK-P0092AP412U Active High-Performance CPU Heat Sink
    Tray
    MCP-220-00118-0B1Black gen-5.5 tool-less 3.5-to-2.5 converter drive tray
