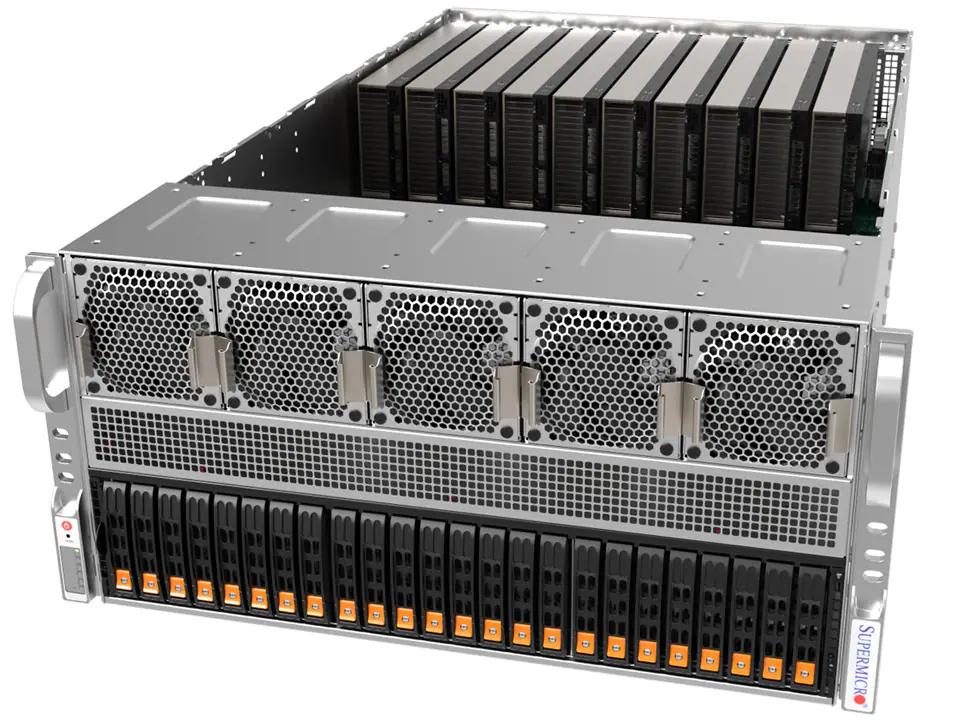

X14 AP 5U 8GPU GRANITE RAPIDS GEN5 PCIE DUAL ROOT SYSTEM

SKU: SYS-522GA-NRT
Brand: Supermicro
Produktnotat:

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/15848/image_1920?unique=888cb2f

kr 134 132,54 134132.54 NOK kr 134 132,54 Ekskl. mva

kr 134 132,54 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The 5U system supports dual Intel Xeon processors with P-cores, accommodating up to 10 GPUs, and 24 DIMM slots for high-speed memory. Ideal for AI and high-performance computing tasks with flexible networking options.

    Nøkkelfunksjoner

    • Dual Intel® Xeon® 6900 series processors with P-cores, up to 500W TDP
    • Support for up to 10 double-width PCIe GPU accelerator cards
    • 24 DIMM slots, ECC RDIMM / MRDIMM DDR5
    • Up to 13 PCIe 5.0 x16 FHFL slots
    • 24x U.2/U.3 NVMe and 2x M.2 NVMe
    • Flexible networking with AIOM slots

    Viktige bruksområder

    • High Performance Computing
    • VDI
    • AI/Deep Learning Training
    • Media/Video Streaming
    • Cloud Gaming
    • Animation and Modeling
    • Design & Visualization
    • 3D Rendering
    • Diagnostic Imaging

    Beskrivelse

    The X14 AP 5U 8GPU Granite Rapids Gen5 PCIe Dual Root System is designed for high-performance computing and AI workloads with support for dual Intel Xeon 6900 series processors. Featuring up to 10 double-width PCIe GPU accelerator cards and 24 DIMM slots for ECC RDIMM / MRDIMM DDR5, it provides exceptional computing power. The system also includes flexible networking options with AIOM slots and supports 24 NVMe and 2 M.2 storage solutions.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-522GA-NRT
    Motherboard
    Installed Motherboard
    • Super X14DBG-AP-P
    Processor
    CPU
    • Dual Socket BR (LGA-7529)
    • Intel® Xeon® 6900 series processors with P-cores
    Core Count
    • Up to 128C/256T; Up to 504MB Cache per CPU
    Note
    • Supports up to 500W TDP CPUs (Air Cooled)
    GPU
    Max GPU Count
    • Up to 10 double-width or 10 single-width GPUs
    Supported GPU
    • NVIDIA PCIe: H100 NVL, H200 NVL (141GB), L40S, L4
    CPU-GPU Interconnect
    • PCIe 5.0 x16 Switch Dual-Root
    GPU-GPU Interconnect
    • NVIDIA® NVLink® Bridge (optional)
    System Memory
    Memory
    • Slot Count: 24 DIMM slots
    • Max Memory (1DPC): Up to 6TB 6400MT/s ECC DDR5 RDIMM
    • Max Memory (1DPC): Up to 6TB 8800MT/s ECC DDR5 MRDIMM
    Memory Voltage
    • 1.1V
    On-Board Devices
    Chipset
    • System on Chip
    Network Connectivity
    • 2 RJ45 10GbE with Intel® X710-AT2
    Input / Output
    LAN
    • 2 RJ45 10 GbE LAN ports (Intel® I350)
    USB
    • 2 USB 3.0 Type-A ports(Rear)
    Video
    • 1 VGA port
    System BIOS
    BIOS Type
    • AMI 32MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer®
    • Supermicro Server Manager (SSM)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • Supply Chain Security: Remote Attestation
    • Runtime BMC Protections
    • System Lockdown
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory
    • 8+4 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 5U Rackmount
    Model
    • CSE-528G2TS-R5K40P
    Dimensions and Weight
    Height
    • 8.75" (222.5 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 29" (737 mm)
    Package
    • 17.32" (H) x 28.34" (W) x 42.51" (D)
    Weight
    • Gross Weight: 100 lbs (45.3 kg)
    • Net Weight: 65.5 lbs (29.7 kg)
    Available Color
    • Black Front & Silver Body
    Front Panel
    LED
    • Hard drive activity LED
    • Network activity LEDs
    • Power status LED
    • System Overheat & Power Fail LED
    Buttons
    • Power On/Off button
    • System Reset button
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 13 PCIe 5.0 x16 FHFL slots

    M.2
    • 2 M.2 PCIe 5.0 x4 NVMe slots (B+M-key)
    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 24 bays:
    • 24 front hot-swap 2.5" PCIe 5.0 NVMe drive bays

    M.2
    • 2 M.2 NVMe slots (M-key)
    System Cooling
    Fans
    • 10 heavy duty fans with optimal fan speed control
    Air Shroud
    • 1 Air Shroud
    Power Supply
    6x 2700W Redundant Titanium Level (96%) power supplies
    Dimension (WxHxL):
    • 73.5 x 40 x 203 mm

    Input:
    • 2700W: 200-240Vac
    • 2700W: 200-240Vac / 50-60Hz
    • 2700W: 240-240Vdc / 50-60Hz (for CQC only)

    +12V:
    • Max: 225A / Min: 0A (200Vac-240Vac)
    • Max: 225A / Min: 0A (240Vdc-240Vdc)

    12V SB:
    • Max: 3.5A / Min: 0A
    • Max: 4A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 10°C to 35°C (50°F to 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
