SuperWorkstation (X12SAE-5, CSE-735D4-668B), RoHS

SKU: SYS-530A-IL
Brand: Supermicro
Produktnotat:

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

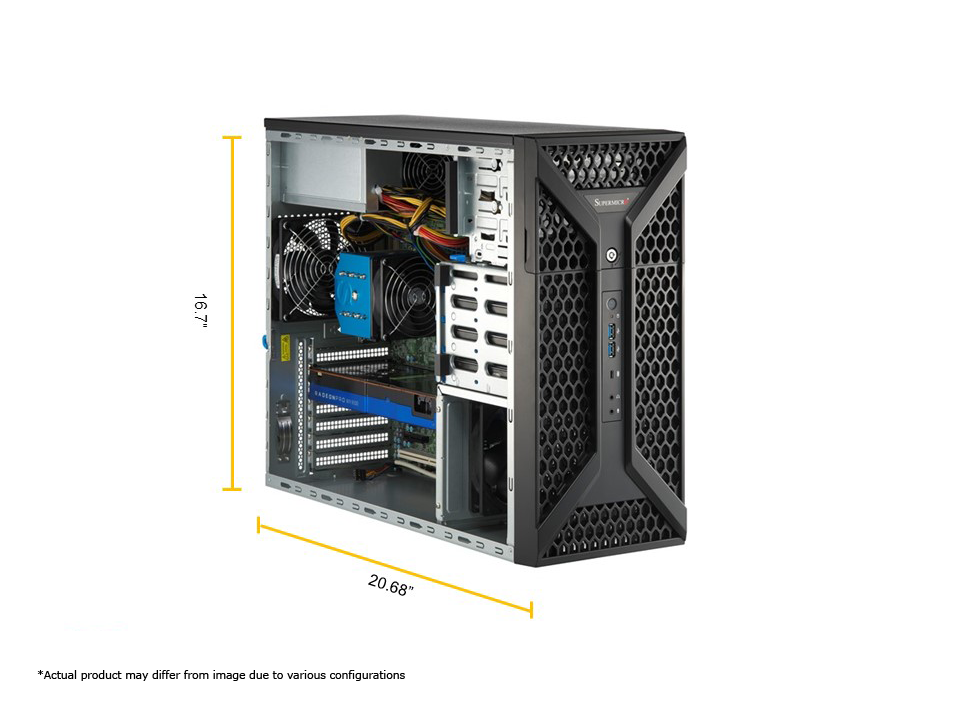

https://safeconsulting.no/web/image/product.template/10528/image_1920?unique=769e75b

kr 8 377,12 8377.12 NOK kr 8 377,12 Ekskl. mva

kr 8 377,12 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The Supermicro SYS-530A-IL is a high-performance workstation built for demanding workloads such as CAD and 3D modeling. Powered by Intel® Xeon® W-1200/1300 processors and featuring ultra-fast NVMe storage, this customizable workstation is ideal for professional content creators, engineers, and designers.

    Nøkkelfunksjoner

    • 2022 Version: Supports both Intel® Xeon® W-1200/W-1300 Series and 10th/11th Generation Intel® Core™ Processors
    • Dual LAN ports, 1 GbE and 2.5 GbE
    • 12cm PWM quiet exhaust fan and optional 12cm front intake fan
    • 668W 80PLUS Platinum Power Supply

    Viktige bruksområder

    • Entry-Level Workstation
    • Designed for CAD and 3D Modeling Applications
    • 2D/3D Content Creation

    Beskrivelse

    The Supermicro SYS-530A-IL workstation accelerates workflow and increases productivity. It is powered by Intel® Xeon® W-1200/1300 processors with NVMe storage and supports up to 128GB 3200MT/s ECC DDR4 UDIMM. This workstation is perfect for teams using leading design software and is ideal for content creators, engineers, and designers in industries like AEC and product manufacturing. An optional NVIDIA® RTX graphics card can boost performance even further. All units sold in North America are built and tested at Supermicro headquarters in San Jose, California.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • SuperWorkstation SYS-530A-IL
    Motherboard
    Installed Motherboard
    • Super X12SAE-5
    Processor
    CPU
    • Single Socket H5 (LGA-1200)
    • 11th Gen Intel® Core™ Processors
    Core Count
    • Up to 10C/20T; Up to 20MB Cache
    Note
    • Supports up to 125W TDP CPUs (Air Cooled)
    GPU
    Max GPU Count
    • Up to 1 double-width GPU
    System Memory
    Memory
    • Slot Count: 4 DIMM slots
    • Max Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMM
    Memory Voltage
    • 1.2V
    On-Board Devices
    SATA
    • SATA (6Gbps)
    Chipset
    • Intel® W580
    Network Connectivity
    • 1 RJ45 1GbE with Intel® I219-LM
    • 1 RJ45 2.5GbE with Intel® I225-V
    Input / Output
    Video
    • 1 HDMI 2.0b port(s)
    • 1 DVI-D port(s)
    • 1 DisplayPort 1.4a port(s)
    TPM
    • 1 TPM header
    System BIOS
    BIOS Type
    • AMI 256MB SPI Flash
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI 6.0 Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    PC Health Monitoring
    Voltage
    • +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
    Other Features
    • 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, Voltage and Frequency Overclocking, WOL
    Chassis
    Form Factor
    • Mid-Tower
    Model
    • CSE-735D4-668B
    Dimensions and Weight
    Height
    • 16.7" (424 mm)
    Width
    • 7.6" (193 mm)
    Depth
    • 21.1" (536 mm)
    Package
    • 11.97" (H) x 21.38" (W) x 25.28" (D)
    Weight
    • Gross Weight: 30 lbs (13.61 kg)
    • Net Weight: 28 lbs (12.7 kg)
    Available Color
    • Black
    Front Panel
    Port
    • Audio Jack(s)
    • USB 3.0 Port(s)
    • USB 3.2 Gen 2 Type C
    LED
    • HDD activity LED
    • Power LED
    Buttons
    • Power On/Off button
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 2 PCIe 4.0 x8 (in x16) FHFL slots
    • 2 PCIe 3.0 x1 FHFL slots

    Option A:
    • 1 PCIe 4.0 x16 FHFL slot
    • 2 PCIe 3.0 x1 FHFL slots

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 4 bays:
    • 4 internal fixed 3.5" SATA drive bays

    M.2
    • 2 M.2 NVMe slots (M-key 2280/22110)
    • 1 M.2 NVMe slot (M-key 2280/22110)
    Peripheral Bays
    • 2 5.25" bays
    System Cooling
    Fans
    • 1x 120mm Fan(s)
    • 1x 120mm Fan(s) (optional)
    Power Supply
    1x 668W Platinum Level (92%) power supply
    Dimension (WxHxL):
    • 150 x 86 x 185 mm

    AC Input:
    • 668W: 100-240Vac / 50-60Hz

    +12V:
    • Max: 54A / Min: 0.2A (100Vac-240Vac)

    5V SB:
    • Max: 2A / Min: 0A

    Output Type:
    • 24pin ATX

    Certification:
    • Platinum Level

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
    General
    Standard Parts (Parts Included)

    Standard Delliste

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X12SAE-51Super X12SAE-5 Motherboard
    CSE-735D4-668B1Mid-Tower Chassis
    Cable
    CBL-0044L47pin SATA (STR to STR), 57.5cm, Flat, PBF
    CBL-PWCD-0160-IS1PWCD,US,NEMA5-15P TO IEC60320 C13,6FT,16AWG,RoHS/REACH
    CBL-0453L1USB3.0 Internal Cable-60cm(19pin Female to 19pin Female)
    CBL-CDAT-05601Audio Cable HD / AC97 -80cm, 28AWG,HF,RoHS/REACH,PBF
    CBL-CDAT-0680-551NCSI,2x10F to 2x10F,IDC,PH2.54,55cm,shield,28AWG,RoHS
    CBL-CUSB-0999-45OR1[NR] USB3.2 Gen2X2 TypeC INT 20M to TypeC 24F,45CM,30u",RoHS
    CBL-CUSB-0999-45M-USB3.2 Gen2X2 TypeC INT 20M to TypeC 24F,45CM,30AWG,RoHS
    Parts
    MCP-260-00151-0N1STD I/O Shield for X12SAE with EMI Gasket
    *Power Supply
    PWS-668-PQ1PS2 668W Multi-Output 80Plus Platinum Power Supply with 24pi
    *Fan
    FAN-0221L41120x120x25 mm, 2.2K RPM, Cooling Fan for GS7 Project,RoHS
    *Front Panel
    FPB-FP7351Front control board for CSE735,RoHS
    *Front Bezel
    MCP-210-73503-0B1CSE-735D4 front brezel assembly - Black
    MCP-210-73504-0B1735 front control I/O bezel

    Valgfrie Opsjoner

    Part Number Quantity Description
    DVD Kit
    CBL-SAST-0624170cm SATA Cable S-S 30AWG
    CBL-0082L1Y SPLIT SATA POWER ADAPTER
    DVM-TEAC-DVDRW24-HBT1BLACK LITE-ON 5.25" HH 24X DVD-RW SATA DRIVE (Please also add CBL-SAST-0624 and CBL-0082L)
    Fan
    FAN-0077L4-11120x120x38 mm, High Performance, 4K RPM, Optional Rear or Front Fan
    FAN-0124L41120x120x25 mm, Quiet, 1850RPM, Optional Front Intake Fan
    HDD Converter
    MCP-220-73102-0N12.5" to 3.5" SSD/HDD Adapter Tray for 731, 732, DS3, 842
    Heatsink
    SNK-P0051AP41High Performance CPU Heatsink
    Mobile Rack
    CSE-M14TQC1SAS3/SATA mobile rack for 4x 2.5" drives
