  2. [DESKTOP ONLY] SuperWorkstation(C9Z590-CG,CSE-GS5A-754K)

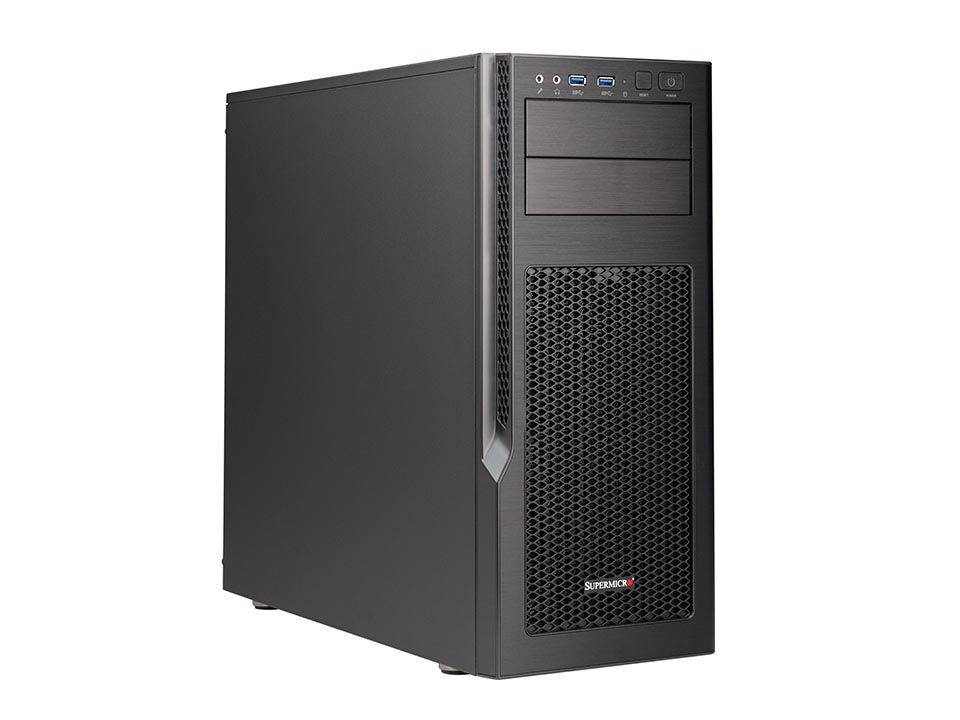

[DESKTOP ONLY] SuperWorkstation(C9Z590-CG,CSE-GS5A-754K)

SKU: SYS-530AD-I
Brand: Supermicro
Produktnotat:

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/10624/image_1920?unique=04e8906

kr 9 781,85 9781.85 NOK kr 9 781,85 Ekskl. mva

kr 9 781,85 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The Supermicro SYS-530AD-I workstation delivers advanced performance, server-grade reliability, and high customizability. Ideal for both gaming and business, it features an 11th Gen Intel® Core™ i9 processor, NVIDIA RTX 3070 GPU, and high-speed I/Os.

    Nøkkelfunksjoner

    • Supports 11th Gen Intel® Core™ Processors (i3/i5/i7/i9), Pentium® and Celeron® Processors
    • 2 PCIe 4.0 x16 slots (16/NA or 8/8) and 2 PCIe 3.0 x1
    • 3x 12cm PWM Fans
    • 750W 80PLUS Gold Power Supply

    Viktige bruksområder

    • High-performance Gaming
    • Content Creation

    Beskrivelse

    The Supermicro SYS-530AD-I is a high-performance workstation designed for gaming and content creation. Equipped with 11th Gen Intel® Core™ i9-11900K CPU, NVIDIA RTX 3070, and ultra-fast 980GB NVMe M.2 SSD, it provides superior speed and reliability. It supports up to 4TB of DDR4 memory and offers a wide array of high-speed I/Os. The system's cooling is enhanced with a closed-loop liquid cooling module and 3x 12cm PWM fans. Assembled and tested in San Jose, CA, this workstation ensures quality and performance for all your computing needs.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • SuperWorkstation SYS-530AD-I
    Motherboard
    Installed Motherboard
    • Super C9Z590-CG
    Processor
    CPU
    • Single Socket H5 (LGA-1200)
    • 11th Gen Intel® Core™ Processors
    Core Count
    • Up to 8C/16T; Up to 16MB Cache
    Note
    • Supports up to 125W TDP CPUs (Air Cooled)
    GPU
    Max GPU Count
    • Up to 1 double-width GPU
    System Memory
    Memory
    • Slot Count: 4 DIMM slots
    • Max Memory (2DPC): Up to 4TB 3200MT/s non-ECC DDR4 UDIMM
    On-Board Devices
    SATA
    • SATA (6Gbps)
    Chipset
    • Intel® Z590
    Network Connectivity
    • 1 RJ45 1GbE with Intel® PHY I219-V
    • 1 RJ45 10GbE with Marvell® AQC113C
    Input / Output
    USB
    • 4 USB 2.0 port(s) (rear)
    • 2 USB 2.0 port(s) (header)
    • 2 port(s) (front)
    • 2 port(s) (rear)
    Video
    • 1 HDMI 2.0b port(s)
    • 1 DisplayPort 1.4 port(s)
    Audio
    • 7.1 HD Audio
    TPM
    • 1 TPM header
    System BIOS
    BIOS Type
    • AMI 256MB SPI Flash
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI 6.0 Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    PC Health Monitoring
    Voltage
    • +1.0V PCH, +1.8V PCH, +12V, +3.3V, +5V, +5V standby, 1.05 (PCH), 3.3V standby, 5 (4-pin), CPU, CPU temperature, CPU thermal trip support, PCH temperature, System temperature, VBAT, VRM temperature
    Other Features
    • 8-pin 12v DC power connector, ACPI power management, ATX Power connector, Chassis intrusion header, Control of power-on for recovery from AC power loss, CPU thermal trip support for processor protection, RoHS, Voltage and Frequency Overclocking, WOL
    Chassis
    Form Factor
    • Mid-Tower
    Model
    • CSE-GS5A-754K
    Dimensions and Weight
    Height
    • 18.1" (460 mm)
    Width
    • 7.9" (200 mm)
    Depth
    • 19.4" (493 mm)
    Package
    • 24.9" (H) x 14.2" (W) x 24" (D)
    Weight
    • Gross Weight: 26 lbs (11.8 kg)
    • Net Weight: 20 lbs (9 kg)
    Available Color
    • Black / Gray
    Front Panel
    LED
    • HDD activity LED
    • Power status LED
    Buttons
    • Power On/Off button
    • System Reset button
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 2 PCIe 4.0 x8 FHFL slots
    • 2 PCIe 3.0 x1 FHFL slots

    Option A:
    • 1 PCIe 4.0 x16 FHFL slot
    • 2 PCIe 3.0 x1 FHFL slots

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 6 bays:
    • 6 internal fixed 3.5" SATA drive bays

    M.2
    • 2 M.2 PCIe 3.0 x4 NVMe slots (M-key 2280/22110)
    • 1 M.2 PCIe 4.0 x4 NVMe slot (M-key 2280/22110)
    Peripheral Bays
    • 2 5.25" bays
    System Cooling
    Fans
    • 3x 12cm heavy duty fans with optimal fan speed control
    Power Supply
    1x 750W Gold Level power supply
    Dimension (WxHxL):
    • 150 x 86 x 140 mm

    AC Input:
    • 750W: 100-240Vac / 50-60Hz

    +12V:
    • Max: 62A (100Vac-240Vac)

    5V SB:
    • Max: 3A

    Output Type:
    • 24pin ATX

    Certification:
    • Gold Level

    Operating Environment
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
    General
    Standard Parts (Parts Included)

    Standard Delliste

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-C9Z590-CG1Super C9Z590-CG Motherboard
    CSE-GS5A-754K1Mid-Tower Chassis
    *Power Supply
    PWS-754-PQ1SSR-750FX 750W Muli-output-output PS with modular cable

    Valgfrie Opsjoner

    Part Number Quantity Description
    DVD Kit
    CBL-SAST-0624170cm SATA Cable S-S 30AWG
    CBL-0082L1Y SPLIT SATA POWER ADAPTER
    DVM-TEAC-DVDRW-SBT515.25" HH 24X DVD-RW SATA DRIVE
    Liquid Cooling
    SNK-P3017A1Closed-loop Liquid Cooling kit (280mm)
    Mobile Rack
    CSE-M14TQC1SAS3/SATA mobile rack for 4x 2.5" drives
