  2. 3U MicroCloud System, X12STE-F, CSE-939HN-R2K20BP

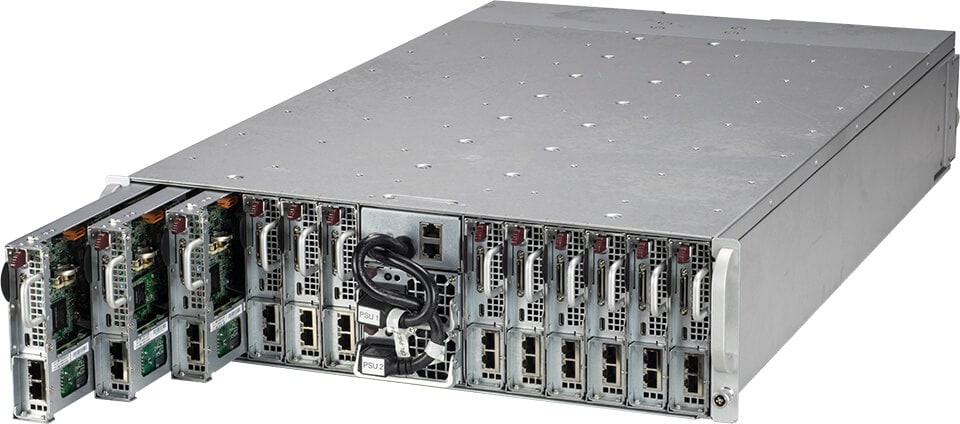

3U MicroCloud System, X12STE-F, CSE-939HN-R2K20BP

SKU: SYS-530MT-H12TRF
Brand: Supermicro
Produktnotat:

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/10520/image_1920?unique=80bb10d

kr 101 332,74 101332.74 NOK kr 101 332,74 Ekskl. mva

kr 101 332,74 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The SYS-530MT-H12TRF by Supermicro is a versatile 3U rackmount server designed for cloud computing, web hosting, online game server hosting, IT infrastructure, web cache, and social networking applications. Equipped with a robust set of features and specifications, it offers high performance and reliability.

    Nøkkelfunksjoner

    • 12 set of Intel® Xeon® E-2300 series and Pentium processor
    • Intel® C256
    • 12 set of Up to 128GB ECC/non ECC Very Low Profile UDIMM; DDR4 3200MHz, in 4 DIMM sockets
    • 12 set of PCIe 4.0 x8 Micro-LP slots (MicroLP upgradable)
    • 12 set of Dual 1GbE LAN Ports
    • 12 set of 2x internal 3.5" SATA3 (6Gbps) (or) 4x 2.5" SATA3 drives with 2x Hybrid NVMe U.2; Intel® RSTe RAID
    • 4x 8cm Heavy duty fans with optimal cooling zone
    • 2200W Redundant Titanium Level high-efficiency power supplies with PMBus

    Viktige bruksområder

    • Cloud Computing
    • Web Hosting, VM
    • Online Game Server Hosting
    • IT Infrastructure
    • Web Cache
    • Social Networking

    Beskrivelse

    Supermicro's SYS-530MT-H12TRF 3U rackmount server is engineered to meet the demanding needs of modern IT environments. It supports up to 12 sets of Intel® Xeon® E-2300 series and Pentium processors, offers up to 128GB ECC/non ECC memory, and includes advanced networking and storage options. The system is also designed for optimal cooling and power efficiency, making it ideal for cloud computing, web hosting, online game server hosting, IT infrastructure, web cache, and social networking applications.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-530MT-H12TRF
    Motherboard
    Installed Motherboard
    • Super X12STE-F
    Processor (per Node)
    CPU
    • Single Socket H5 (LGA-1200)
    • Intel® Xeon® processor E-2300 series and 10th Gen. Pentium® Processors
    Core Count
    • Up to 8C/16T; Up to 16MB Cache
    Note
    • Supports 80W - 95W TDP CPUs (Air Cooled)
    System Memory (per Node)
    Memory
    • Slot Count: 4 DIMM slots
    • Max Memory (2DPC): Up to 128GB 3200MT/s ECC DDR4 UDIMM
    On-Board Devices (per Node)
    SATA
    • SATA (6Gbps) via Intel® C256; RAID 0/1/5/10 support
    Chipset
    • Intel® C256
    Network Connectivity
    • No NIC option supported
    Input / Output (per Node)
    LAN
    • 2 RJ45 1 GbE LAN port(s) (Intel® I350)
    USB
    • 2 USB 2.0 port(s)
    • 1 Type-C port(s) (front)
    Video
    • 1 port(s)
    DOM
    • 1 SATA DOM (Disk on Module) port(s)
    System BIOS
    BIOS Type
    • AMI 128MB SPI Flash EEPROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • Power-on mode for AC power recovery
    • ACPI 6.0 Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    Temperature
    • Monitoring for CPU and chassis environment
    CPU
    • Monitors for CPU Cores, +3.3V, +5V, +12V, +3.3V Standby, +5V Standby, VBAT, Memory, Chipset Voltages.
    • 3-Phase-switching voltage regulator with auto-sense from 0.5V-2.3V
    FAN
    • Fan speed control, Dual Cooling Zone
    Chassis
    Form Factor
    • 3U Rackmount
    Model
    • CSE-939HN-R2K20BP
    Dimensions and Weight
    Height
    • 5.21" (132.5 mm)
    Width
    • 17.5" (444.5 mm)
    Depth
    • 29.5" (749.3 mm)
    Package
    • 16.1" (H) x 28.35" (W) x 42.36" (D)
    Weight
    • Gross Weight: 125 lbs (56.7 kg)
    • Net Weight: 95 lbs (43.09 kg)
    Available Color
    • Black
    Front Panel
    Buttons
    • Power On/Off
    LED
    • UID LED
    Expansion Slots (per Node)
    PCI-Express (PCIe) Configuration
    Default:
    • 1 PCIe 4.0 x8 MicroLP slot

    Drive Bays / Storage (per Node)
    Drive Bays Configuration
    Default: Total 2 bays:
    • 2 internal fixed 3.5" NVMe/SAS drive bays

    Option A: Total 4 bays:
    • 4 internal fixed 2.5" NVMe/SATA drive bays

    M.2
    • 1 M.2 SATA slot (M-key 2280/22110)
    System Cooling
    Fans
    • 4 Heavy Duty 9cm Fan(s)
    Power Supply
    2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL):
    • 76 x 40 x 336 mm

    AC Input:
    • 1200W: 100-127Vac / 50-60Hz
    • 1800W: 200-220Vac / 50-60Hz
    • 2090W: 200-220Vac / 50-60Hz (for UL/cUL use only)
    • 1980W: 220-230Vac / 50-60Hz
    • 2200W: 220-240Vac / 50-60Hz (for UL/cUL use only)
    • 2090W: 230-240Vac / 50-60Hz
    • 2090W: 230-240Vdc / 50-60Hz (for CCC only)

    +12V:
    • Max: 100A / Min: 0A (100Vac-127Vac)
    • Max: 150A / Min: 0A (200Vac-220Vac)
    • Max: 165A / Min: 0A (220Vac-230Vac)
    • Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL only)
    • Max: 174.17A / Min: 0A (230Vac-240Vac)
    • Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CCC only)
    • Max: 174.17A / Min: 0A (230Vac-240Vac) (for UL/cUL only)

    5V SB:
    • Max: 1A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity: 8% to 90% (non-condensing)
    • Non-operating Relative Humidity: 5% to 95% (non-condensing)
    General
    Standard Parts (Parts Included)

    Standard Delliste

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X12STE-F12Super X12STE-F Motherboard
    CSE-939HN-R2K20BP13U Chassis
    Add-on Card / Module
    AOM-BPN-MC12SN-P122x NVMe U.2 + 2 NVMe SATA connectors BPNforMicroCloud12n
    AOM-CGP-I2M-P12MicroLP 2-port GbE RJ45, Intel i350 for 12 node MicroCloud
    AOM-LAN-MC12S-P1AOM-LAN-MC12S-P
    AOM-PDB-MC12S-P12AOM-PDB-MC12S-O-P
    AOM-GEM-001-P1AOM-GEM-001-O-P
    Backplane
    BPN-SAS-939HS1(EOL)CSE939HS MicroCloud (12 nodes) Hot-Swap Backplane
    Cable
    CBL-0218L111.5CM KVM/SUVI 36PIN TO 9PIN/15PIN/2USB
    CBL-PWCD-0578-1OR2PWCD,US,IEC60320 C14 TO C13,3FT,14AWG,RoHS
    CBL-PWCD-0578-IS-PWCD,US,IEC60320 C14 TO C13,910mm,14AWG,15A,250V,Black, RoHS
    CBL-0355L2RJ45 C5E 2ft Green With Cover
    CBL-CDAT-066218 Pin to 8 Pin Round SGPIO Cable, 61.5cm, 28AWG, Pinout 1-1
    CBL-PWCD-08591PWCD,US,IEC60320 C14 TO RA C13 w/SR for 939HS PSU1,3FT,14AWG
    CBL-PWCD-08601PWCD,US,IEC60320 C14 TO RA C13 w/SR for 939HS PSU2,3FT,14AWG
    Air Shroud
    MCP-310-93904-0N12Mylar air shroud for VLP 4 DIMM (short gap, quick install)
    Software
    SFT-OOB-LIC12License key for enabling OOB BIOS management
    Heatsink / Retention
    SNK-P0047PSROR12LP CPU Heat Sink for 12-node Micro Cloud Series Servers
    SNK-P0047PSRK-Low Profile CPU Heat Sink for MBI-6119G-C2 Micro Blade Server
    *Power Supply
    PWS-2K20F-1R21U 2200W Redundant, Titanium,76(W) X 40(H) X 360(L) mm, flow in air
    *Power Distributor
    PDB-PT939-DSG2Adapter Board for SC939 special gold finger directly plug to BP.
    *Fan
    FAN-0195L4492x92x76 mm Counter-rotating Cooling Fan for 3U12N Microclou
    *Rail Set
    MCP-290-41803-0N1Fat twin F418 / F424 Static Rail set support 28.5-33.7 inch depth rail,RoHS/REACH,PBF

    Valgfrie Opsjoner

    Part Number Quantity Description
    Add-on Card / Module
    AOM-BPN-MC12S4-P124x NVMe U.2 connectors BPN for MicroCloud 12 node system,HF,RoHS
    Bracket
    MCP-290-93903-0N-PACK1SC939HN bracket with FAN
    MCP-240-93912-0N12Bracket for 4NVMe MB tray with NVMe standoff
    Global Services & Support
    OS4HR3/2/1-3/2/1-year onsite 24x7x4 service
    OSNBD3/2/1-3/2/1-year onsite NBD service
    Network Card(s)
    AOM-C25G-m1SM-MicroLP, 1x 25GbE SFP28, PCIe 3.0 x8, Mellanox®
    AOM-CTGS-i2TM-MicroLP, 2x 10GbE Base-T, PCIe 3.0 x4, Intel® X550
    AOM-CTG-i1SM-MicroLP, 1 x 10GbE SFP+, PCIe 2.0 x8, Intel® 82599EN, ver 1.21 only
    AOM-CIBF-m1M-MicroLP, 1 x 40GbE QSFP, PCIe 3.0 x8, Mellanox® ConnectX-3 FDR controller
    AOM-CTG-i2SM-12-MicroLP 2x 10GbE SFP+, PCIe 3.0 x8, Intel 82599ES
    AOM-C25G-i2SM-12-MicroLP module 2-Port 25G SFP28, Intel E810-XXVAM2, for MicroCloud 12node
    AOM-CTG-B2TM-MicroLP 2-port 10G RJ45, Broadcom BCM57416. RoHS
    SATA DOM
    MEM-IDSAHM3A-016G-SATA3 DOM SH 3ME 16GB MLC 1ch Horizontal
    MEM-IDSAHM3A-032G-SATA3 ServerDOM MH 3ME 32GB MLC w/ Pin8 VCC Horizontal
    MEM-IDSAHM3A-064G-SATA3 ServerDOM MH 3ME 64GB MLC w/ Pin8 VCC Horizontal
    MEM-IDSAHM3A-128G-SATA3 DOM SH 3ME3 V2 128GB MLC w/ Pin8 VCC Horizontal
    Software
    SFT-DCMS-Single1DataCenter Management Package (per node license)
