(EOL)X10DRT-P, CSE-827HQ+-R2K02BP, BPN-ADP-S3108L-H6iRP

SYS-6028TP-HC1R

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10610/image_1920?unique=f7d9088

kr 58 530,75 58530.75 NOK kr 58 530,75

kr 58 530,75

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro SYS-6028TP-HC1R is a 2U rackmount server designed to deliver exceptional performance and reliability. It features four hot-pluggable nodes, dual Intel Xeon processor support, extensive memory capacity, and robust networking capabilities, making it ideal for demanding business environments.

    Key Features

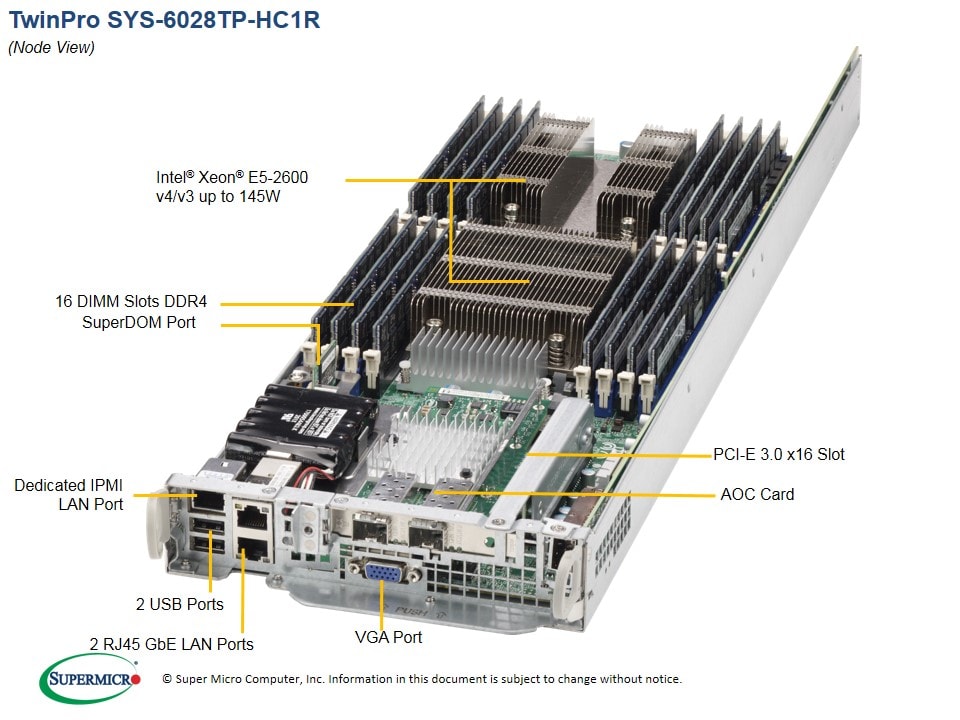

    • Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:
    • Dual socket R (LGA 2011) supports Intel® Xeon® processor E5-2600 v4 † / v3 family; QPI up to 9.6GT/s
    • Up to 2TB † ECC 3DS LRDIMM , up to DDR4- 2400 † MHz ; 16x DIMM slots
    • 1x PCI-E 3.0 x16 Low-profile slot
    • Intel® i350-AM2 Dual port GbE LAN
    • Integrated IPMI 2.0 with KVM and Dedicated LAN
    • 3x 3.5" Hot-swap SAS/SATA HDD Bays
    • Broadcom 3108 SAS3 controller (3 ports); RAID 0, 1, 5, 10
    • 2000W Redundant Power Supplies

    Key Applications

    • Data centers
    • Virtualization
    • Cloud computing
    • High-performance computing
    • Database management
    • Enterprise applications

    Description

    The Supermicro SYS-6028TP-HC1R is built to meet the high-performance needs of modern data centers. Each of the four nodes supports dual Intel Xeon processors, up to 2TB of DDR4 memory, and comes equipped with essential connectivity options including multiple Gigabit Ethernet ports and dedicated IPMI LAN for remote management. With its hot-swappable components and redundant power supplies, the SYS-6028TP-HC1R offers exceptional uptime and efficiency.

    Product Specifications

    Specification Details
    Product SKUs
    SYS-6028TP-HC1R
    • SuperServer 6028TP-HC1R ( Black )
    Processor/Cache (per Node)
    CPU
    • Intel® Xeon® processor E5-2600 v4†/ v3 family (up to 145W TDP)*
    • Dual Socket R3 (LGA 2011)
    Cores / Cache
    • Up to 22 Cores†/ Up to 55MB†Cache
    System Bus
    • QPI up to 9.6 GT/s
    Note
    • †BIOS version 2.0 or above is required
    Note
    • * Please contact Safe Consulting Technical Support for additional information about frequency optimized CPUs and specialized system optimization.
    System Memory (per Node)
    Memory Capacity
    • 16x 288-pin DDR4 DIMM slots
    • Up to 2TB†ECC 3DS LRDIMM, 512GB ECC RDIMM
    Memory Type
    • 2400†/2133/1866/1600MHz ECC DDR4 SDRAM 72-bit
    DIMM Sizes
    • RDIMM: 64GB, 32GB, 16GB, 8GB, 4GB
    • LRDIMM: 64GB, 32GB
    • 3DS LRDIMM: 128GB
    Memory Voltage
    • 1.2 V
    Error Detection
    • Corrects single-bit errors
    On-Board Devices (per Node)
    Chipset
    • Intel® C612 chipset
    SAS
    • Broadcom 3108 SAS3 (12Gbps) controller;RAID 0, 1, 5, 10 support
    • Optional SuperCap
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    • ASPEED AST2400 BMC
    Network Controllers
    • Intel® i350-AM2 Dual Port Gigabit Ethernet
    • Virtual Machine Device Queues reduce I/O overhead
    • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
    • 1x Realtek RTL8201N PHY (dedicated IPMI)
    Graphics
    • ASPEED AST2400 BMC
    Input / Output (per Node)
    SAS
    • 3x SAS3 (12Gbps) ports
    LAN
    • 2x RJ45 Gigabit Ethernet LAN ports
    • 1x RJ45 Dedicated IPMI LAN port
    USB
    • 2x USB 3.0 ports total (2x rear)
    VGA
    • 1x VGA port
    Serial Port / Header
    • 1x Fast UART 16550 port / 1 Header (internal)
    Others
    • 1x SATADOM support on the motherboard
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-827HQ+-R2K04B
    Dimensions and Weight
    Width
    • 17.25" (438mm)
    Height
    • 3.47" (88mm)
    Depth
    • 30.5" (774mm)
    Weight
    • Gross Weight: 90 lbs (40.9kg)
    • Net Weight: 72 lbs (32.7 kg)
    Available Colors
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    • UID button
    LEDs
    • Power status LED
    • HDD activity LED
    • 2x Network activity LEDs
    • Universal Information (UID) LED
    Expansion Slots (per Node)
    PCI-Express
    • 1x PCI-E 3.0 x16 Low-profile slot
    Drive Bays (per Node)
    Hot-swap
    • 3x 3.5" Hot-swap SAS/SATA HDD trays
    System Cooling
    Fans
    • 4x 8cm heavy duty PWM fans with optimal fan speed control
    Power Supply (76mm Width)
    • 2000W Redundant Power Supplies with PM Bus
    Total Output Power
    • 1000W: 100 – 127Vac
    • 1800W: 200 – 220Vac
    • 1980W: 220 – 230Vac
    • 2000W: 230 – 240Vac
    • 2000W: 200 – 240Vdc (UL/cUL only)
    Dimension(W x H x L)
    • 76 x 40 x 336 mm
    Input
    • 1000W: 100-127 Vac / 12-9.5 A / 50-60 Hz
    • 1800W: 200-220 Vac / 10-9.5 A / 50-60 Hz
    • 1980W: 220-230 Vac / 10-9.8 A / 50-60 Hz
    • 2000W: 230-240 Vac / 10-9.8 A / 50-60 Hz
    • 2000W: 200-240 Vac / 11.8-9.8 A / 50-60 Hz (UL/cUL only)
    +12V
    • Max: 83.3A / Min: 0A (100-127 Vac)
    • Max: 150A / Min: 0A (200-220 Vac)
    • Max: 165A / Min: 0A (220-230 Vac)
    • Max: 166.7A / Min: 0A (230-240 Vac)
    • Max: 166.7A / Min: 0A (200-240 Vac)(UL/cUL only)
    +5Vsb
    • Max: 1A / Min: 0A
    Output Type
    • 27 Pairs Gold Finger Connector
    Certification
    • Titanium Level
    System BIOS
    BIOS Type
    • 128Mb SPI Flash EEPROM with AMI BIOS
    BIOS Features
    • Plug and Play (PnP)
    • APM 1.2
    • PCI 2.2
    • ACPI 1.0 / 2.0
    • USB Keyboard support
    • SMBIOS 2.3
    • UEFI
    Operating Environment / Compliance
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:10°C to 35°C (50°F to 95°F)
    • Non-operating Temperature:-40°C to 70°C (-40°F to 158°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)
    General
    Motherboard (Four per System)
    • Super X10DRT-P

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X10DRT-P4Super X10DRT-P Motherboard
    CSE-827HQ+-R2K04B12U Chassis
    Backplane
    BPN-ADP-S3108L-H6IRP4LSI 3108, SAS 12Gbps (x6 internal)
    BPN-SAS3-827HQ112-port 2U TwinPro^2 SAS3 CSE-827HQ (3 drives per node) backplane, support up to 12x 3.5-inch SAS3/SATA3 HDD
    Cable 1
    CBL-PWCD-05782PWCD,US,IEC60320 C14 TO C13,3FT,14AWG
    Label
    LBL-01081CAUTION LABEL FOR REDUNDANT PWR SYSTEMS
    Manual
    MNL-1664-QRG16028TP-HC1R/HC1TR/HC1FR, QRG
    Riser Card
    RSC-R1UTP-E16R41U RHS TwinPro Riser card with one PCI-E x16 slot
    Heatsink / Retention
    SNK-P0047PSM41U Passive Front CPU Heat Sink w/ a Middle Air Channel for X9, X10 2U Twin^2+ and Twin Pro^2 Series Servers
    SNK-P0057PS41U High Performance Passive CPU Heat Sink for X9, X10 Systems Equipped w/ a Narrow ILM MB

    Optional Part List

    Part Number Quantity Description
    SuperCap Kit
    BTR-CV3108-TP1-Broadcom 3108 CacheVault kit for TwinPro
    Hot-swap 3.5" to 2.5" Hard Disk Drive Tray
    MCP-220-00043-0N-Black Hot-swap gen 4 3.5" to 2.5" HDD tray
    Global Services & Support
    OS4HR3/2/1-3/2/1-year onsite 24x7x4 service
    OSNBD3/2/1-3/2/1-year onsite NBD service
    Software
    SFT-OOB-LIC4OOB Management Package (per node license)
    SFT-DCMS-Single4DataCenter Management Package (per node license)
