  2. X11DPT-L,827HQ-R1K68BP3,BPN-ADP-6SATA3M2-1UL

X11DPT-L,827HQ-R1K68BP3,BPN-ADP-6SATA3M2-1UL

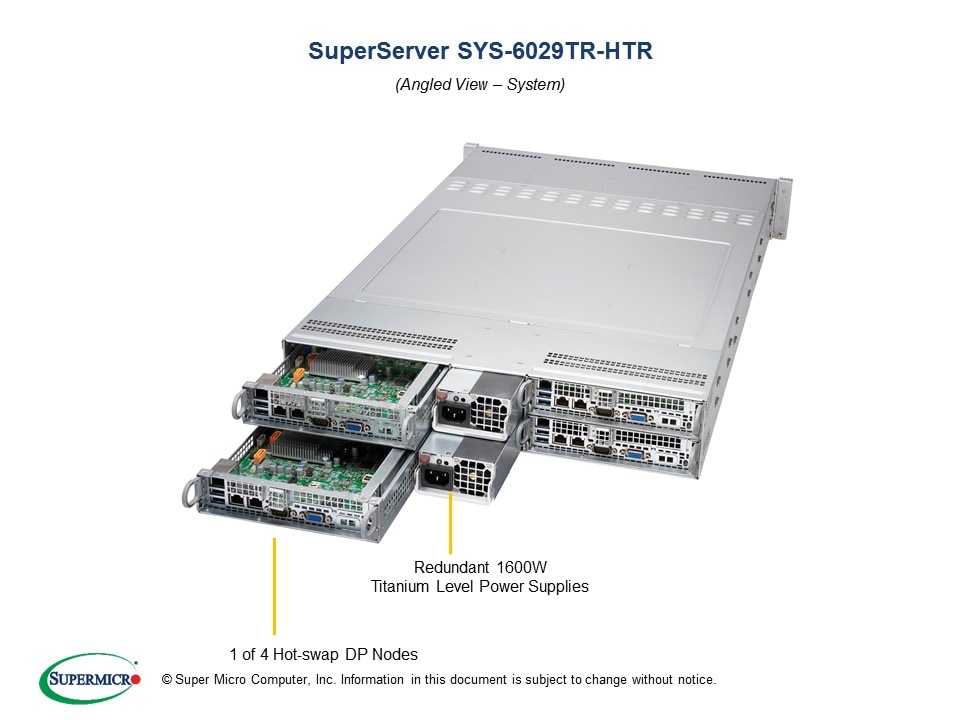

SYS-6029TR-HTR

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/10609/image_1920?unique=f7d9088

kr 43 319,87 43319.87 NOK kr 43 319,87

kr 43 319,87

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    The Supermicro SYS-6029TR-HTR is a high-performance 2U Rackmount server, featuring dual 2nd Gen Intel Xeon Scalable processors, up to 2TB of memory, and advanced management capabilities. Ideal for HPC, enterprise servers, and mission-critical applications.

    Key Features

    • Dual-Socket P (LGA 3647) with 2nd Gen Intel Xeon Scalable Processors
    • Advanced management with IPMI 2.0 and Intel Node Manager
    • Supports up to 3 hot-swap 3.5" SATA3 HDDs
    • Instrumentation for PC health monitoring and thermal control
    • Intel C621 chipset with SATA3 RAID support
    • Up to 22 cores per processor
    • Up to 2TB 3DS ECC DDR4-2933MHz RDIMM/LRDIMM
    • Redundant 1600W power supplies with PMBus

    Key Applications

    • HPC
    • Data Center
    • Enterprise Server
    • Finanical Analysis
    • Mission-critical applications

    Description

    The Supermicro SYS-6029TR-HTR is engineered for high performance and reliability, making it the perfect choice for HPC, data centers, financial analysis, and other enterprise-level, mission-critical applications. It features a 2U Rackmount chassis with dual-socket, 2nd Gen Intel Xeon Scalable processors, up to 22 cores, and support for up to 2TB of memory. The system includes advanced management tools like IPMI 2.0, Intel Node Manager, and SuperDoctor 5. For storage, it offers 3 hot-swap 3.5" SATA3 HDD trays and support for M.2 and SuperDOM drives. The robust cooling system and redundant power supplies ensure optimal performance and reliability.

    Product Specifications

    Specification Details
    Product SKUs
    SYS-6029TR-HTR
    • SuperServer 6029TR-HTR ( Black )
    Processor (per Node)
    CPU
    • Dual Socket P (LGA 3647)
    • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors‡,Dual UPI up to 10.4GT/s
    • Support CPU TDP 70-140W
    Cores
    • Up to 22 Cores
    Note
    • *Processors ending No or S (such as 6230N, 5220S) are not supported
    Note
    • ‡BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)
    System Memory (per Node)
    Memory Capacity
    • 8 DIMM slots
    • Up to 2TB 3DS ECC DDR4-2933MHz†RDIMM/LRDIMM
    Memory Type
    • 2933†/2666/2400/2133MHz ECC DDR4 RDIMM/LRDIMM
    Note
    • †2933MHz in two DIMMs per channel can be achieved by using memory purchased from Supermicro
    On-Board Devices (per Node)
    Chipset
    • Intel® C621 chipset
    SATA
    • SATA3 (6Gbps); RAID 0, 1, 5 support
    Network Controllers
    • Intel® C621 chipset
    IPMI
    • Support for Intelligent Platform Management Interface v.2.0
    • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
    Graphics
    • ASPEED AST2500 BMC
    Input / Output (per Node)
    SATA
    • 3 SATA3 (6Gbps) ports
    LAN
    • 2 RJ45 Gigabit Ethernet LAN ports
    • 1 RJ45 Dedicated IPMI LAN port
    USB
    • 2 USB 3.0 ports total (rear)
    VGA
    • 1 VGA port
    Serial Port / Header
    • 1 COM Port (1 rear)
    Others
    • TPM 2.0 Header
    System BIOS
    BIOS Type
    • AMI 32Mb SPI Flash ROM with UEFI
    Management
    Software
    • Intel® Node Manager
    • IPMI 2.0
    • KVM with dedicated LAN
    • NMI
    • SSM , SPM , SUM
    • SuperDoctor® 5
    • Watchdog
    PC Health Monitoring
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 4+1 Phase-switching voltage regulator
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-827HQ-R1K68BP3
    Dimensions and Weight
    Width
    • 17.25" (438mm)
    Height
    • 3.47" (88mm)
    Depth
    • 28.5" (724mm)
    Weight
    • Gross Weight: 73.5 lbs (33.34kg)
    • Net Weight: 52.1 lbs (23.63kg)
    Available Colors
    • Black
    Front Panel
    Buttons
    • Power On/Off button
    • UID button
    LEDs
    • Power status LED
    • HDD activity LED
    • Network activity LEDs
    • Universal Information (UID) LED
    Expansion Slots (per Node)
    PCI-Express
    • 1 PCI-E 3.0 x16 Low-profile slot
    Drive Bays / Storage (per Node)
    Hot-swap
    • 3 Hot-swap 3.5" SATA3 HDD trays
    Others
    • 2 SATA DOM
    • 1 PCI-E 3.0 x4 NVMe or 1 SATA M.2 (22110/2280) support via BPN-ADP-6SATA3M2-1UL* M.2 and SuperDOM are for OS boot
    System Cooling
    Fans
    • 4x 8cm heavy duty PWM fans with optimal fan speed controlled
    Power Supply (76mm Width)
    • 1600W 1U Redundant Power Supplies with PM Bus
    Total Output Power
    • 800W: 100 – 140Vac
    • 1600W: 180 – 240Vac
    Dimension(W x H x L)
    • 76 x 40.4 x 336 mm
    Input
    • 100-140Vac / 10-7A / 50-60Hz
    • 180-240Vac / 11-8A / 50-60Hz
    +12V
    • Max: 67A / Min: 0A (100-140Vac)
    • Max: 133A / Min: 0A (180-240Vac)
    +5Vsb
    • Max: 1A / Min: 0A
    Output Type
    • 27 Pairs Gold Finger Connector
    Certification
    • Titanium Level
    Operating Environment
    RoHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature:10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature:-40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity:8% to 90% (non-condensing)
    • Non-operating Relative Humidity:5% to 95% (non-condensing)
    General
    Motherboard (Four per System)
    • Super X11DPT-L

    Standard Part List

    Part Number Quantity Description
    Motherboard / Chassis
    MBD-X11DPT-L4Super X11DPT-L Motherboard
    CSE-827HQ-R1K68BP312U Chassis
    Backplane
    BPN-ADP-6SATA3M2-1UL46 x SATA3 with 6Gb/s,onboard 1 x M.2 . 22x80 mm and 22x110 mm,HF,RoHS
    BPN-SAS2-827HQ212U 12-Port 4-Node 6Gbps Backplane Supports 3x3.5
    Cable 1
    CBL-PWCD-09002PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17AWG
    Air Shroud
    MCP-310-82722-0B4SC827HQ mylar air shroud for on MBD-X11DPT-L-P
    Manual
    MNL-2163-QRG16029TR-HTR Quick Reference Guide
    Riser Card
    RSC-R1UTP-E16R41U RHS TwinPro Riser card with one PCI-E x16 slot
    Heatsink / Retention
    SNK-P0067PS41U Passive CPU Heat Sink for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    SNK-P0067PSM41U Passive CPU Heat Sink with a 26-mm Wide Middle Air Channel for X11 Purley Platform Equipped with a Narrow Retention Mechanism
    Power Supply
    PWS-1K68A-1R21U 1600W Redundant Titanium Power Supply 76mm width 27Pair,PBF
    FAN 1
    FAN-0162L4480x80x38 mm, 13.5K RPM, HCP, LMV, and LPC Cooling Fan,RoHS/REACH

    Optional Part List

    Part Number Quantity Description
    TPM security module (optional, not included)
    AOM-TPM-9670V1SPI capable TPM 2.0 with Infineon 9670 controller with vertical form factor
    AOM-TPM-9671V1SPI capable TPM 1.2 with Infineon 9670 controller with vertical form factor
    Hot-swap 3.5" to 2.5" Hard Disk Drive Tray
    MCP-220-00043-0N-Black Hot-swap gen 4 3.5" to 2.5" HDD tray
    Global Services & Support
    OS4HR3/2/1-3/2/1-year onsite 24x7x4 service
    OSNBD3/2/1-3/2/1-year onsite NBD service
    Software
    SFT-OOB-LIC1OOB Management Package (per node license)
    SFT-DCMS-Single1DataCenter Management Package (per node license)
