X12 CloudDC 1U, 4x 3.5" SATA, X12DDW-A6, LA15TQC-R860AW

SYS-610C-TR

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (with Minimum 2 CPUs, 4 DIMMs and 1 Storage Device HDD/HDS/M.2, and 1 NIC). NIC requirement can either be AIOM or PCIe card.

For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.

https://safeconsulting.no/web/image/product.template/8882/image_1920?unique=73d2afe

kr 19 518,72 19518.72 NOK kr 19 518,72

kr 19 518,72

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Terms and Conditions

    Summary Description

    Supermicro SYS-610C-TR offers robust performance with dual 3rd Gen Intel Xeon Scalable processors. It supports up to 6TB of 3DS ECC DDR4 memory and various storage options, making it ideal for data centers, cloud computing, and server applications.

    Key Features

    • Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
    • Intel® C621A Chipset
    • 16 DIMMs up to 6TB 3DS ECC DDR4-3200: LRDIMM/RDIMM/Intel® Intel® DCPMM
    • 2 PCIe 4.0 x16 FHHL;2 PCIe 3.0 x2 NVMe M.2
    • Dual AIOM (OCP 3.0) slots with NCSI for networking, 1 dedicated IPMI LAN
    • 4x 3.5/2.5" hot-swap SATA/SAS drive bays
    • 6 counter-rotating 4 cm PWM fans with optimal fan speed control, 2 air shrouds
    • 860W redundant Platinum level 100-240Vac and 200-240 Vdc power supplies
    • 1 VGA, 1 COM, 2 USB 3.0 (rear)

    Key Applications

    • Web Server, Firewall Application
    • Data Center Optimized, Value IaaS
    • Cloud Computing, Compact Server
    • DNS & Gateway Servers, Firewall Application
    • CDN, Edge Nodes

    Description

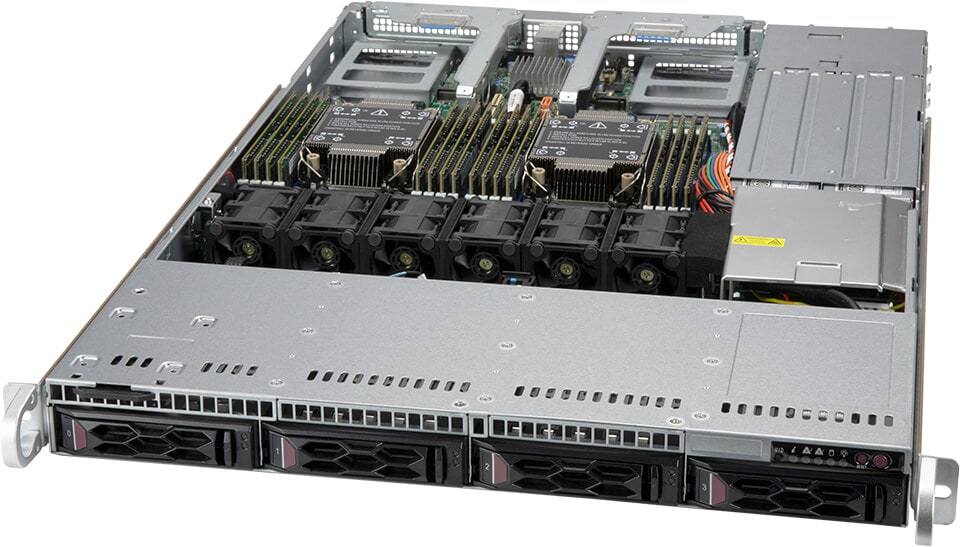

    The Supermicro SYS-610C-TR is a 1U rackmount server designed for high-performance and reliability. It features dual sockets for 3rd Gen Intel Xeon Scalable processors and supports up to 16 DIMMs for a maximum of 6TB of DDR4 memory. The system offers multiple PCIe slots, M.2 slots for NVMe storage, and up to four hot-swap drive bays. With its advanced cooling systems and redundant Platinum level power supplies, the SYS-610C-TR is suitable for demanding data center environments, cloud applications, and compact server deployments.

    Product Specifications

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-610C-TR Standard version with PWS-860P-1R2 (Platinum Level)
    • SuperServer SYS-610C-TR-EU European version with PWS-861A-1R (Titanium Level)
    Motherboard
    Installed Motherboard
    • Super X12DDW-A6
    Processor
    CPU
    • Dual Socket P4 (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 40C/80T; Up to 60MB Cache per CPU
    Note
    • Supports up to 270W TDP CPUs (Air Cooled)*
    • *Air Cooled CPUs with TDP over 205W only supported under specific conditions. Contact a Supermicro representative for details.
    GPU
    Max GPU Count
    • Up to 2 single-width GPUs
    Supported GPU
    • NVIDIA PCIe: L4, A2
    • Intel PCIe: Intel Data Center GPU Flex 140
    System Memory
    Memory
    • Slot Count: 16 DIMM slots
    • Max Memory (1DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
    • Supports Intel® Optane™ persistent memory 200 series
    Memory Voltage
    • 1.2V
    On-Board Devices
    SATA
    • SATA (6Gbps) ; RAID 0/1/5/10 support
    Chipset
    • Intel® C621A
    Network Connectivity
    • Via Slim-AIOM
    Input / Output
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    USB
    • 2 USB 3.0 port(s) (rear)
    Video
    • 1 VGA port(s)
    Serial
    • 1 COM port(s) (Rear)
    DOM
    • 1 Super DOM (Disk on Module) port(s)
    TPM
    • 1 TPM header
    System BIOS
    BIOS Type
    • AMI 32MB SPI FLASH ROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI/APM Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    • Thermal Control for fan connectors
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 8 Phase-switching voltage regulator
    Chassis
    Form Factor
    • 1U Rackmount
    Model
    • CSE-LA15TS-R860AWP
    Dimensions and Weight
    Height
    • 1.7" (43 mm)
    Width
    • 17.2" (437 mm)
    Depth
    • 25.6" (650 mm)
    Package
    • 7.8" (H) x 23.8" (W) x 34.6" (D)
    Weight
    • Gross Weight: 46 lbs (20.9 kg)
    • Net Weight: 25 lbs (11.3 kg)
    Available Color
    • Black front & sliver body
    Front Panel
    LED
    • Drive activity
    • Network activity
    • Power status
    • Universal Information
    Buttons
    • Power On/Off
    • Reset button
    • Unit Identifier (UID)
    Expansion Slots
    PCI-Express (PCIe) Configuration
    Default:
    • 2 PCIe 4.0 x16 FHHL slots
    • 2 PCIe 4.0 x16 AIOM slots (OCP 3.0 compatible)

    Drive Bays / Storage
    Drive Bays Configuration
    Default: Total 4 bays:
    • 4 front hot-swap 3.5" SAS/SATA drive bays

    Option A: Total 4 bays:
    • 4 front hot-swap 2.5" SAS/SATA drive bays

    M.2
    • 2 M.2 PCIe 3.0 x2 NVMe slots (M-key 2280(default); VROC required for RAID)
    Peripheral Bays
    • 2 2.5" peripheral bays (optional)
    System Cooling
    Fans
    • 6x 4cm heavy duty fans with optimal fan speed control
    Air Shroud
    • 2 Air Shrouds
    Power Supply
    1x 860W Redundant Platinum Level (94%) Hot-plug power supply
    Dimension (WxHxL):
    • 54.5 x 40.25 x 322 mm

    AC Input:
    • 800W: 100-127Vac / 50-60Hz
    • 860W: 200-240Vdc / 50-60Hz
    • 860W: 200-240Vac / 50-60Hz

    +12V:
    • Max: 66.6A / Min: 0A (100Vac-127Vac)
    • Max: 71.6A / Min: 0A (200Vdc-240Vdc)
    • Max: 71.6A / Min: 0A (200Vac-240Vac)

    5V SB:
    • Max: 4A / Min: 0A

    Output Type:
    • Backplanes (gold finger)

    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (Non-Condensing)
    • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)

    Optional Part List

    Part Number Quantity Description
    3108 CacheVault
    BTR-CV3108-1U11CacheVault for Broadcom 3108 with mount for 1U 40 cm fan slot. (Note: It will replace one fan and lower overall system cooling)
    BTR-TFM8G-LSICVM021CacheVault for Broadcom 3108 (requires a mount)
    3108 RAID Card
    AOC-S3108L-H8IR-16DD1Standard LP 8 internal ports (12Gb/s) Gen-3 16HDD RAID 0, 1, 5, 6, 10, 50, 60
    CBL-SAST-06991Mini SAS HD-4 SATA 12G,75/75/90/90CM 75CM
    3808 HBA Card
    CBL-SAST-1275A-1001Slimline x8 (STR) to 4x SATA 75/75/90/90CM 75CM
    AOC-S3808L-L8IT1Standard LP 8 internal ports (12Gb/s) Gen-4 16HDD HBA
    3908 RAID Card
    CBL-SAST-1275A-1001Slimline x8 (STR) to 4x SATA 75/75/90/90CM 75CM
    AOC-S3908L-H8IR-16DD1Standard LP 8 internal ports (12Gb/s) Gen-4 122HDD RAID 0, 1, 5, 6, 10, 50, 60
    3908/3916 CacheVault
    BTR-CVPM051CacheVault for Broadcom 3908/3916 (requires a mount)
    AIOM Network Card(s)
    AOC-A25G-m2SM-OCP 3.0 AIOM 2x 25GbE SFP28 PCIe x8 Mellanox® CX-6 LX
    AOC-A100G-b2CM-OCP 3.0 AIOM 2x 100GbE QSFP28 PCIe 4.0 x16 Broadcom® BCM57508
    AOC-AG-i2M-OCP 3.0 AIOM 2x 1GbE RJ45 PCIe 2.1 x4 Intel® i350-AM2
    AOC-A25G-i4SM-OCP 3.0 AIOM 4x 25GbE SFP28 PCIe x8 Intel® E810-CAM1
    AOC-A25G-i2SM-OCP 3.0 AIOM 4x 25GbE SFP28 PCIe x8 Intel® E810-CAM1
    AOC-A25G-b2SM-OCP 3.0 AIOM 2x 25GbE SFP28 PCIe x8 Intel® E810-XXVAM2
    AOC-AG-i4M-OCP 3.0 AIOM 4x 1GbE RJ45 PCIe 2.1 x4 Intel® i350-AM4
    AOC-AG-i4SM-OCP 3.0 AIOM 4x 1GbE SFP PCIe 2.1 x4 Intel® i350-AM4
    AOC-AH25G-m2S2TM-OCP 3.0 AIOM 2x 25GbE SFP28 & 2x 10GbE RJ45 PCIe x8/x4 Mellanox® CX4 Lx EN & Intel® X550-AT2
    AOC-ATG-b2TM-OCP 3.0 AIOM 2x 10GbE RJ45 PCIe 3.0 x4 Broadcom® BCM57416
    AOC-ATG-i2SM-OCP 3.0 AIOM 2x 10GbE SFP+ PCIe 3.0 x8 Intel® X710-BM2
    AOC-ATG-i2T2SM-OCP 3.0 AIOM 4x 10GbE RJ45 & SFP+ PCIe x8 Intel® X710-TM4
    AOC-ATG-i2TM-OCP 3.0 AIOM 2x 10GbE RJ45 PCIe 3.0 x4 Intel® X550-AT2
    AOC-ATG-i4SM-OCP 3.0 AIOM 4x 10GbE SFP+ PCIe 3.0 x8 Intel® XL710-BM1
    AOC-ATGC-i2TM-OCP 3.0 AIOM 2x 10GbE RJ45 PCIe 3.0 x4 Intel® X710-AT2
    Cable Management Arm
    MCP-290-00152-0N11U Supermicro Cable Management Arm 2nd Gen
    CacheVault Mount
    MCP-240-21747-0N1CacheVault mounting card for AIOM slot
    MCP-240-00203-0N1CacheVault mounting bracket for PCIe slot
    MCP-240-00127-0N1CacheVault mounting tray for 2.5" drive bay
    Fan Upgrade
    FAN-0163L4640x40x56 mm 23.3K-20.3K RPM Counter-rotating Fan
    Fixed 2.5" Drive Kit
    MCP-220-81511-0N2FDD-size tray support for 1x 2.5" 7mm drive
    CBL-SAST-0624270cm SATA Cable S-S
    CBL-0211L14PIN-TO-3X SATA POWER CABLE
    Inlet Temp Sensor
    MCP-280-00033-0N1Universal Thermal sensor kit with 80cm I2C cable
    License
    SFT-DCMS-SINGLE1Supermicro System Managment Software License
    SFT-SDDC-SINGLE1Supermicro Data Center Monitor License
    M.2 Tray
    AOC-SLG4-2H8M2-Low Profile PCIe x8 add-on card supports 2 PCIe 4.0 x4 M-Key M.2 NVMe/SATA Modules RAID 0,1
    AOC-SLG3-2M2-Low Profile PCIe x8 add-on card supports 2 PCIe 3.0 x4 M-Key M.2 NVMe Modules
    AOC-SLG3-2NM2-Low Profile PCIe x8 add-on card supports 2 PCIe 3.0 x4 M-Key M.2 NVMe Modules RAID 0,1
    AOC-SLG3-2SM2-Low Profile PCIe x8 add-on card supports 2 PCIe 3.0 x4 M-Key M.2 SATA Modules RAID 0,1
    NC-SI Cable
    CBL-PWEX-1099-341FLAT IDC 2X11F/P1.27 TO IDC 2X11F/P1.27 NCSI 0.5A 35CM
    Power Supply Upgrade
    PWS-1K27A-1R21200W Redundant Titanium Level Power Supply
    TPM
    AOM-TPM-9672V1SPI capable TPM 2.0 with Infineon 9672 controller vertical form factor
    AOM-TPM-9670V-S-FIPS1SPI capable TPM 2.0 with Infineon 9670 controller w/ FIPS vertical form factor
    AOM-TPM-9670V1SPI capable TPM 2.0 with Infineon 9670 controller vertical form factor
    AOM-TPM-9672V-FIPS1SPI capable TPM 2.0 with Infineon 9672 controller w/ FIPS vertical form factor
    VROC HW Key
    AOC-VROCSTNMOD1Intel VROC Standard RAID 0, 1, 10
    AOC-VROCPREMOD1Intel VROC Premium RAID 0, 1, 5, 10
