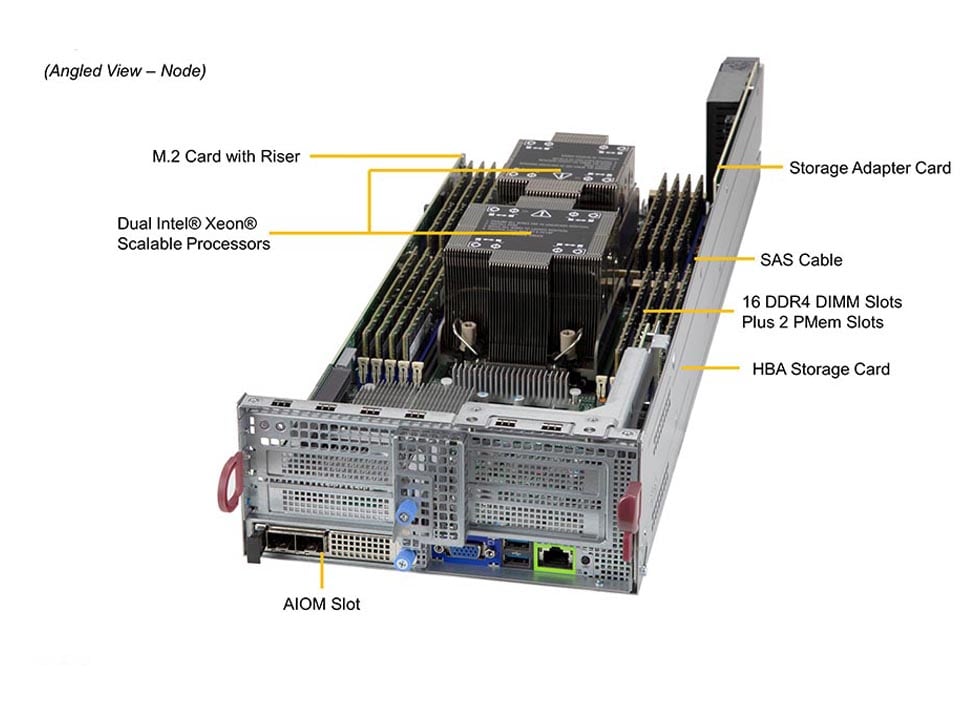

BigTwin 2U 2-Node, 6x3.5 SAS+NVMe, X12DPT-B6, 827BD

SKU: SYS-620BT-DNC8R
Brand: Supermicro
Produktnotat:

Complete System Only: To maintain quality and integrity, this product is sold only as a completely-assembled system (for optimal performance, 16 DIMMs are recommended per node). Minimum requirement is 2 CPUs, 2 DIMMs, 1 NIC and 1 storage device per node (HDD/SSD/NVMe/M.2)

For denne serveren er det best å kontakte oss for å få en fullstendig validert og konfigurert modell. Du kan også legge ønskede komponenter i handlekurven, velge «betal via bankoverføring» ved utsjekk, så forsøker vi å imøtekomme dine ønsker. Vi vil konfigurere systemet ditt så nøyaktig som mulig og sende deg et oppdatert tilbud med et validert system om kort tid. Deretter kan du bestemme om du ønsker denne konfigurasjonen. Den endelige betalingsmetoden avtales når du har akseptert konfigurasjonen.

https://safeconsulting.no/web/image/product.template/10465/image_1920?unique=3b8d240

kr 51 626,98 51626.98 NOK kr 51 626,98 Ekskl. mva

kr 51 626,98 Ekskl. mva

Not Available For Sale

    Denne kombinasjonen eksisterer ikke.

    Kontakt oss

    Salgsbetingelser

    Beskrivelsesammendrag

    The Supermicro SYS-620BT-DNC8R offers cutting-edge performance with 3rd Gen Intel Xeon Scalable processors, 20 DIMM slots, and robust storage options. Perfect for Hyperconverged Infrastructure, Scale-Out Object Storage, and Back-up & Recovery.

    Nøkkelfunksjoner

    • Socket P+ (LGA 4189) support 3rd Gen Intel® Xeon® Scalable processors
    • Intel® C621A
    • 20 DIMM Slots (16 DIMM Slots + 4 Intel® Optane™ Persistent Memory Slots)
    • Optional 2U Riser for Slot 1, CPU1 x16 PCIe 4.0 (RSC-P2R-6G4)1 PCIe 4.0 x16 (LP) slot;2 PCIe 4.0 x8 (LP) slot;Tool-less supportOptional HW RAID Boot Controller via AOC-SMG3-2M2-B (NVMe Only)Internal PCIe 3.0 for 2 x4 M.2 NVMe/SATA support onboard
    • Network connectivity via AIOM (OCP 3.0 compliant)
    • 6 Hot-swap 3.5" drive bays; 6 PCIe 4.0 NVMe/SAS/SATA 3.5" drives
    • 2 cooling fans per node, 14.9K RPM
    • 2200W Redundant Power Supplies Titanium Level (96%+); Shared Power Design
    • Built-in SAS3 Support via Broadcom 3808; IT Mode

    Viktige bruksområder

    • Hyperconverged Infrastructure
    • Scale-Out Object Storage
    • Back-up & Recovery

    Beskrivelse

    The Supermicro SYS-620BT-DNC8R is designed for high-performance computing environments. It supports the latest 3rd Gen Intel Xeon Scalable processors with up to 36 cores per node. The system includes up to 20 DIMM slots, providing exceptional memory capacity and speed. Ideal for applications like Hyperconverged Infrastructure, Scale-Out Object Storage, and critical Back-up & Recovery solutions, this system offers comprehensive management and security features, AIOM network connectivity, and hot-swap drive bays for simple scalability.

    Produktspesifikasjoner

    Specification Details
    Product SKUs
    SKUs
    • SuperServer SYS-620BT-DNC8R
    Motherboard
    Installed Motherboard
    • Super X12DPT-B6
    Processor (per Node)
    CPU
    • Dual Socket P+ (LGA-4189)
    • 3rd Gen Intel® Xeon® Scalable processors
    Core Count
    • Up to 36C/72T; Up to 54MB Cache per CPU
    Note
    • Supports up to 250W TDP CPUs (Air Cooled)
    GPU (per Node)
    Max GPU Count
    • Up to 1 double-width GPU
    System Memory (per Node)
    Memory
    • Slot Count: 16 DIMM slots
    • Max Memory (2DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM
    • Supports Intel® Optane™ persistent memory 200 series
    On-Board Devices (per Node)
    SAS
    • SAS (12Gbps) via Broadcom® 3808; (IT mode)
    Chipset
    • Intel® C621A
    Network Connectivity
    • Via AIOM
    Input / Output (per Node)
    LAN
    • 1 RJ45 1 GbE Dedicated BMC LAN port(s)
    USB
    • 2 USB 3.0 Type-A port(s) (Rear)
    Video
    • 1 VGA port(s)
    System BIOS
    BIOS Type
    • AMI 32MB Flash ROM
    Management
    Software
    • SuperCloud Composer
    • Supermicro Server Manager (SSM)
    • Supermicro Update Manager (SUM)
    • Supermicro SuperDoctor® 5 (SD5)
    • Super Diagnostics Offline (SDO)
    • Supermicro Thin-Agent Service (TAS)
    • SuperServer Automation Assistant (SAA) New!
    Power configurations
    • ACPI/APM Power Management
    Security
    Hardware
    • Trusted Platform Module (TPM) 2.0
    • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
    Features
    • Cryptographically Signed Firmware
    • Secure Boot
    • Secure Firmware Updates
    • Automatic Firmware Recovery
    • System Lockdown
    PC Health Monitoring
    FAN
    • Fans with tachometer monitoring
    • Status monitor for speed control
    • Pulse Width Modulated (PWM) fan connectors
    Temperature
    • Monitoring for CPU and chassis environment
    CPU
    • Monitors for CPU Cores, Chipset Voltages, Memory.
    • 7+1 Phase-switching voltage regulator
    Chassis
    Form Factor
    • 2U Rackmount
    Model
    • CSE-827BD-000NP
    Dimensions and Weight
    Height
    • 3.47" (88 mm)
    Width
    • 17.68" (449 mm)
    Depth
    • 30.5" (774 mm)
    Package
    • 9.76" (H) x 24.65" (W) x 45.28" (D)
    Weight
    • Gross Weight: 80.7 lbs (36.6 kg)
    • Net Weight: 55.1 lbs (25 kg)
    Available Color
    • Black
    Front Panel
    LED
    • HDD activity LED
    • Network activity LEDs
    • Power status LED
    • Universal Information (UID) LED
    Buttons
    • Power On/Off button
    • UID button
    Expansion Slots (per Node)
    PCI-Express (PCIe) Configuration
    Default:
    • 2 PCIe 4.0 x8 LP slots
    • 1 PCIe 4.0 x16 LP slot

    Drive Bays / Storage (per Node)
    Drive Bays Configuration
    Default: Total 6 bays:
    • 6 front hot-swap 3.5" PCIe 4.0 NVMe/SAS/SATA drive bays

    M.2
    • 2 M.2 PCIe 3.0 x4 NVMe/SATA slots (M-key 2280(default); VROC required for RAID)
    System Cooling
    Fans
    • 4x 14.9K RPM Heavy Duty 8cm Fan(s)
    Power Supply
    2x 2200W Redundant (1 + 1) Titanium Level (96%) power supplies
    Dimension (WxHxL):
    • 45 x 40 x 480 mm

    AC Input:
    • 1200W: 100-127Vac / 50-60Hz
    • 2090W: 180-220Vac / 50-60Hz (for UL/cUL safety rating only)
    • 1800W: 200-220Vac / 50-60Hz (for TUV/CB/others safety rating only)
    • 1980W: 220-230Vac / 50-60Hz (for TUV/CB/others safety rating only)
    • 2200W: 220-240Vac / 50-60Hz (for UL/cUL safety rating only)
    • 2090W: 230-240Vdc / 50-60Hz (for CQC safety rating only)
    • 2090W: 230-240Vac / 50-60Hz (for TUV/CB/others safety rating only)

    +12V:
    • Max: 100A / Min: 0A (100Vac-127Vac) (for TUV/CB/others safety rating only)
    • Max: 174.17A / Min: 0A (180Vac-220Vac) (for UL/cUL safety rating only)
    • Max: 150A / Min: 0A (200Vac-220Vac) (for TUV/CB/others safety rating only)
    • Max: 165A / Min: 0A (220Vac-230Vac) (for TUV/CB/others safety rating only)
    • Max: 183.33A / Min: 0A (220Vac-240Vac) (for UL/cUL safety rating only)
    • Max: 174.17A / Min: 0A (230Vdc-240Vdc) (for CQC safety rating only)
    • Max: 174.17A / Min: 0A (230Vac-240Vac) (for TUV/CB/others safety rating only)

    12V SB:
    • Max: 2.1A / Min: 0A

    Output Type:
    • Backplanes (connector)

    Operating Environment
    ROHS
    • RoHS Compliant
    Environmental Spec.
    • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
    • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
    • Operating Relative Humidity: 8% to 90% (Non-Condensing)
    • Non-operating Relative Humidity: 5% to 95% (Non-Condensing)

    Valgfrie Opsjoner

    Part Number Quantity Description
    2U Riser for Slot 1, CPU1 x16 PCIe 4.0
    RSC-P2R-6G4-expansion slots
    3.5-to-2.5" HDD Conversion Tray
    MCP-220-00140-0B-Black gen 8 hot-swap 3.5-to-2.5 Tool-less HDD tray, orange tab (Qty as Needed)
    M.2 NVMe RAID Controller
    AOC-SMG3-2M2-B-P-2x M.2 NVMe RAID Controller Card, x8 Gen3
    SPI Capable TPM Options
    AOM-TPM-9670H-S1SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor (Qty per Node)
    AOM-TPM-9671H-S1SPI Capable TPM 1.2 Provisioned for Server, Horizontal Form Factor (Qty per Node)
    AOM-TPM-9670H-FIPS1SPI Capable TPM 2.0 Provisioned for Server, Horizontal Form Factor, Supporting FIPS 140-2 (Qty per Node)
    SuperCloud Composer License
    SFT-SDDC-SINGLE-SDDC Monitor License - Single License per Monitored host
    System Management Suite
    SFT-DCMS-Single-Supermicro System Management Software Suite node
    VROC Options
    AOC-VROCSTNMOD1Intel VROC Standard, RAID 0, 1, 10 (Qty per Node)
    AOC-VROCPREMOD1Intel VROC Premium, RAID 0, 1, 5, 10 (Qty per Node)
