X12DPT-PT6, CSV-827HQ+-R2K20BP4, AOC-S3808L-L8IT

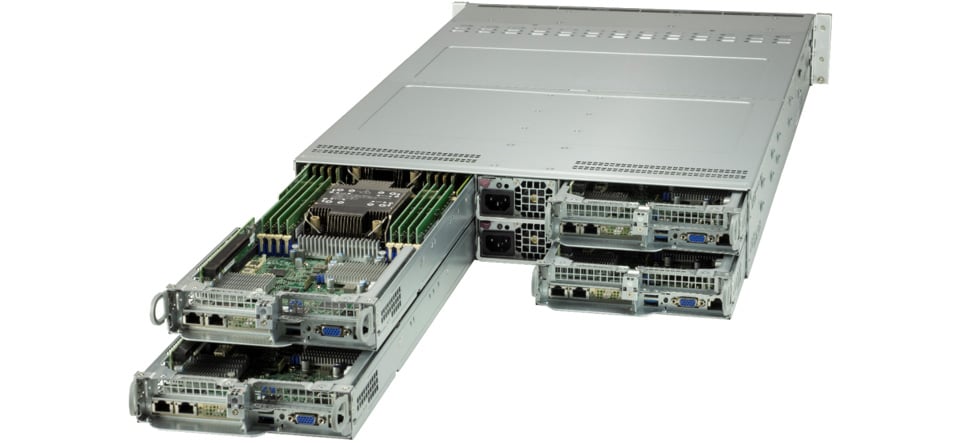

SYS-620TP-HC8TR
For this server, it's best to contact us for a fully validated, configured model. You can also add desired components to your cart, select "pay by bank transfer" at checkout, and we'll try to fulfill your wishes. We'll configure your system as closely as possible and send an updated quote with a validated system shortly. You can then decide if you want this configuration. The final payment method will be agreed upon after you accept the configuration.
Summary Description
The Supermicro SYS-620TP-HC8TR features dual Socket P+ (LGA-4189) 3rd Generation Intel Xeon Scalable Processors and supports up to 4TB of 3DS ECC DDR4-3200 LRDIMM/RDIMM memory. With advanced cooling solutions and redundant power supplies, this server ensures high reliability and performance under demanding workloads.
Key Features
- Dual Socket P+ (LGA-4189) 3rd Generation Intel® Xeon® Scalable Processors
- Intel® C621A Chipset
- 16 DIMMs, Up to 4TB 3DS ECC DDR4-3200 LRDIMM/RDIMM
- 1 PCIe 4.0 x16 (LP), 1 PCIe 4.0 x8 (with M.2 adapter installed for support 2 NVME up to 22x80 mm)
- Intel® X710 Dual port 10GBase-T LAN onboard
- 3x 3.5" hot-swap SATA/SAS drive bays
- 4 heavy duty 8cm PWM fans with optimal fan speed control (Per System)
- Two 2200W redundant power supplies with PMBus
- Broadcom® 3808 SAS (12Gbps); 3 slots per node; HBA only, no RAID support.ASPEED AST2600 BMC, 2 USB, VGA. RoT
Key Applications
- High Performance Computing
- Hyper-Converged Infrastructure
- Big Data / Big Science
Description
The Supermicro SYS-620TP-HC8TR is engineered for workloads requiring immense computational power and storage. Equipped with dual Socket P+ (LGA-4189) 3rd Generation Intel Xeon Scalable Processors, this server offers unparalleled processing capabilities and scalability. It supports up to 4TB of 3DS ECC DDR4-3200 memory across 16 DIMM slots, delivering high-speed data processing and efficient memory management. The system includes 3x 3.5" hot-swap SATA/SAS drive bays, Intel X710 dual port 10GBase-T LAN, and multiple expansion slots including PCIe 4.0. Enhanced by four heavy-duty 8cm PWM fans and two 2200W redundant power supplies, the SYS-620TP-HC8TR ensures optimal thermal management and power efficiency, making it an excellent choice for environments that require robust performance and reliability.
Product Specifications
| Specification | Details |
|---|---|
| Product SKUs | |
| SKUs |
|
| Motherboard | |
| Installed Motherboard |
|
| Processor (per Node) | |
| CPU |
|
| Core Count |
|
| Note |
|
| System Memory (per Node) | |
| Memory |
|
| Memory Voltage |
|
| On-Board Devices (per Node) | |
| Chipset |
|
| Network Connectivity |
|
| Input / Output (per Node) | |
| LAN |
|
| USB |
|
| Video |
|
| System BIOS | |
| BIOS Type |
|
| Management | |
| Software |
|
| Power configurations |
|
| Security | |
| Hardware |
|
| Features |
|
| PC Health Monitoring | |
| CPU |
|
| FAN |
|
| Temperature |
|
| Chassis | |
| Form Factor |
|
| Model |
|
| Dimensions and Weight | |
| Height |
|
| Width |
|
| Depth |
|
| Package |
|
| Weight |
|
| Available Color |
|
| Front Panel | |
| LED |
|
| Buttons |
|
| Expansion Slots (per Node) | |
| PCI-Express (PCIe) Configuration | Default:
|
| Drive Bays / Storage (per Node) | |
| Drive Bays Configuration | Default: Total 3 bays:
|
| M.2 | |
| System Cooling | |
| Fans |
|
| Air Shroud |
|
| Power Supply | |
| 1x 2200W Redundant Titanium Level (96%) power supply | Dimension (WxHxL):
AC Input:
+12V:
5V SB:
Output Type:
|
| Operating Environment | |
| Environmental Spec. |
|
| General | |
| Standard Parts (Parts Included) | |
Standard Part List
| Part Number | Quantity | Description |
|---|---|---|
| Motherboard / Chassis | ||
| MBD-X12DPT-PT6 | 4 | Super X12DPT-PT6 Motherboard |
| CSV-827HQ+-R2K20BP4 | 1 | 2U Chassis |
| Add-on Card / Module | ||
| AOC-S3808L-L8IT-P | 4 | 8 int 12Gb/s SAS3 ports, x8 Gen4, HBA - LP,122HDDw/exp,R |
| Backplane | ||
| BPN-SAS3-827HQ3 | 1 | 2U 12-Slot 4-Node TwinPro Backplane Supports up to 3x3.5" SA |
| Cable | ||
| CBL-PWCD-0900 | 2 | PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17 |
| CBL-SAST-1334-100 | 4 | [NR] SlimSAS x8 (STR to STR),34CM,100 OHM,RoHS |
| Air Shroud | ||
| MCP-310-21732-0B | 4 | TwinPro 2U4N plastic air shroud for X12DPT-PT6(2pcs) |
| Riser Card | ||
| RSC-P-6G4 | 4 | 1U LHS TwinPro Riser card with one PCIe 4.0x16lotH,RoHS |
| RSC-PR-6-X2 | 4 | 1U RHS TwinPro Riser card with one PCIe 4.0 x16 slot,HF,RoH |
| Storage Controller Card | ||
| SCC-P2N2M2-P2 | 4 | 2x NVMe M.2 carrier up to 2280 for X12 Twinpro |
| SCC-P6SG4-P1 | 4 | 1U Passive Gen4 6x SAS/SATA connecting to AOC 3808/3908 |
| Software | ||
| SFT-OOB-LIC | 4 | License key for enabling OOB BIOS management |
| Heatsink / Retention | ||
| SNK-P0077PM | 4 | X12 ICX/CPX 1U Passive CPU Heatsink (78x113x24.7mm), w/ Center Air channel |
| SNK-P0077V | 4 | X12 ICX/CPX CPU Heatsink (78x113x25.5mm), VC Base, Cu Fin |
| *Power Supply | ||
| PWS-2K20A-1R | 2 | 1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm |
| *Power Distributor | ||
| PDB-PT217-H2412 | 1 | 2U support redundancy input powers up to 2.6KW for Twin seri |
| *Fan | ||
| FAN-0162L4 | 4 | 80x80x38 mm, 13.5K RPM, HCP, LMV, and LPC Cooling Fan,RoHS/REACH |
| *Drive Tray(s) | ||
| MCP-220-00075-0B | 12 | Black gen 5.5 hot-swap 3.5" HDD tray |
| *Rail Set | ||
| MCP-290-00053-0N | 1 | Rail set, quick/quick, default for 2,3U 17.2"W |
| *Fan Holder | ||
| MCP-320-21701-0N | 2 | Twin Pro fan holder (hold 2 80x38 fans),RoHS/REACH |
Optional Part List
| Part Number | Quantity | Description |
|---|---|---|
| TPM security module (optional, not included) | ||
| AOM-TPM-9670H-O | 1 | SPI capable TPM 2.0 with Infineon 9670 controller with Horizontal form factor |
| AOM-TPM-9671H-O | 1 | SPI capable TPM 1.2 with Infineon 9670 controller with Horizontal form factor |
| VROC Premium | ||
| AOC-VROCPREMOD | 1 | Intel VROC Premium, RAID 0, 1, 5, 10 |
| VROC Standard | ||
| AOC-VROCSTNMOD | 1 | Intel VROC Standard, RAID 0, 1, 10 |
